DOmini

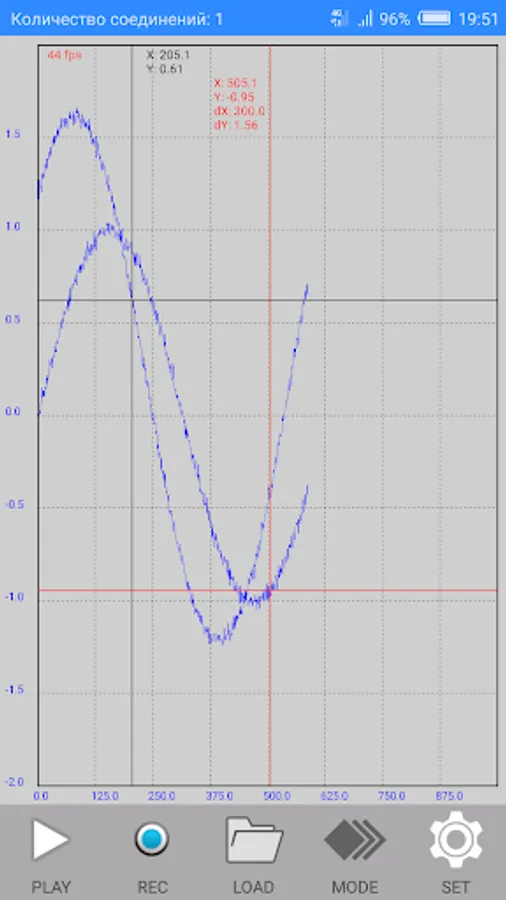

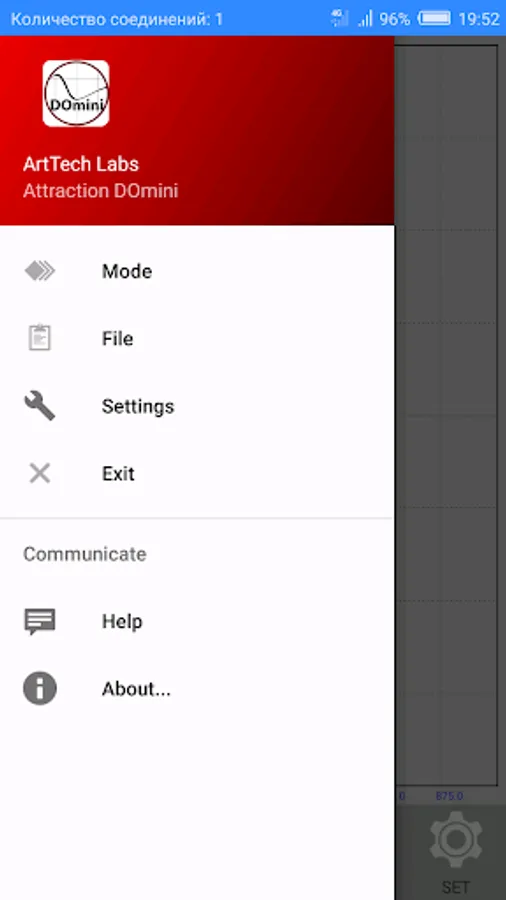

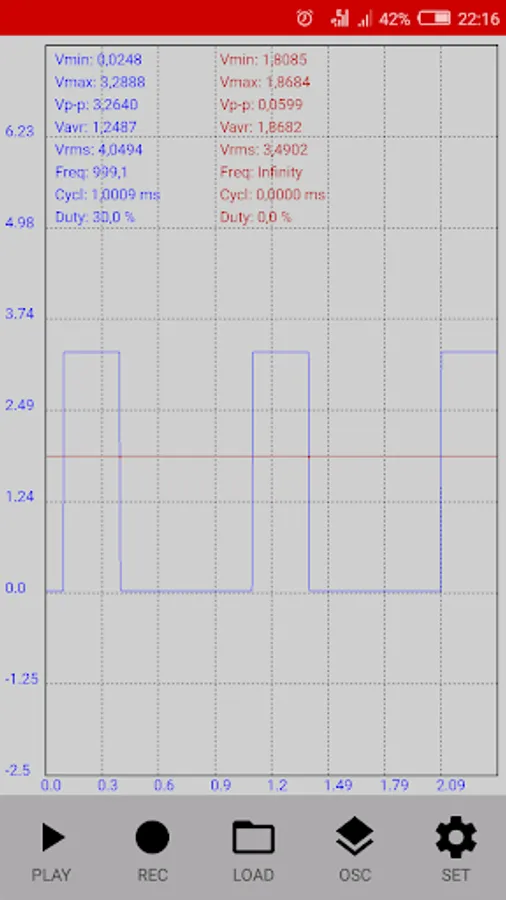

management software digital oscilloscope Attraction DOmini.
Oscilloscope is ideal for students, amateur radio (Arduino),-experimental research, electronic engineers, etc.

Features:
- 6 - measuring channels (4 + 2 analog digital);
- 4 - the measurement mode (single, normal (standby), auto recorder) (single, normal, auto, reader);
- Trigger events from data capture to the occurrence of the event;
- Fourier real-time analysis;
- Volume of the memory waveform 13,200 measurements (up to 26 logic analyzer 400);
- The number of measurements per second for the analog channels from 5000 to 1,000,000;
- The number of measurements per second for the digital channels by 5000 to 12 million;
- Available voltage + 3.3V and + 5V;
- Calibration of the probe and the establishment of its units;
- Compatible with a standard oscilloscope probe x1, x10;
- Range of measured voltages ± 5 V, 0 ÷ 10B (± 15V, 0 ÷ 30B) with x1 probe;
- 10 bit resolution ADC;
- 4 digital inputs / outputs PWM;
- Digital interfaces: SPI, I2C, UART, 1-WIRE.

Application:
- Interim analysis of analog and digital signals;
- Frequency signal analysis (fast Fourier transform);
- control external devices via a 4-I / O ports;
- Generation of PWM signal from 3Hz to 10MHz;
- Testing ICs with digital interfaces (SPI, I2C, UART, 1-WIRE);
- Use as a source voltage of + 3.3V and + 5V (up to 30mA);
- Use as a data acquisition system (connecting different sensors: temperature sensors, humidity sensors, irradiance, etc.);
- Detection of a high-resistance state input / output ports (Z-state).
