At the time of processing, such as in a machining center with a rotary table, you can do parallel and vertical out of work in one shot.
We made the assumption that you use the touch probe, but can be used if hang in there even with a dial gauge.

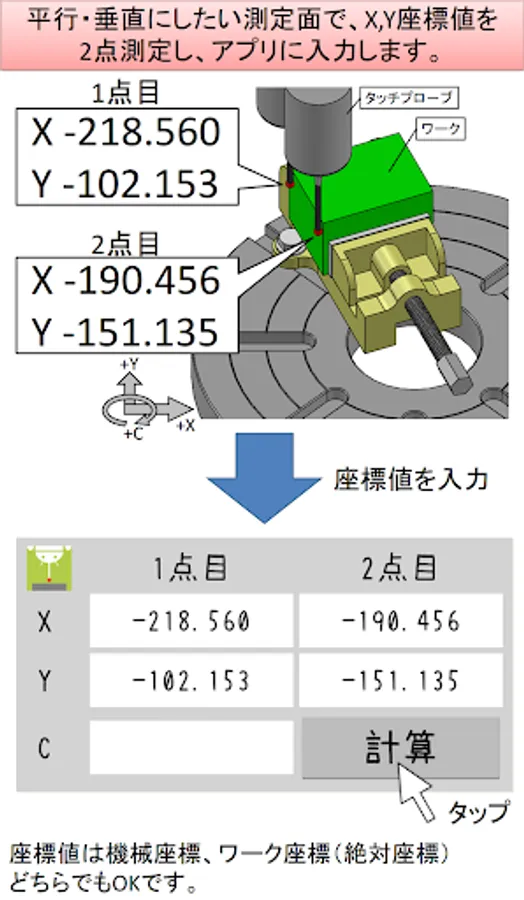

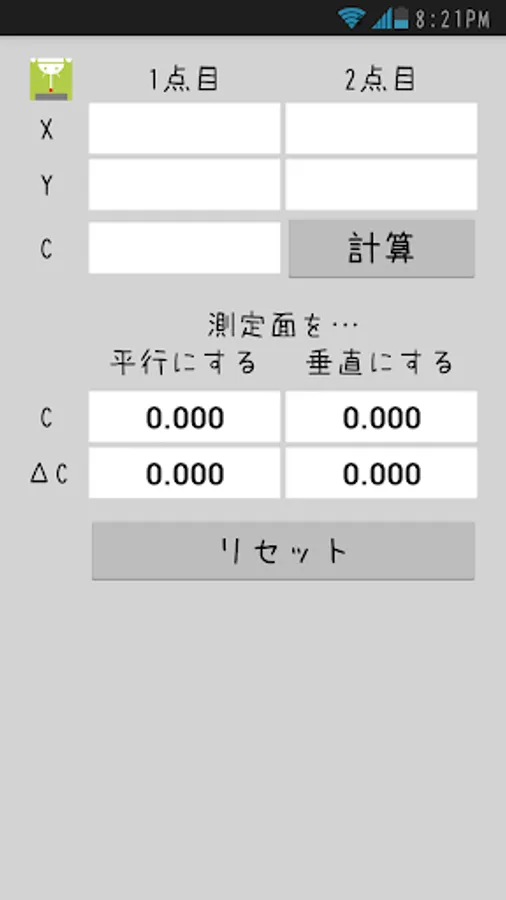

① in measuring surface you want to parallel and vertical, X, Y coordinate values measured two points, enter the app.

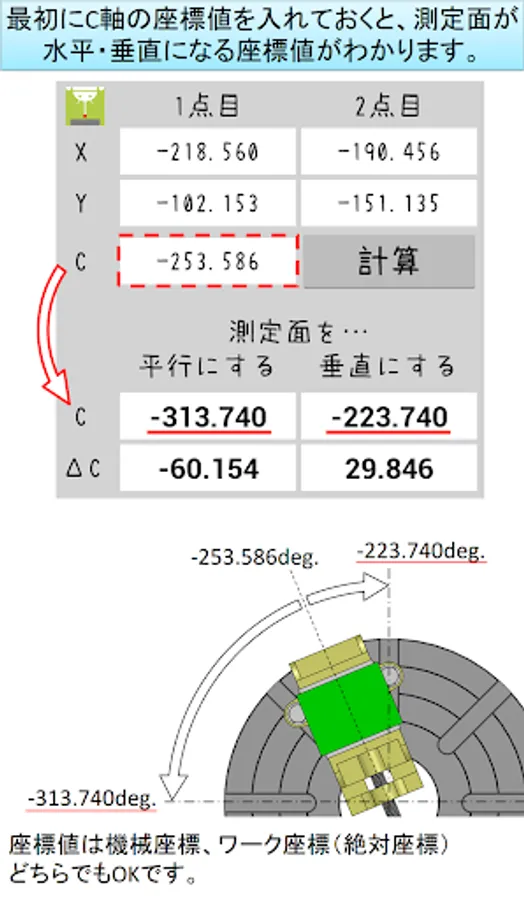

Coordinate value of ②C axis also have entered the app. (It can be blank)

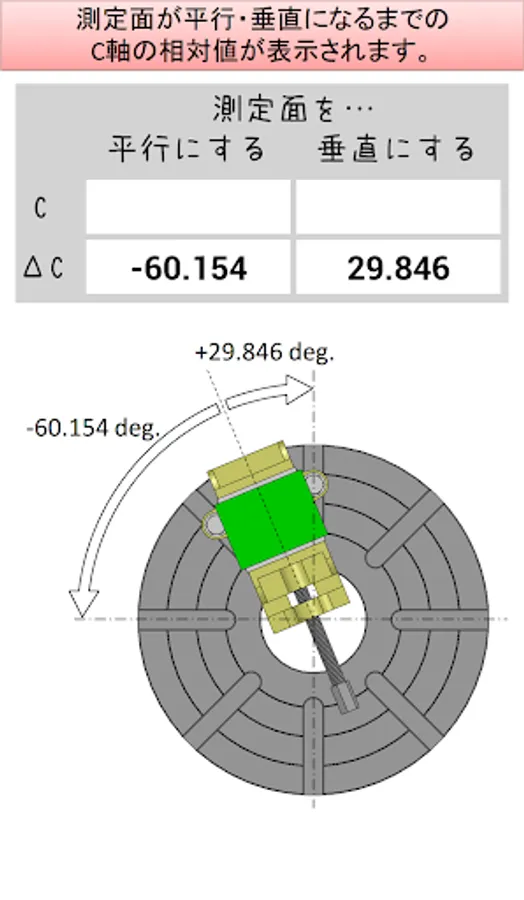

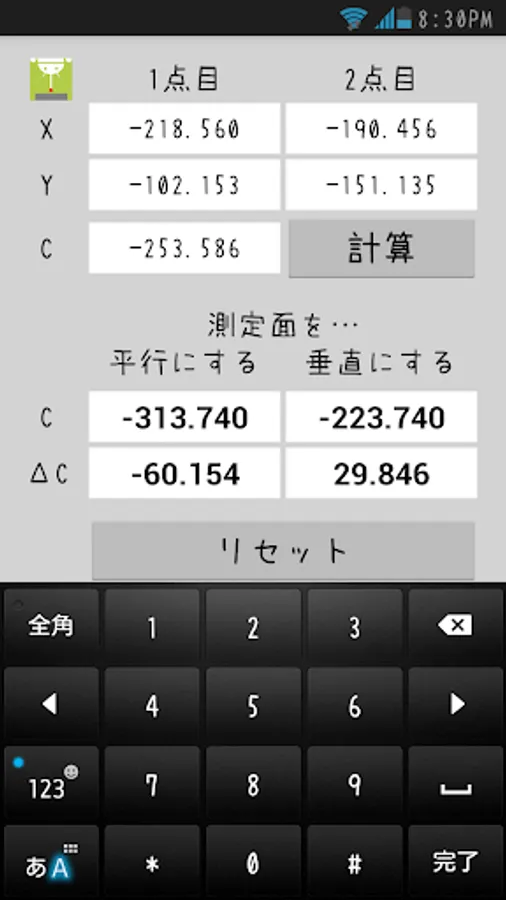

③ Press the calculation button, rotate the C-axis until the value of the displayed C.
(If you have to blank in ②, Please match the angle relative value ΔC)
※ coordinate values to be input is OK machine coordinate, either work coordinates (absolute coordinates).
