Revolver Nagant 1878 expliqué icon

Revolver Nagant 1878 expliqué

Gerard Henrotin - HLebooks.com
$5.49
5+ downloads

About Revolver Nagant 1878 expliqué

1873 Dutch revolver revolver Belgian 1878
- Start of activity of the firm Nagant
- The pistol-Nagant Remington model 1877

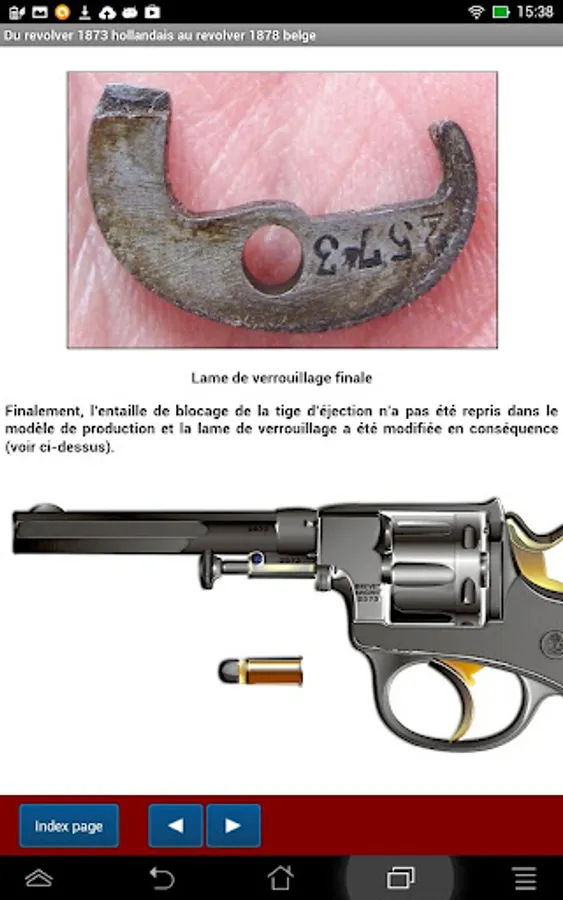

- Participation in the Dutch model of 1873
- Platinum Model 1873 Dutch
- Belgian model 1831 percussion pistol
- Belgian Patent No. 42907 Nagant of August 25, 1877
- Characteristics of the prototype Nagant 1878

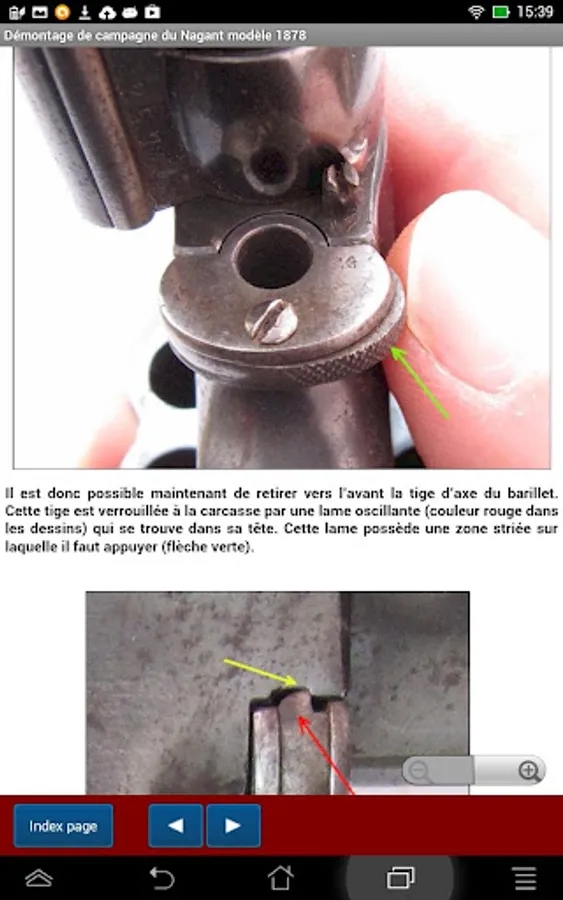

Dismantling campaign Nagant model 1878
- Stem axis of the barrel
- Wand ejection
- Lock the rod axis of the cylinder
- Door Loading
- Extraction of the barrel

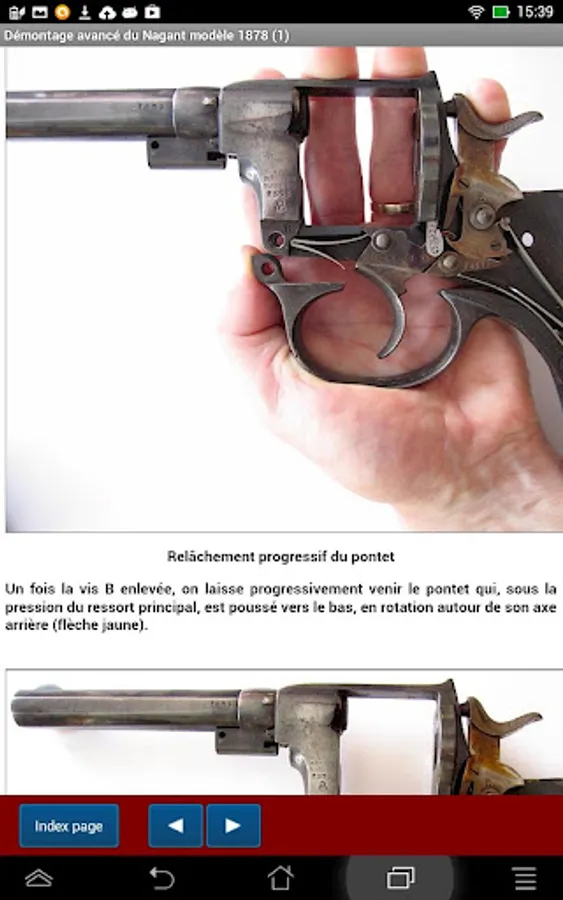

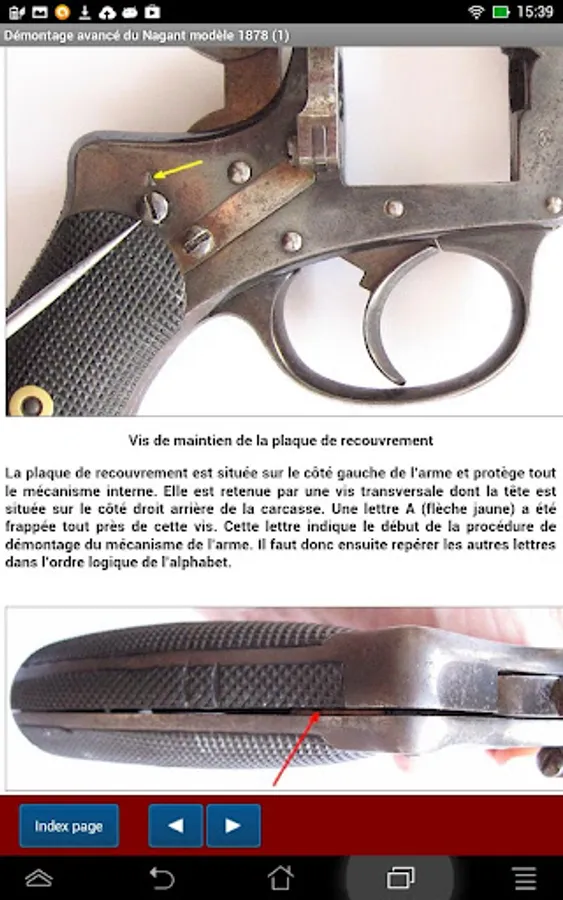

Dismantling advanced Nagant 1878 model (1)
- Removing the ejector rod
- Dismantling the rod axis of the barrel
- Removing the cover plate
- Removing the trigger guard
Dismantling advanced Nagant 1878 model (2)

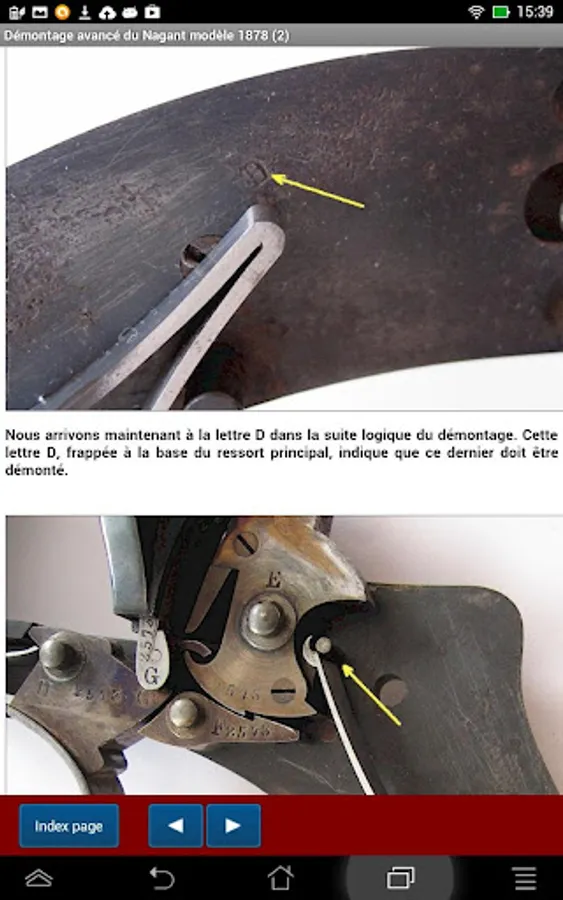

- Removing the main spring
- Removing the dog
- Removing trigger
- Removing the finger pusher
- Removing the trigger

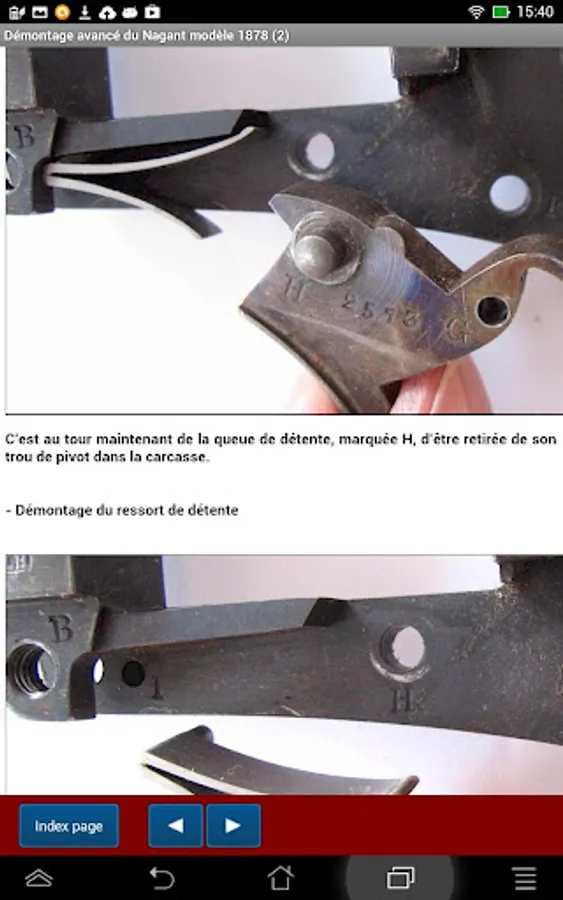

- Removing the trigger spring

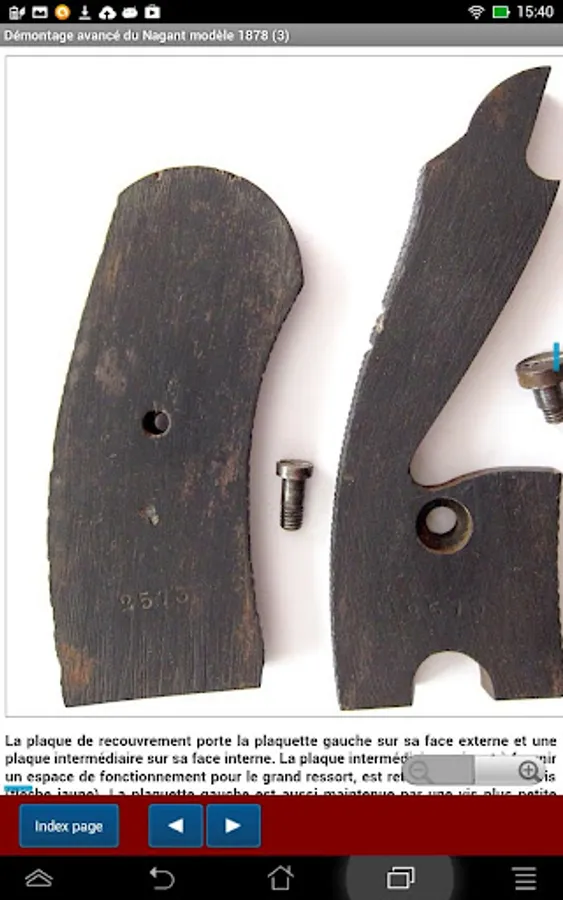

Dismantling advanced Nagant 1878 model (3)
- Removing the right grip plate
- Removing the pads and left middle
- Removing the loading gate
- Removing the strap ring
Markings Nagant 1878 model (1)

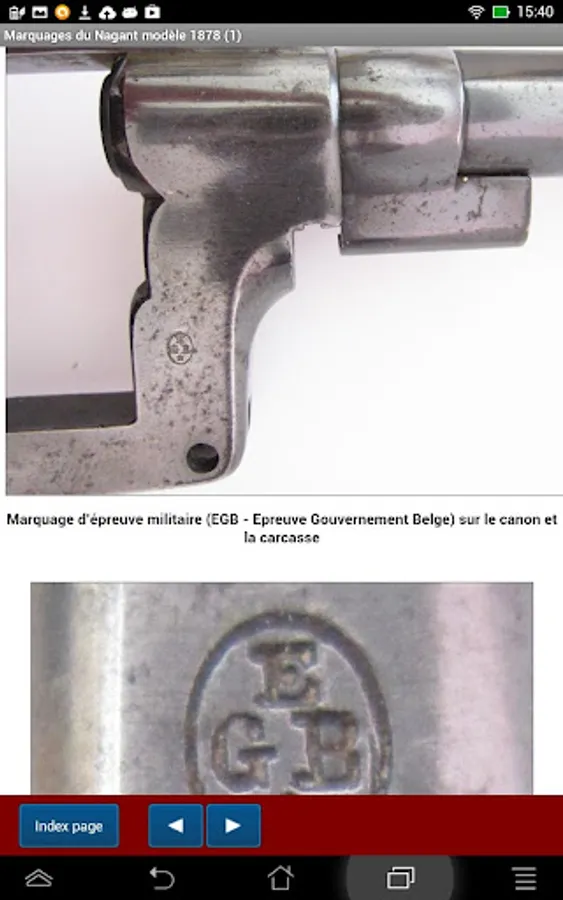

- The military markings on the carcass

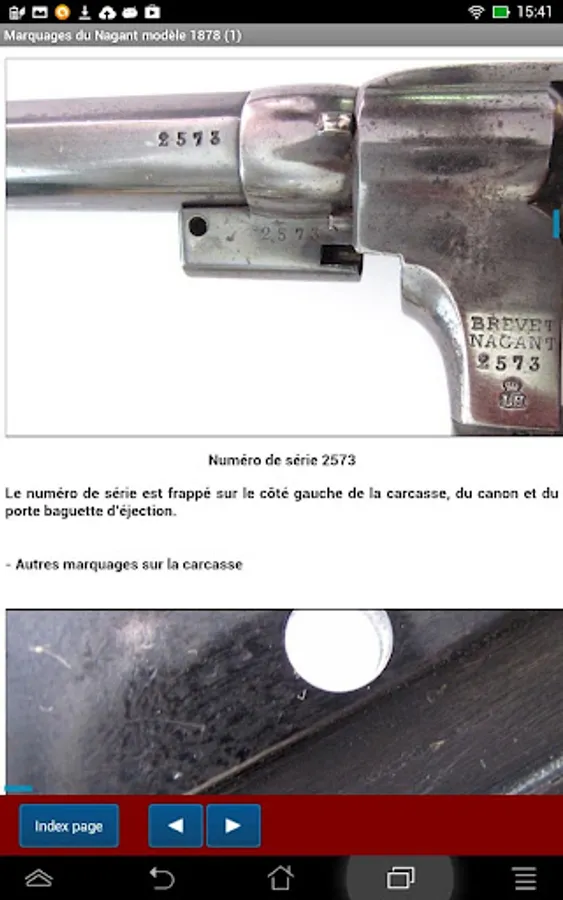

- The serial number on the frame
- Other marks on the carcass
- Markings on the barrel
- Marks on the rod axis and the cylinder lock
- Marking the eject rod
- Markings on the cover plate
- Marking platelet ebony
Markings Nagant 1878 model (2)
- Marking on the loading gate
- Markings on the bridge
- Markings on the dog
- Markings on the trigger
- Markings on the trigger
- Markings on the finger pusher
- Marking the mainspring
- Marking the swivel ring

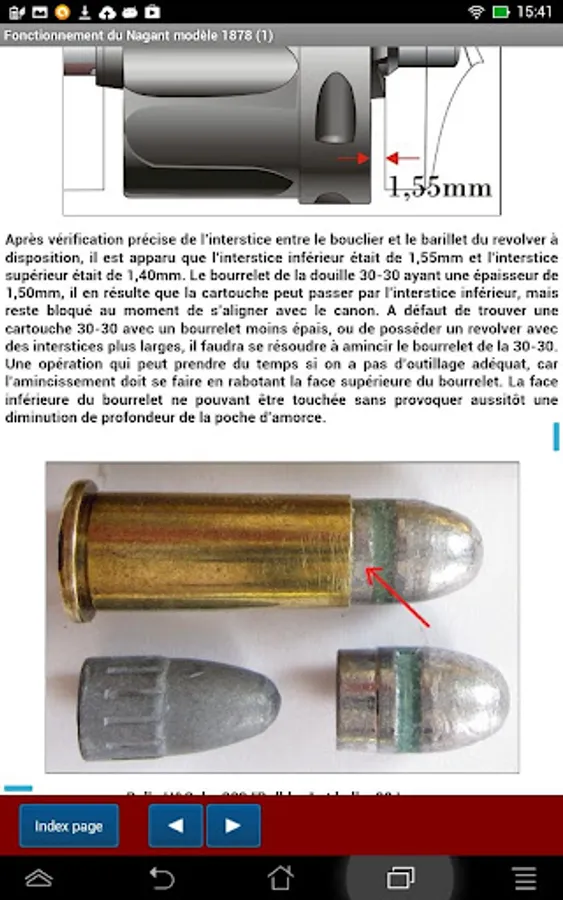

Operation Nagant 1878 model (1)

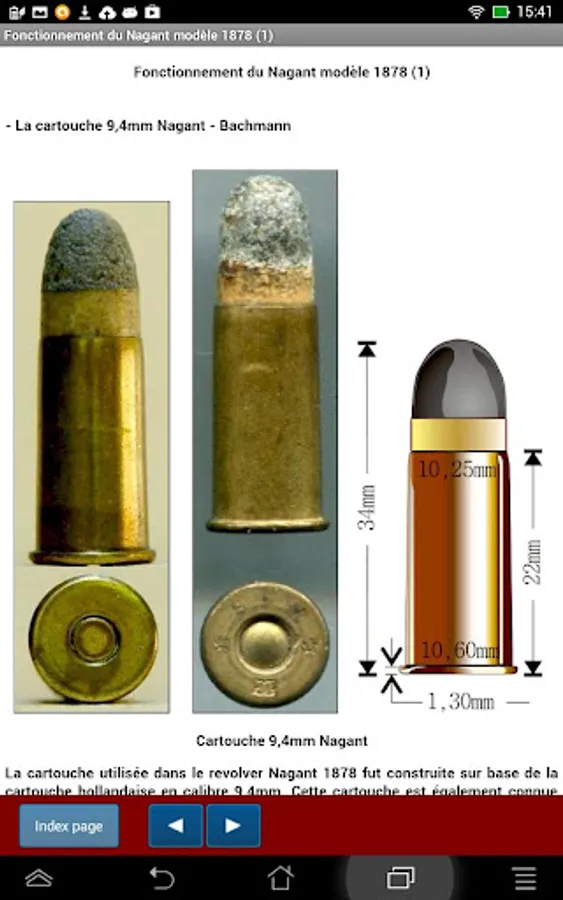

- The Nagant 9.4mm cartridge - Bachmann

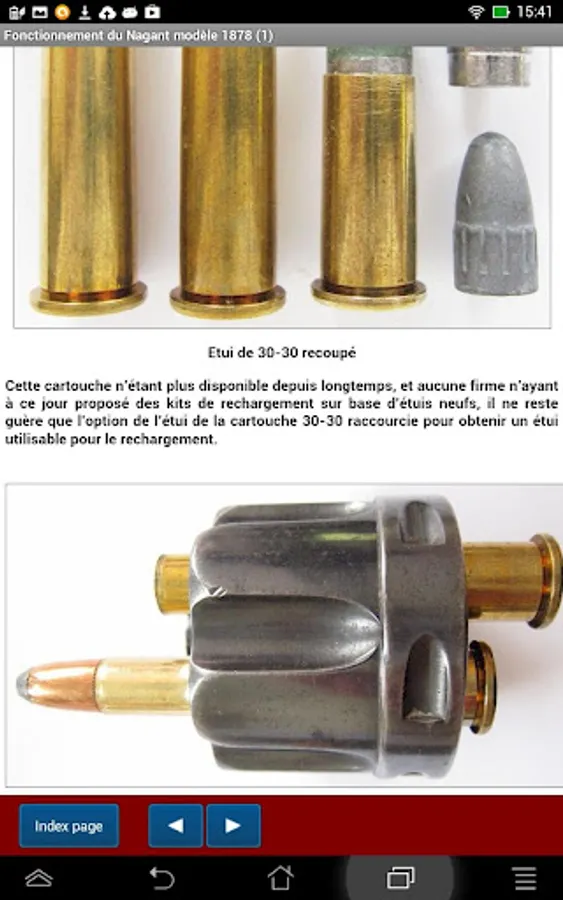

- Case 30-30 intersected
- Interstices between the shield and the barrel
- Ball .380 H & C "Bulldog" and Lapua bullet .38
- The safety of the dog

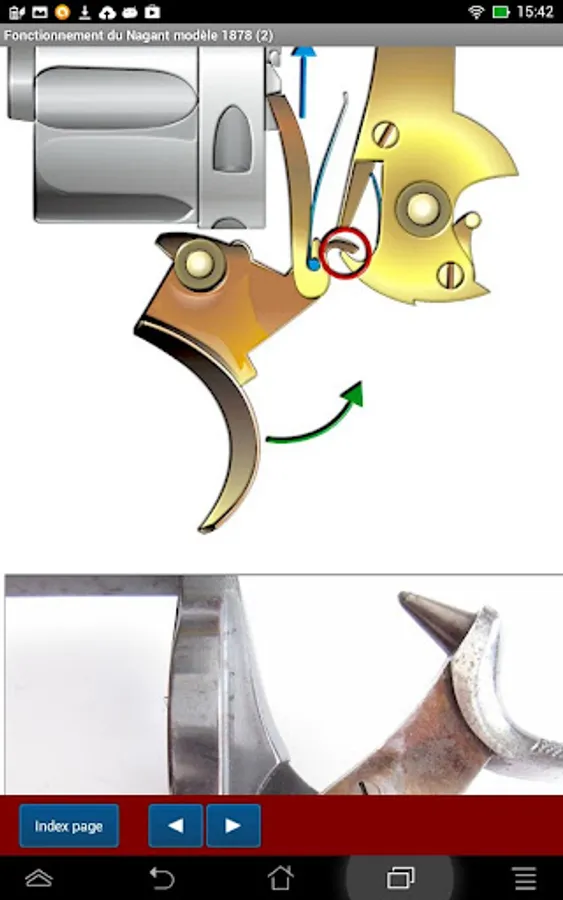

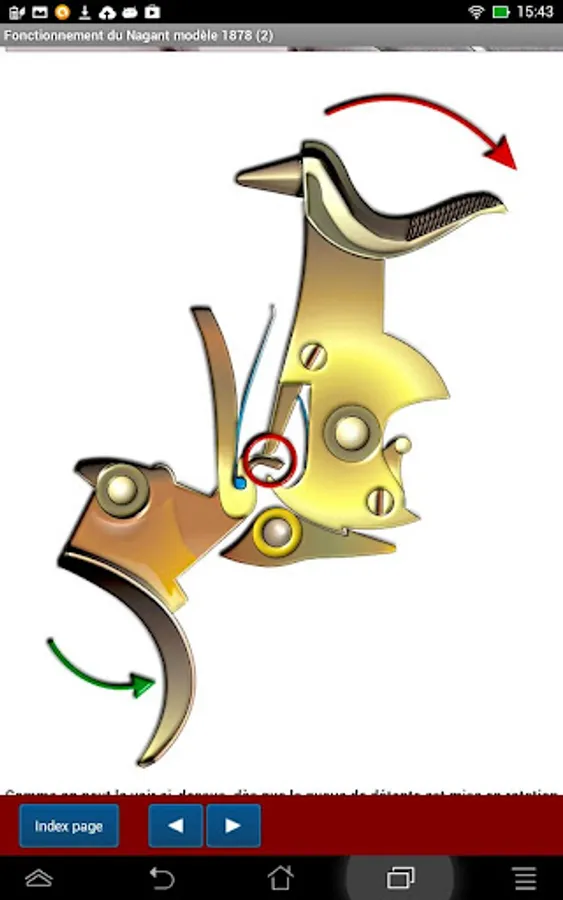

Operation Nagant 1878 model (2)
- Operation in Single Action Mode

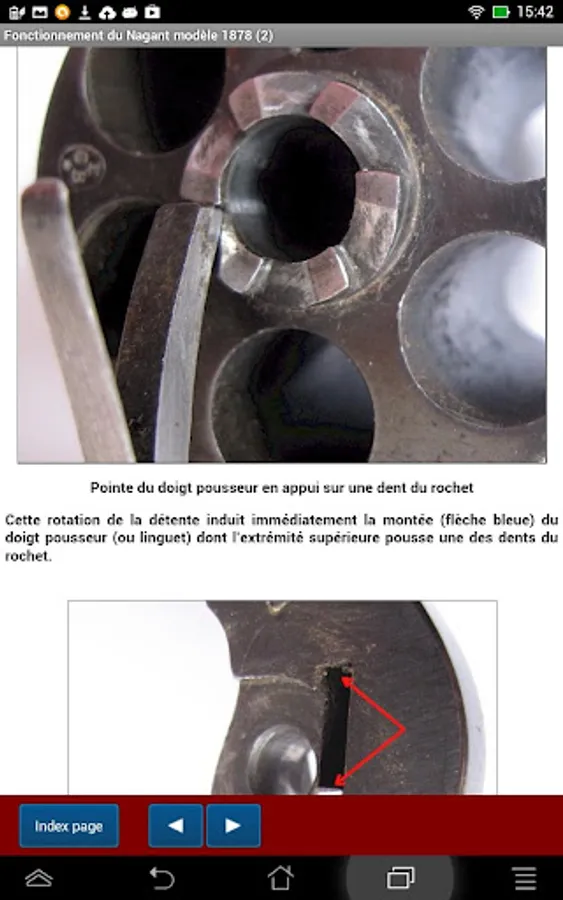

- Action finger pushing on the ratchet
- Locking Bosse relaxation
- Blocking the barrel before firing
- Operation in dual mode of action
- Lifting the trigger after releasing the dog
- Flange pushed rearwardly by the trigger
Variations in the Nagant revolver in 1878

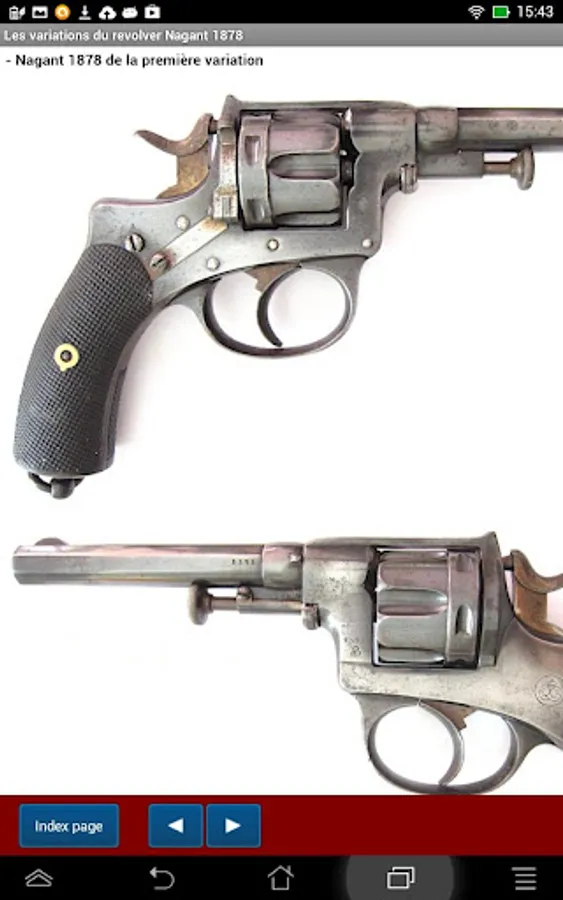

- Nagant 1878 the first variation
- Nagant 1878 first variation with removable handlebar

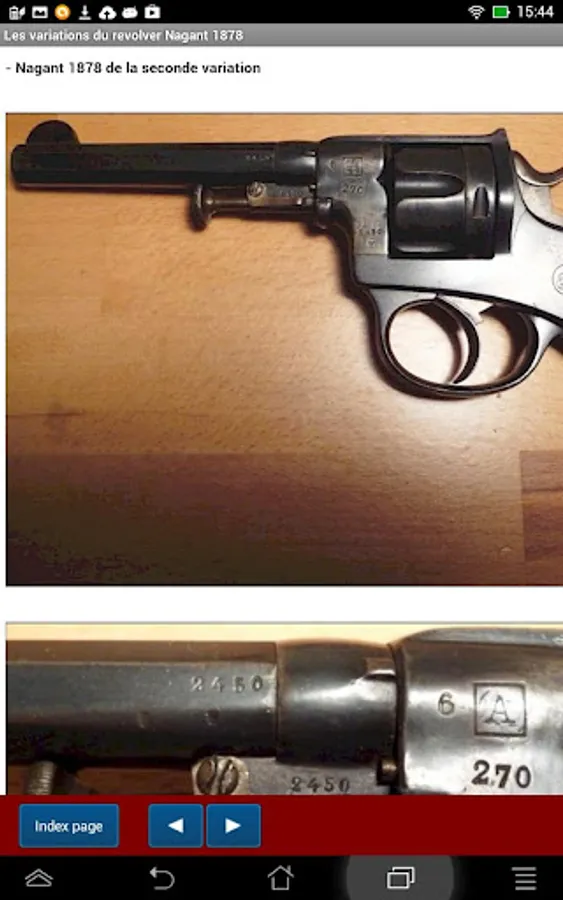

- Nagant 1878 the second variation
- Civilian version of the revolver Nagant 1878
- The Nagant 1878 transition
The Nagant revolver model 1883
- The Belgian Patent No. 50871
- The model 1883 Nagant first variation

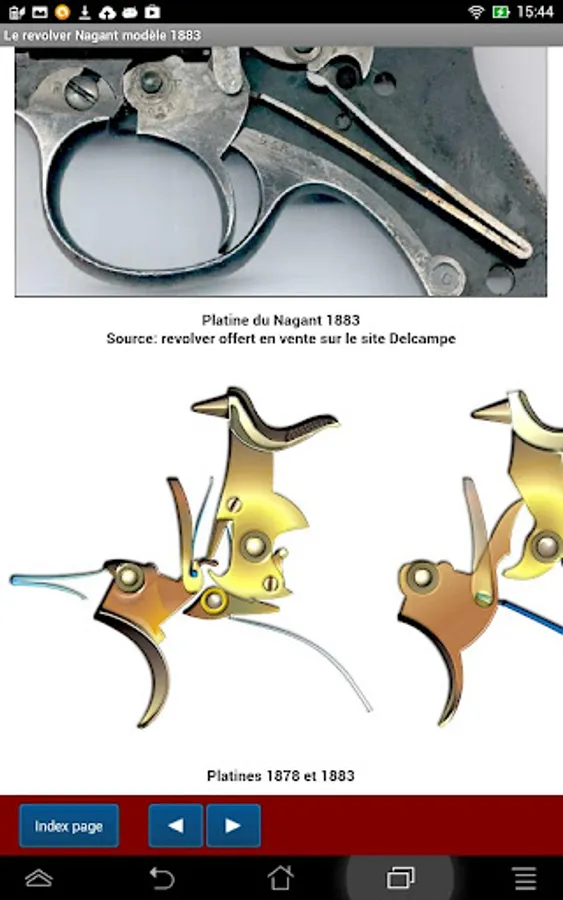

- Comparison of platinum in 1878 and 1883 models

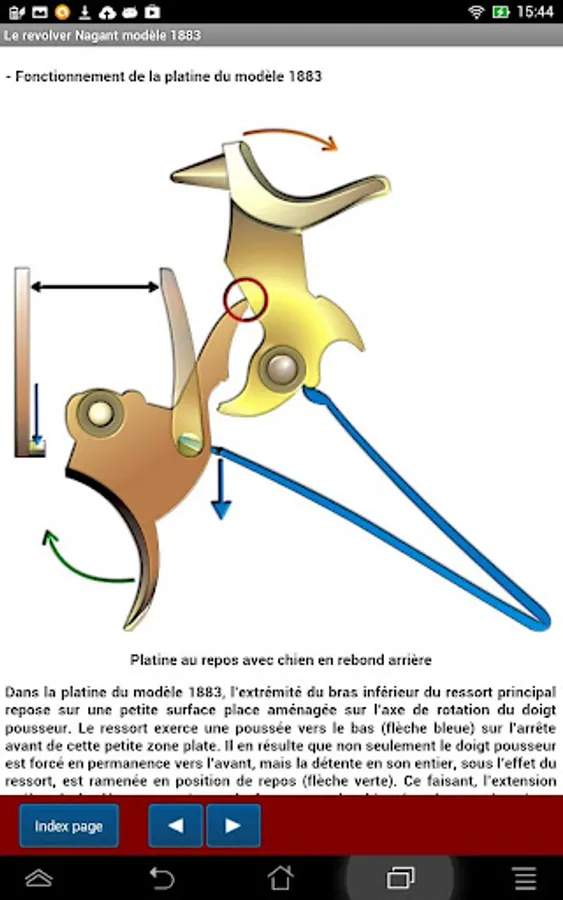

- Deck Operation Model 1883
- The Nagant model 1883 seconds variation (or 1883-1887)
The Nagant model 1878 to 1886
- The 1878-1886 model of the army and of Belgian customs
- Platinum Model 1886

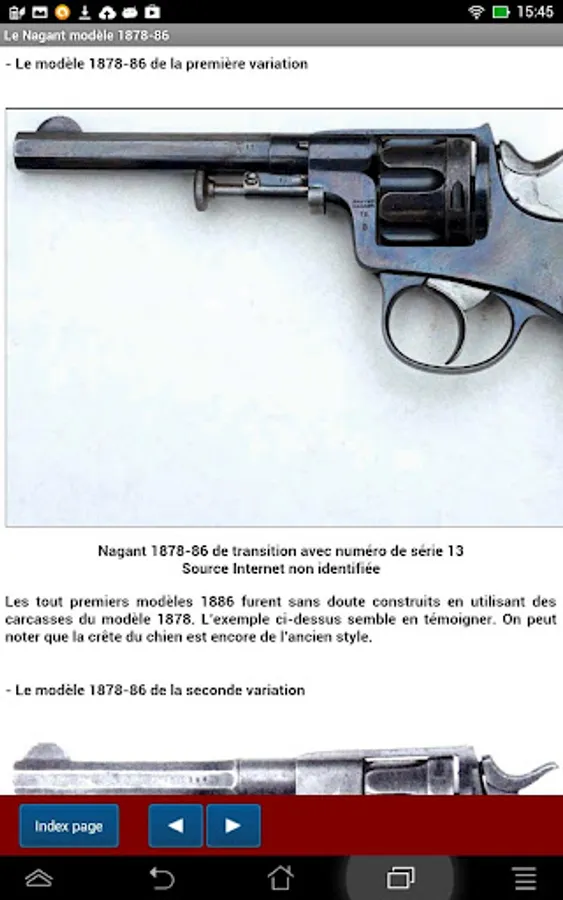

- The model 1878 to 1886 of the first variation
- The model of the second variation 1878-1886

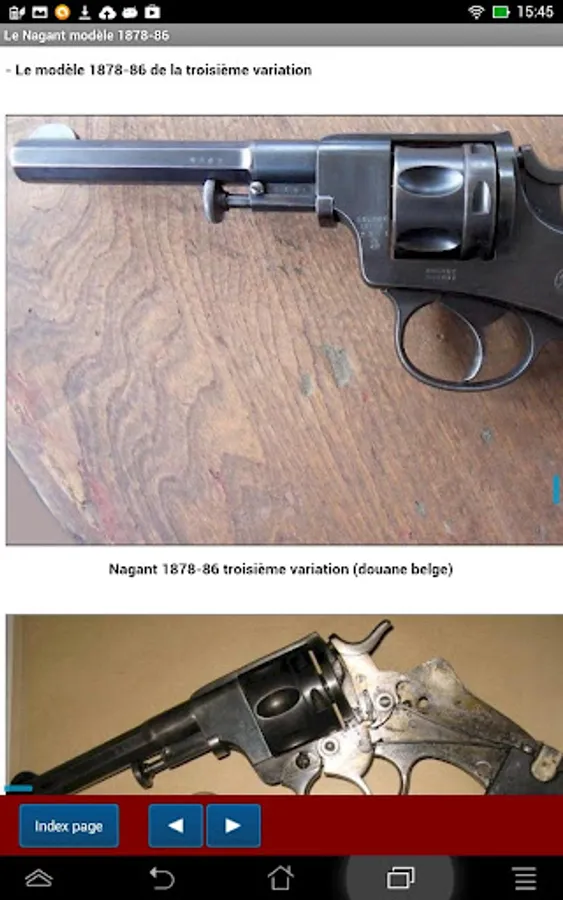

- The model 1878 to 1886 of the third variation

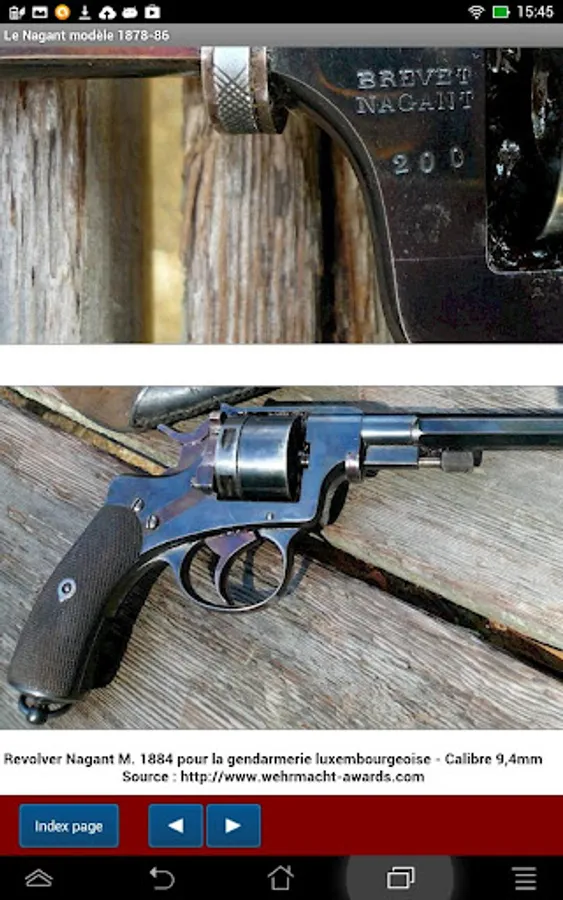

- Model M1884 / 87 Luxembourg
- Platinum Nagant M. 1884 Luxembourg
Nagant revolvers sold abroad
- The revolver Nagant in 7.5mm gauge

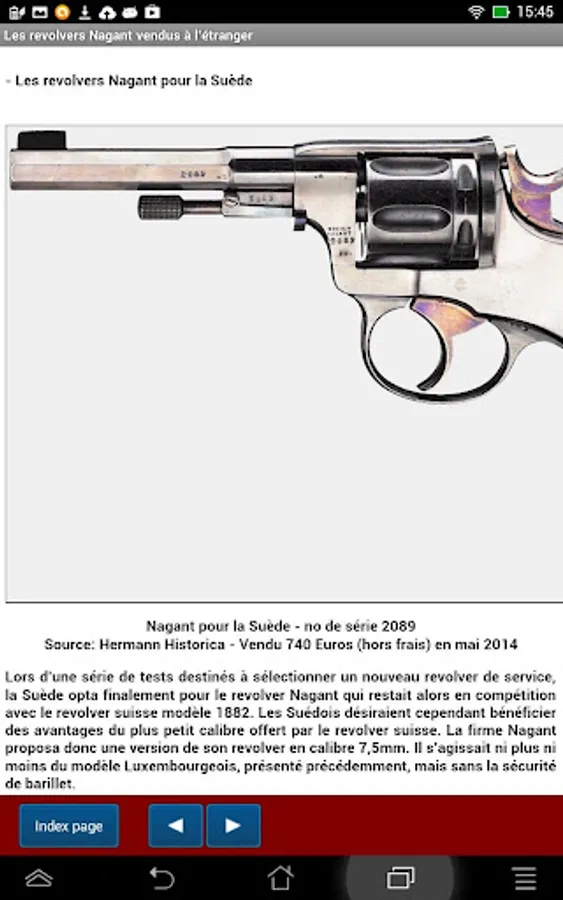

- The Nagant revolvers for Sweden
- Manufacturing Husqvarna (1898-1905)

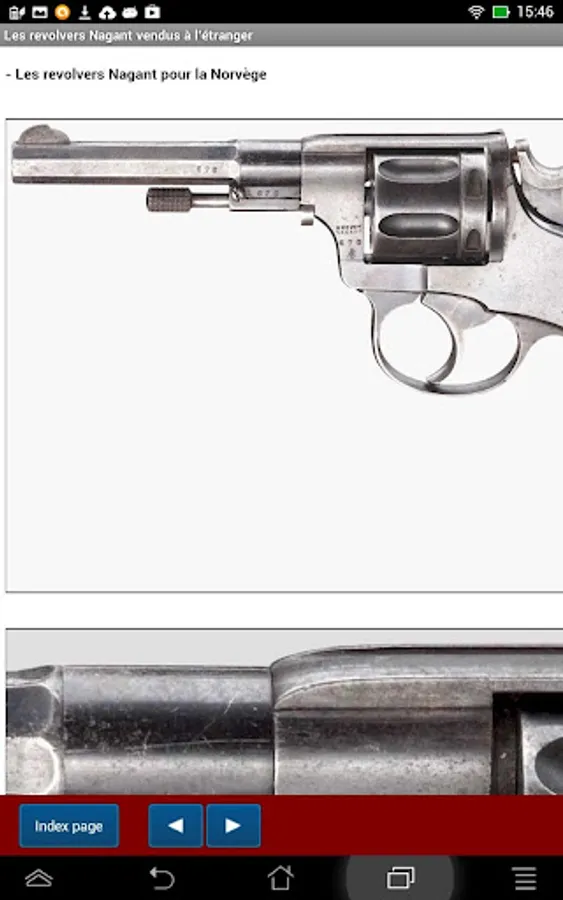

- The Nagant revolvers for Norway
- Security system "Törnell"
- The Nagant revolvers for Serbia
- Nagant revolvers large caliber

Revolver Nagant 1878 expliqué Screenshots
