Revolver Colt New Line expliqu

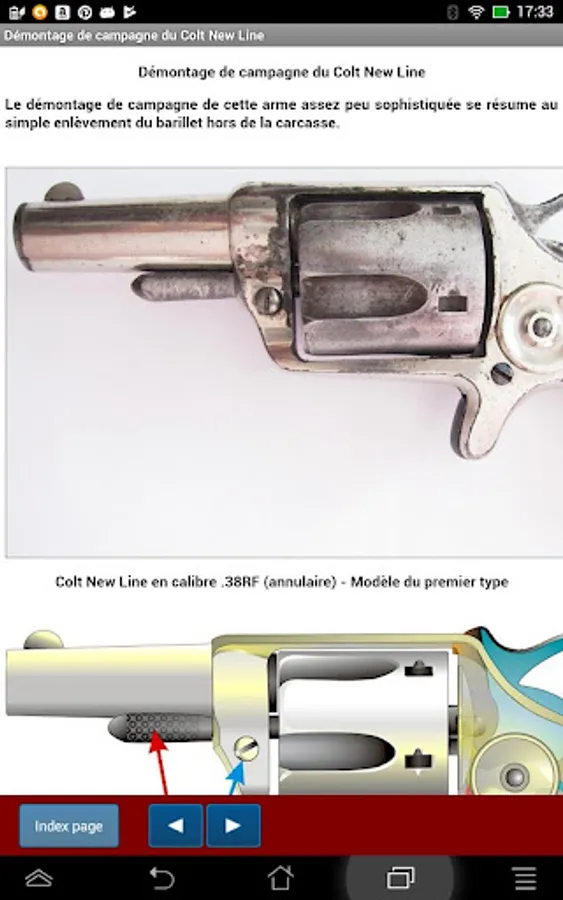

Colt New Line campaign disassembly
- Diagram of Colt New Line .38RF
- Barrel pin lock for large caliber
- Fine adjustment of the pin lock

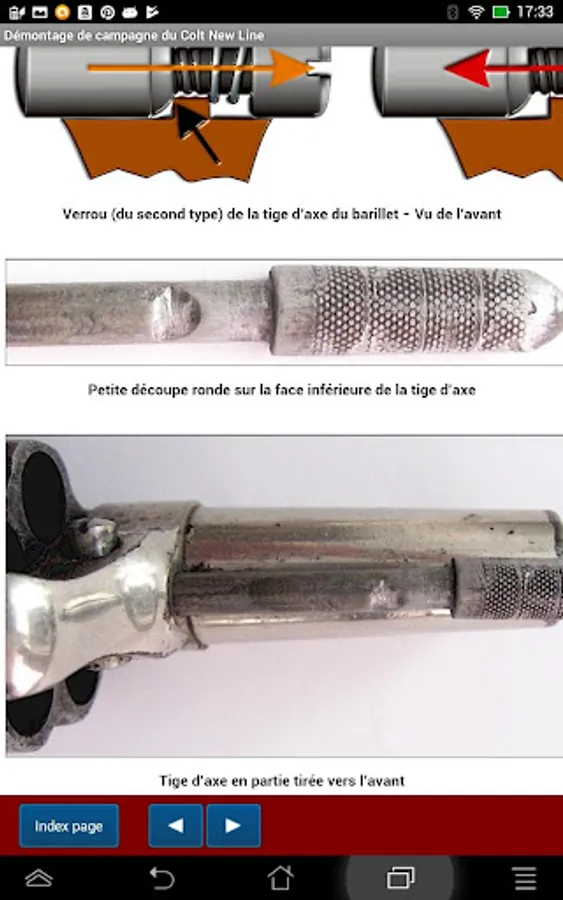

- Barrel pin lock for small gauges
- Removal of the barrel from the carcass
Advanced disassembly of Colt New Line (1)
- Disassembly of the butt pads

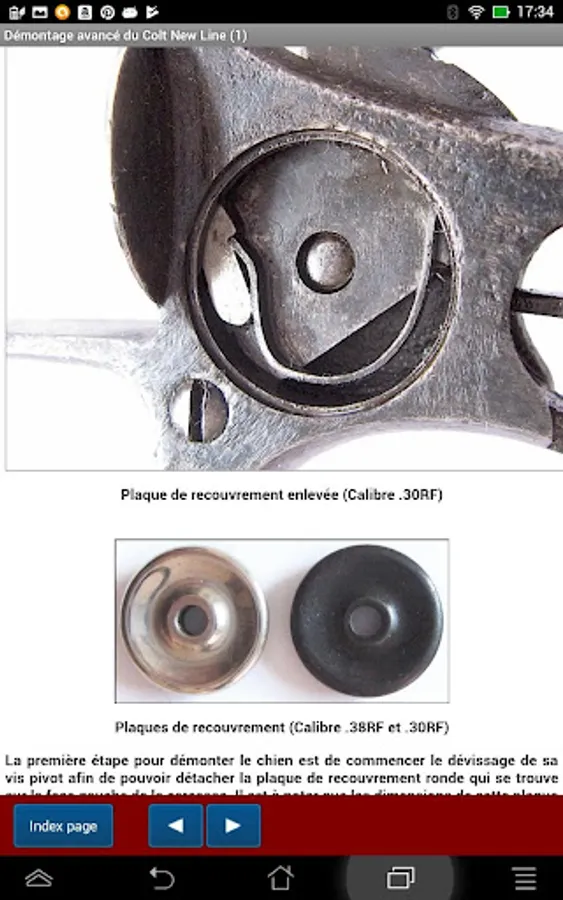

- Disassembly of the cover plate
- Mittel detachment

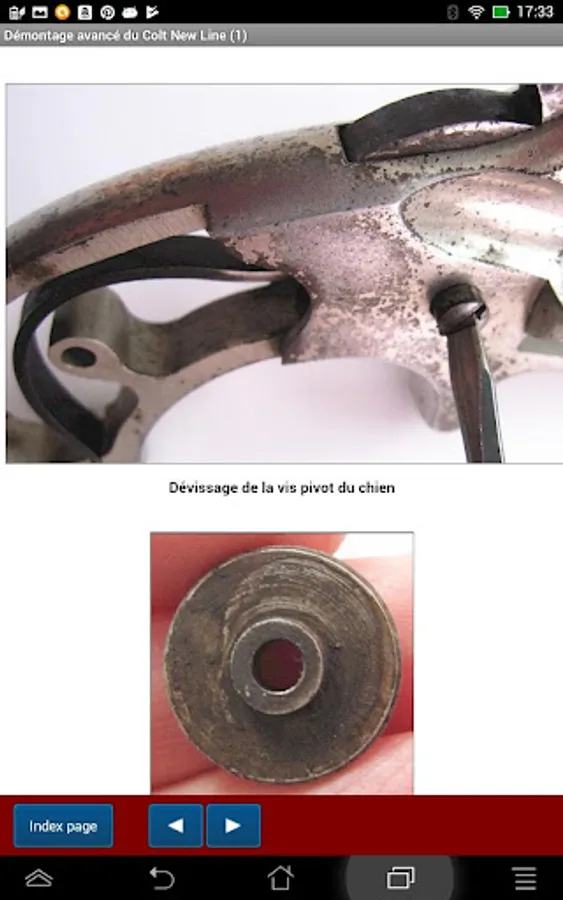

- Unscrewing the pivot screw of the trigger
Advanced disassembly of Colt New Line (2)

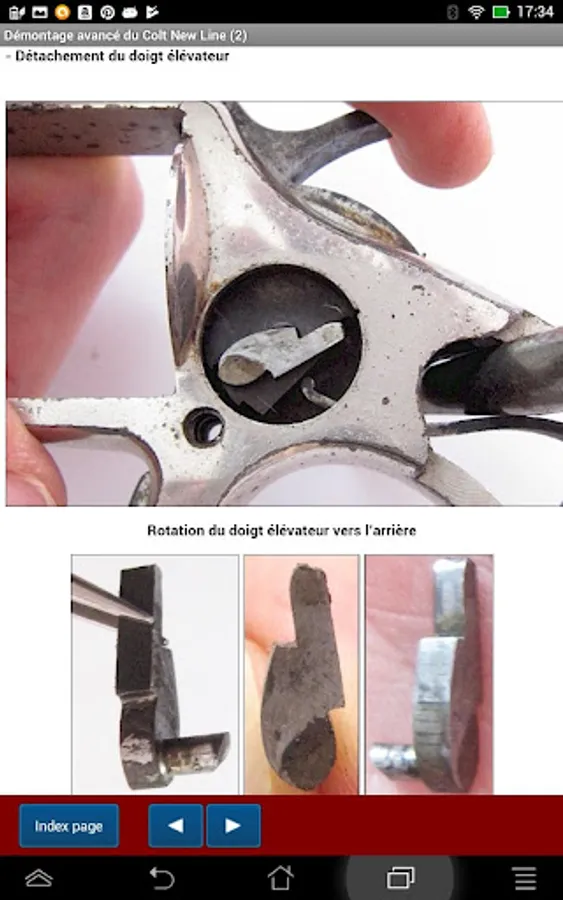

- Lift finger detachment

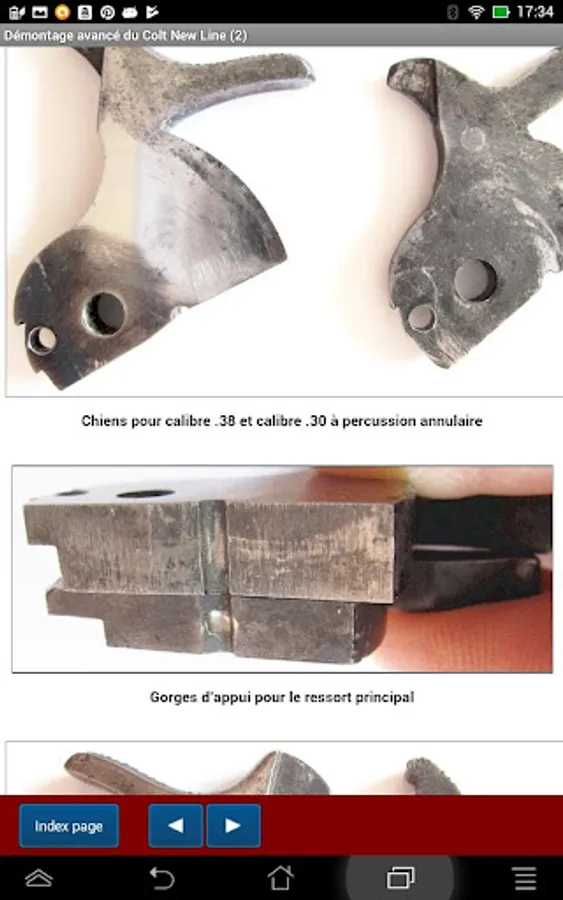

- Exit the dog out of the carcass
- Disassembly of the main spring
- Disassembling the trigger
- Relaxation of the first type with two springs
- Relaxation of the second type with a single spring
Advanced disassembly of Colt New Line (3)

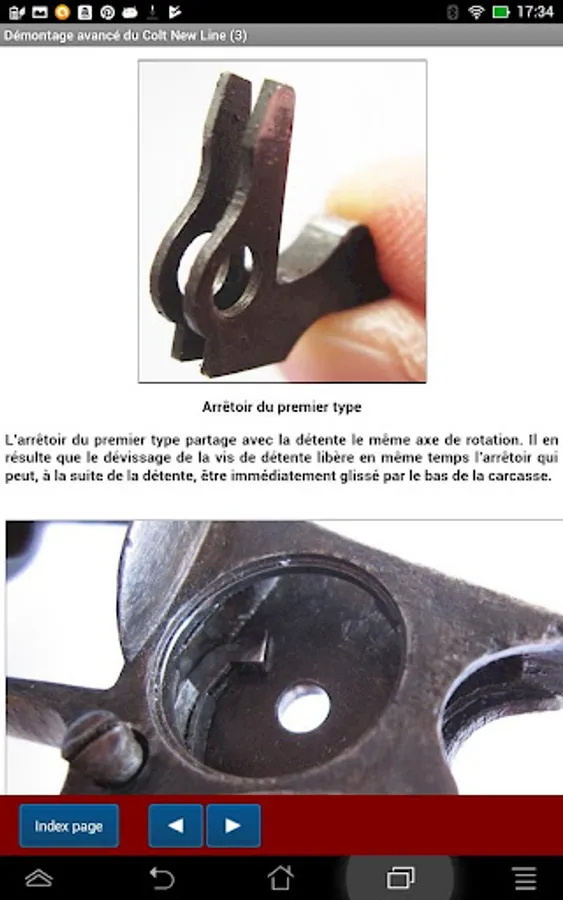

- Disassembling the barrel retainer
- Disassembly of the loading door
- Winding tips

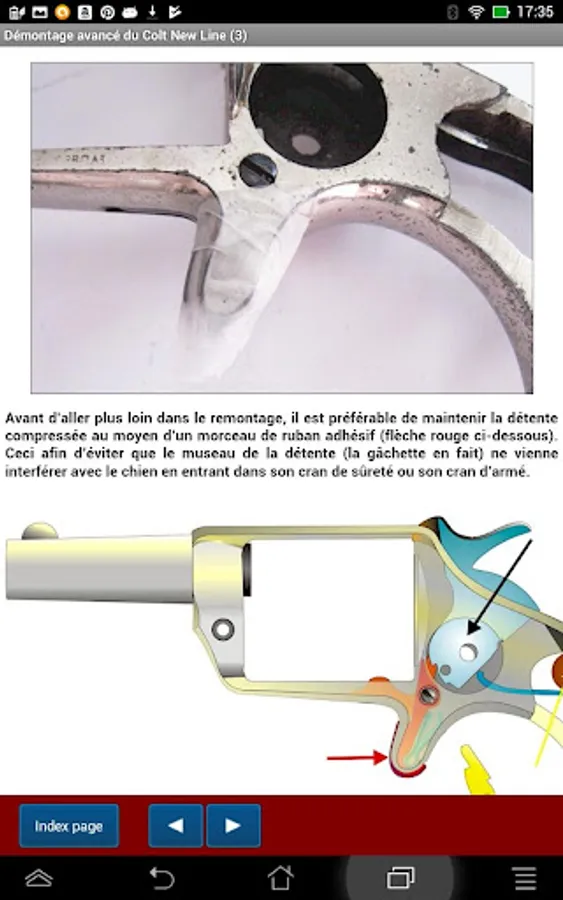

- Keep the trigger relaxed
- Index of first type coins
- Index of second type parts

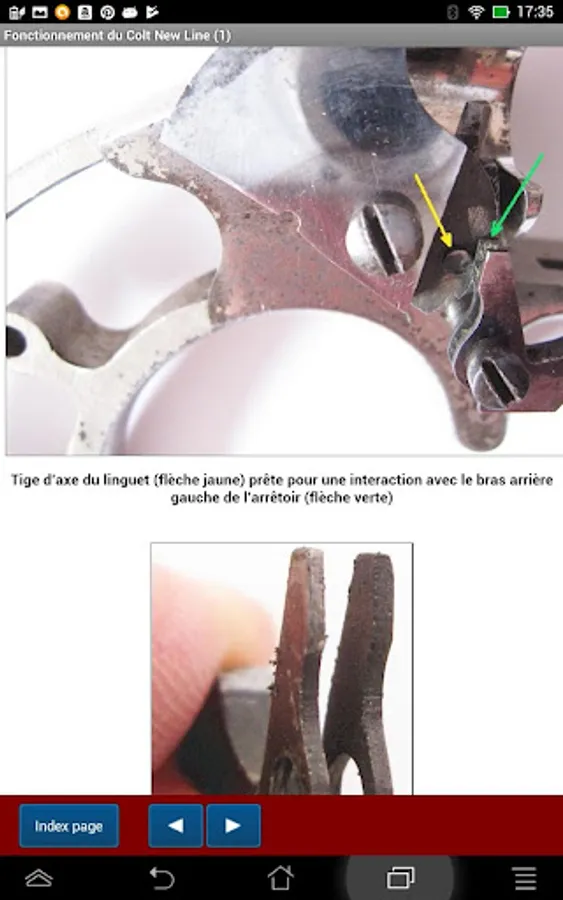

Operation of Colt New Line (1)
- Loading cartridges into the barrel
- Release of the dog for loading (first type)
- Release of the dog for loading (second type)
Operation of Colt New Line (2)

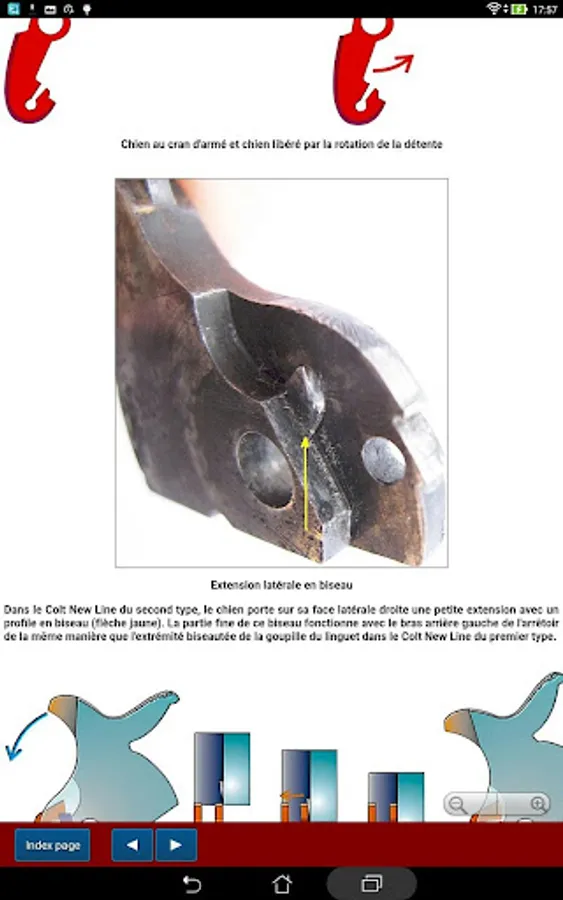

- Why did you create the second type stop?
- Shooting with a Colt New Line revolver
- Colt New Line revolver security
Operation of Colt New Line (3)

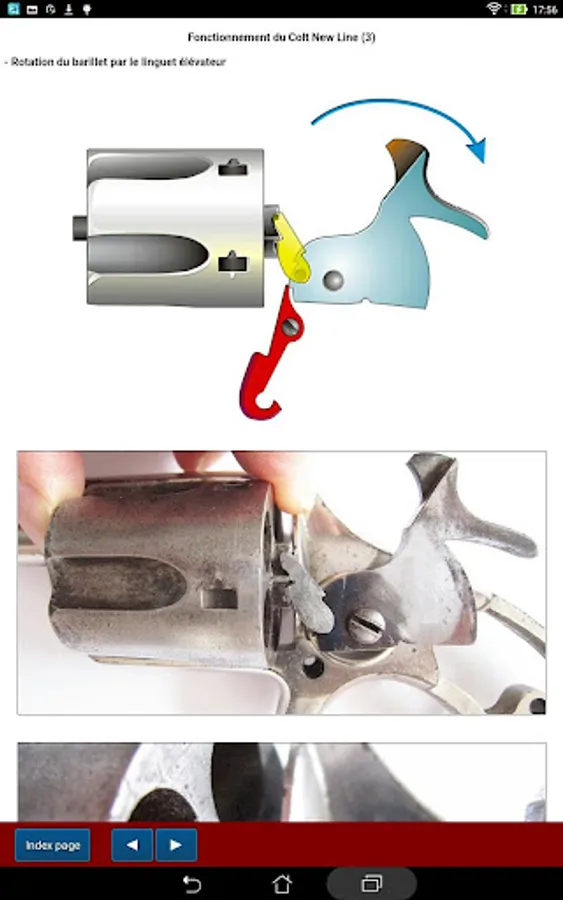

- Rotation of the barrel by the elevator latch
- Releasing the dog to its armor (first type)
- Releasing the dog to its armor (second type)
Markings found on Colt New Line (1)

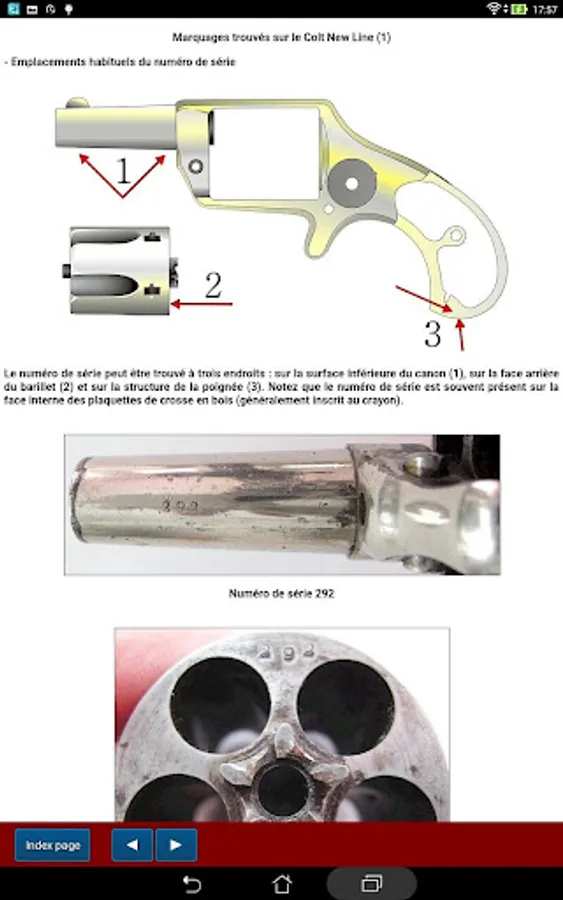

- Usual locations of the serial number
- Markings of the firm Colt
- Markings indicating the caliber
Markings found on Colt New Line (2)
- Patent markings
- Markings of Colt inspectors

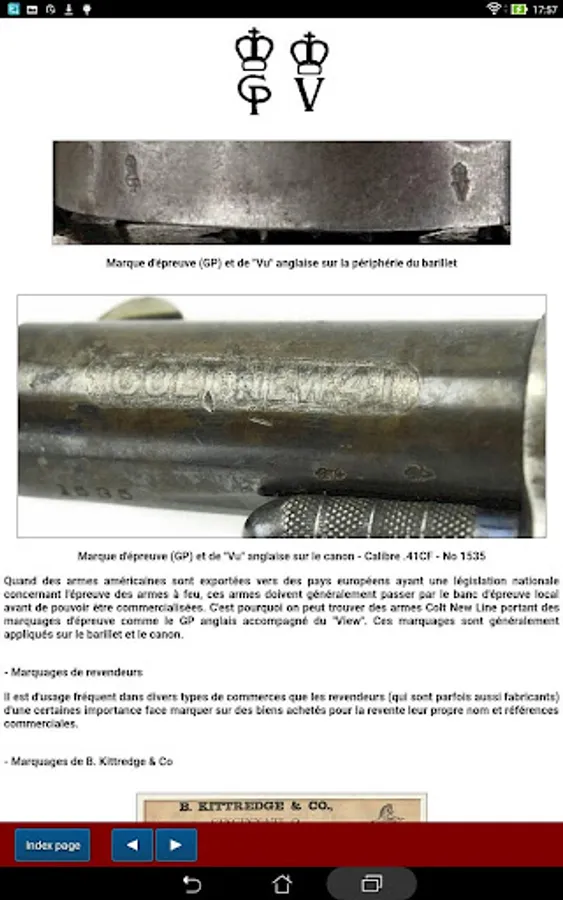

- Foreign proof marks
- Reseller Markings
- Markings of B. Kittredge & Co
- F. J. Baker Establishments in London
- L. CHOBERT ARQR 16 R. LAFAYETTE PARIS
- Henri FAURE LEPAGE in PARIS
Evolution of Colt New Line (1)
- New Line Colt .22 caliber

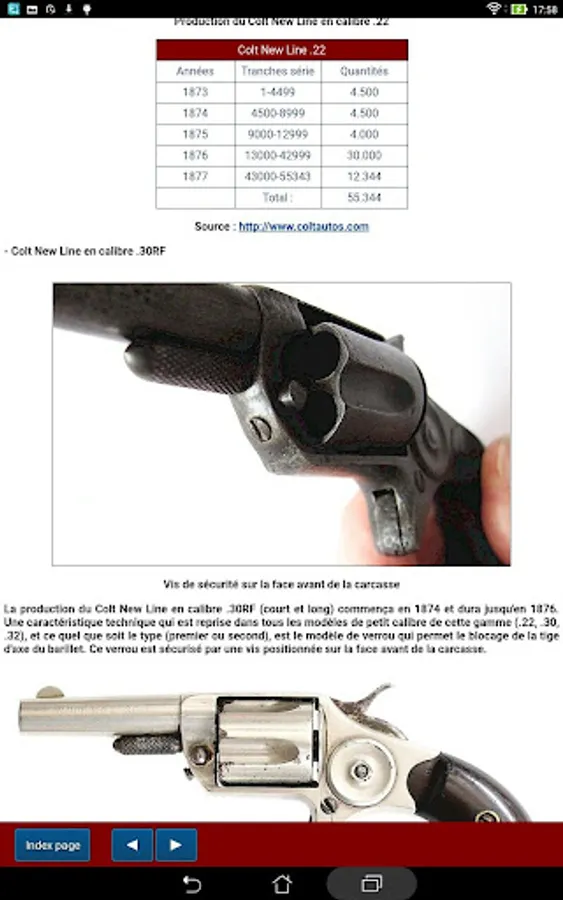

- Colt New Line in .30RF caliber
- Colt New Line in .32RF and .32CF caliber
Evolution of Colt New Line (2)

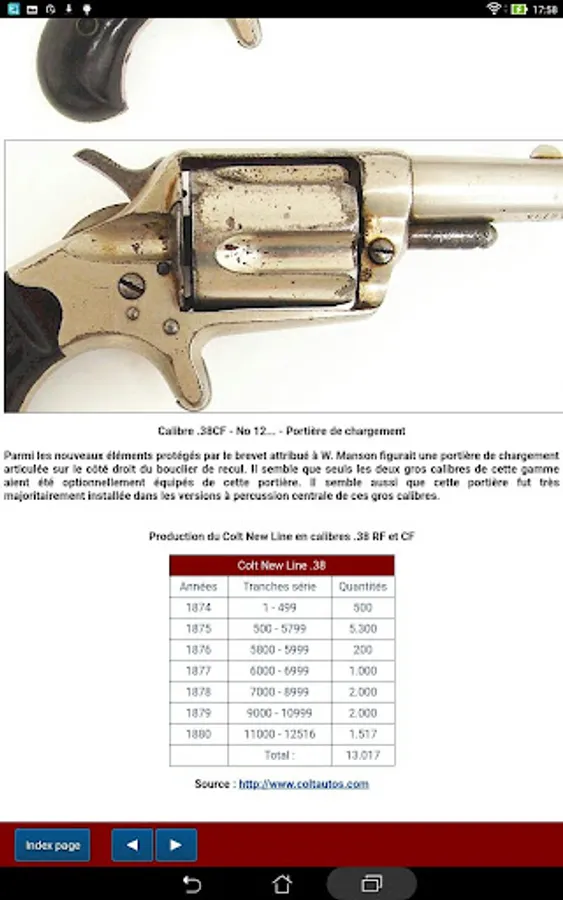

- Colt New Line in .38RF and .38CF calibres
- Colt New Line in calibres .41RF and .41CF
Evolution of Colt New Line (3)

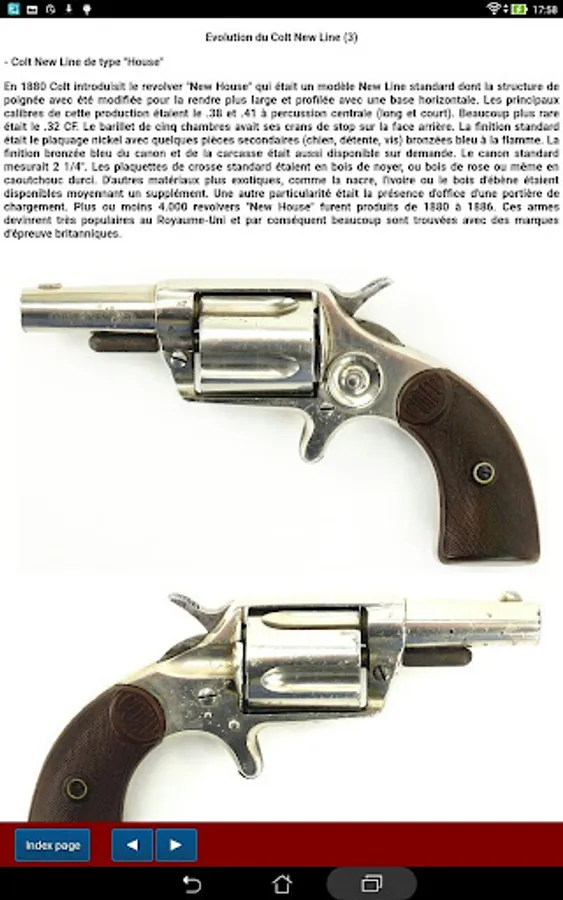

- Colt New Line type "House"

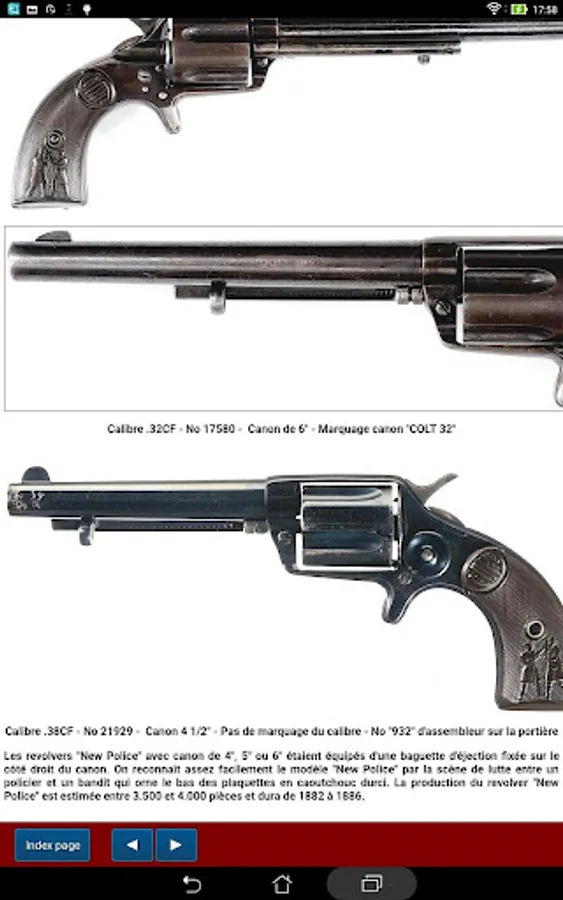

- Colt New Line type "Police"
