Carabine Squires Bingham 20

Disassembly of the rifle Squires Bingham Mod. 20 (1)

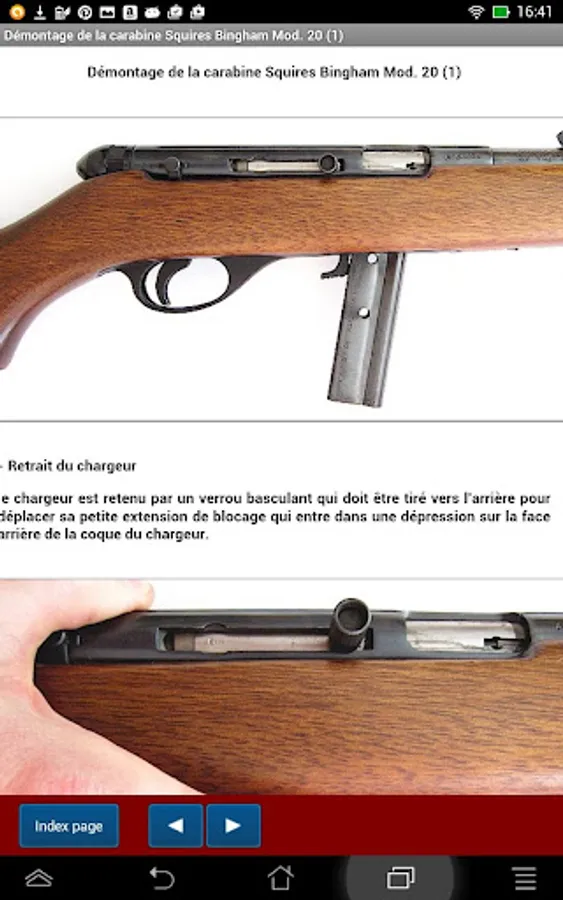

- Charger Withdrawal
- Separation barrel and the butt

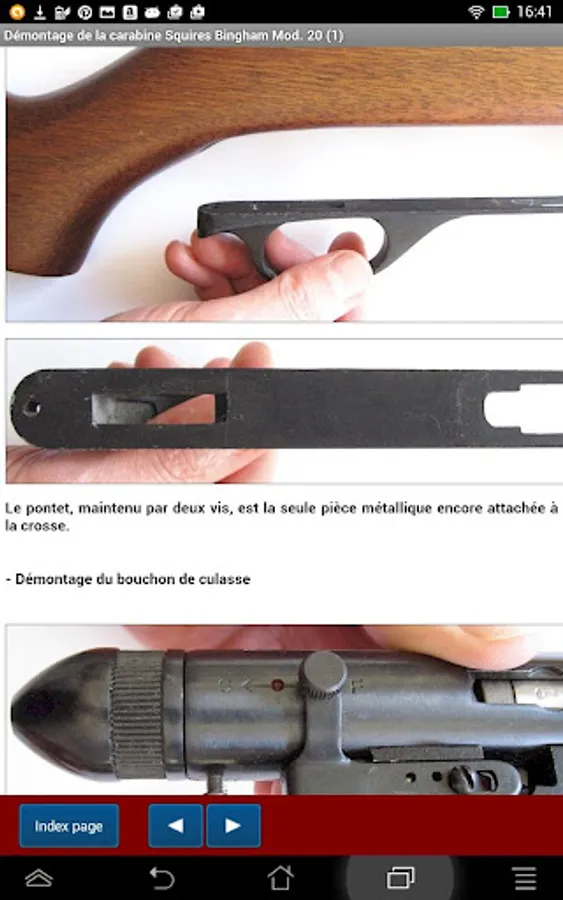

- Removal of the trigger guard
- Removing breech plug
- Recoil spring and firing pin spring

Disassembly of the rifle Squires Bingham Mod. 20 (2)

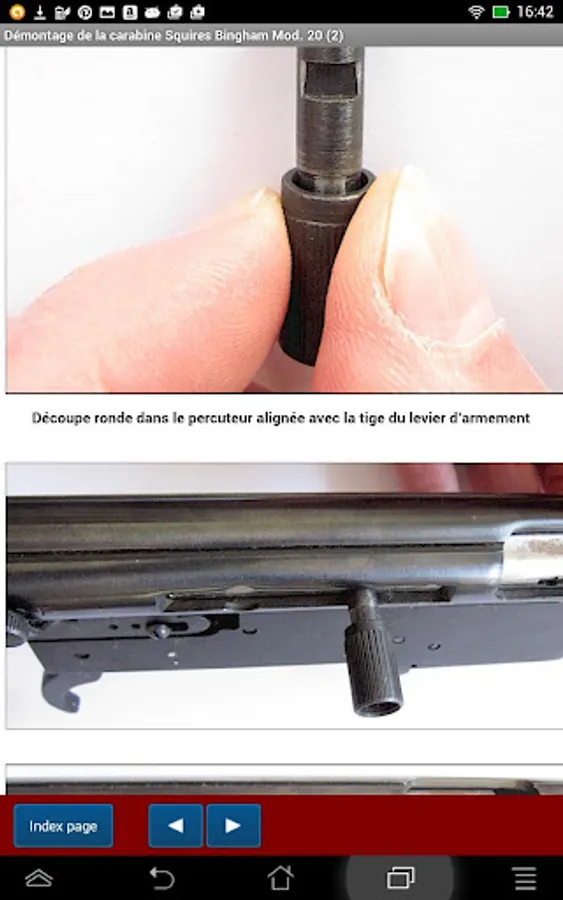

- Dismantling of the cocking lever
- Disassembly of the cocking lever

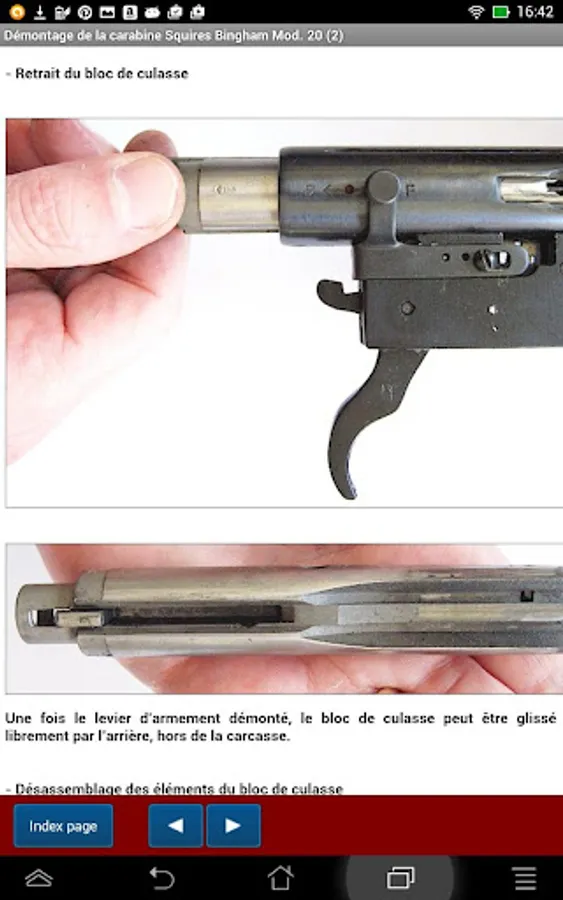

- Removing the cylinder block
- Disassembly of cylinder block elements
- Dismantling of the extractor

Disassembly of the rifle Squires Bingham Mod. 20 (3)

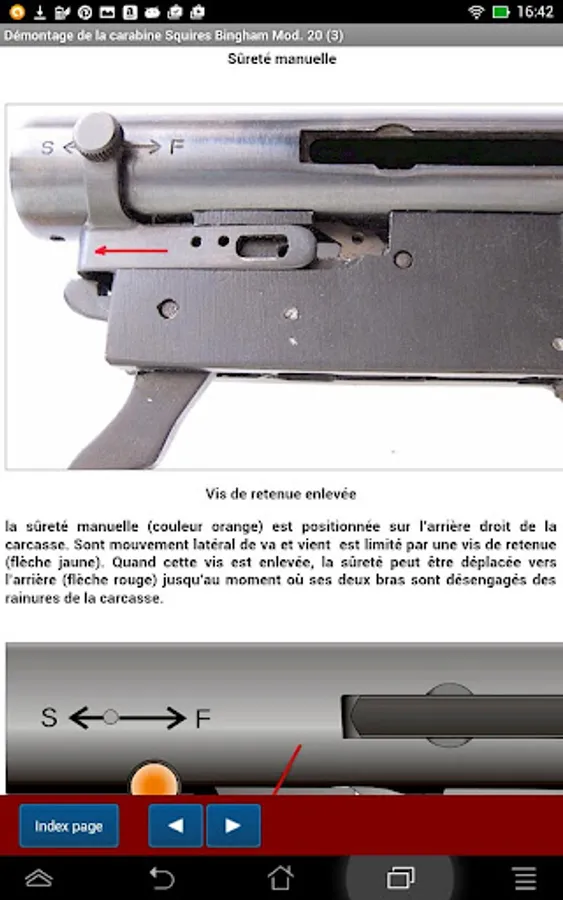

- Removing the safety lever
- Recovery of the ball Index
- Tip to wind safety

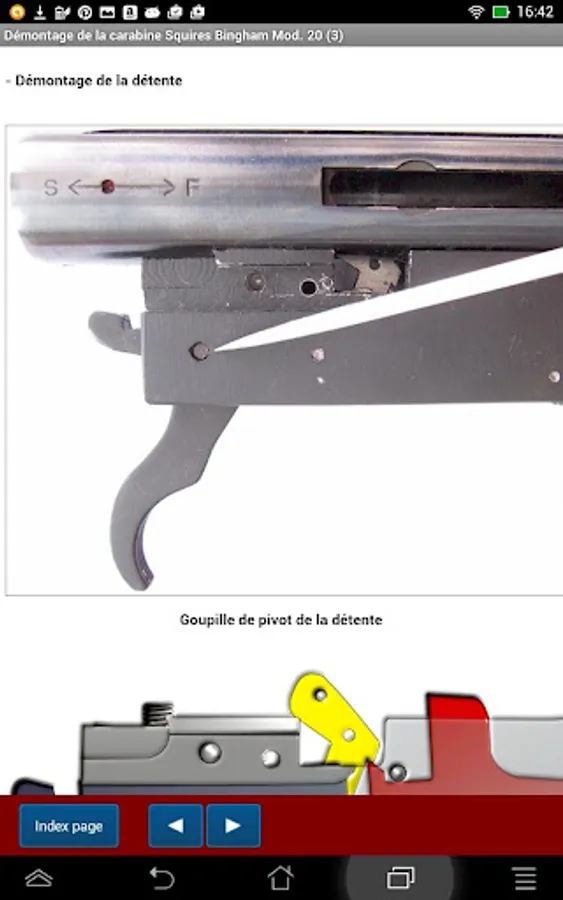

- Removal of the trigger

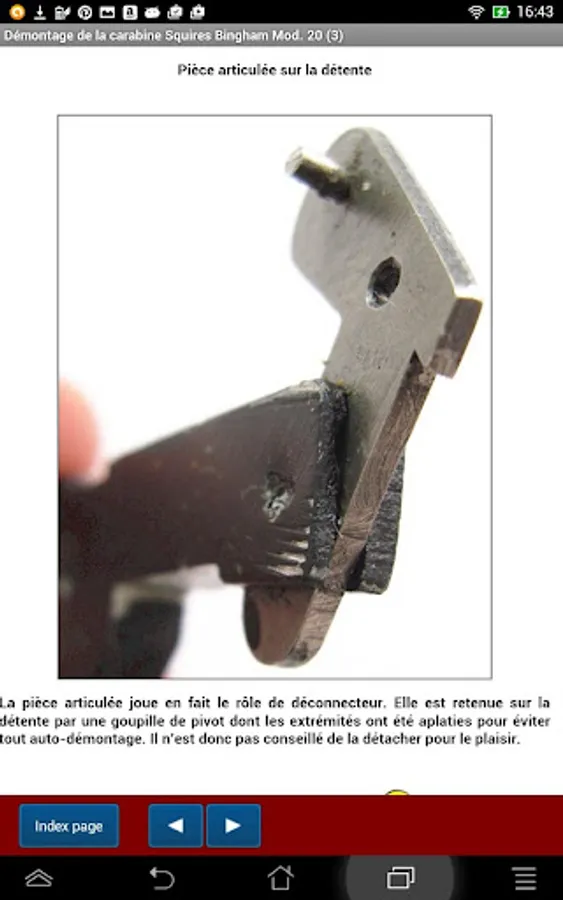

- Removing the disconnector
- Return spring relaxation

Disassembly of the rifle Squires Bingham Mod. 20 (4)

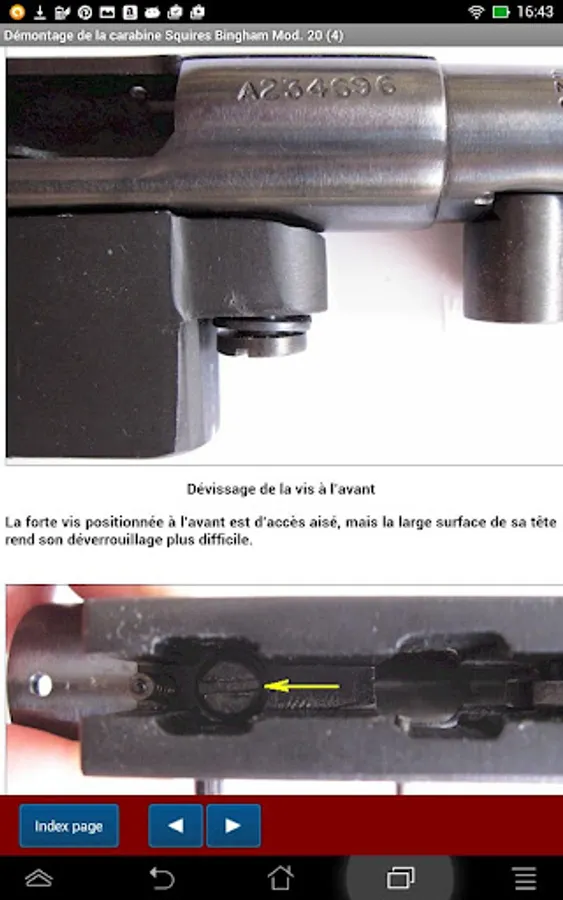

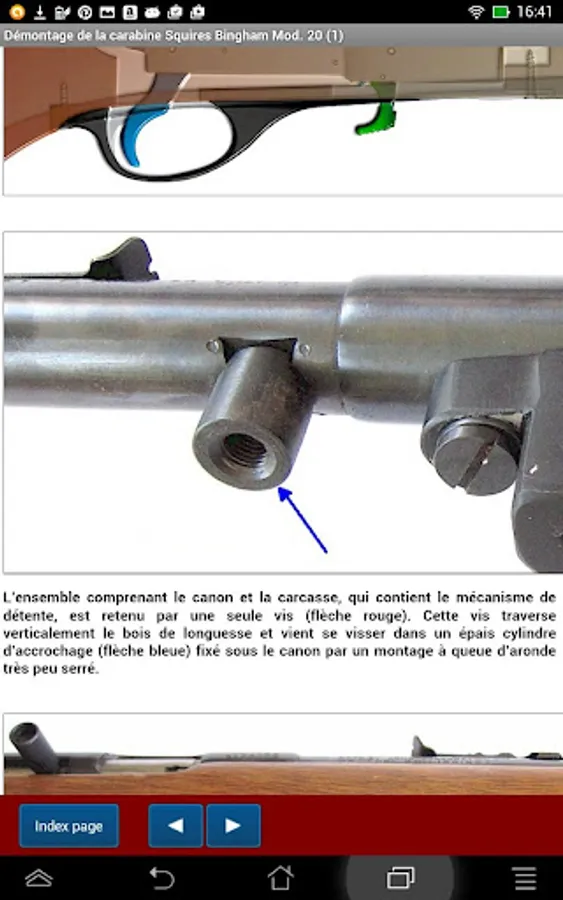

- Separation of the carcass and the barrel

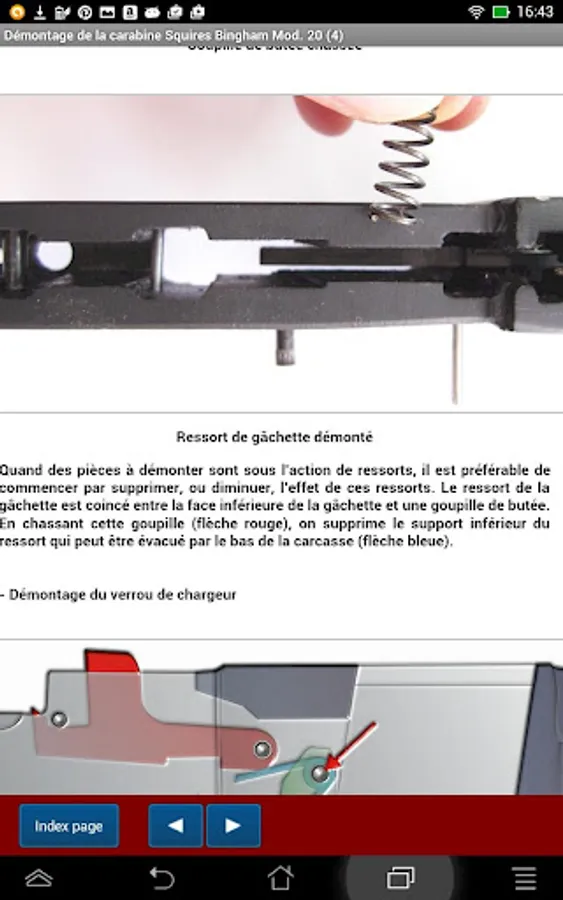

- Removing the trigger spring
- Removing the magazine catch

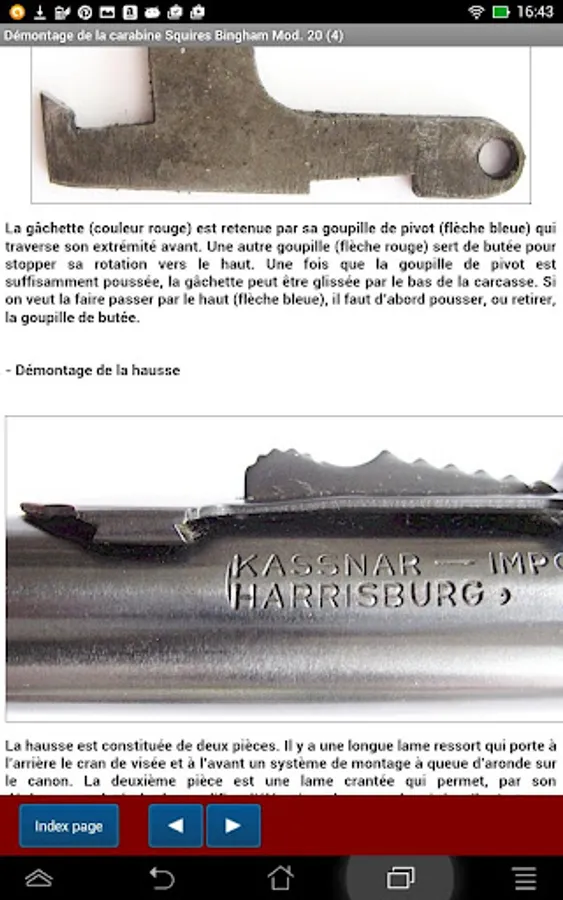

- Removal of the trigger
- Removing the rise
- Handlebar Removal
- Disassembly of the charger
- List of room within the corporation Gun Parts Catalog

Tips reassembly

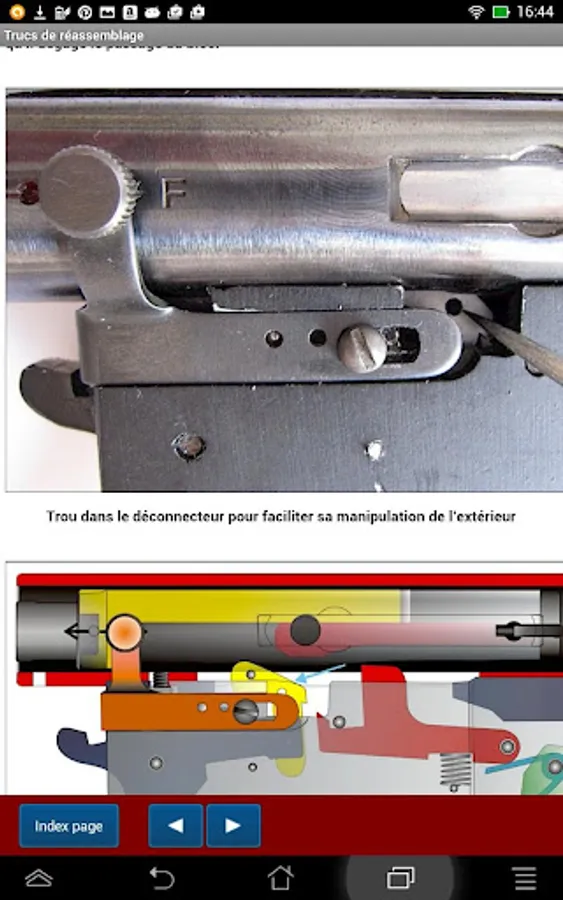

- Reinstalling breech block
- Reinstalling breech plug

Operation of the rifle Squires Bingham Mod. 20 (1)

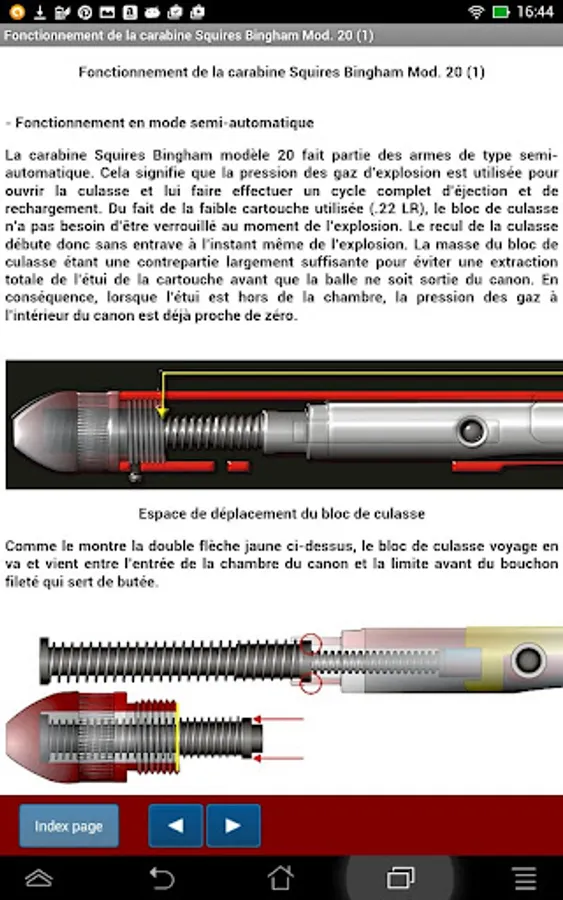

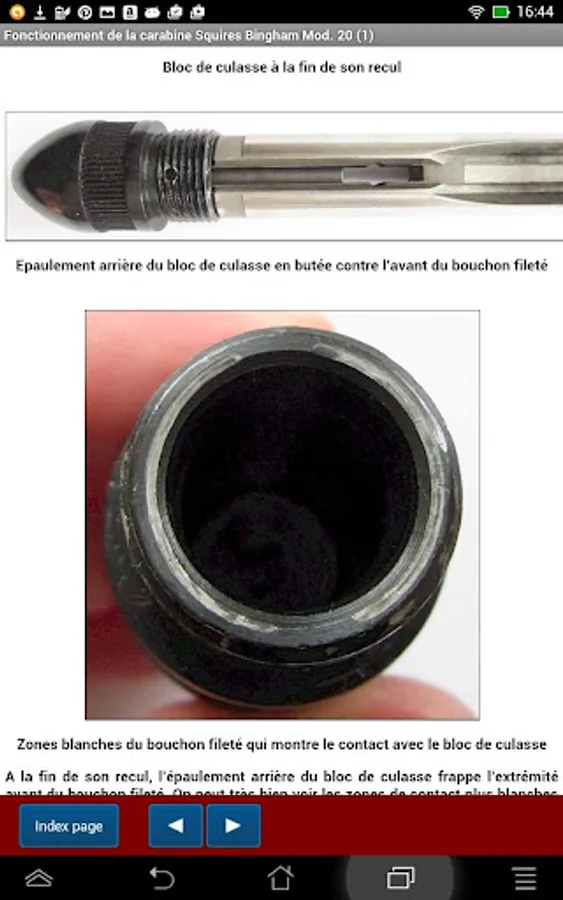

- Operation in semi-automatic mode
- Telescopic guides the recoil spring

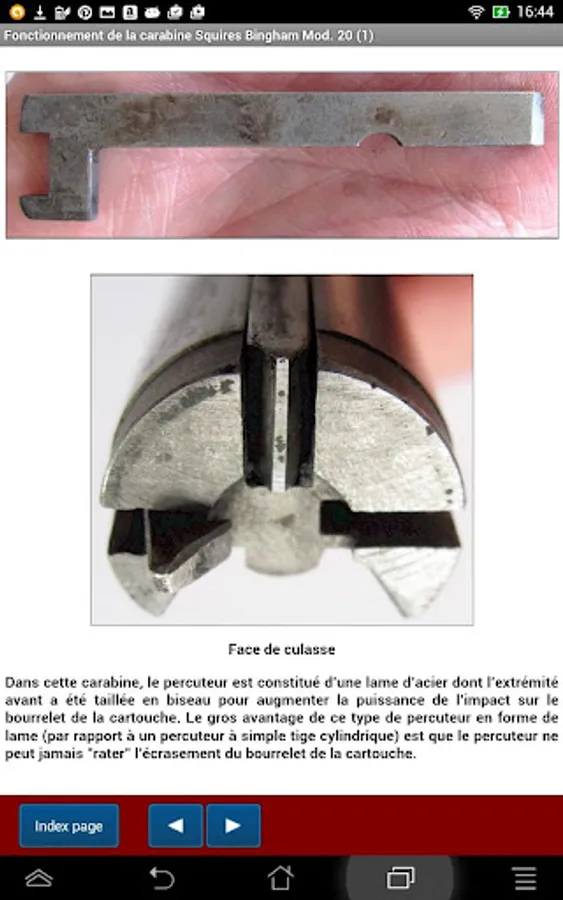

- The striker Weaponry
- Chambering of a cartridge

Operation of the rifle Squires Bingham Mod. 20 (2)

- Operation of relaxation
- Relax Link - trigger the disconnector
- Explosion of the cartridge
- Extraction and ejection of the cartridge case

Operation of the rifle Squires Bingham Mod. 20 (3)

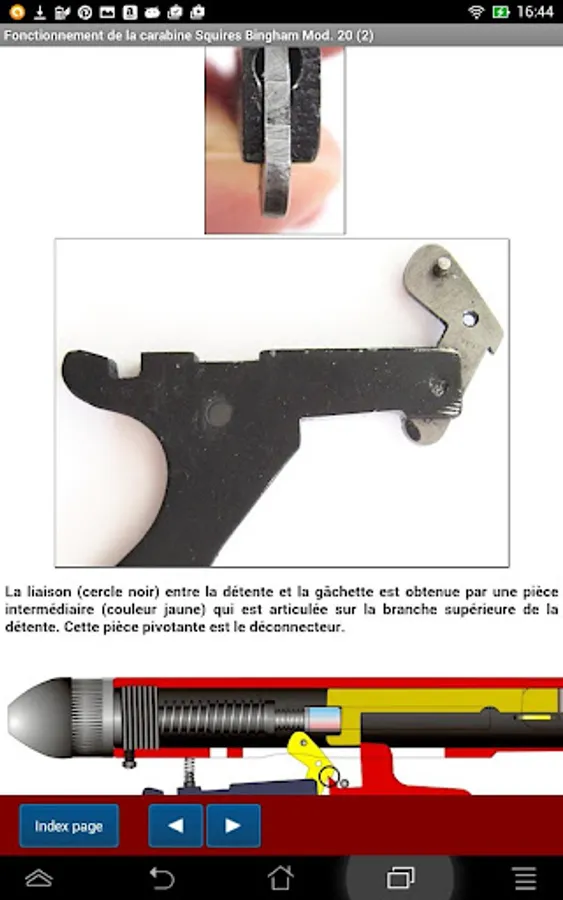

- Principle of disconnection explained

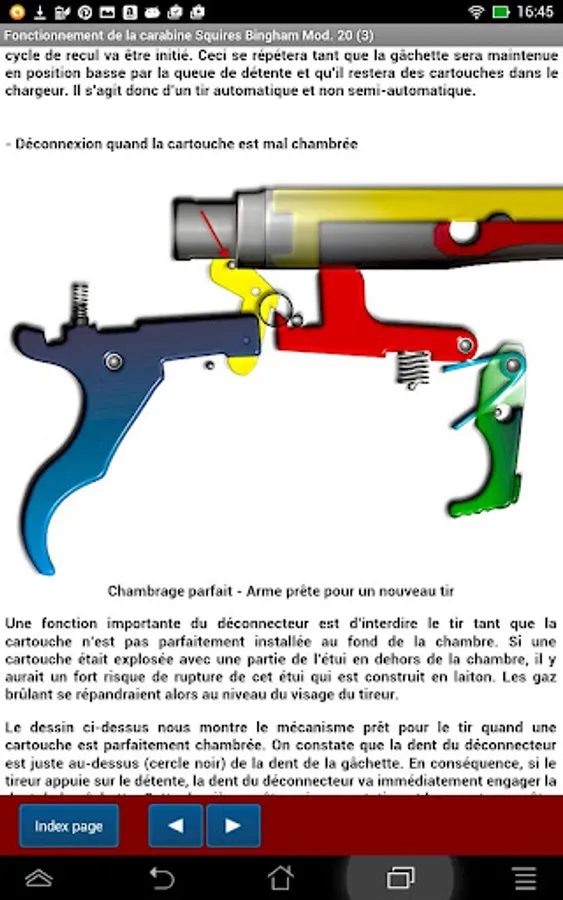

- Log when the cartridge is not chambered
- Log back when
- Release of the trigger by the shooter
- Operation of the manual safety
- Continued opening of breech block
- Deflector case and telescopic sight

Markings and changes in Squires Bingham Mod. 20

- Serial number and markings of the manufacturer
- History of the firm Squires Bingham
- Markings importers and caliber

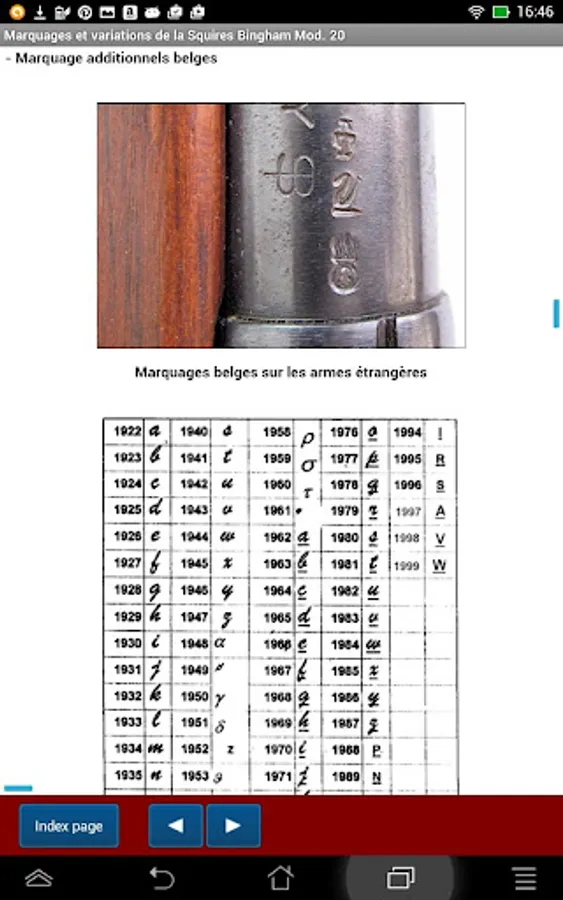

- Belgian additional Marking
- Improved version of the rifle model 20

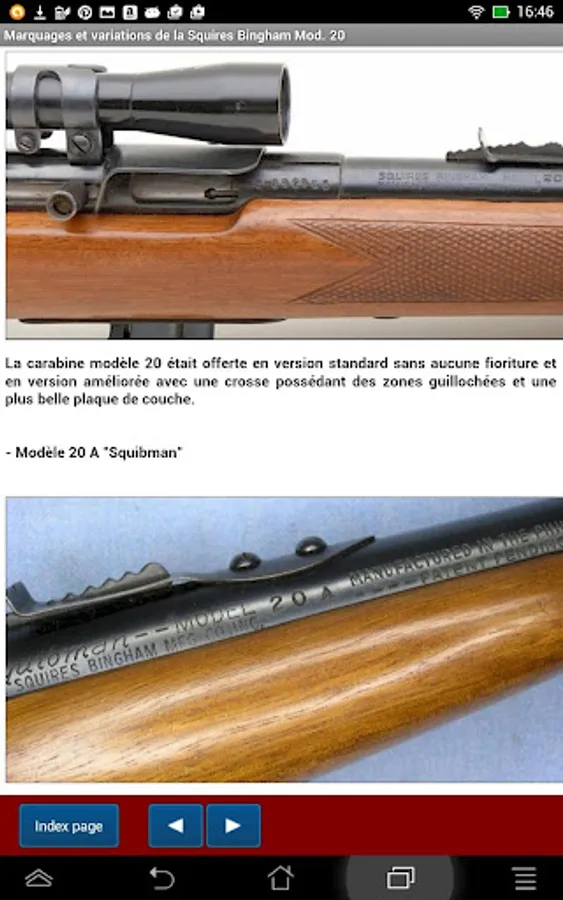

- 20 Model A "Squibman"
- Squires Bingham model M1600
- 20-C1 model currently offered by Armscor (2015 catalog)
