Wiring Harness Mapper

This tool is used to record results of continuity checks while reverse engineering a wiring harness

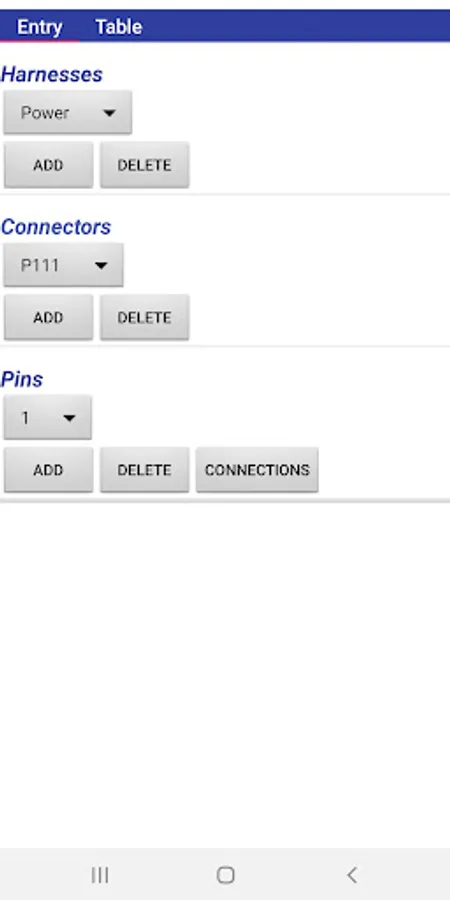

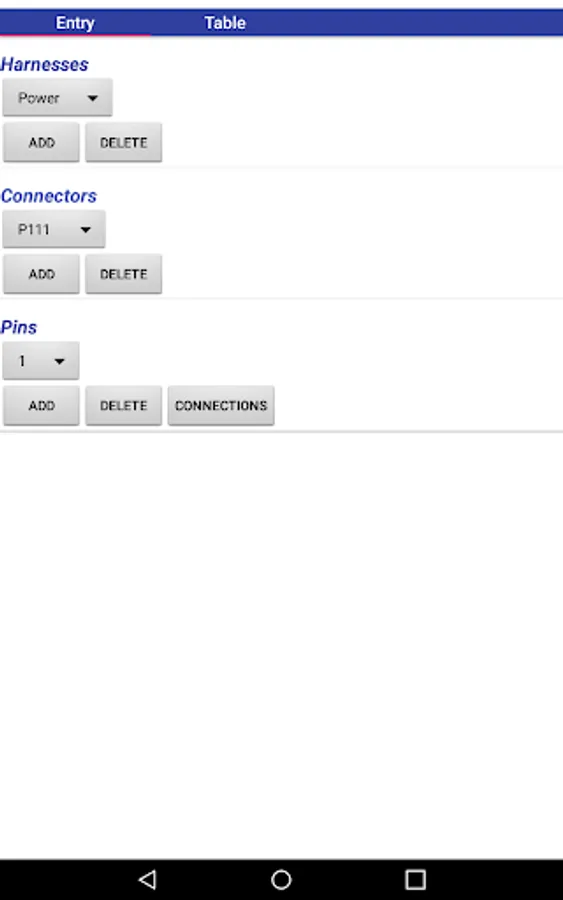

1) Enter a harness name.
2) Enter connector designations.
3) Enter pin designations for each connector.
4) Perform continuity checks.

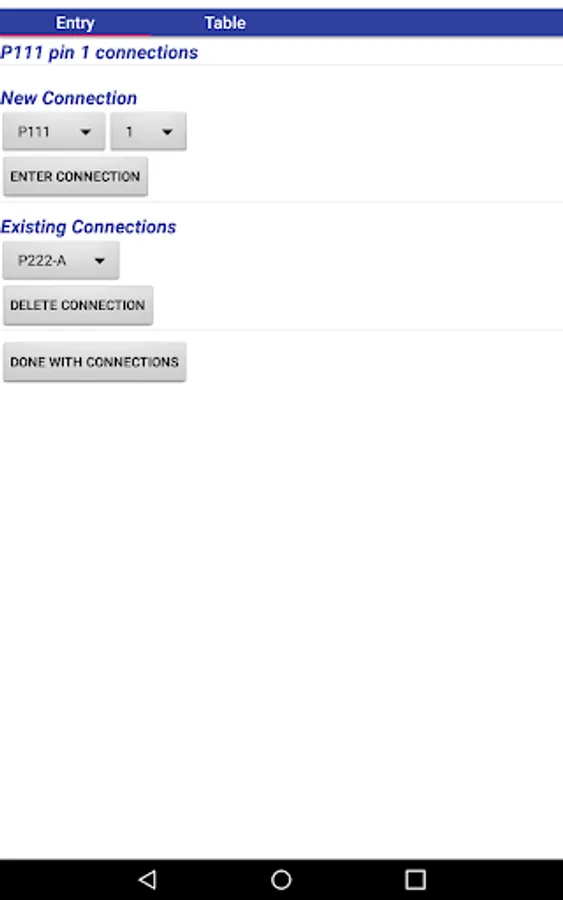

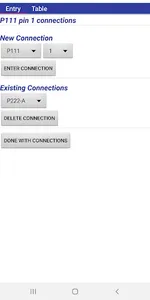

5) Select the connector pin under test and then select the connector pin
found to have continuity.

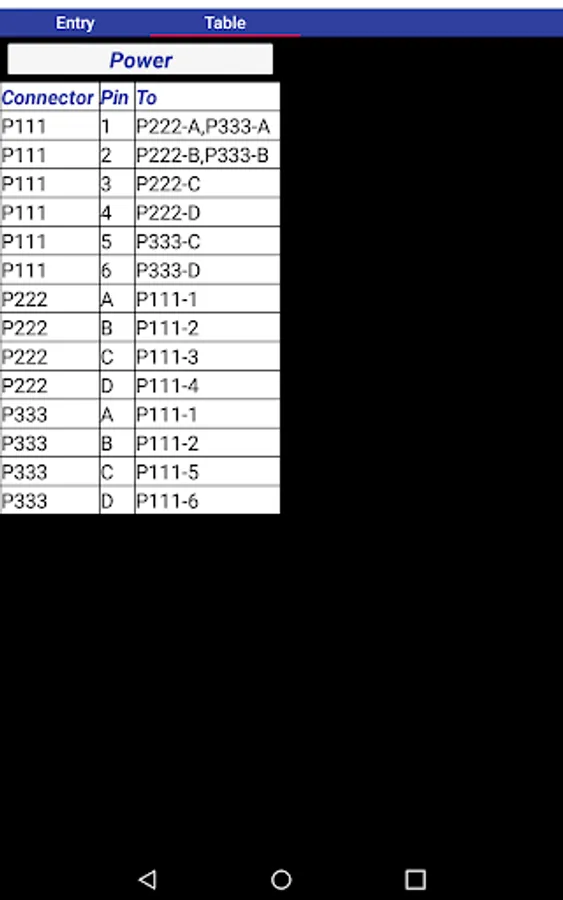

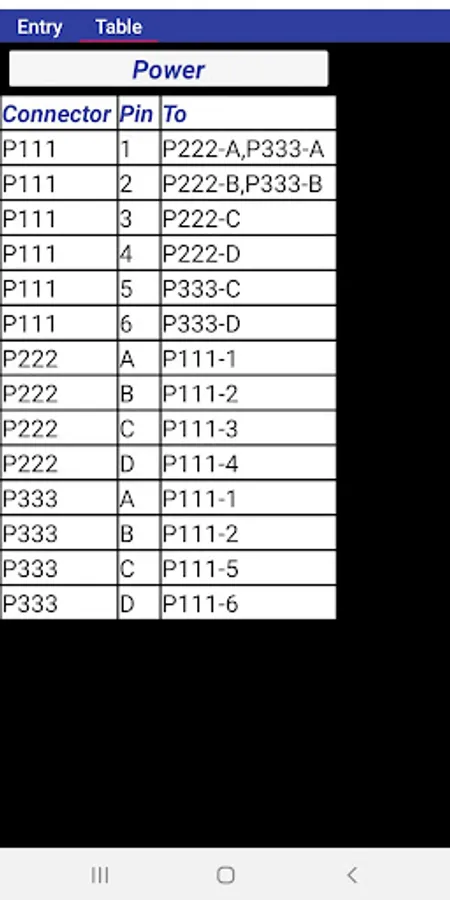

6) Review results in a table.

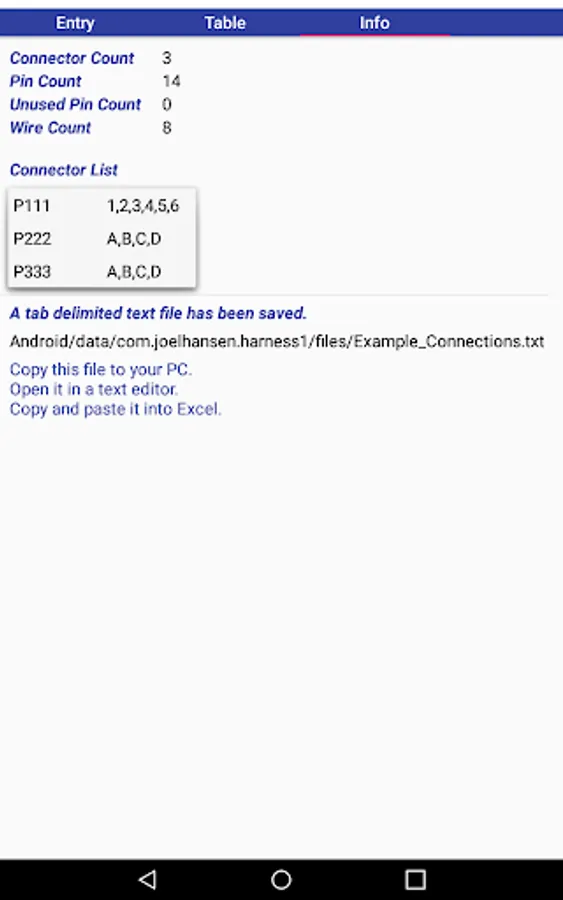

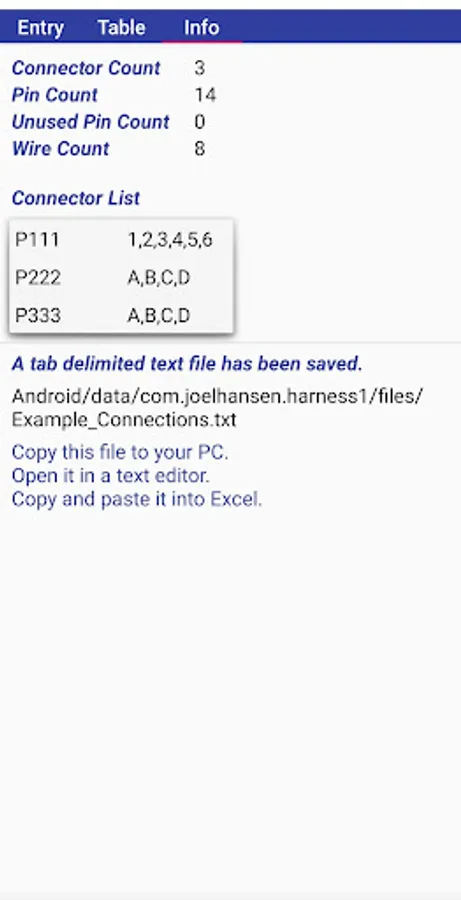

7) Transfer the generated tab delimited text file to your PC. Copy and paste it
into Excel.
