MeasureReady™ 155 Precision I/

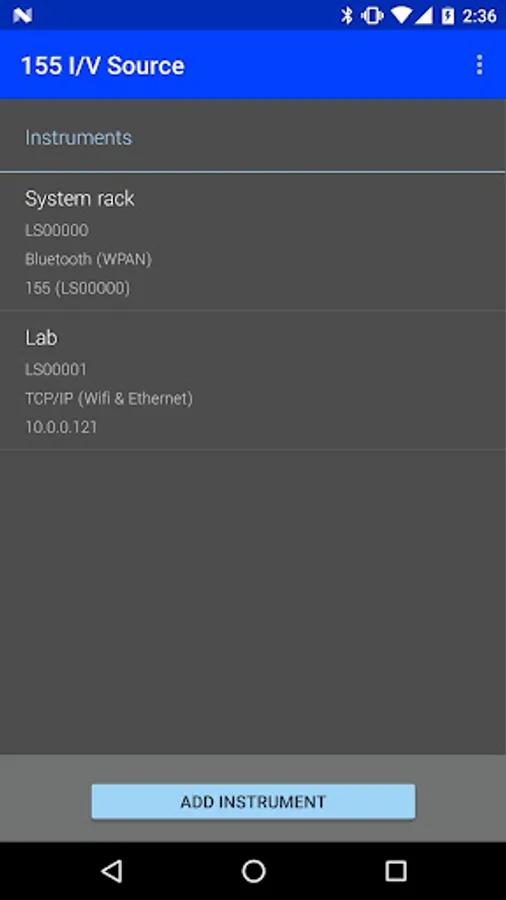

The Lake Shore 155 connection application provides fully functional remote access to your 155 precision I/V source.

Remote connection to 155 source does not conflict with either the local user interface changes or programmatic operation via SCPI commands. The application will show all updates real-time.

Modify source setup parameters
 • Switch between voltage and current mode
 • Select DC or AC signal forms
 • Select range setting to be a specified fixed range or autoranging
 • Select output terminals between front and back terminal locations

Control source output

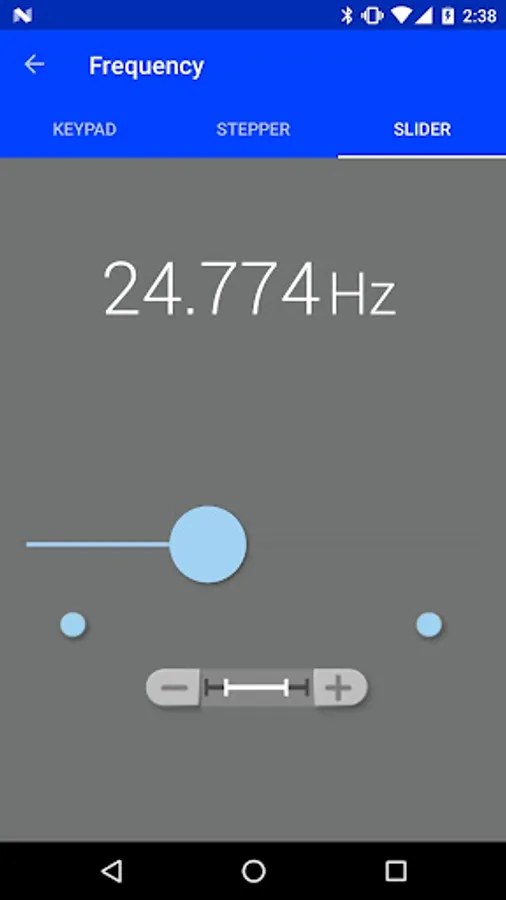

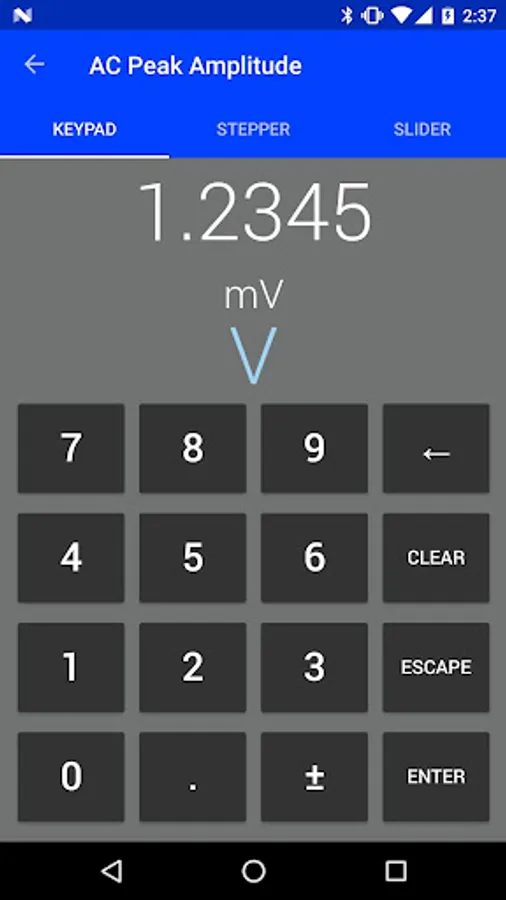

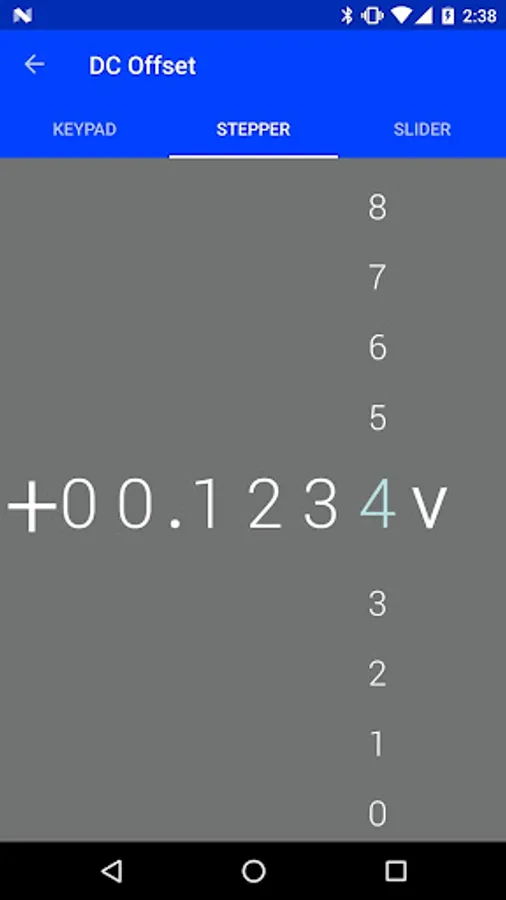

 • Real-time output via slide control, numerical entry, or decade stepping
  • DC output level

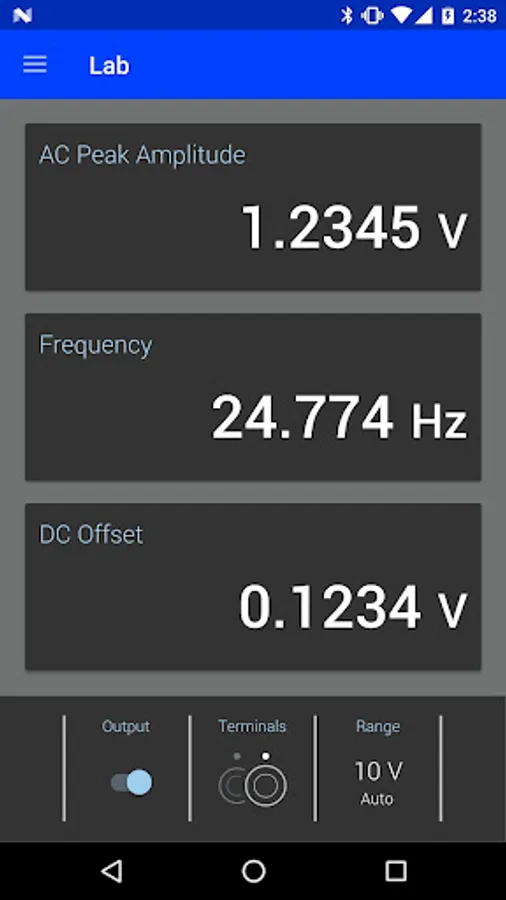

  • AC parameters (frequency, amplitude, DC offset)
 • Output enable/disable switch

Monitor output conditions
 • Monitor source output state for voltage compliance and current limit conditions
 • Monitor real-time output levels (these can occur either directly through the 155 local interface or programmatically via SCPI commands)
