Fabrication Calculator

One Tool for all your fabrication calculations such as All Fabrication Layouts, Dish ends Blank Diameter Calculations, Flange Hole Marking, Shell and Dish Nozzle Orientation Marker, Shell, Dish end internal / external or limpet Pipe Coil Length Calculator.

It is very helpful for developing fabrication layout of all types of shapes generally used in fabrication. it is minimize fabrication time, increased accuracy.

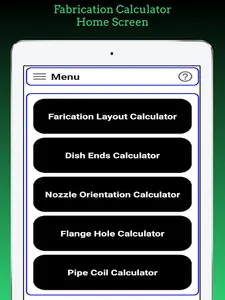

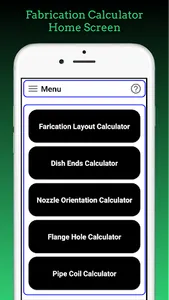

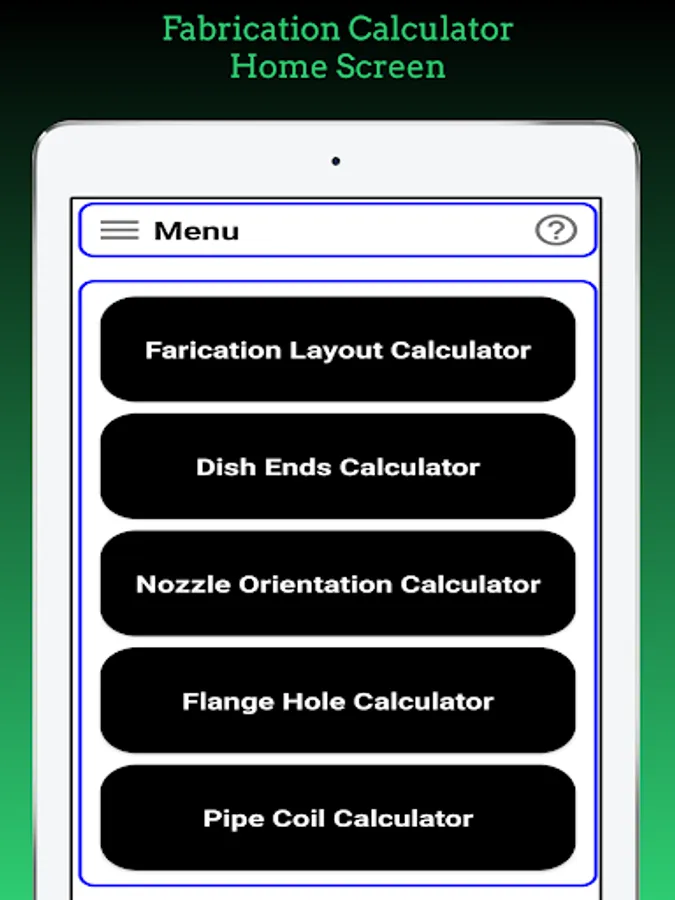

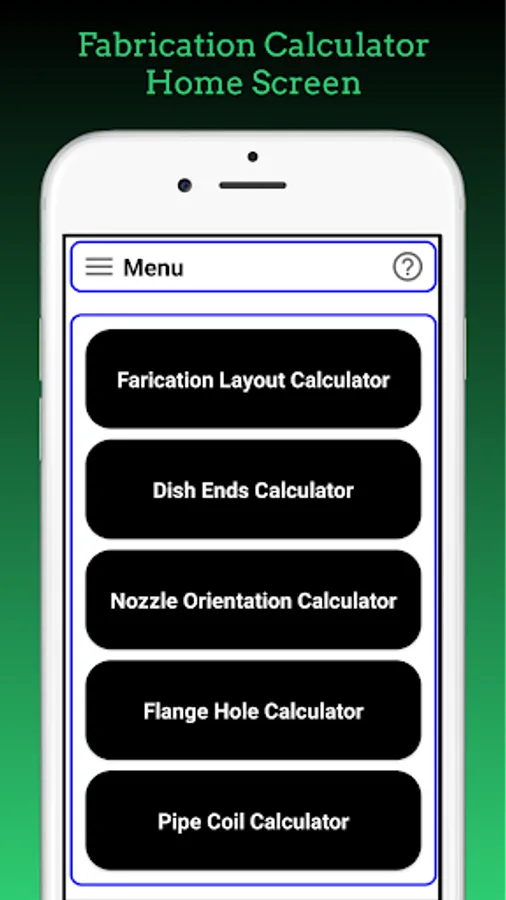

In this App Following Fabrication Calculators are available :

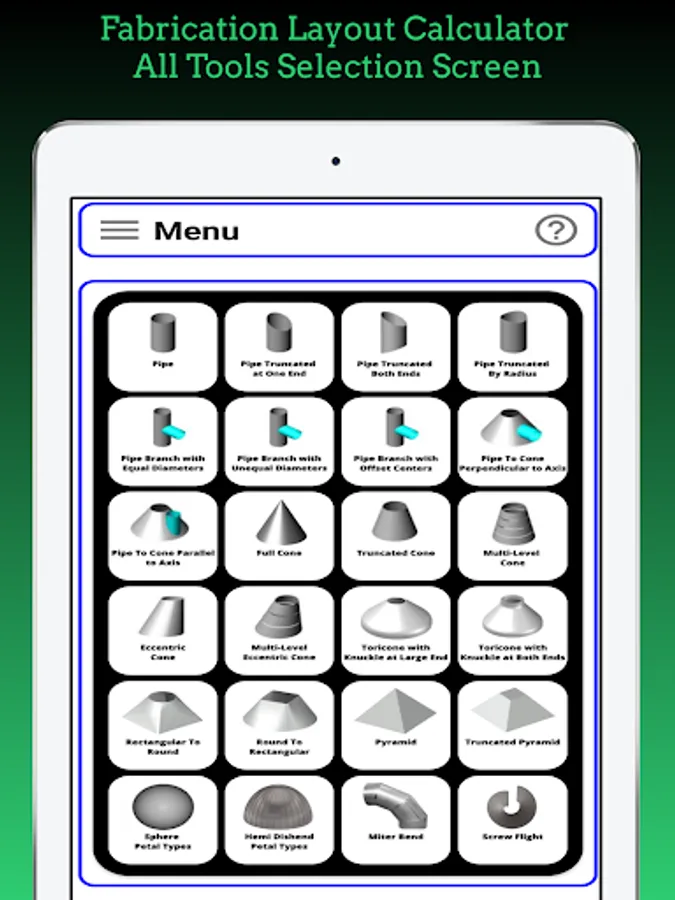

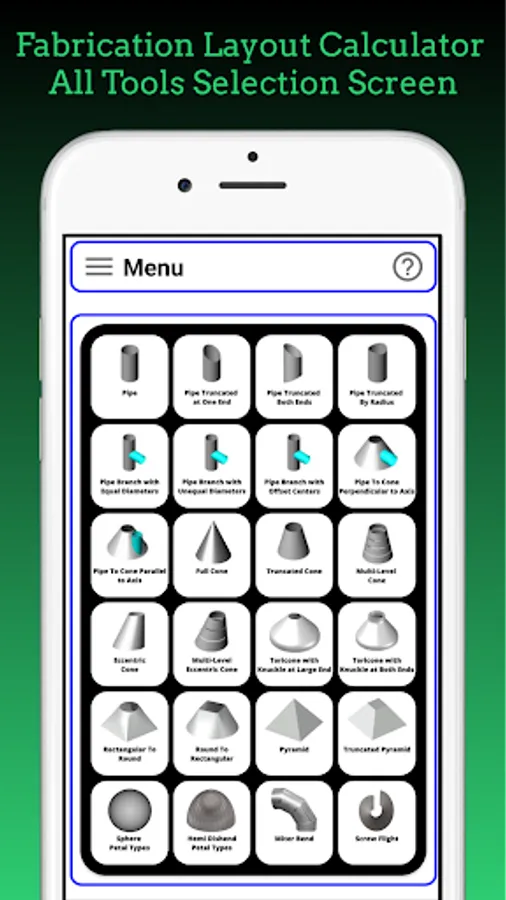

a. Fabrication Layout calculator

1. Pipe Layout or Flat Pattern.
2. Truncated Pipe Layout or Flat Pattern.
3. Truncated Pipe at Both end layout or Flat Pattern.

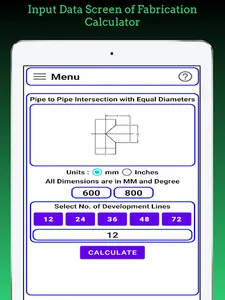

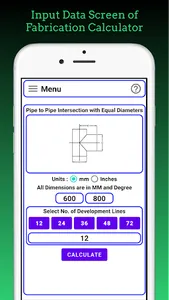

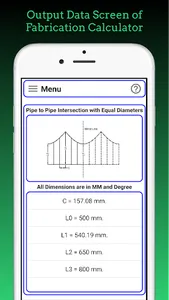

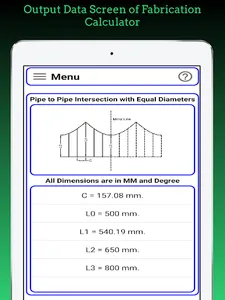

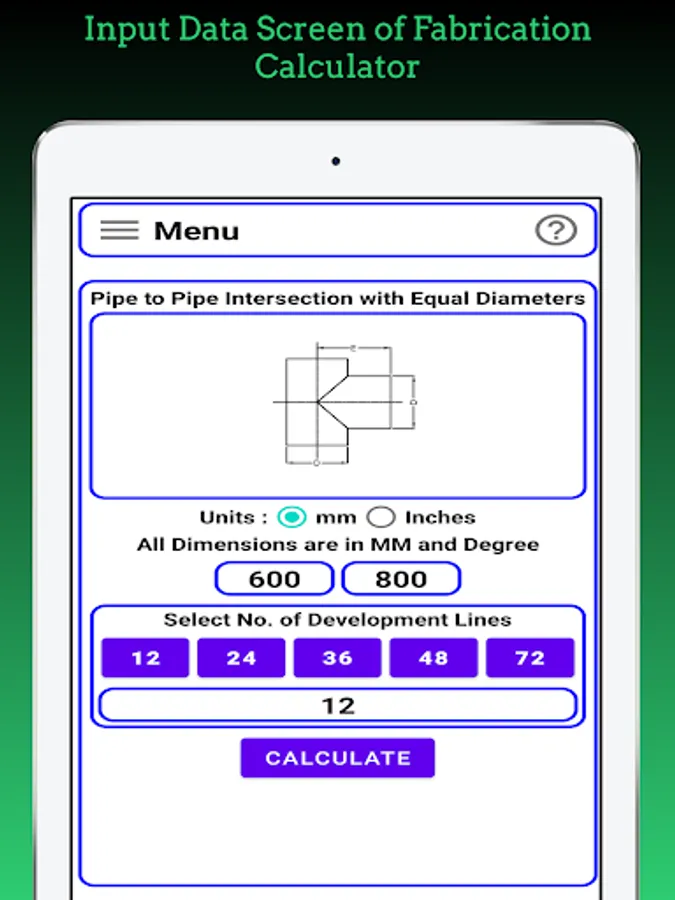

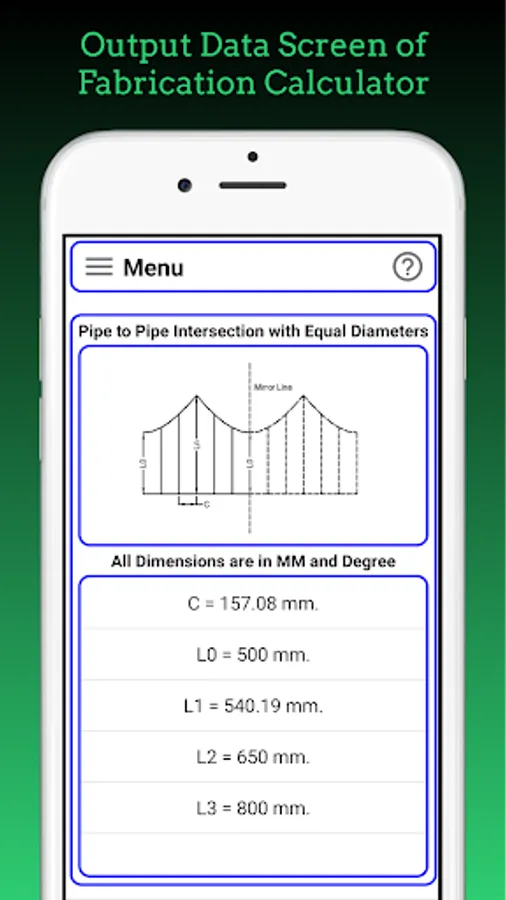

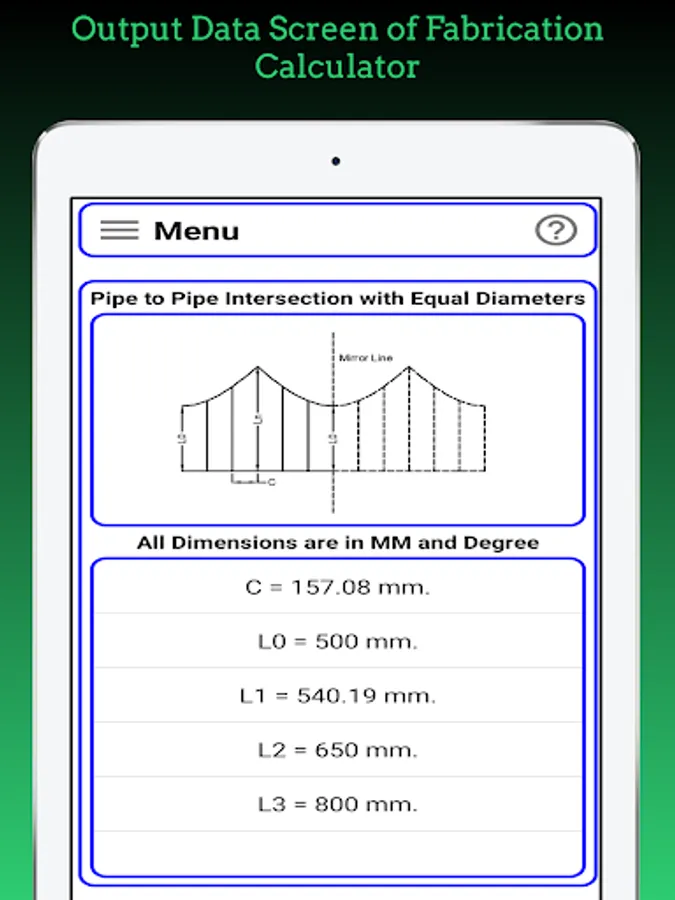

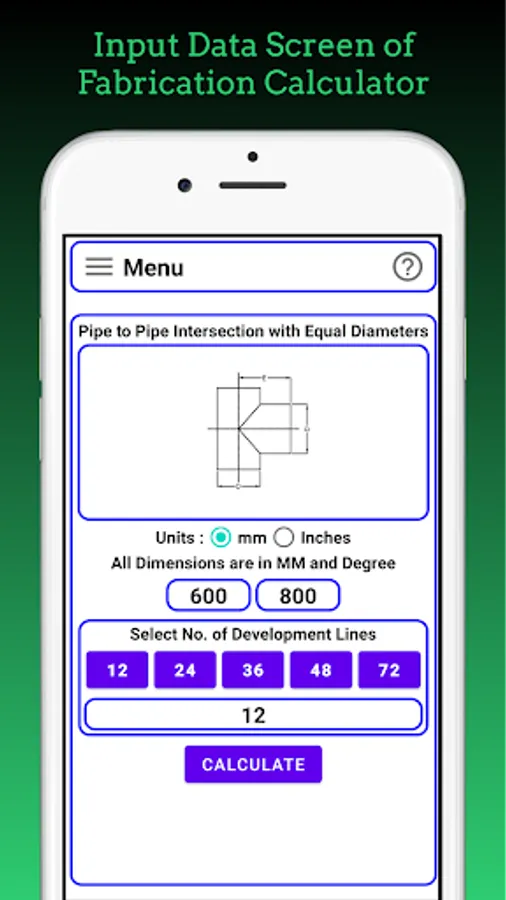

4. Pipe to Pipe Intersection with equal Diameters or Pipe Branch connection Flat Pattern.
5. Pipe to Pipe Intersection with unequal diameters or Pipe Branch Connection Flat Pattern.
6. Pipe to Pipe Intersection with offset diameters or Pipe Branch Connection Flat Pattern.
7. Pipe to Cone intersection at Perpendicular to Axis Flat Pattern.
8. Pipe to Cone Inter Section at Parallel to Axis Flat Pattern.
9. Pipe Truncated by Radius Flat Pattern.
10. Full Cone Layout Flat Pattern.
11. Truncated or Half Cone Layout Flat Pattern.
12. Multi Cone Layout Flat Pattern.
13. Eccentric Cone Layout Flat Pattern.
14. Multilevel eccentric cone layouts Flat Pattern.
15. Tori cone with Knuckle radius at large end Flat Pattern.
16. Tori cone with Knuckle radius at both ends Flat Pattern.
17. Rectangle to Round or Square to Round Transition layout Flat Pattern.
18. Round to Rectangle or Round to Square transition layout Flat Pattern.
19. Pyramid layout Flat Pattern.
20. Truncated Pyramid Layout Flat Pattern.
21. Sphere Petal Layouts Flat Pattern.
22. Dish End Petal Layouts Flat Pattern.
23. Miter Bend Layout Flat Pattern.
24. Screw Flight Layout Flat Pattern.

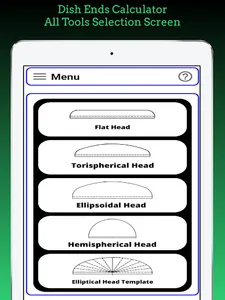

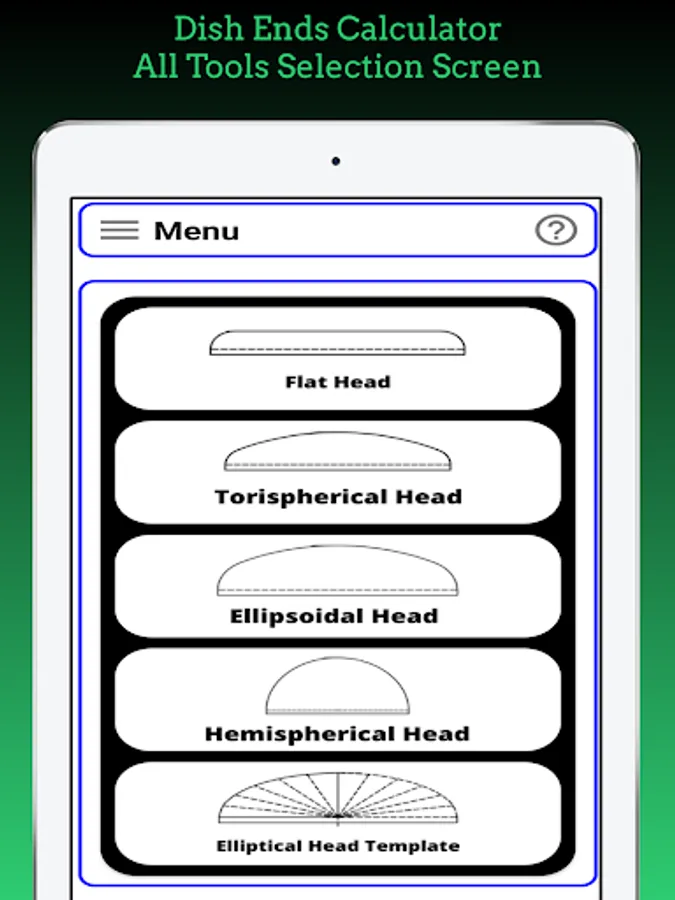

b. Dish End Blank Diameter Calculator

1. Flat Dish Blank Diameter Calculator
2. Tori spherical Dish end Blank Diameter Calculator
3. 2:1 Ellipsoidal Dish End Blank Diameter calculator
4. Hemispherical Dish End Blank Diameter Calculator
5. 2:1 Ellipsoidal Dish End Template Calculator

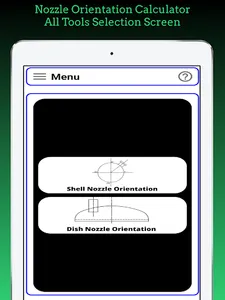

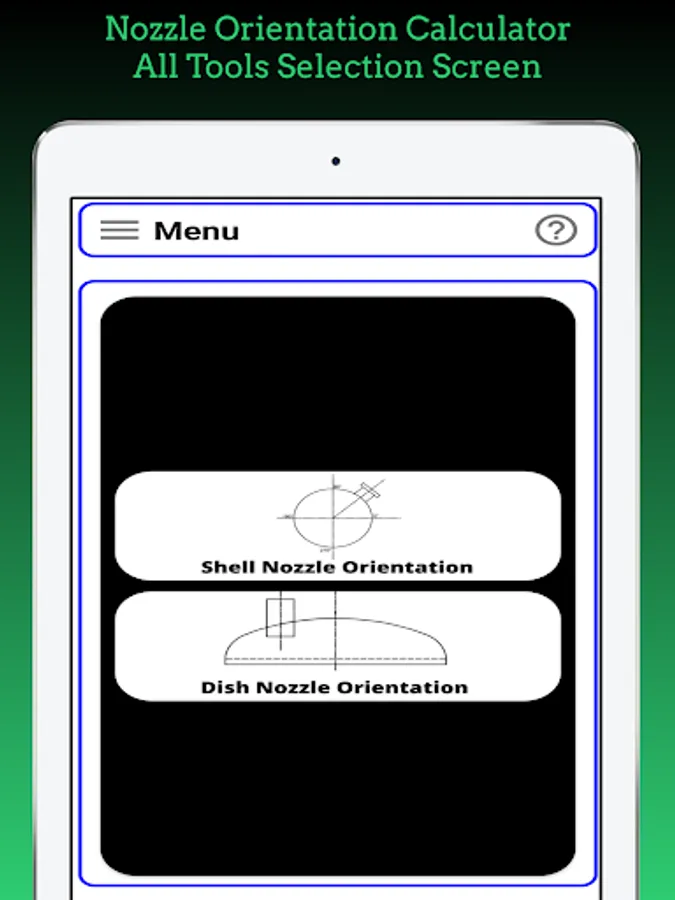

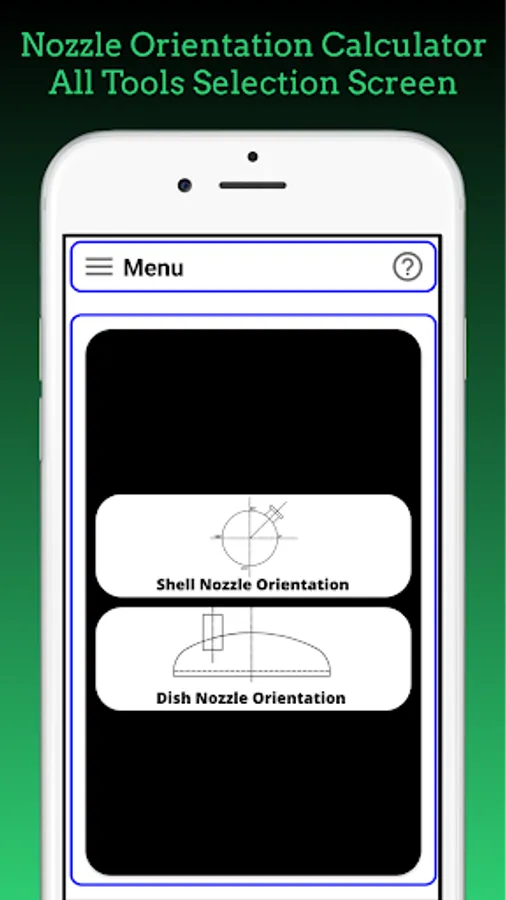

c. Nozzle Orientation Marker

1.Shell Nozzle Orientation Marker
2.Dish end Nozzle Orientation Marker

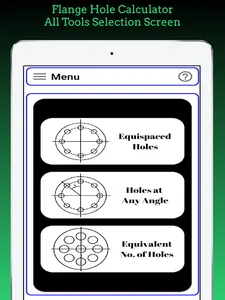

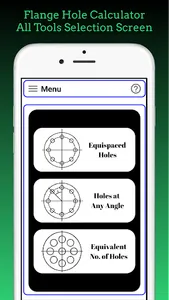

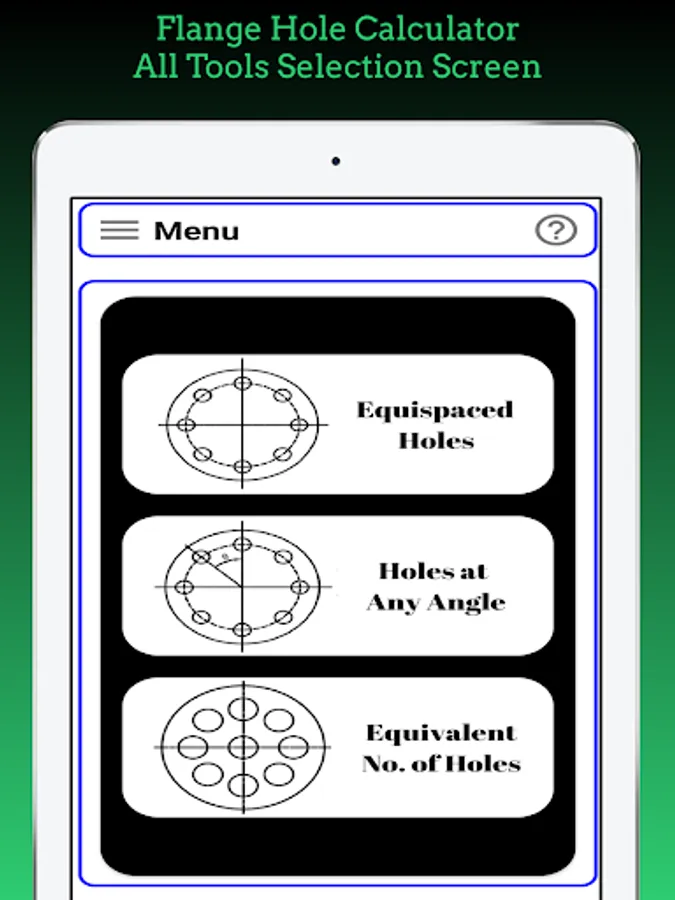

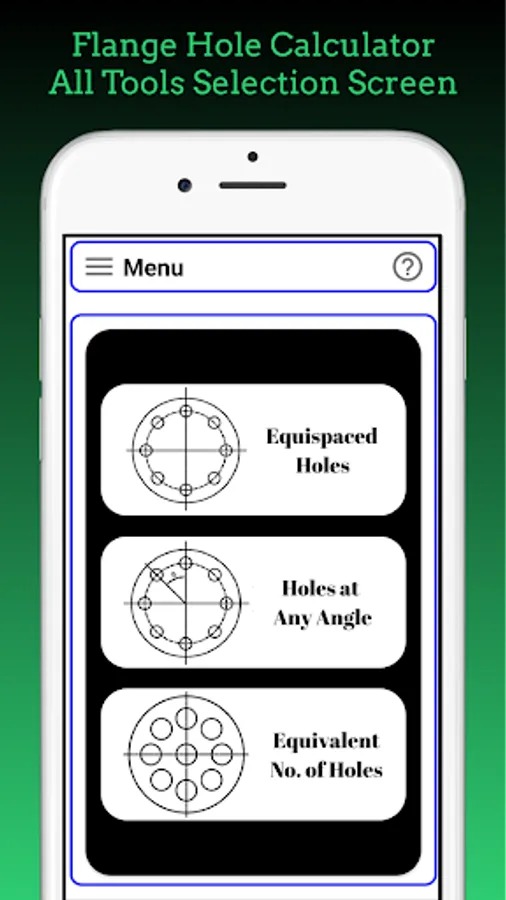

d. Flange Hole Calculator

1. Equip-spaced Hole Marking Calculator
2. Flange Hole at Particular angle Calculator
3. Equivalent No. of Hole Calculator

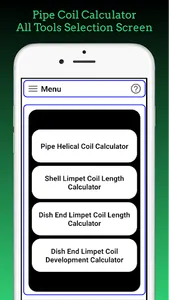

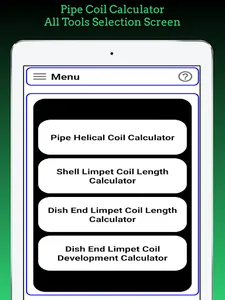

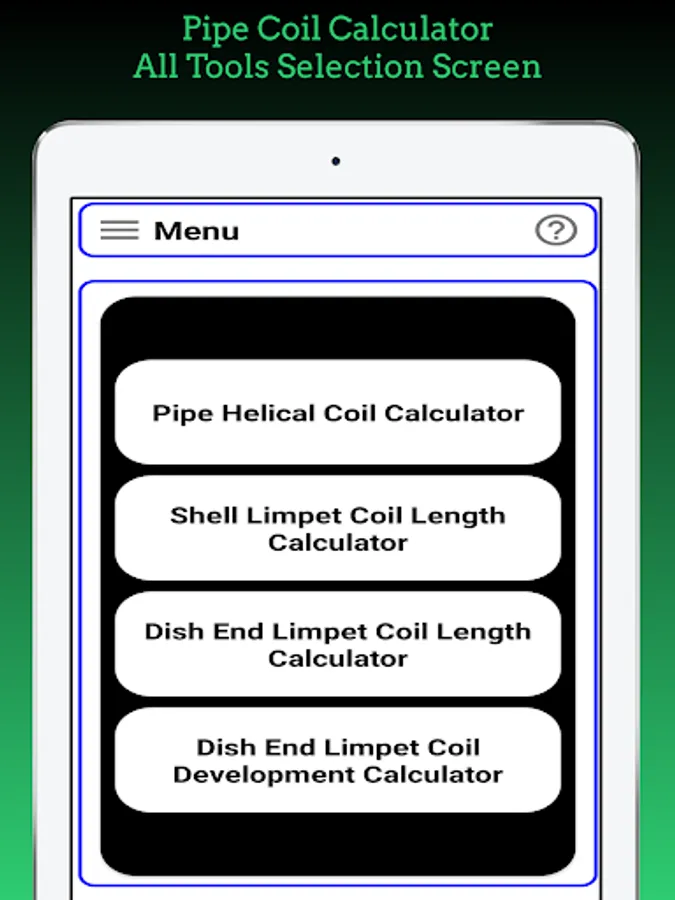

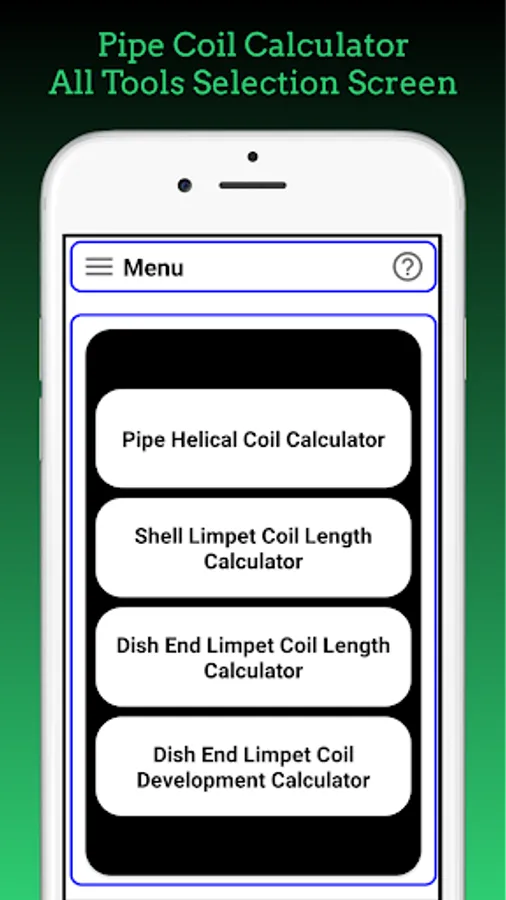

e. Pipe Coil Calculator

1. Internal / external Pipe Coil Length Calculator
2. Shell Limpet Coil Length Calculator
3. Dish End Limpet Coil Length Calculator
4. Dish Limpet Coil Layout Development.

All this type of Calculations are done in your mobile in one single tool for all your fabrication calculation needs. In this application cone,shell,pipe,pipe branch connections, full cone, half cone, truncated cone, square to round, round to square, rectangular to round, Round to rectangular, pyramid, truncated pyramid, cone to pipe branch, spheres, dish ends, pipe coils, limpet coils, internal coil, external coil, half pipe jacket coil, miter bend, fabricated bend, cut bend, segment bend, flange, tube sheet, perforated plates, screw flights, nozzle orientations, shell nozzle, dish end nozzles, Tori spherical dish end, ellipsoidal dish ends, elliptical heads, hemispherical dish ends, flat dish ends, elliptical template markings etc shapes.

This Calculator has both MM and Inches options for Unit Setting and It also available Decimal Fraction Chart for Quick reference. All Calculator results are tested on verified tools for higher accuracy.

it is useful for those who are working in Pressure vessels fabrication, process equipment fabrication, welding, Piping, Insulation, Ducting, heavy Equipment fabrication, Storage tank, Agitators, Mechanical equipment, structures, industrial fabrication, heat exchangers etc. it is best tool for production engineers, fabrication engineer, planning engineers, costing and estimating engineers, project engineers, fabrication contractor, fabrication supervisors, fabrication fitters, fabrication worker.
