Solaflex - digital measurement system

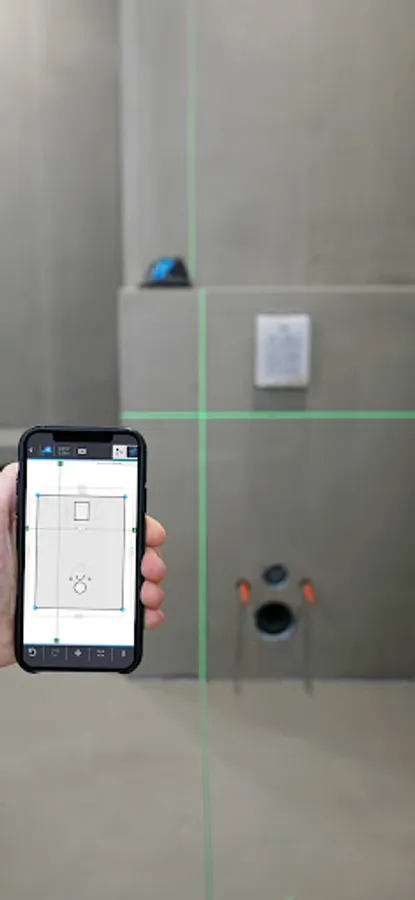

The Solaflex app was specially developed for measuring areas. It has never been so easy to create a digital measurement. The app is compatible with the digital roller meter RX5 developed by Solaflex. This combination allows measured values to be transferred directly from the meter to the app at the touch of a button and visualized at the same time. The drawings and tables created can be easily exported as DXF, PDF or CSV files for further production. With the digital measuring system from Solaflex, drawings and tables are digitized immediately.
Premium features:
DXF export
Save yourself the work of laboriously transferring your hand sketches into CAD software - with Solaflex, created drawings can be transferred directly into CAD programs with just a few clicks. Directly from the app or on MySolaflex.
BOM explosion
With this premium feature, the generated contour is displayed in detail. Parts to be processed can be displayed individually so that the respective contour can be easily transferred to the raw material using lengths, angles or coordinates. The parts list can also be exported and sent as a PDF file.
Table export and templates
Created tables can be saved as a template and called up again. In addition, the tables can be exported as a CSV file, directly from the app or on MySolaflex.

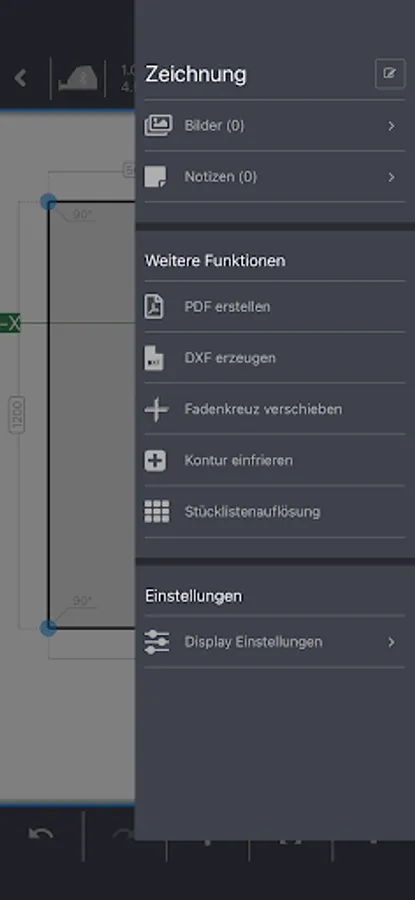

More functions:

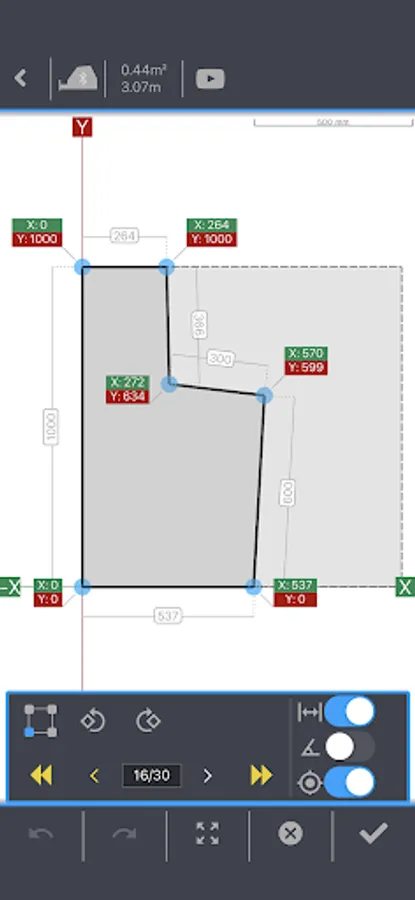

coordinate mode

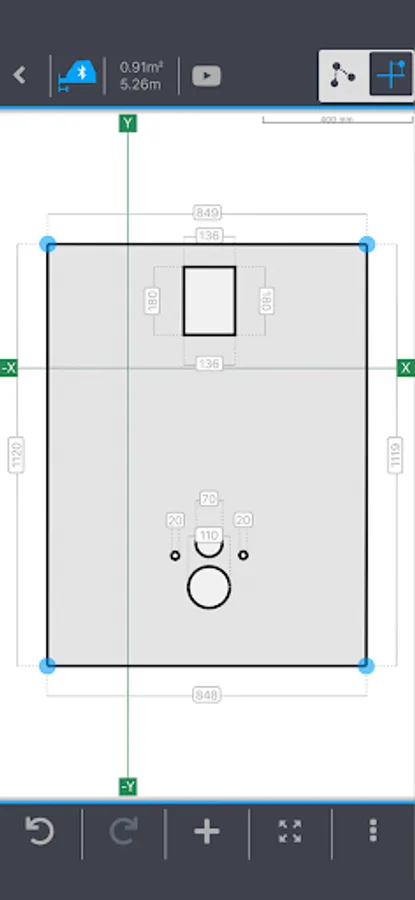

Measuring with a coordinate system leads to the most accurate measurement results. Regardless of whether the surface is rectangular or not, with this measuring principle, all contour points are determined using two coordinates, X and Y, and angles are determined automatically. You can find out more at www.solaflex.com.

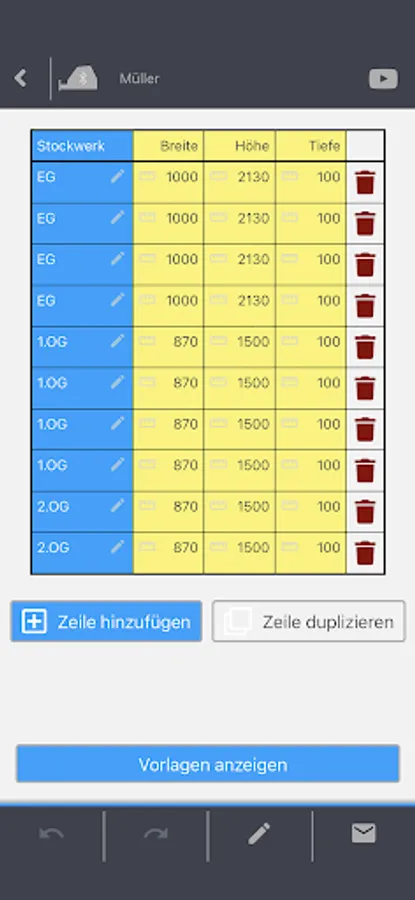

table mode
In this mode, tables can be created and configured individually. The table can then be filled with measured values or text.
Insert snippets
It is not uncommon for walls, ceilings or floors to contain installations such as sockets, pipes or the like. In the app you can insert a wide variety of excerpts and configure them according to your wishes.
Freeze natural measure
In order to ensure a smooth installation of your measured object, you can select the function "Freeze true to size" and subtract the necessary tolerances from the drawing you have created.
move crosshairs
With this function you can move the crosshairs into inaccessible areas and continue your measurement from there. Simply enter the distance from the old to the new crosshair position and continue measuring.
Show perimeter and area
With Solaflex, the scope and area of drawings are visible at all times, which helps when ordering materials and calculating costs.

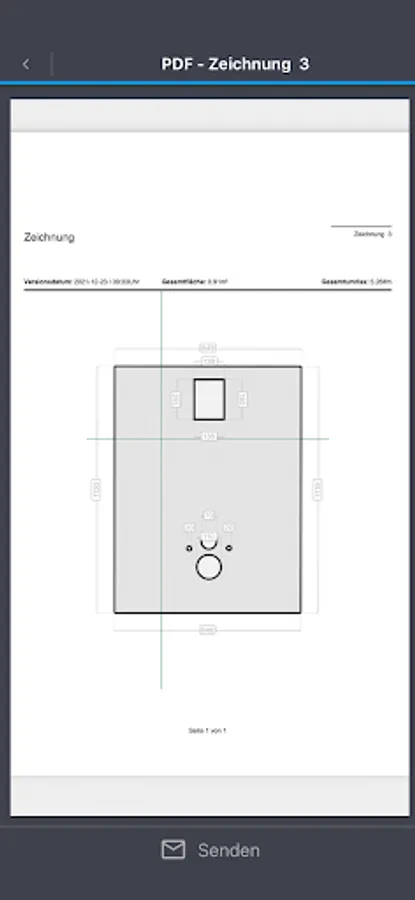

Generate PDF
Drawings can also be exported and sent as PDF.
Project and drawing management
You can bundle drawings into project folders.
photos and notes
If there is something to consider in the drawing, photos or notes can be attached. The data is automatically inserted into the PDF.
Manual measurement input
No digital tape measure ready? You can also enter measurements manually using the keyboard or a virtual tape measure.
video tutorials
In the app, on YouTube and on www.solaflex.com you will find numerous videos that explain the functions of the measurement system.

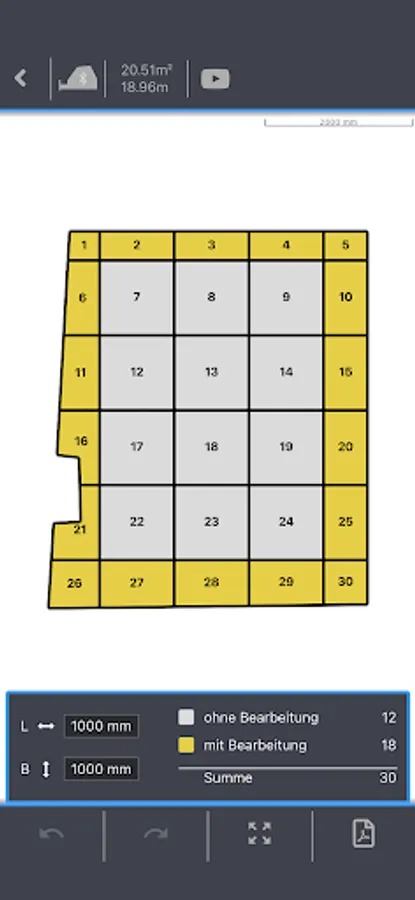

joint grid
Enter width, height and joint width and place and position the created joint grid on the drawing.
bump
Enter the joint width and position the joint at the desired location.
intuitive operation
Points and edges can be moved using drag & drop.
