Deflection Pro

Deflection is the most interactive, fast, and precise app available for structural beam analysis. Design visually and obtain engineering results, graphs, and equations instantaneously!

Simply place loads and supports on the beam, and see how it bends. Find a cross section in the built-in library, or define a custom shape. Deflection, internal stresses, and other useful results are automatically updated.

This software is the result of over six years of continuous development and innovation aimed at mechanical engineering, civil engineering, and structural engineering. This tool will help you apply beam elastic theory from day 1 as you are learning Mechanics of Materials, and it will be your go-to pocket reference any time in the future.

RESULTS

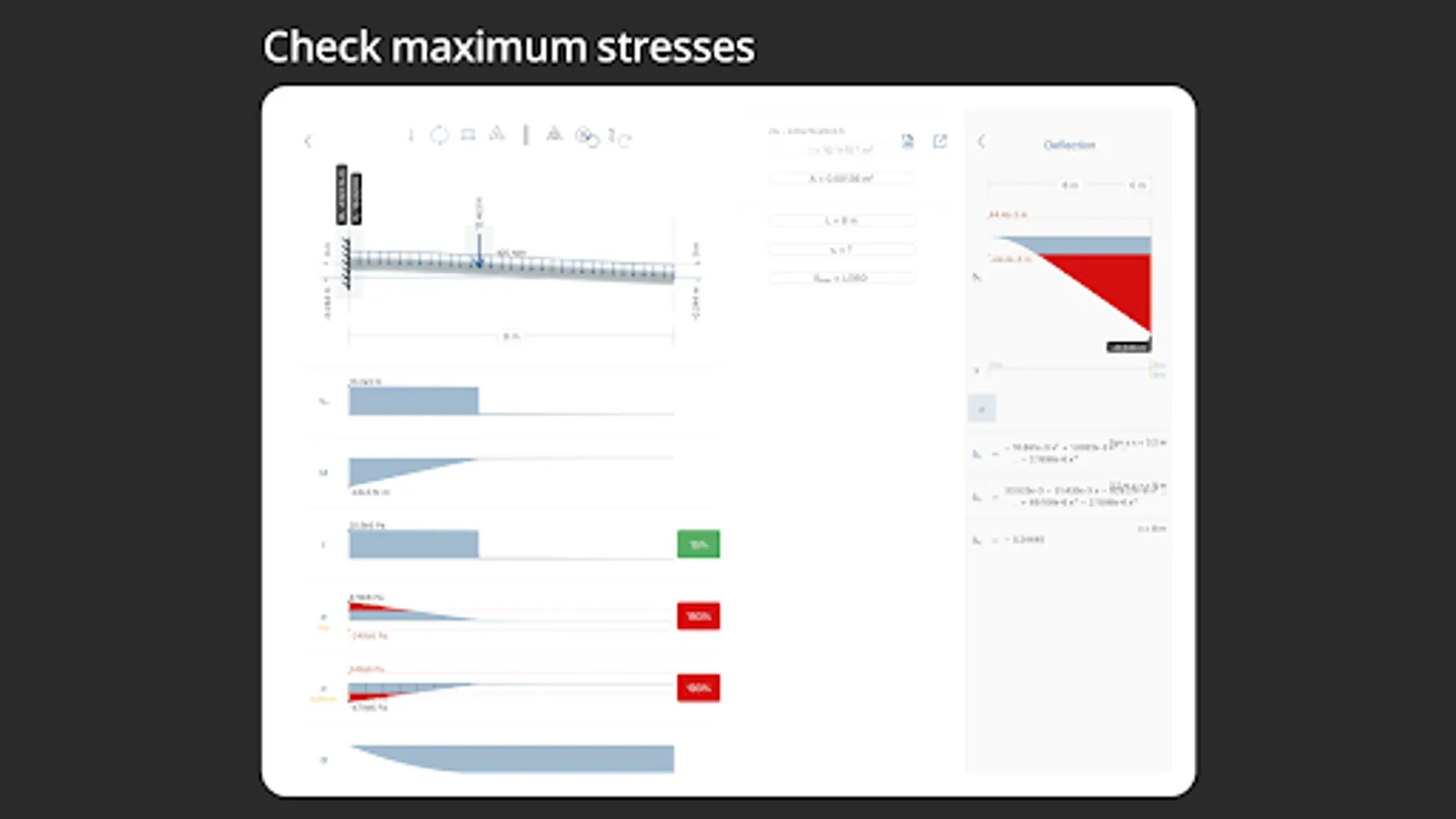

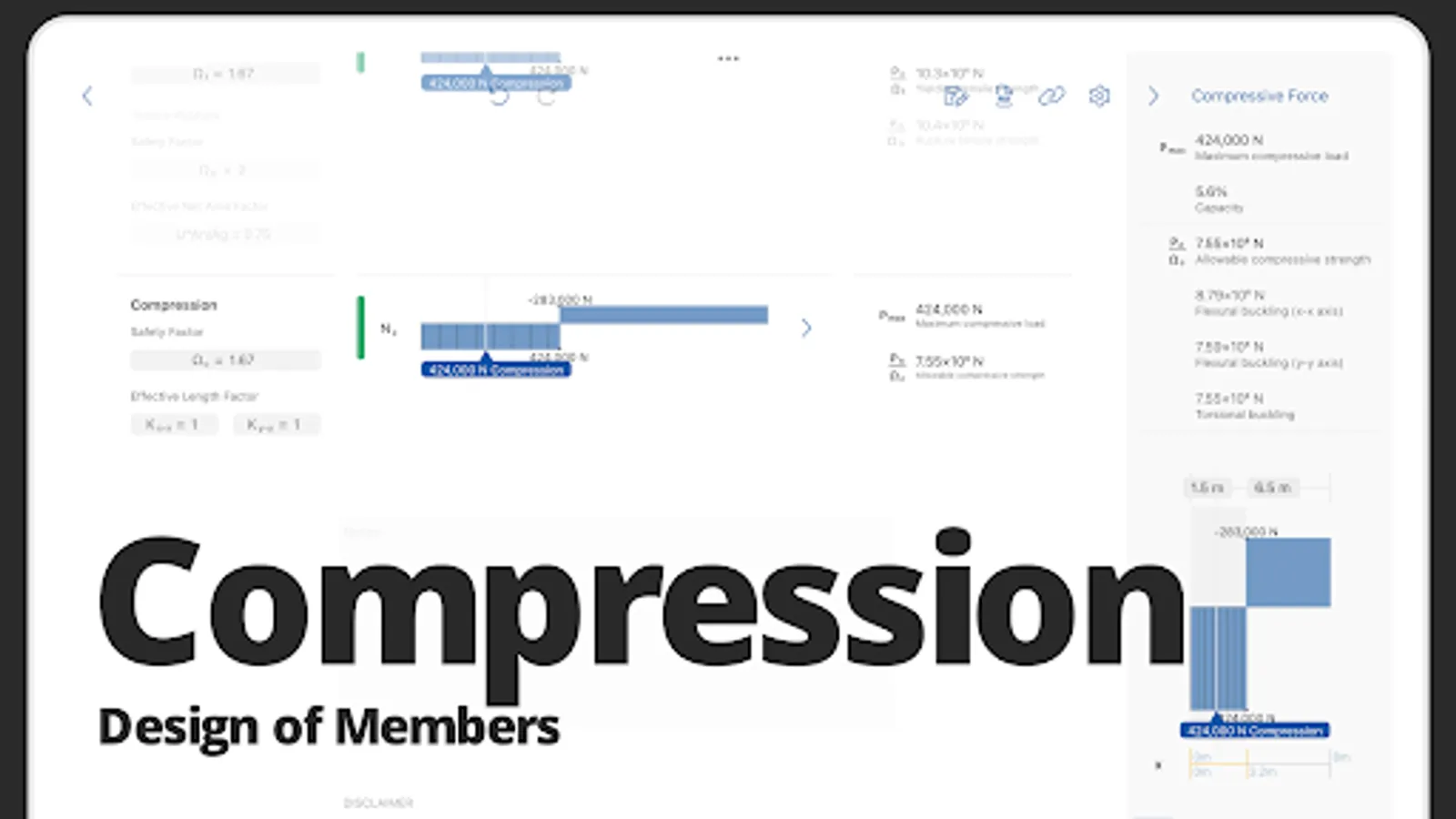

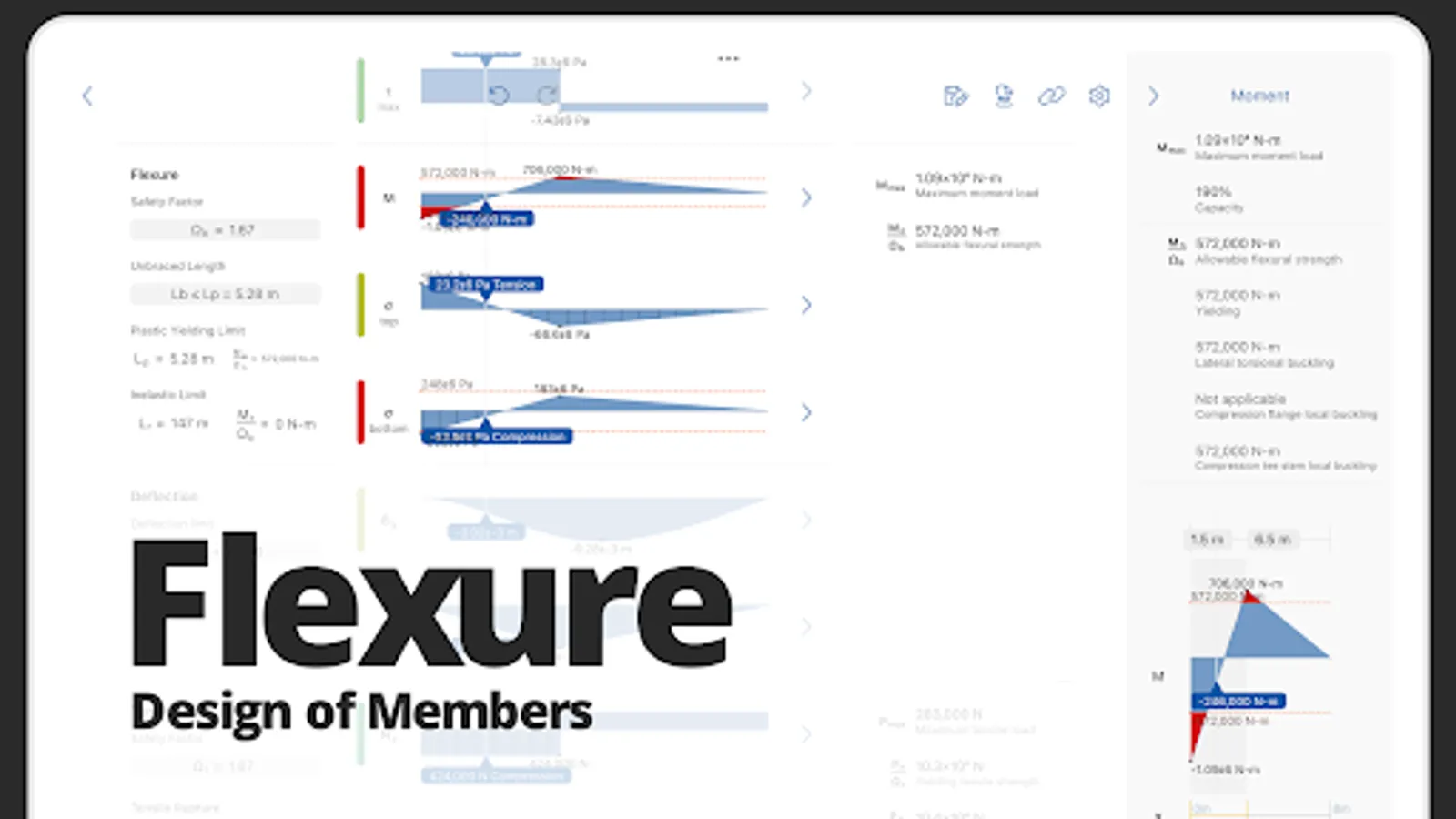

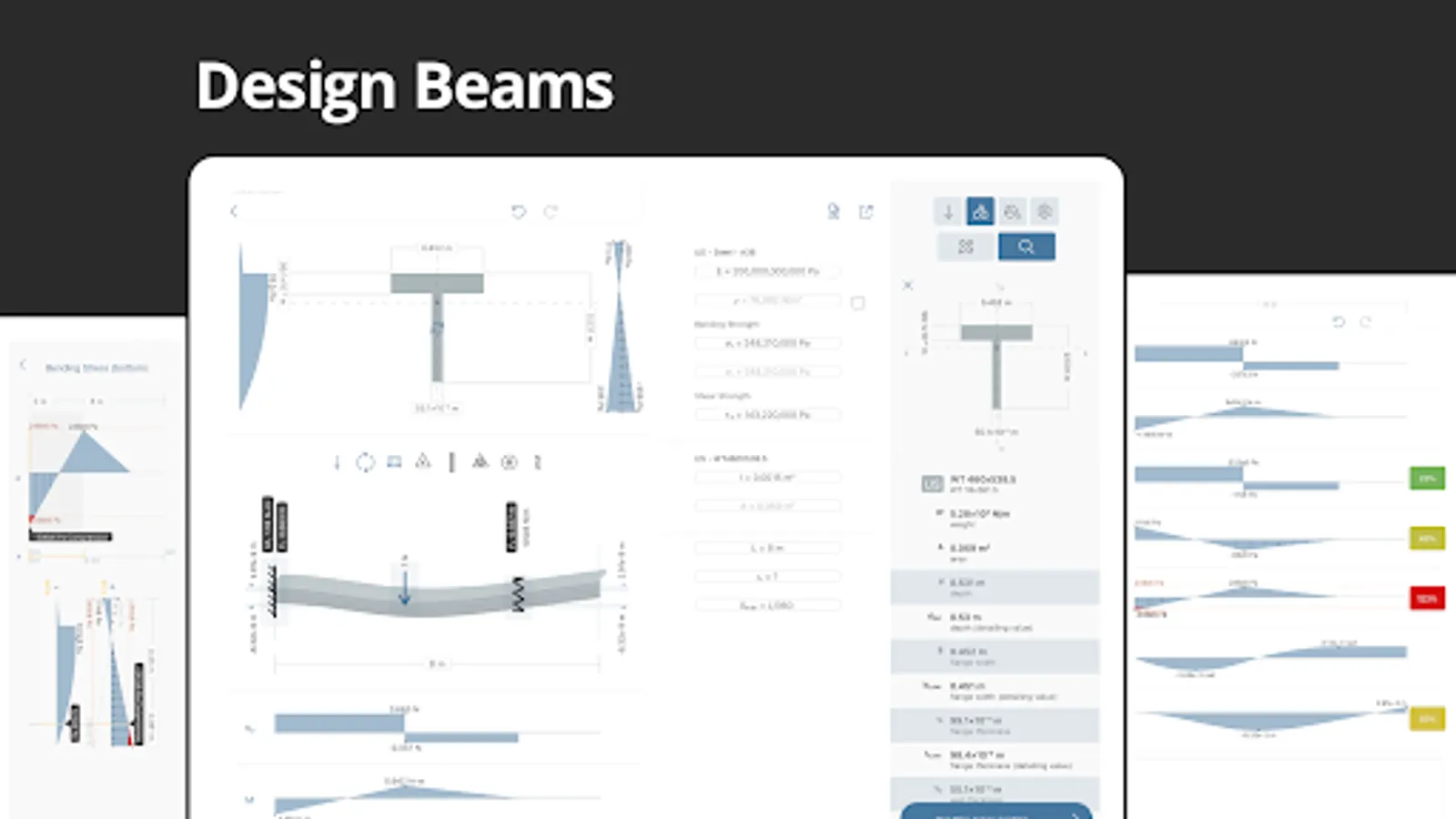

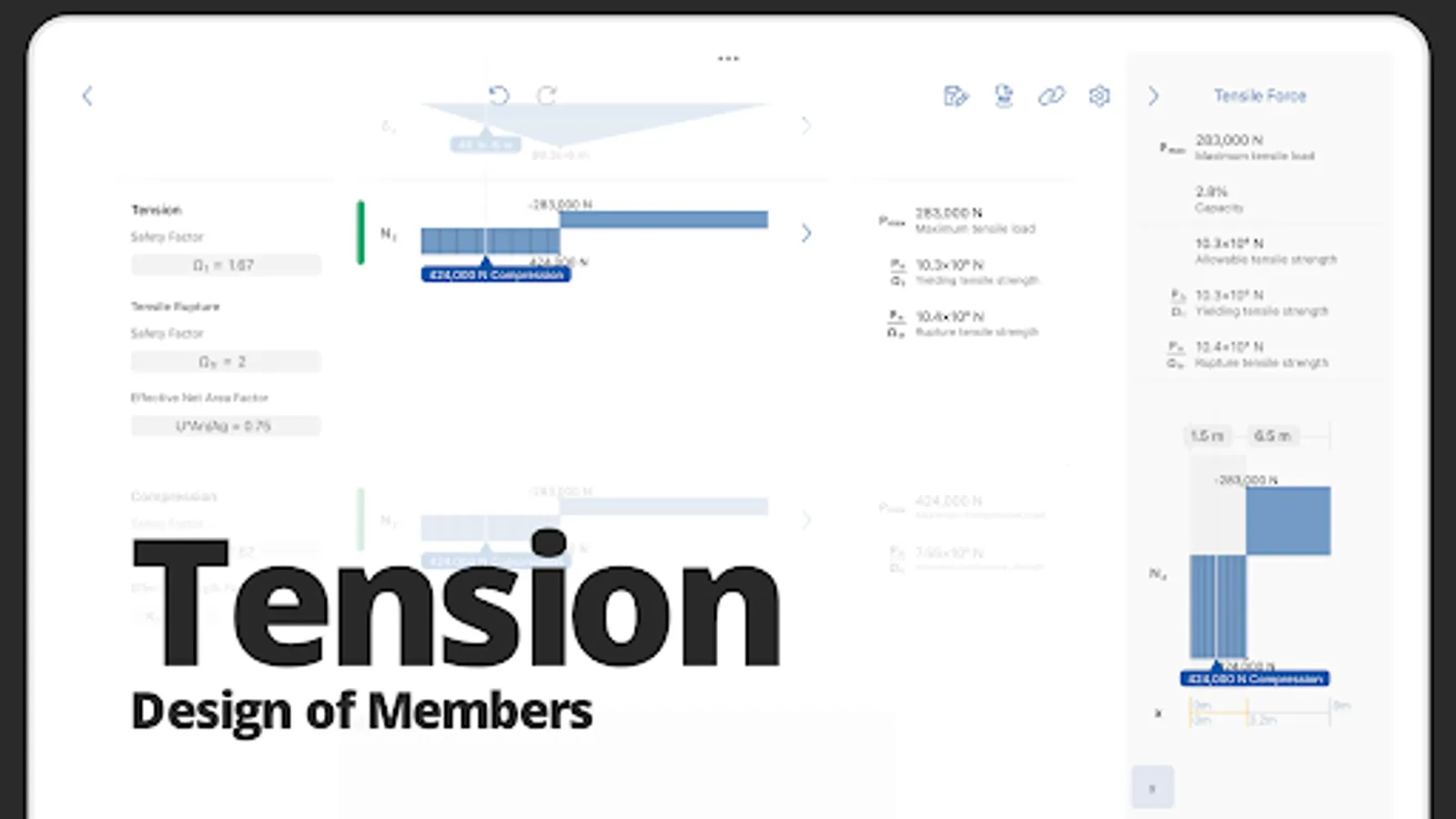

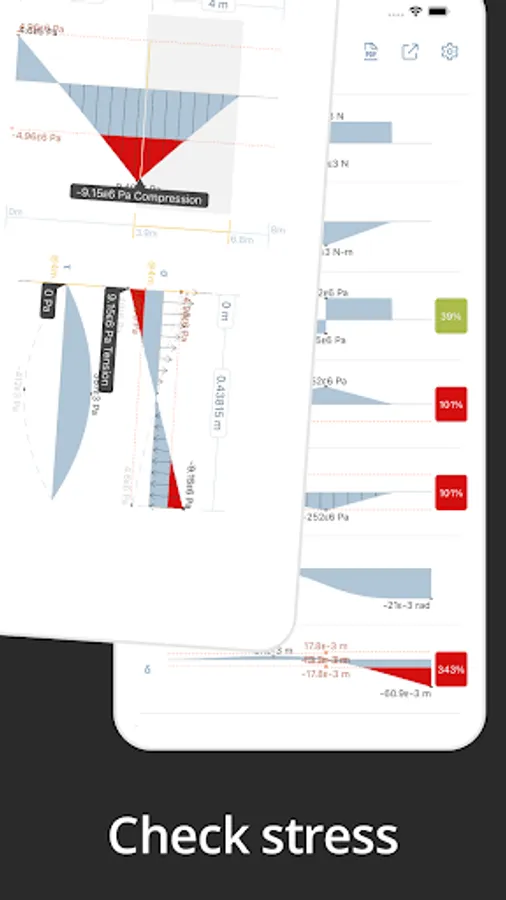

Obtain design results and diagrams in real-time.

• Shear force
• Bending moment
• Deflection distance
• Internal bending stress
• Internal shear stress

CROSS SECTION DATABASES

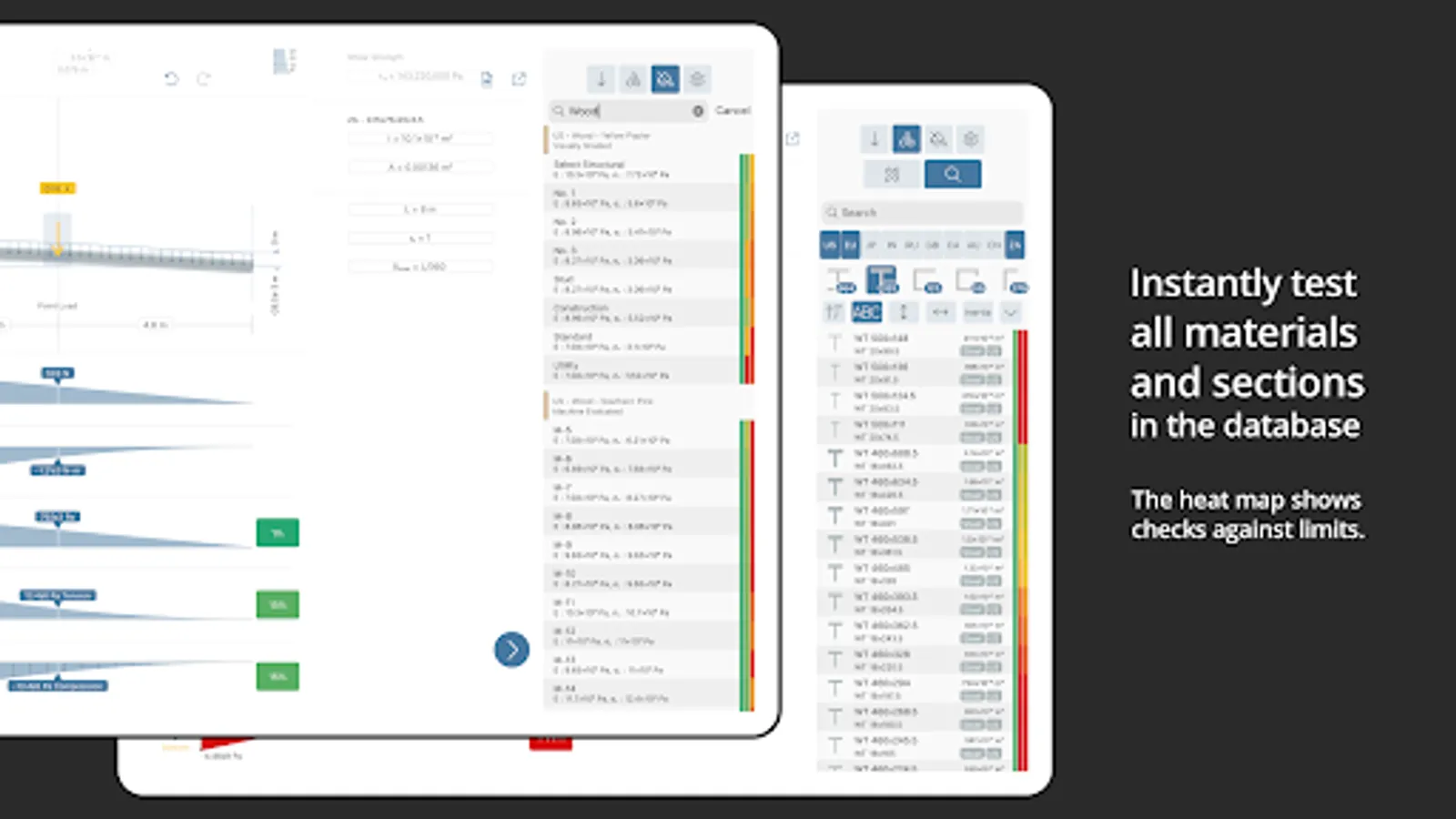

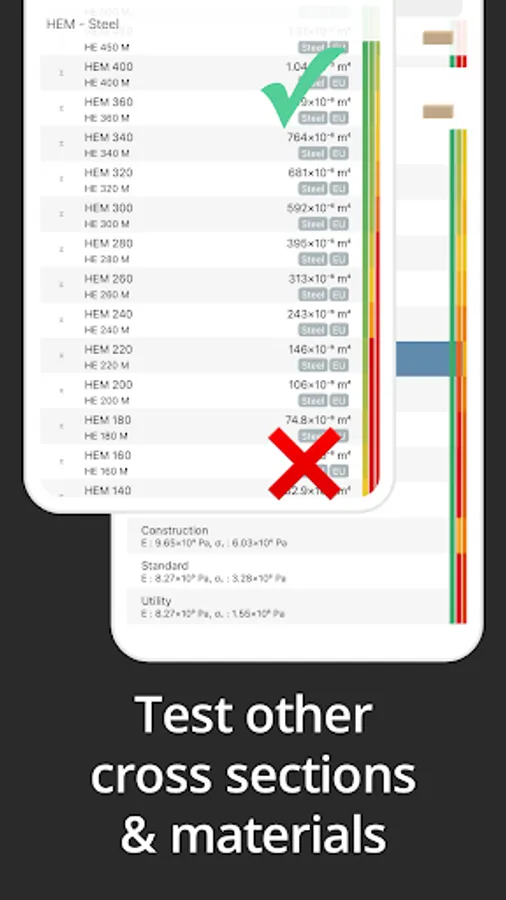

Specify values directly, or find common shapes and materials using the built-in databases.

• United States
• Europe
• Japan
• India
• Russia
• Great Britain
• Canada
• Australia

CROSS SECTION EDITOR

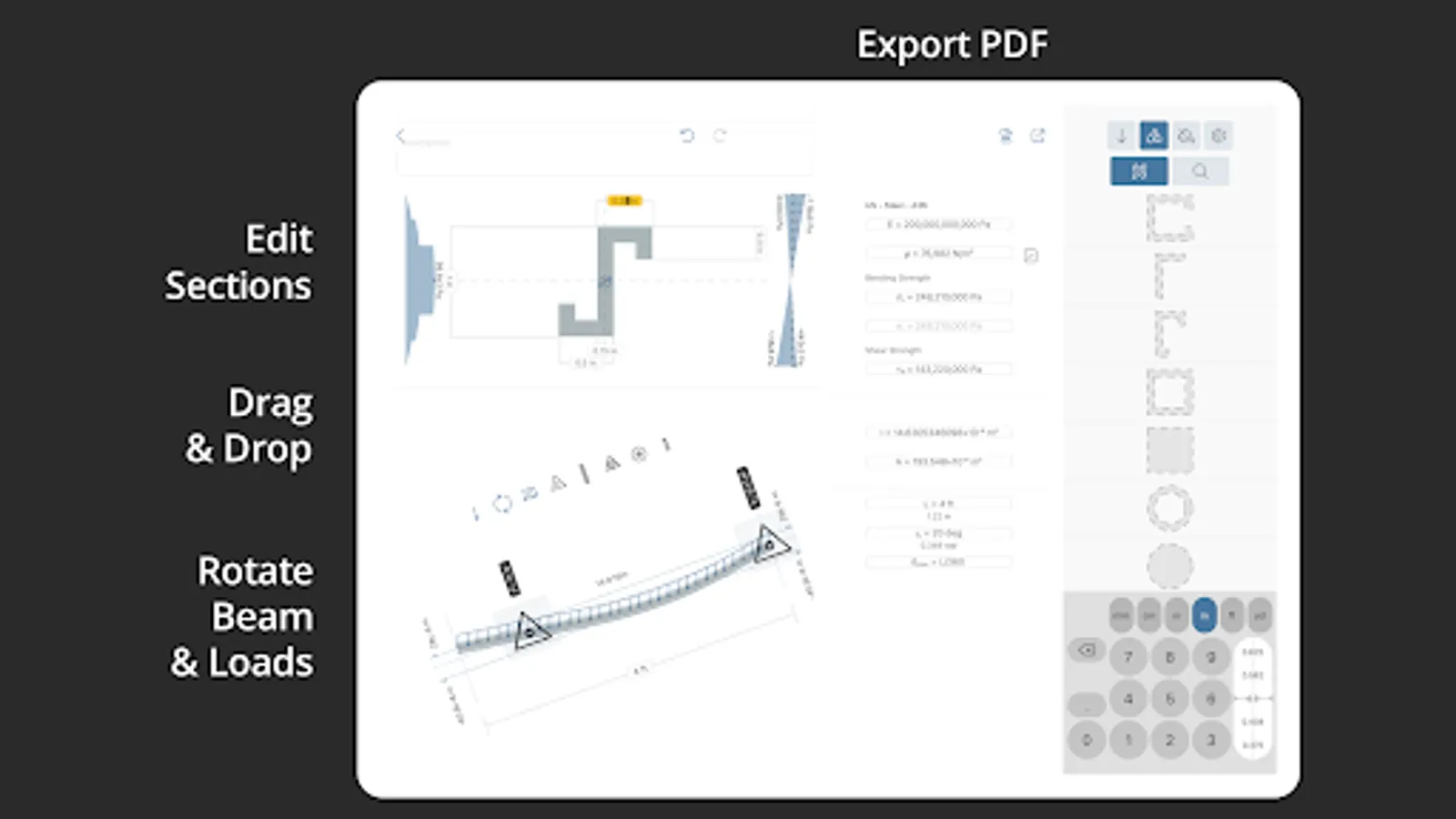

Edit built-in cross sections. Shape properties are automatically calculated.

• Moment of inertia
• Area

UNLIMITED LOADS AND SUPPORTS

Simply drag any load or support on the beam.

• Concentrated point loads
• Distributed loads
• Moment loads
• Simple supports
• Fixed supports
• Fixed hinges
• Floating Gerber hinges

OTHER FEATURES

• Apply beam self-weight optionally
• Automatic detection of local maxima and minima in diagrams
• Unlimited design files
• Quick-start templates
• Metric and standard measurement units

CONTACT

We want to hear from you! Issues, questions, or requests? Please submit a review or email contact@ketchep.com
