AVR Flasher over FTDI Android

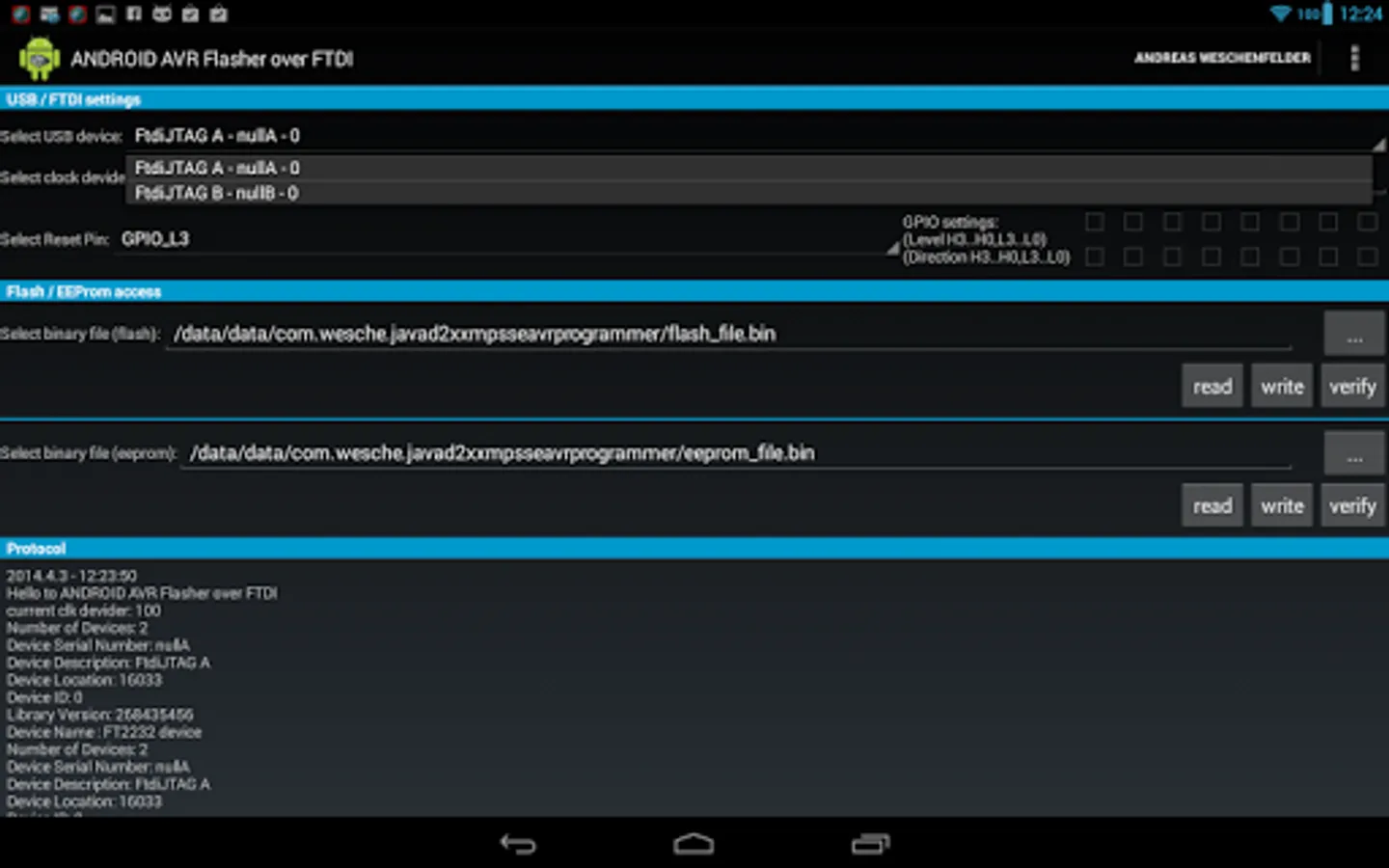

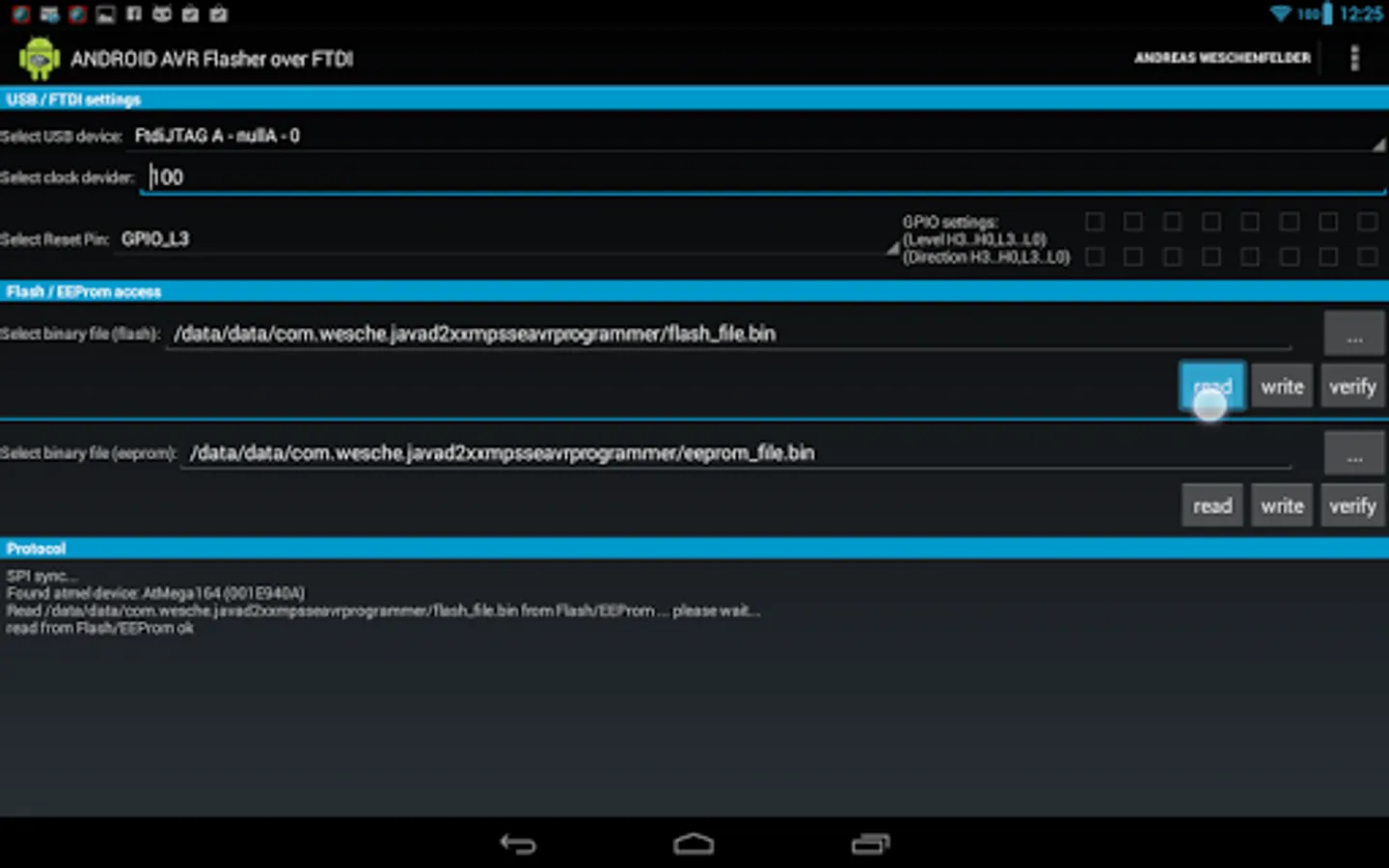

Welcome to the "ANDROID AVR flasher over FTDI"!

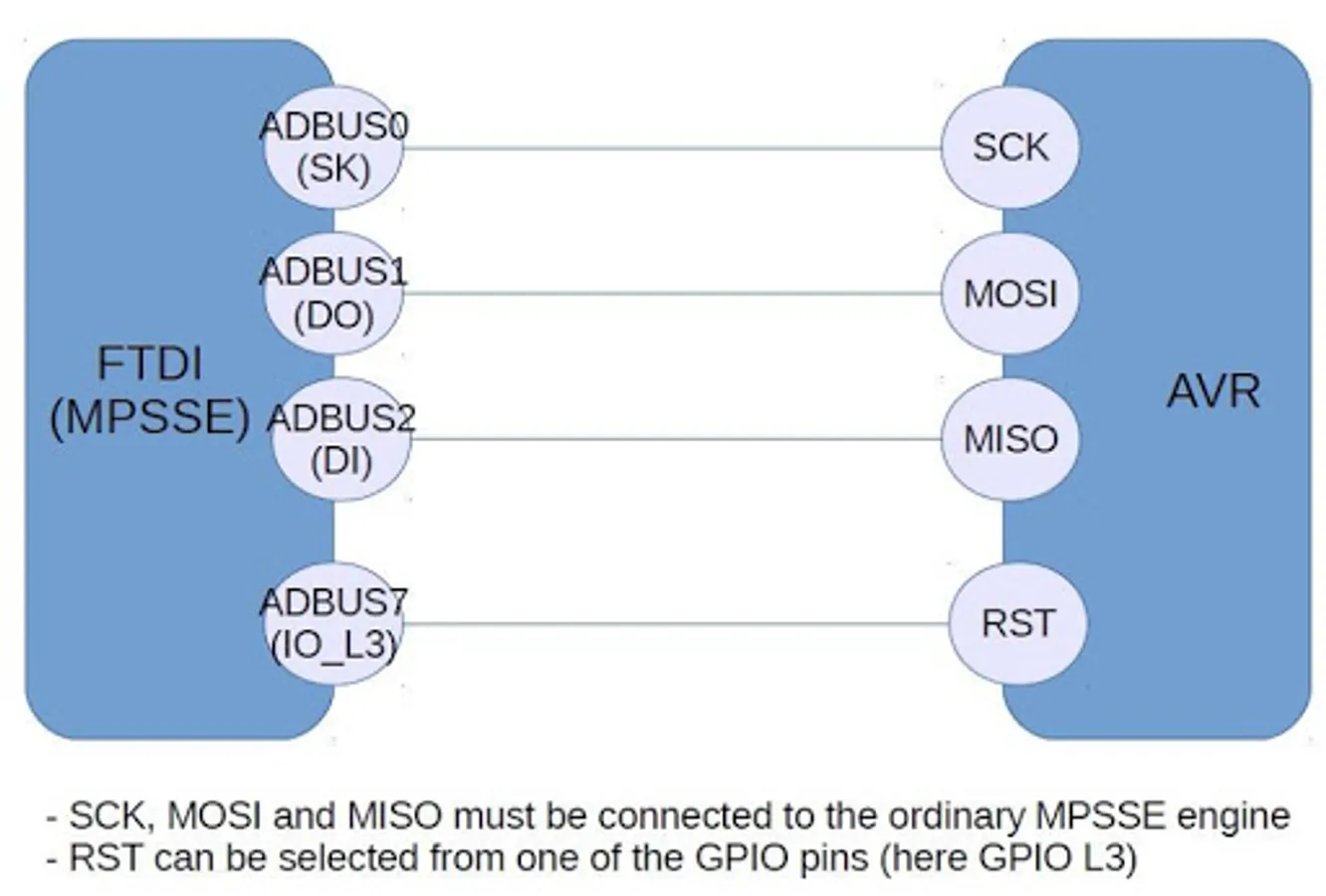

With this app you can program your Atmel chip via ISP (AVR). Also necessary is your Android smartphone / tablet and a FTDI chip with MPSSE support (tested with a FT2232).

The Flasher is based on the j2xx FTDI, so NO ROOT privileges are required.

The flasher was verified with a Iconia A210 Android Tablet (4.1.1., And 4.3.1).

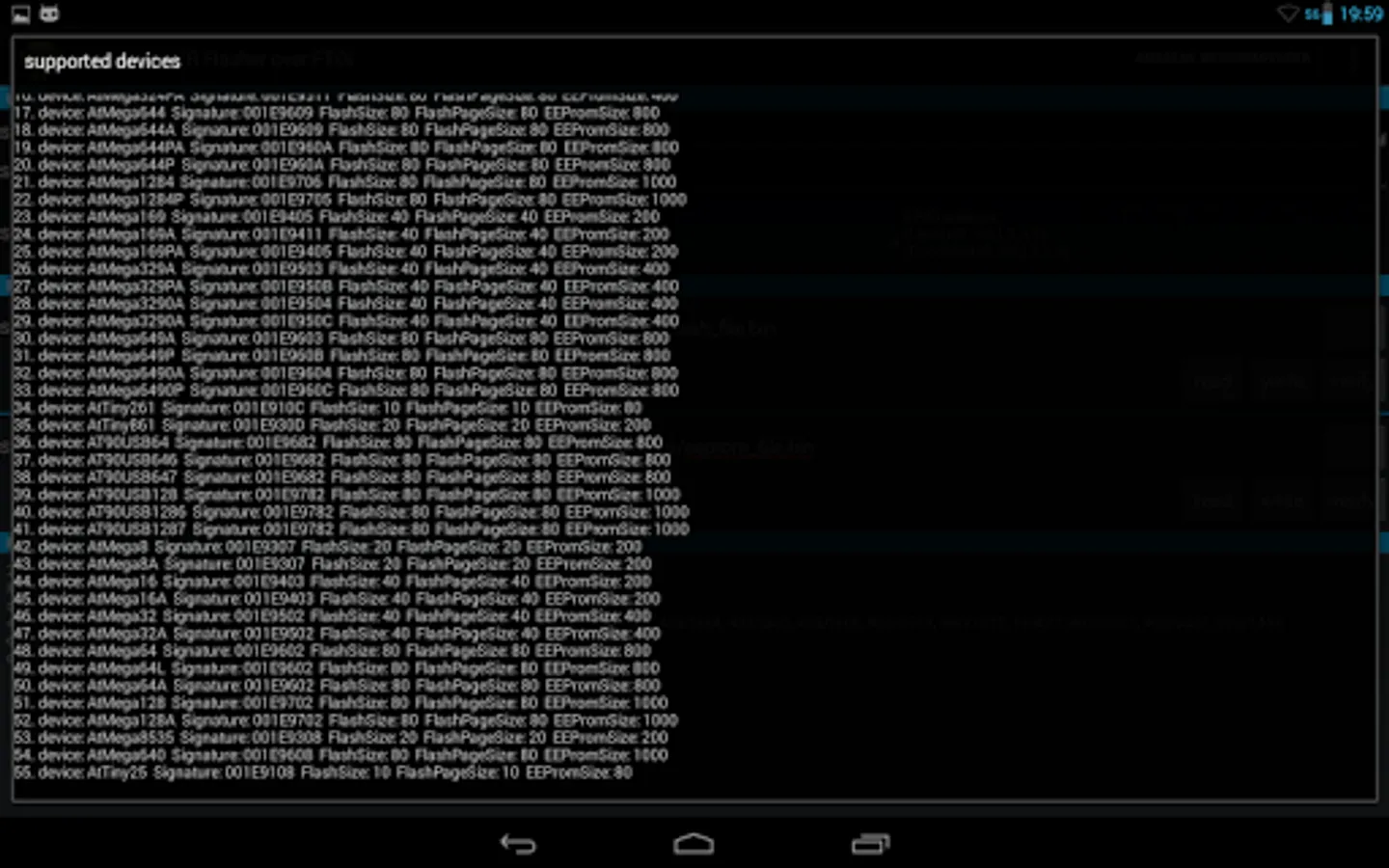

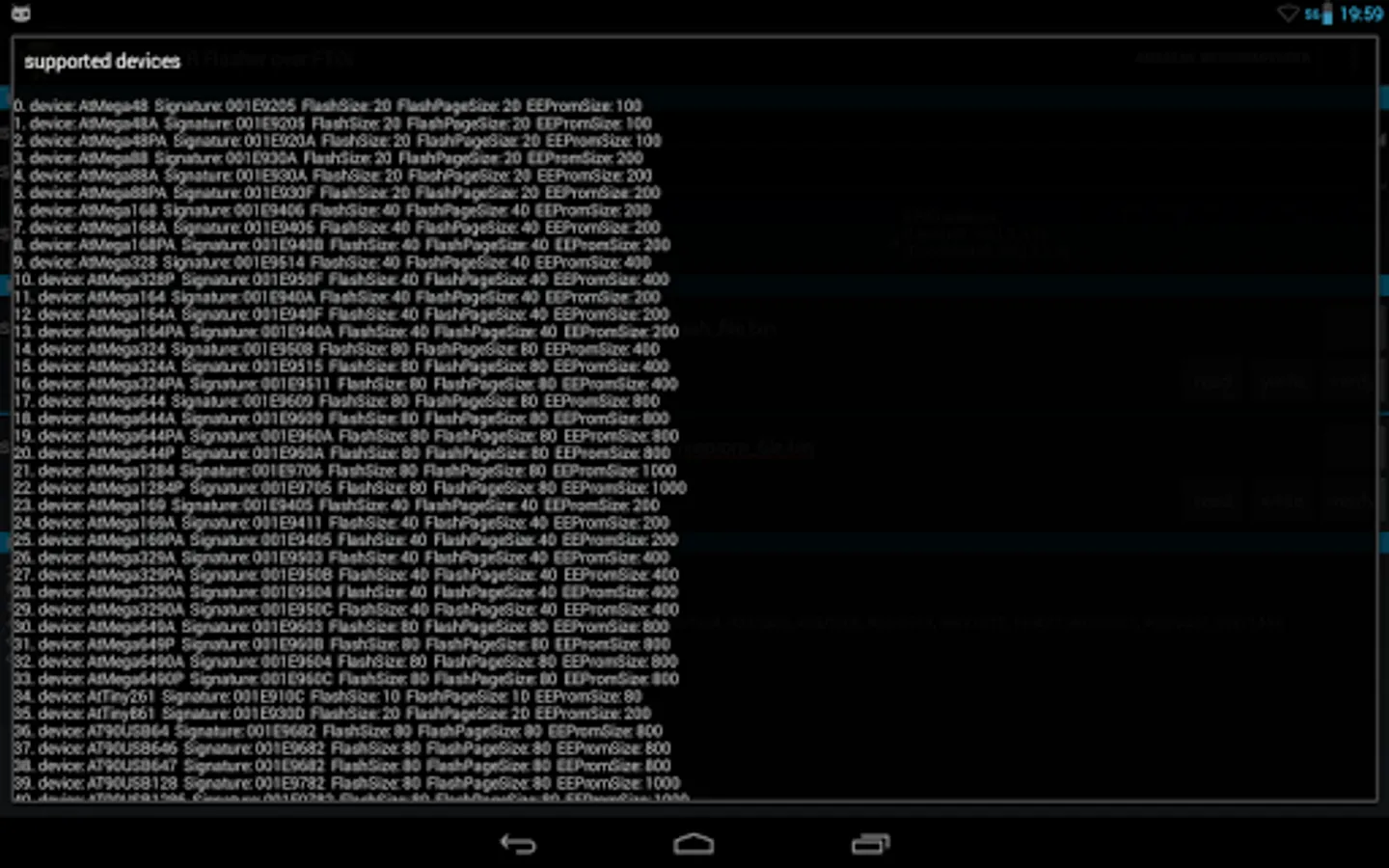

The following AVRs are currently supported:
 - ATmega48 (Signature = 001E9205)
 - AtMega48A (Signature = 001E9205)
 - AtMega48PA (Signature = 001E920A)
 - ATmega88 (Signature = 001E930A)
 - AtMega88A (Signature = 001E930A)
 - ATMEGA88PA (Signature = 001E930F)
 - ATmega168 (Signature = 001E9406)
 - AtMega168A (Signature = 001E9406)
 - AtMega168PA (Signature = 001E940B)
 - ATmega328 (Signature = 001E9514)
 - ATMEGA328P (Signature = 001E950F)
 - AtMega164 (Signature = 001E940A)
 - AtMega164A (Signature = 001E940F)
 - AtMega164PA (Signature = 001E940A)
 - AtMega324 (Signature = 001E9508)
 - AtMega324A (Signature = 001E9515)
 - AtMega324PA (Signature = 001E9511)
 - ATmega644 (Signature = 001E9609)
 - AtMega644A (Signature = 001E9609)
 - AtMega644PA (Signature = 001E960A)
 - ATMEGA644P (Signature = 001E960A)
 - AtMega1284 (Signature = 001E9706)
 - ATMEGA1284P (Signature = 001E9705)
 - ATmega169 (Signature = 001E9405)
 - AtMega169A (Signature = 001E9411)
 - AtMega169PA (Signature = 001E9405)
 - AtMega329A (Signature = 001E9503)
 - AtMega329PA (Signature = 001E950B)
 - AtMega3290A (Signature = 001E9504)
 - AtMega3290A (Signature = 001E950C)
 - AtMega649A (Signature = 001E9603)
 - AtMega649P (Signature = 001E960B)
 - AtMega6490A (Signature = 001E9604)
 - AtMega6490P (Signature = 001E960C)
 - AtTiny261 (Signature = 001E910C)
 - AtTiny861 (Signature = 001E930D)
 - AT90USB64 (Signature = 001E9682)
 - AT90USB646 (Signature = 001E9682)
 - AT90USB647 (Signature = 001E9682)
 - AT90USB128 (Signature = 001E9782)
 - AT90USB1286 (Signature = 001E9782)
 - AT90USB1287 (Signature = 001E9782)
 - ATmega8 (Signature = 001E9307)
 - ATmega8A (Signature = 001E9307)
 - ATmega16 (Signature = 001E9403)
 - ATMEGA16A (Signature = 001E9403)
 - ATmega32 (Signature = 001E9502)
 - AtMega32A (Signature = 001E9502)
 - ATmega64 (Signature = 001E9602)
 - AtMega64L (Signature = 001E9602)
 - AtMega64A (Signature = 001E9602)
 - ATmega128 (Signature = 001E9702)
 - ATMEGA128A (Signature = 001E9702)
 - ATmega8535 (Signature = 001E9308)
 - AtMega640 (Signature = 001E9608)
 - ATtiny25 (Signature = 001E9108)

-> If there is no desired controller? Contact me, so I record the missing type in the database.

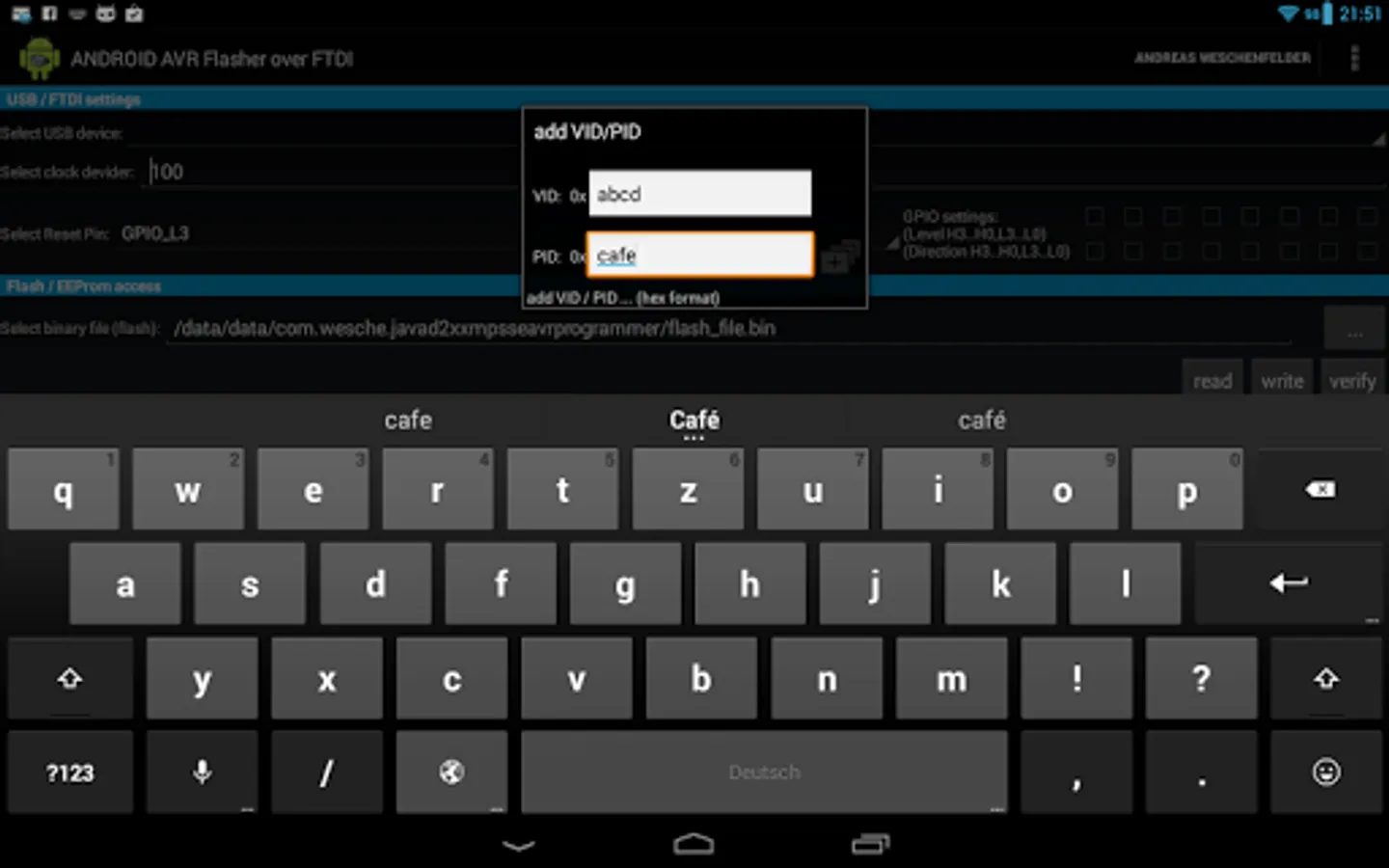

Since version 1.1 custom VID / PID can be used.
