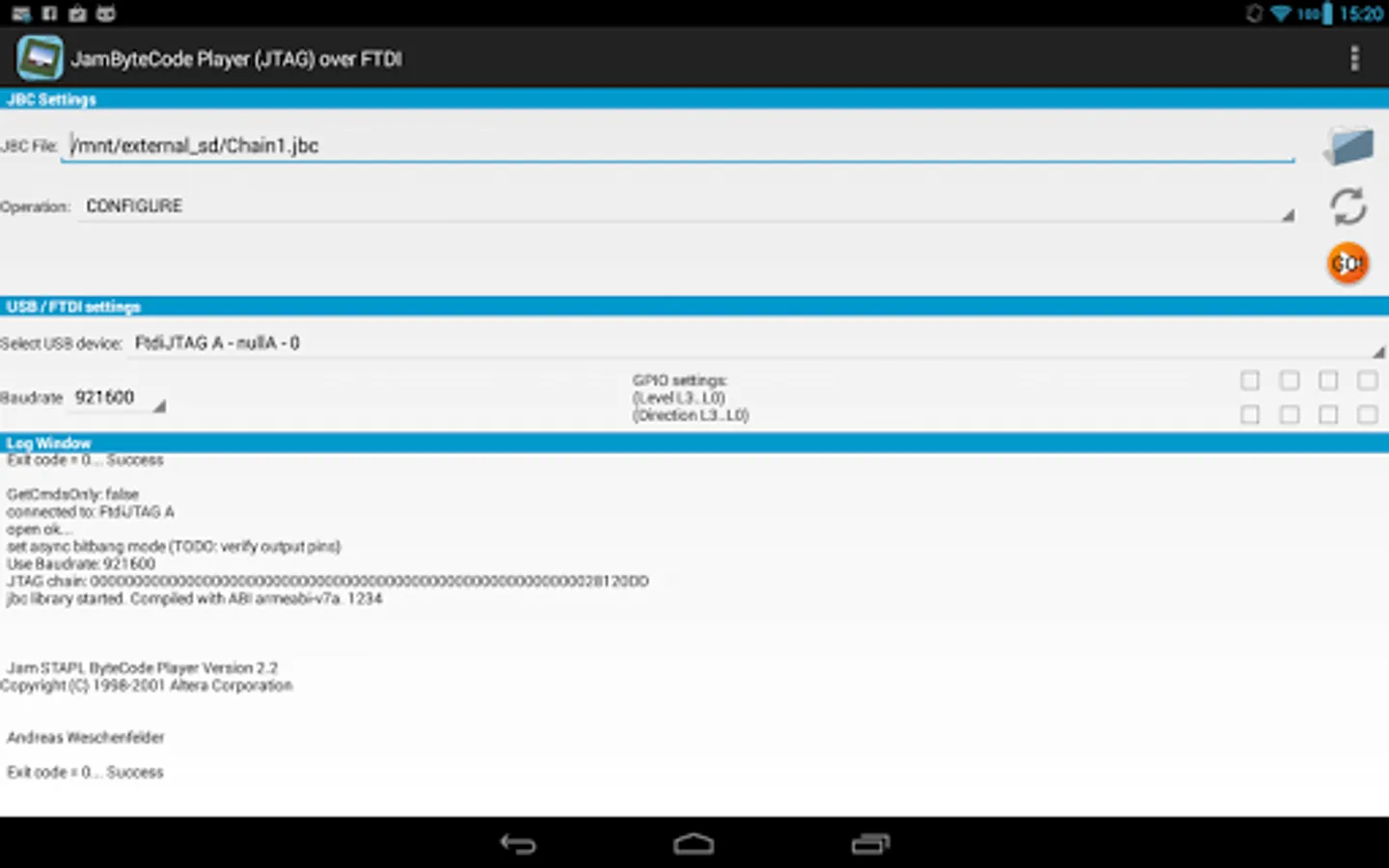

Welcome to the "ANDROID JBC Player over FTDI"!
With this app you can get your Altera FPGA / CPLDs (and other chips, if it JBC files are available) upload or programmed using JTAG. Also necessary is your Android smartphone / tablet and a FTDI chip with Bitbang mode support (eg FT2232).
The JBC player based on the j2xx FTDI, so NO ROOT privileges are required.
Verified with Iconia A210 Android Tablet (Android 4.3.1) + + FT2232 EP4CGX22BF14.

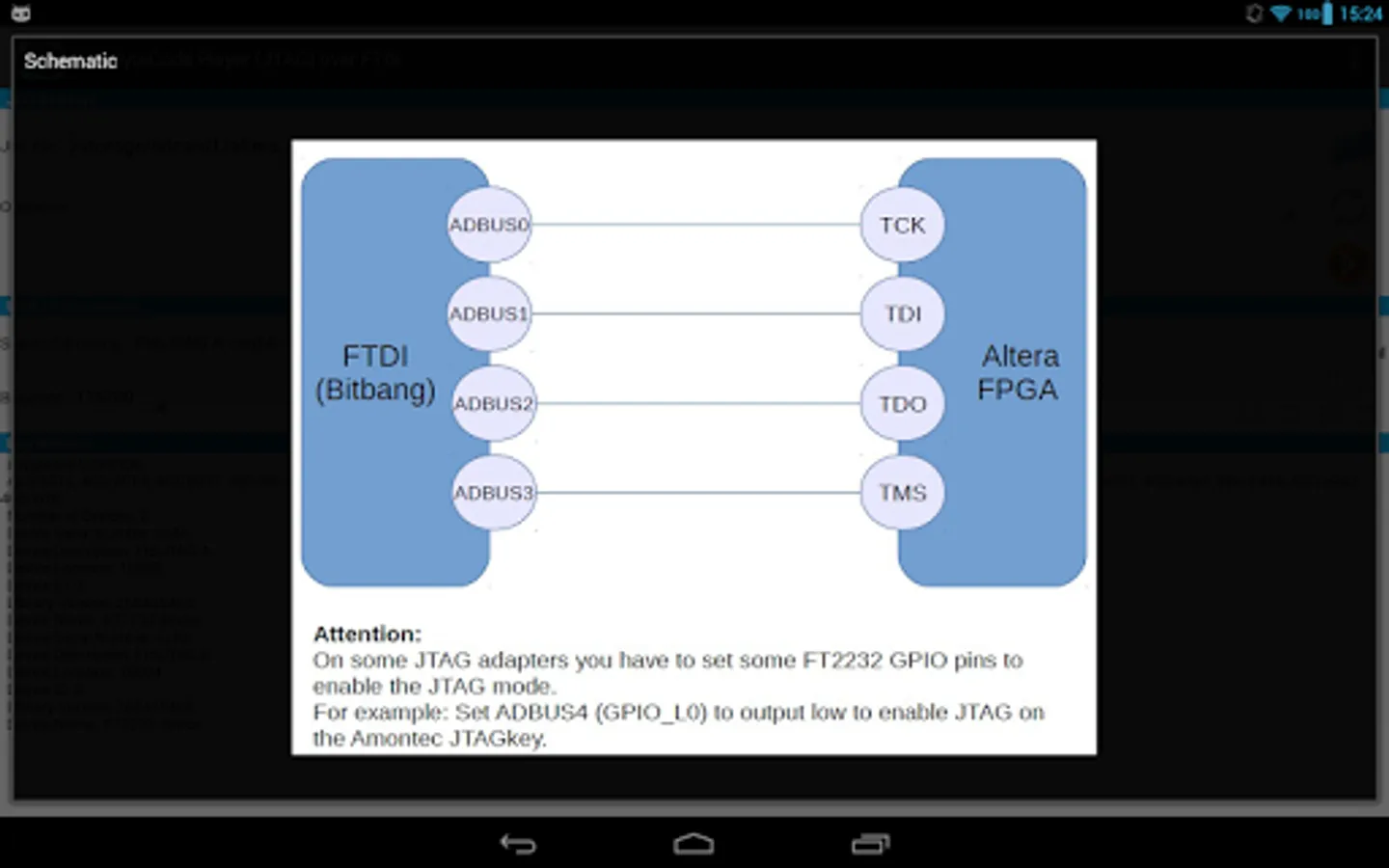

JTAG Adapter:
The player with popular JTAG tools (such as the Amontec JTAGkey or PicoTAP) compatible.

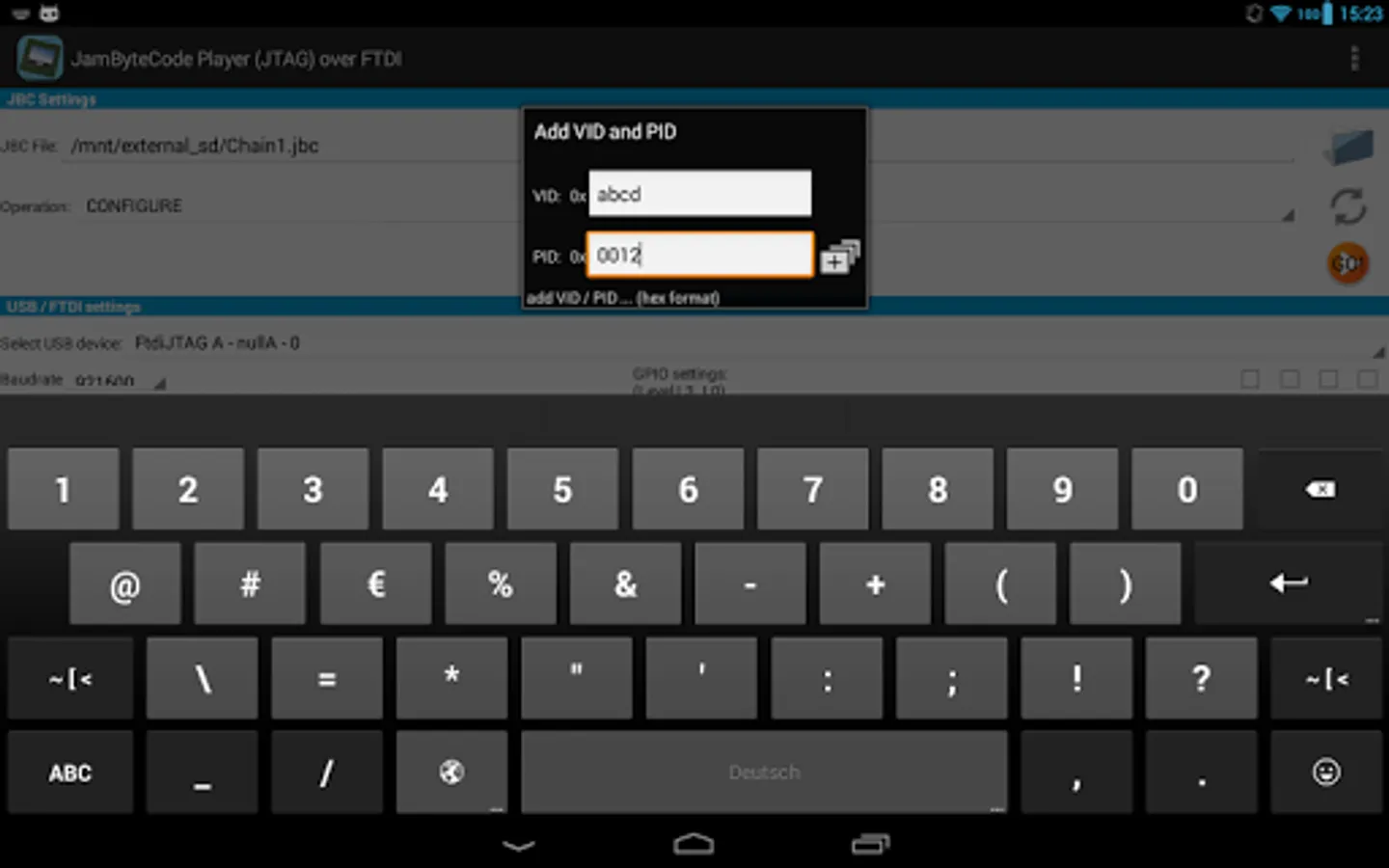

Altered VID / PIDs are also supported.
------------------------------------------------
JAM / STAPL ("Standard Test and Programming Language") is developed by Altera standard for JTAG in-circuit programming of programmable logic devices, which is defined by JEDEC Standard JESD-71. The compressed byte-code version is called JBC.
STAPL defines a standard .jam file format that supports in-system programmability or configuration of programmable devices. A JTAG programmer implements a JAM player that reads the file as a series of instructions and forwards in the to program PLD.
The standard is supported by more and PLD programming device manufacturers.
[Wiki: http://en.wikipedia.org/wiki/Standard_Test_and_Programming_Language]
With this app you can get your Altera FPGA / CPLDs (and other chips, if it JBC files are available) upload or programmed using JTAG. Also necessary is your Android smartphone / tablet and a FTDI chip with Bitbang mode support (eg FT2232).
The JBC player based on the j2xx FTDI, so NO ROOT privileges are required.
Verified with Iconia A210 Android Tablet (Android 4.3.1) + + FT2232 EP4CGX22BF14.
JTAG Adapter:
The player with popular JTAG tools (such as the Amontec JTAGkey or PicoTAP) compatible.
Altered VID / PIDs are also supported.
------------------------------------------------
JAM / STAPL ("Standard Test and Programming Language") is developed by Altera standard for JTAG in-circuit programming of programmable logic devices, which is defined by JEDEC Standard JESD-71. The compressed byte-code version is called JBC.
STAPL defines a standard .jam file format that supports in-system programmability or configuration of programmable devices. A JTAG programmer implements a JAM player that reads the file as a series of instructions and forwards in the to program PLD.
The standard is supported by more and PLD programming device manufacturers.
[Wiki: http://en.wikipedia.org/wiki/Standard_Test_and_Programming_Language]
