Electronics Calculator

The electronics calculator is an app that will allow the user to design and evaluate some of the most important circuits as listed below:

Analog:

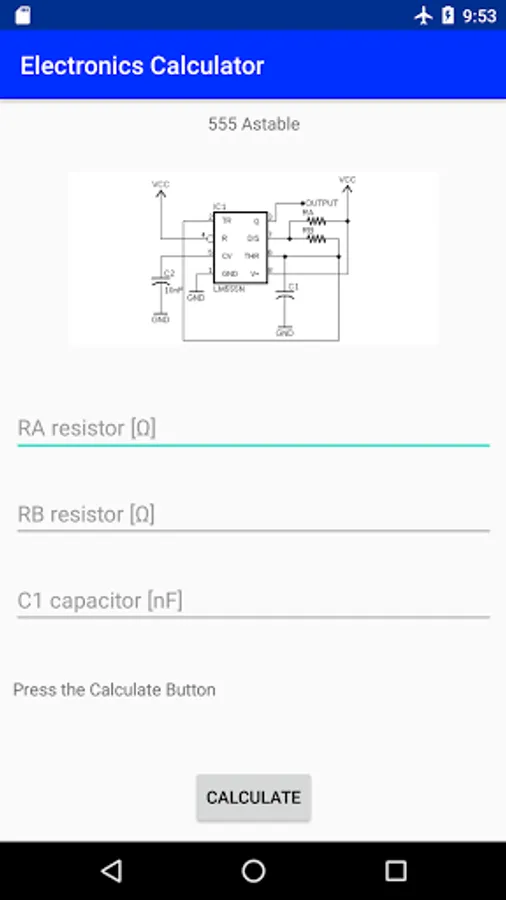

-555 Astable
-555 Monostable
-CMOS Astable with inverting gates
-TL431 as voltage series regulator, complete design
-LM317 as voltage regulator, complete

RF/Antennas:

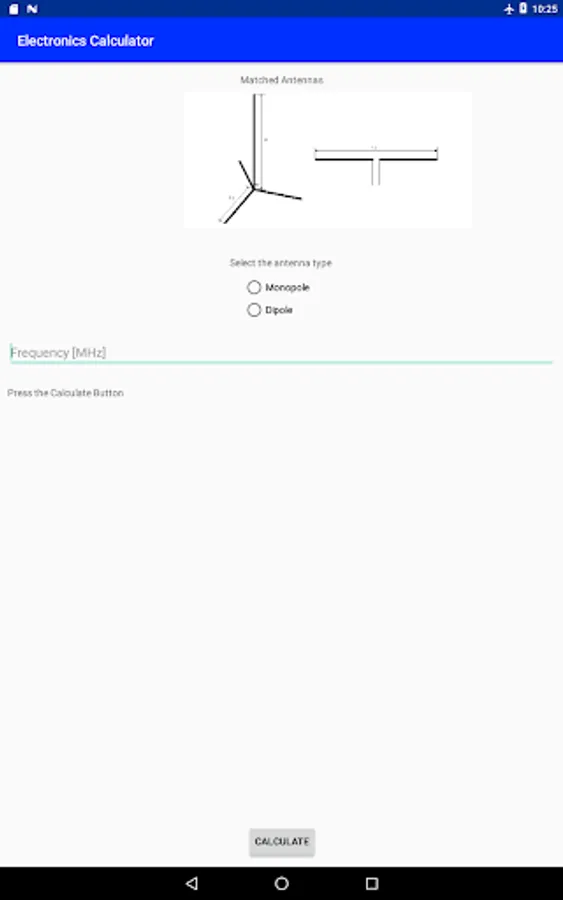

-Dipole and Monopole matched antennas for 50ohms
-Air core single layer Inductor
-Colpitts Oscillator complete design

Power Electronics:
-Ferrite inductor maximum current/inductance design
-Heatsink design
-PCB Area used as heatsink design

LED Circuits:

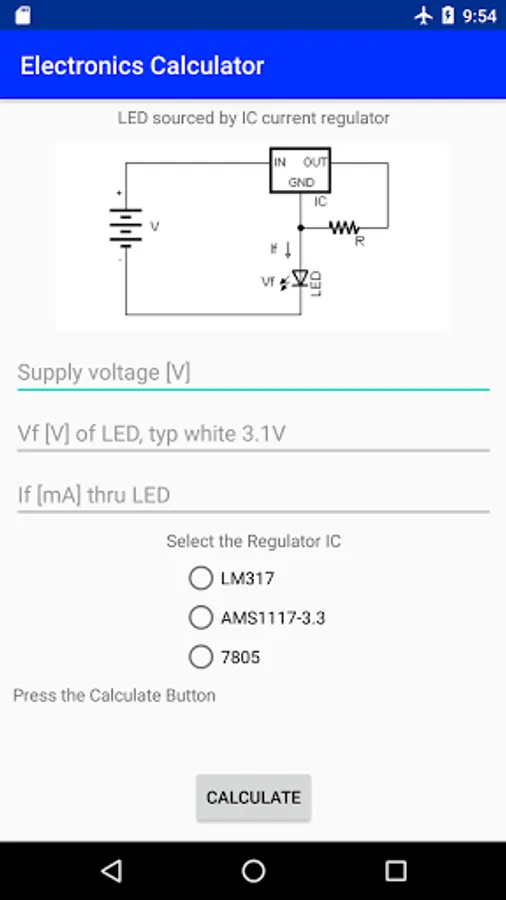

-LED with single Resistor complete design
-LED with current regulator LM317 design
-LED with AMS1117-3.3 as current regulator design
-LED with 7805 as current regulator design
