MakeGear

App series to print 3D without CAD

Calculates from specified values ​​and generates SVG (2D) or STL (3D) of cycloid gear.

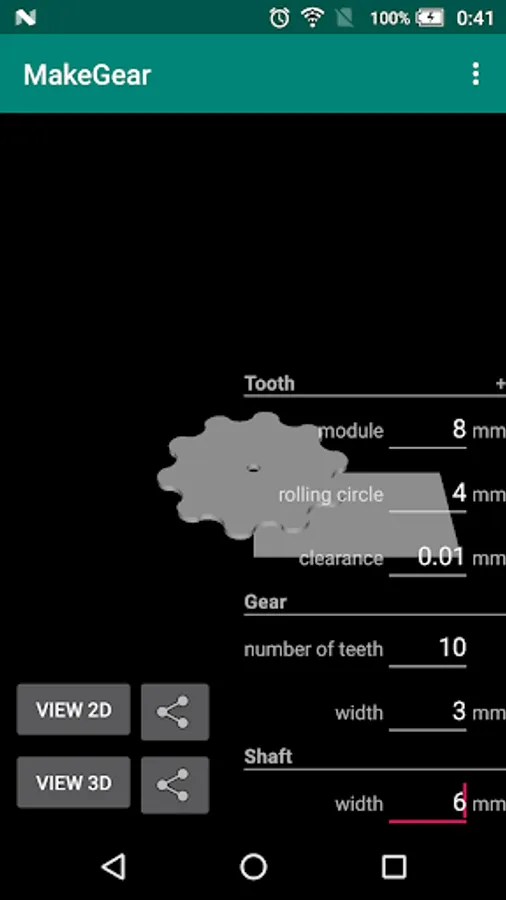

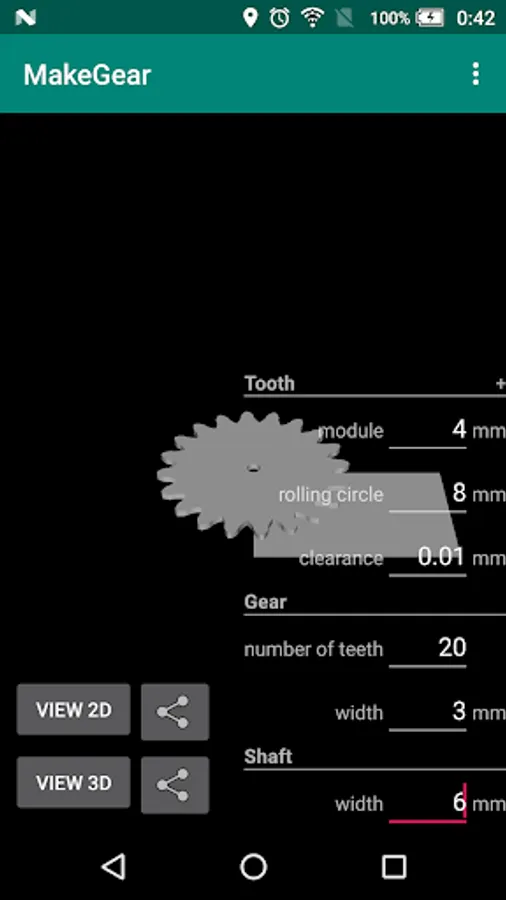

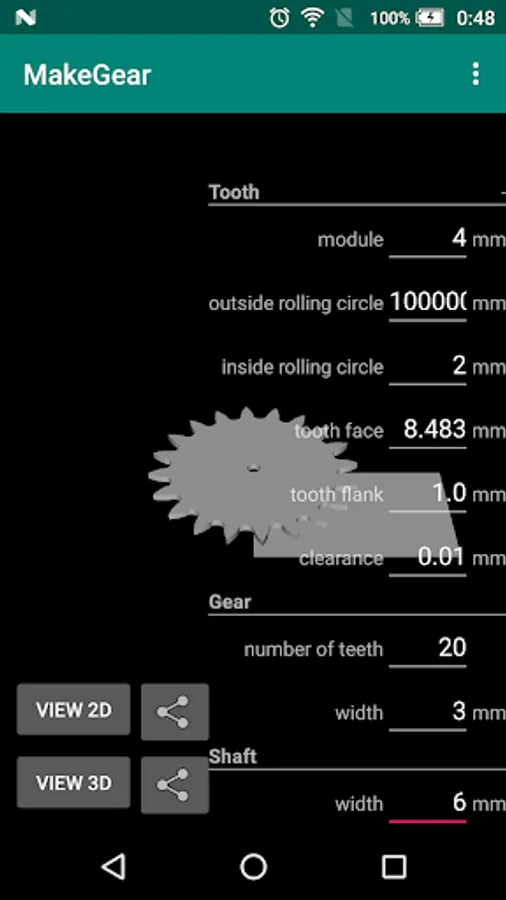

parameter
・ Module (mm)
・ Rolling circle (mm)
・ Clearance (mm)
·Number of teeth
· Tooth width (mm)
· Axis (mm)
Details https://sites.google.com/view/makegear/

Display the generated data in conjunction with the application,
It can be shared with 3D printers and PCs connected to them.
The underlaying square is a credit card for size comparison.
