This Resistor SMD code calculator will code and decode 4 code types:

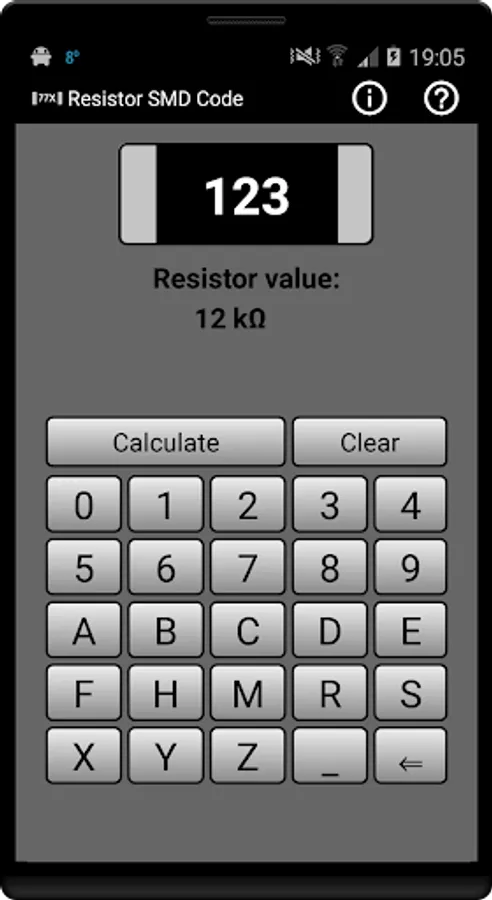

Standard 3 digit code that can include:

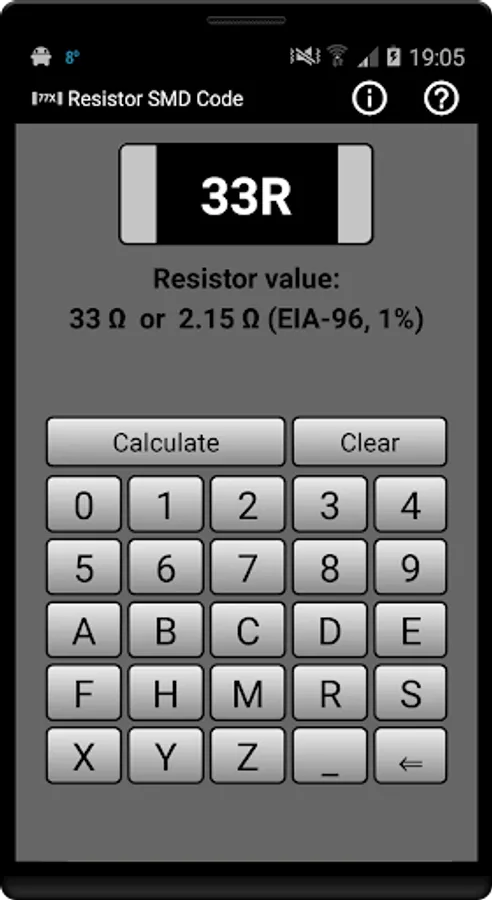

- R to indicate a decimal point
- M to indicate a decimal point for milliohms (Current sensing SMDs)
- "underline" to indicate that the value is in milliohms (Current sensing SMDs)
Standard 4 digit code that can include “R” to indicate a decimal point.

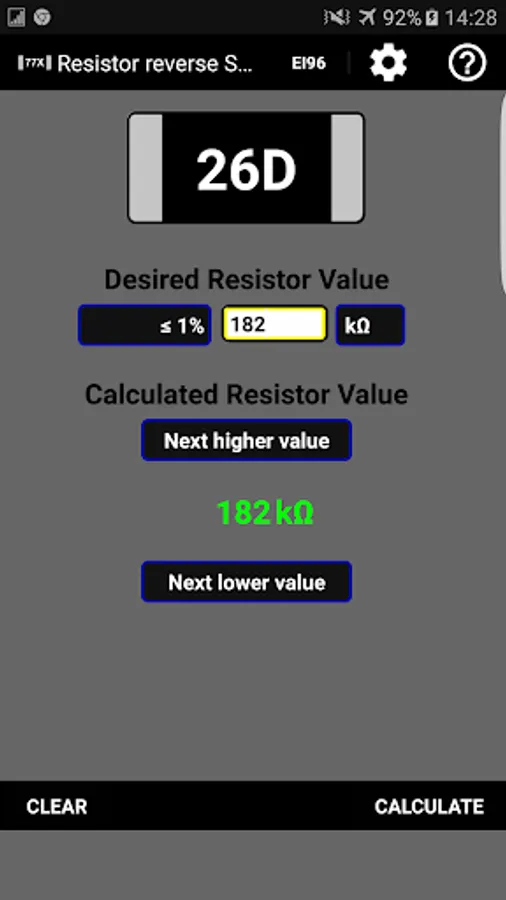

EIA-96 1% code with a number in the range 01 to 96, followed by a letter

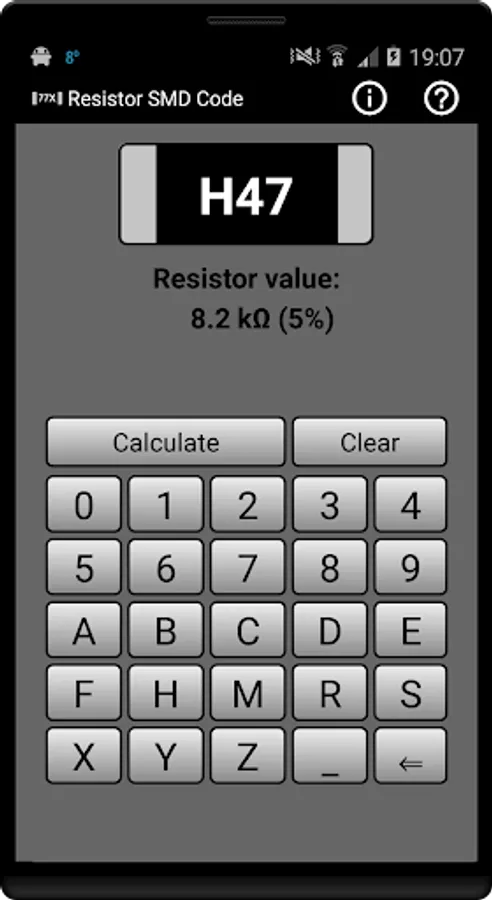

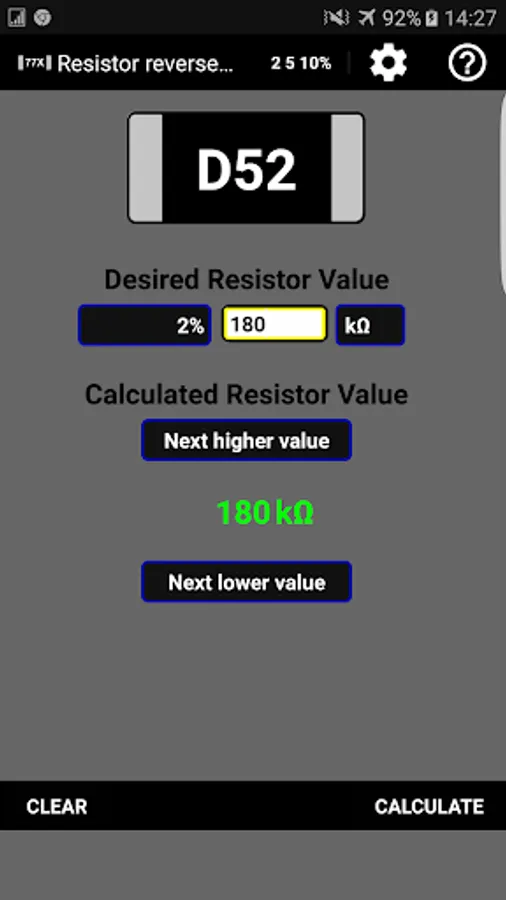

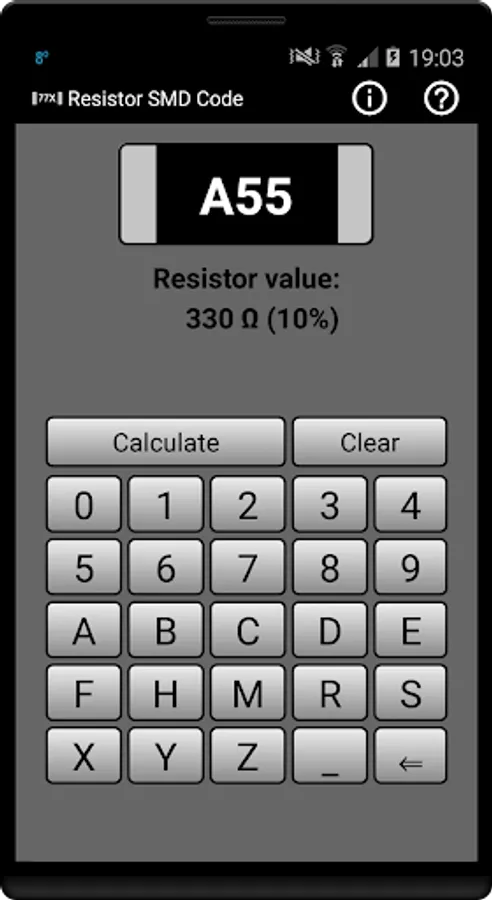

2, 5, and 10% code with a letter, followed by a numbers in the range 01 to 60
Standard 3 digit code that can include:
- R to indicate a decimal point
- M to indicate a decimal point for milliohms (Current sensing SMDs)
- "underline" to indicate that the value is in milliohms (Current sensing SMDs)
Standard 4 digit code that can include “R” to indicate a decimal point.
EIA-96 1% code with a number in the range 01 to 96, followed by a letter
2, 5, and 10% code with a letter, followed by a numbers in the range 01 to 60
