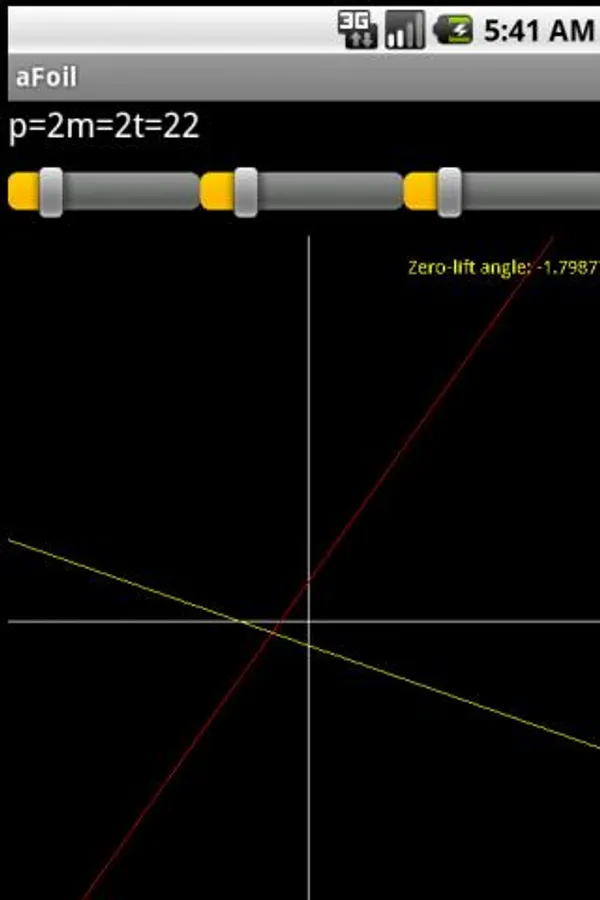

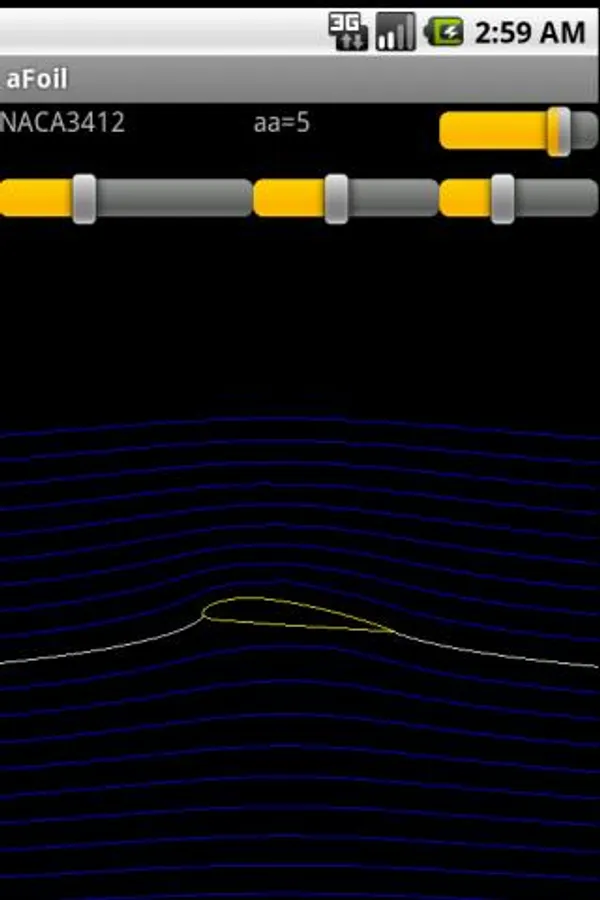

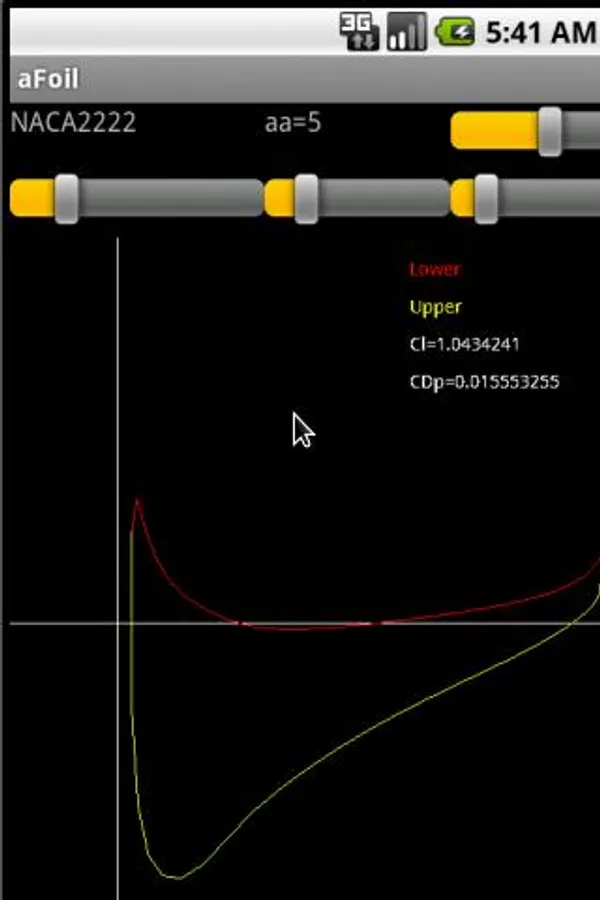

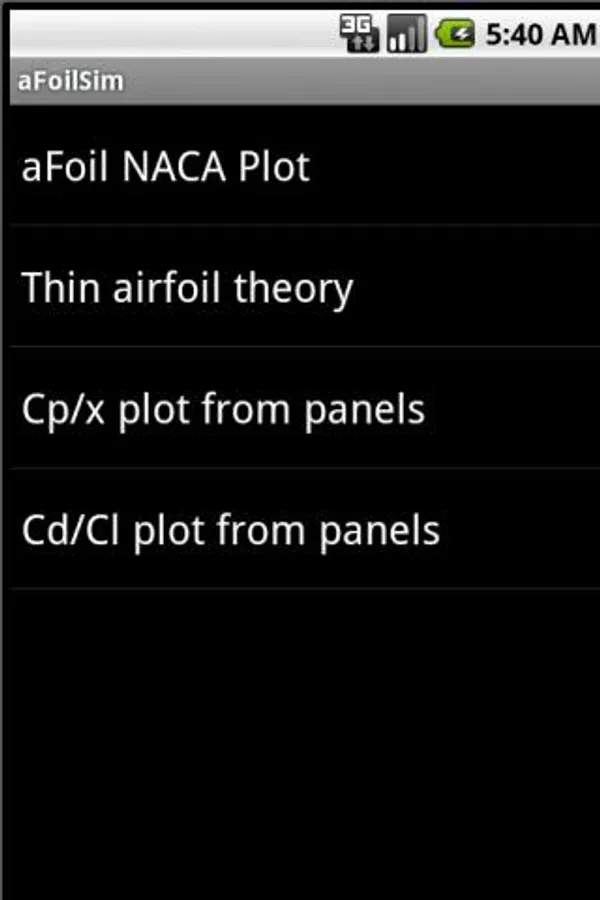

This is an extension to aFoil app. In different screens the user can plot 4-digit NACA airfoils and perform qualitative analisys using thin airfoil theory and panel methods. Learn the effect each parameter has on airfoil shape, lift and drag coeficients and Cp vs chord plot shape. The app can plot the potential flow field around certain 4-digit NACA airfoils.
