WININTEC TOOLKIT

SI, PI, is the education of the ToolKit, Ltd Intech win for EMC, noise corresponding circuit engineer.

SI

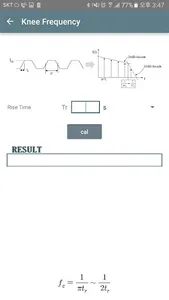

- Knee Frequency
- Reflection coefficient
- Transmission coefficient
- Initial Voltage
- Crosstalk
- Skin Dept
PI
- Line Resonance
- Power Plane Resonance
- Driver Current Spectum
EMI
- Differential Mode Radiation
- Common Mode Radiation
Ohm's Law
Reactance, resonant
- Xc, Xl, fr
resistance
inductance
- Inductance
- Parallel Wire
- Coax
- Loop
Capacitance
filter
- RC, LC, RL
Frequency, period, wavelength
DB conversion
Resistivity, conductivity, dielectric constant, magnetic permeability Table
