About Fittings App ANSI

Nominal diameter NPS 1" - 40" / DN 25 - 1000
American Standard ASME B36.10

Functions:

- Measure of flange class 150-900:
ANSI/ASME B16.5/B16.47(A)
- welding neck lenght,
- gasket measure inside/outside,
- hex bolts, number, nominal size, lenght(RF, RJ, masch.),
- bolt circle,
- flange outside diameter,
- flange thickness,
- hex nuts thickness.

- measurements of the elbow with 2 types or manual input:
ANSI/ASME B16.9
- elbow radius ,
- calculate the cutting mesurements of the elbow,
- take off, chord,

- tee with different outlet diameter,
- reduction.

-Extensive help and explanations

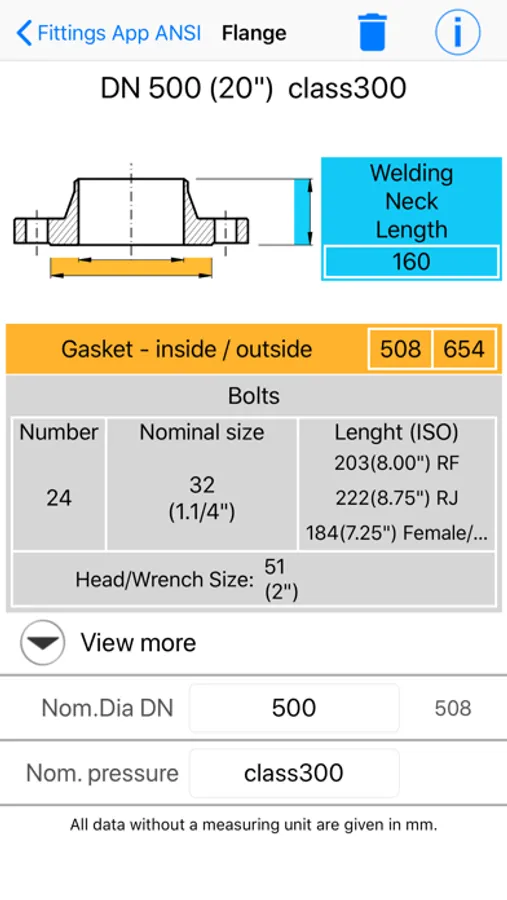

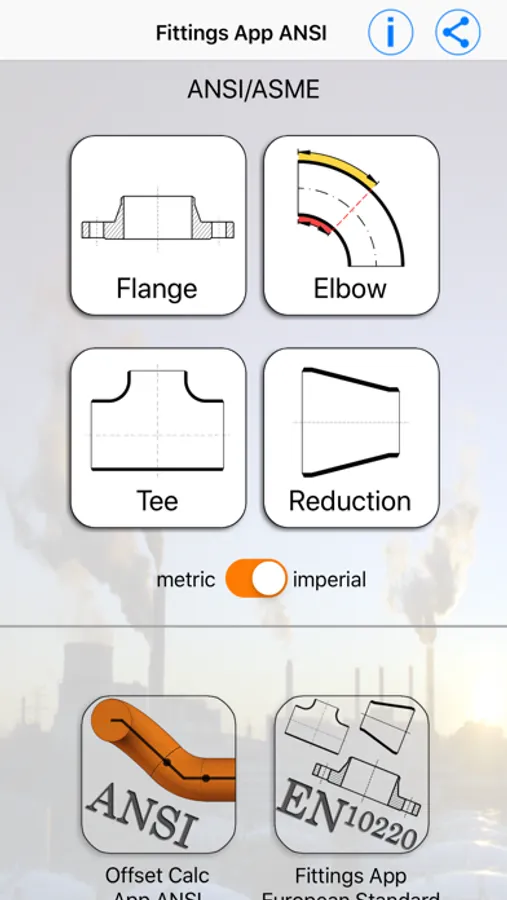

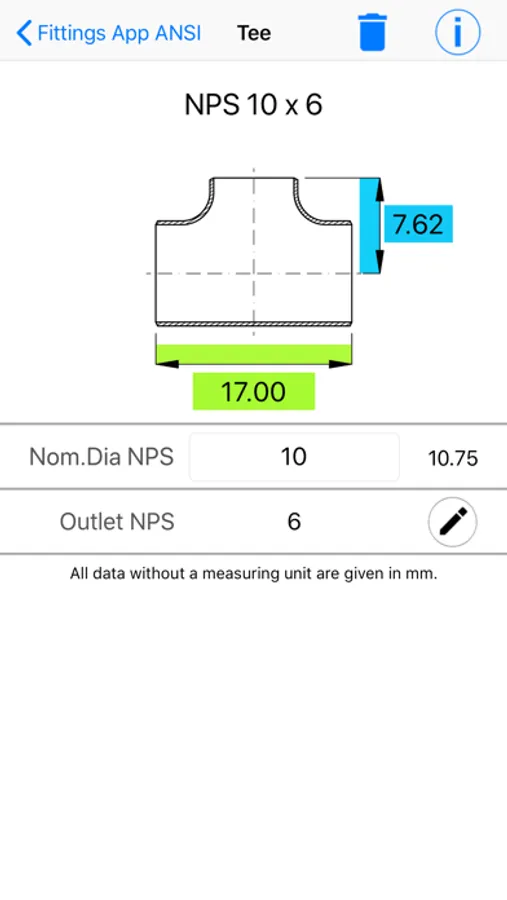

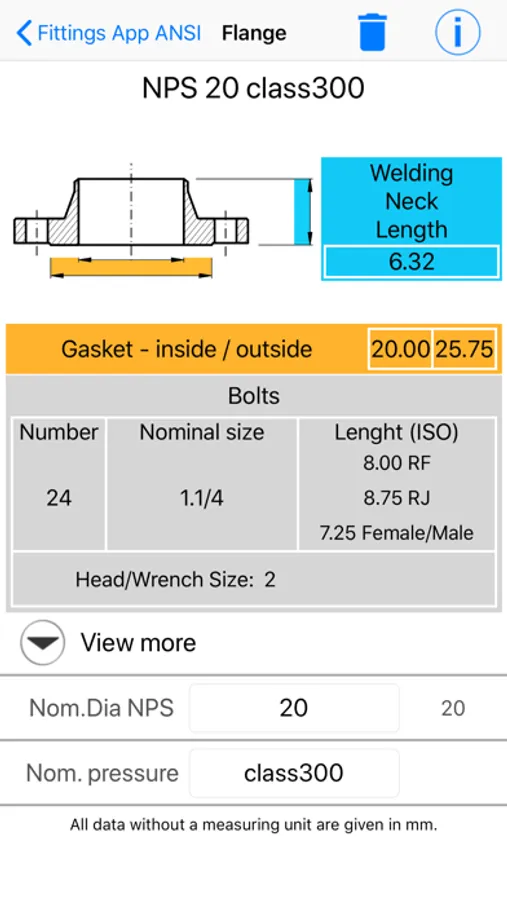

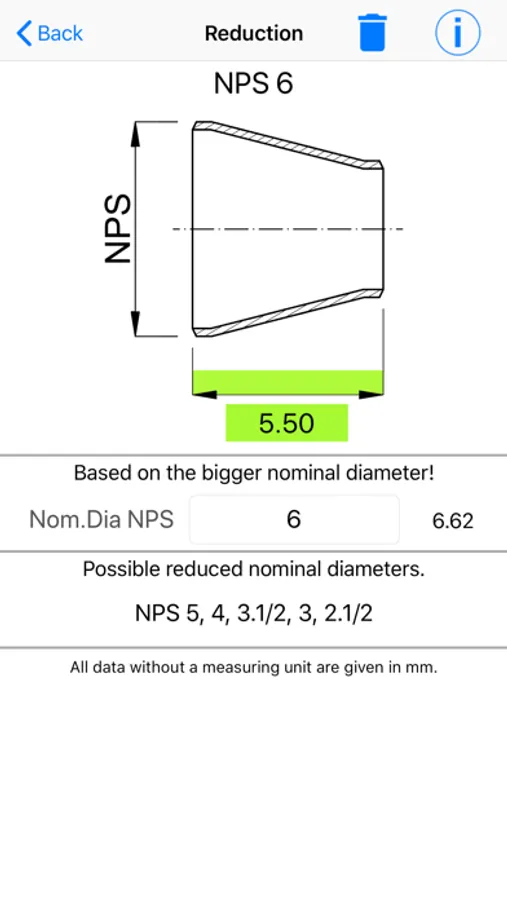

Fittings App ANSI Screenshots
