Fittings App icon

Fittings App

Steffen Weber
$3.99

About Fittings App

The app is used in the industrial pipe construction.
European Norm EN10220

Nominal diameter DN 25 - 1000
European standard
EN 10220 / EN1092

Functions:

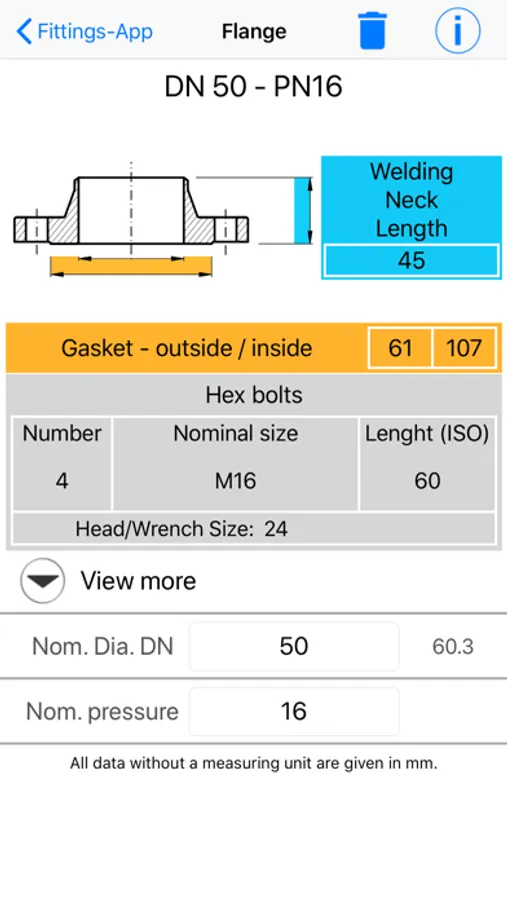

- Measure of flange PN 6 - 40:
- welding neck lenght,
- gasket measure inside/outside,
- hex bolts, number, nominal size, lenght(ISO),
- bolt circle,
- flange outside diameter,
- flange thickness,
- hex nuts thickness.

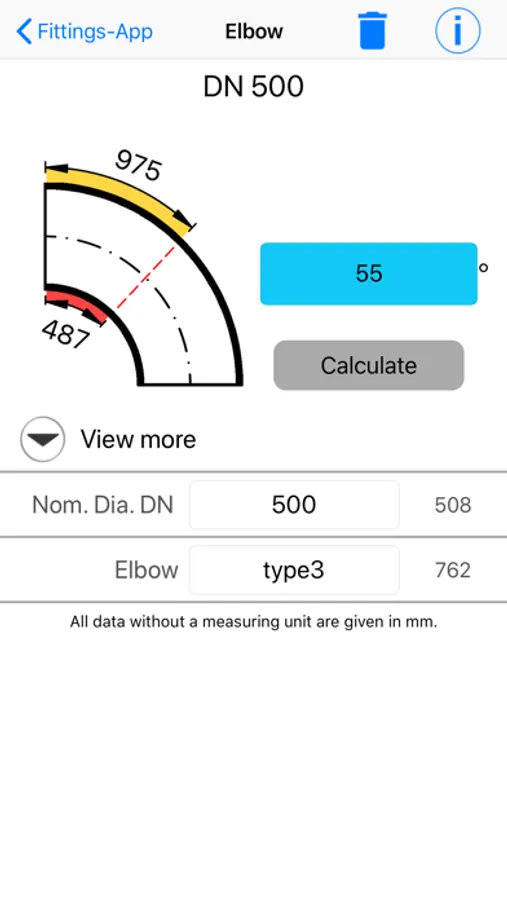

- measurements of the elbow with 4 types or manual input:
- elbow radius ,
- calculate the cutting mesurements of the elbow,
- take off, chord,
- tee with different outlet diameter,
- reduction.

-Extensive help and explanations

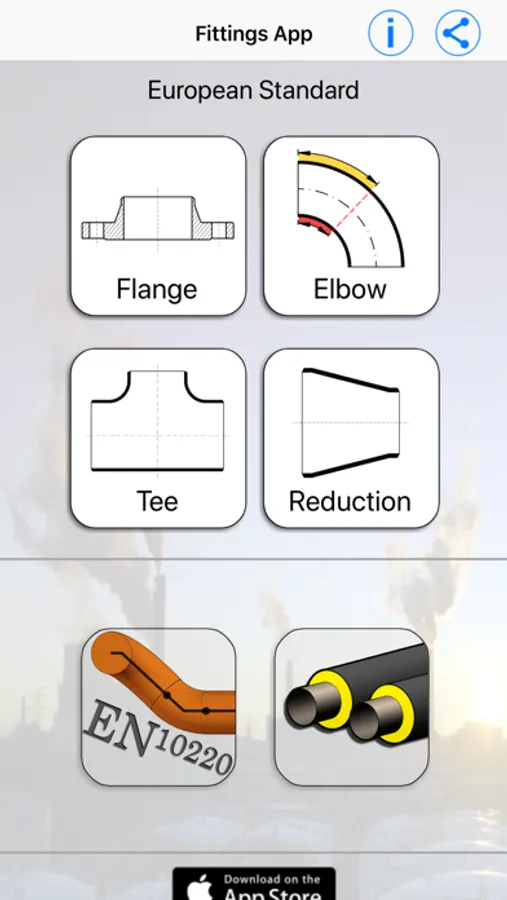

Fittings App Screenshots
