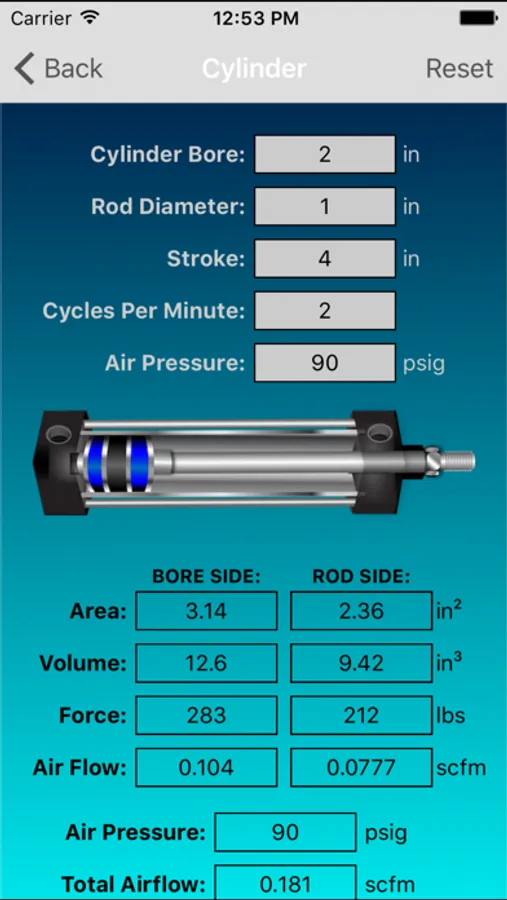

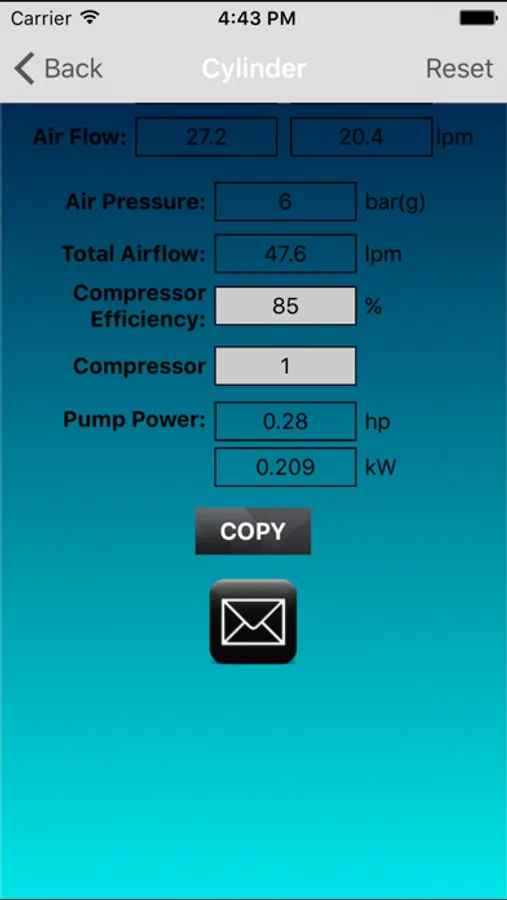

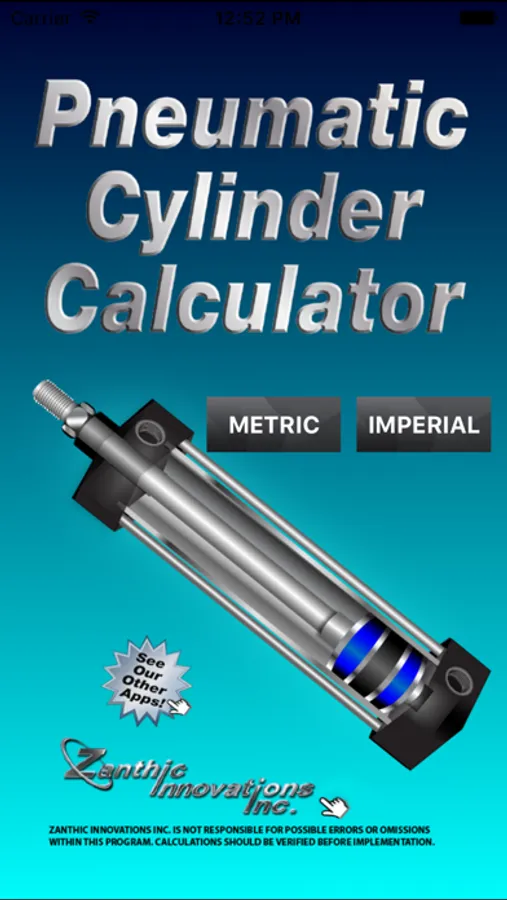

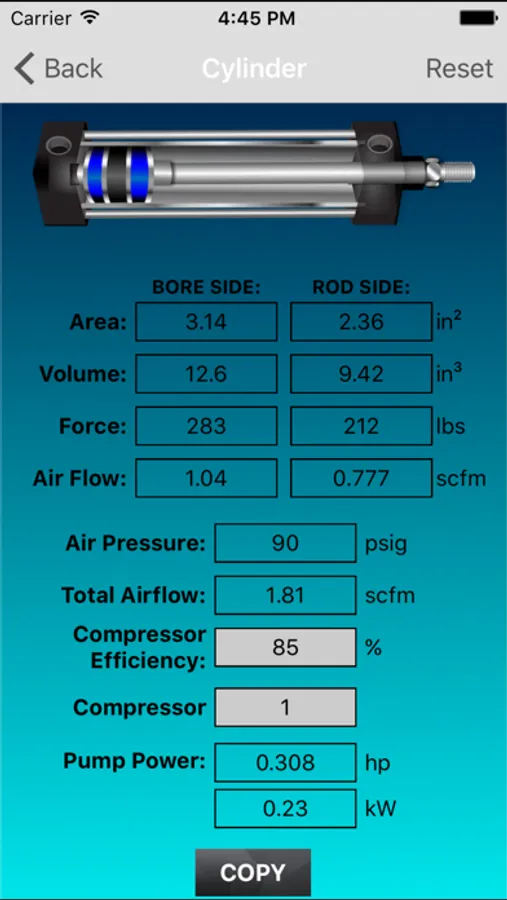

The purpose of this app is to simplify calculations for pneumatic cylinders. By entering the cylinder dimensions (bore, rod and stroke) , cycle frequency, and air pressure the app will calculate the following:
-Rod and bore side areas and volumes
-Extension / Retraction forces
-Rod and bore air flow rates
Calculations can be done in metric or imperial units.
-Rod and bore side areas and volumes
-Extension / Retraction forces
-Rod and bore air flow rates
Calculations can be done in metric or imperial units.
