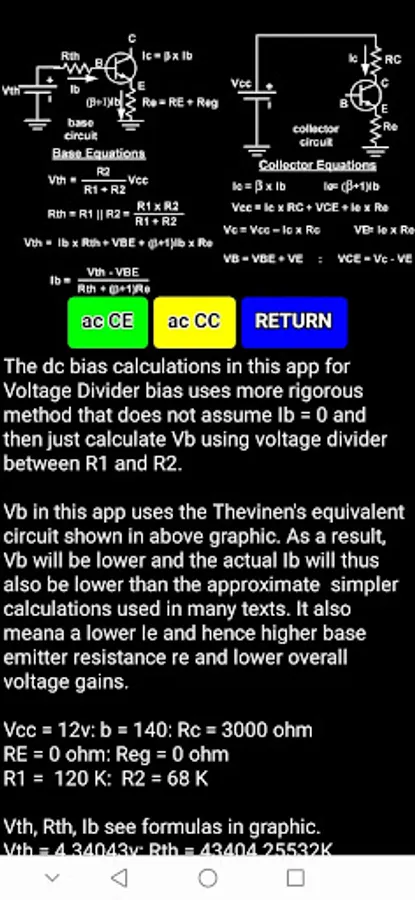

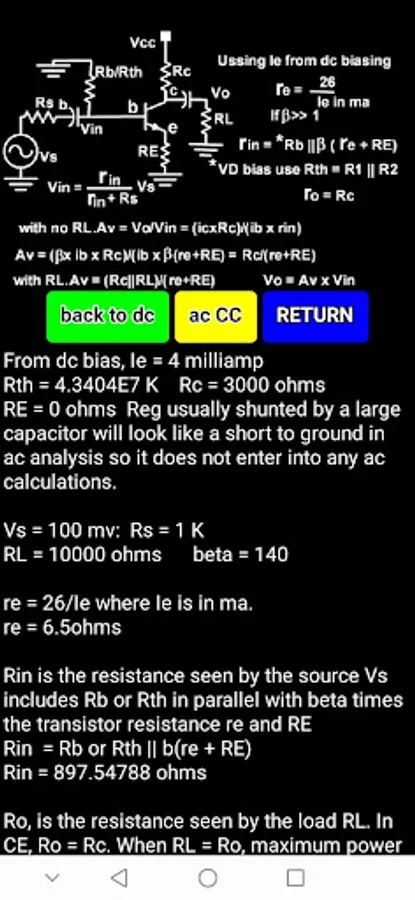

This app allows you to enter circuit values to analyse 8 different BJT transistor circuits for both dc bias and ac gain etc.

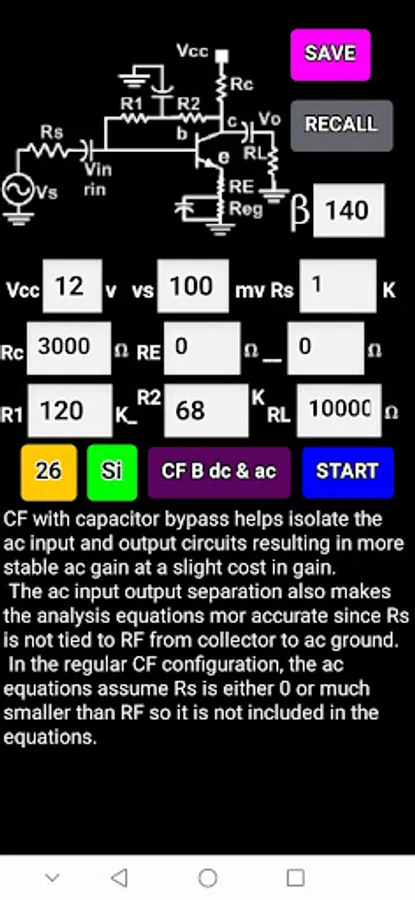

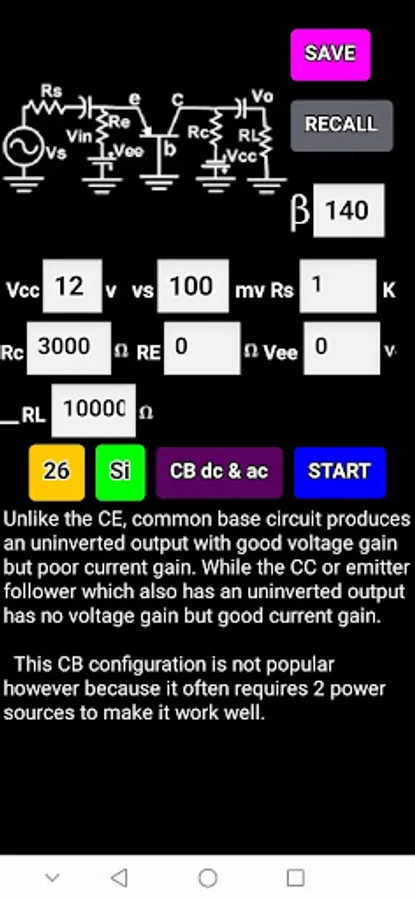

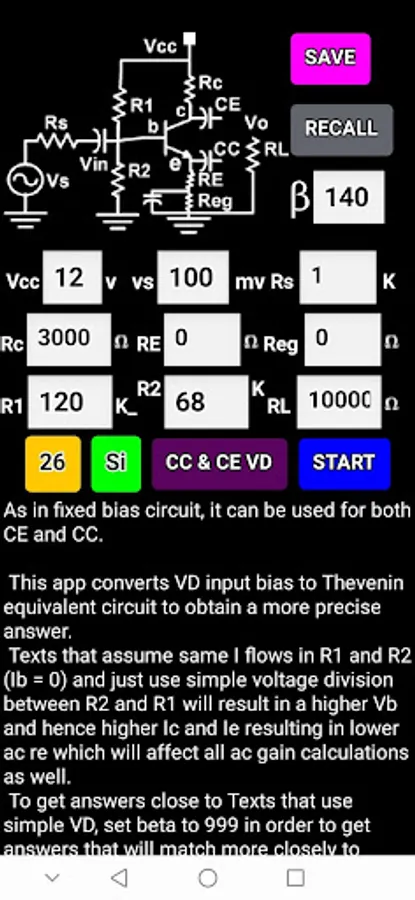

Step by step calculations are performed for fixed bias common emitter and common collector, voltage divider bias for CE and CC, 2 supply common base and single supply voltage divider common base, collector feedback and collector feedback with ac ground isolation.
You can save up to 12 circuit entries for quick recall.
Step by step calculations are performed for fixed bias common emitter and common collector, voltage divider bias for CE and CC, 2 supply common base and single supply voltage divider common base, collector feedback and collector feedback with ac ground isolation.
You can save up to 12 circuit entries for quick recall.
