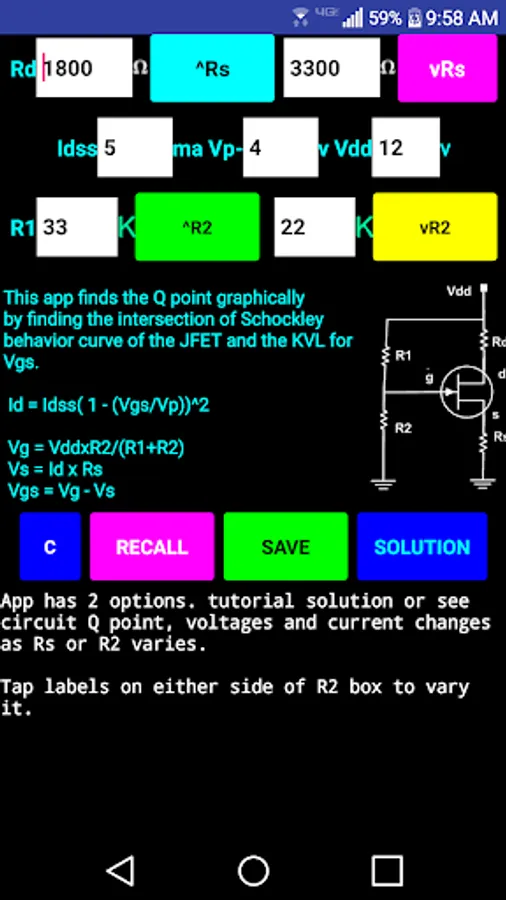

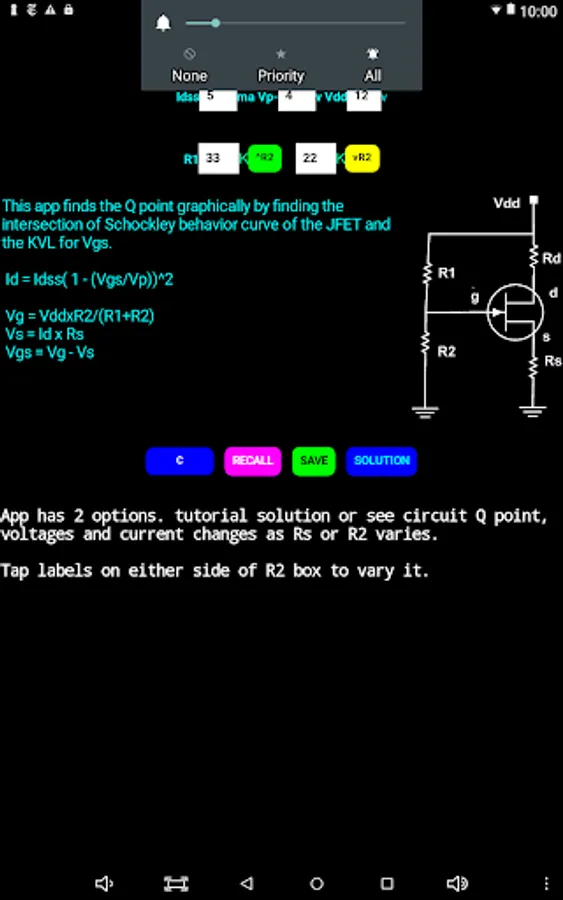

This app plots Schockley's equation for the JFET and the Kirchoff's loop equation for Vgs to find the intersection of the 2 graphs to yield an answer.
The app also allow the user to see immediately what happens graphically as R2 or Rs is varied either up or down.
The app also allow the user to see immediately what happens graphically as R2 or Rs is varied either up or down.
