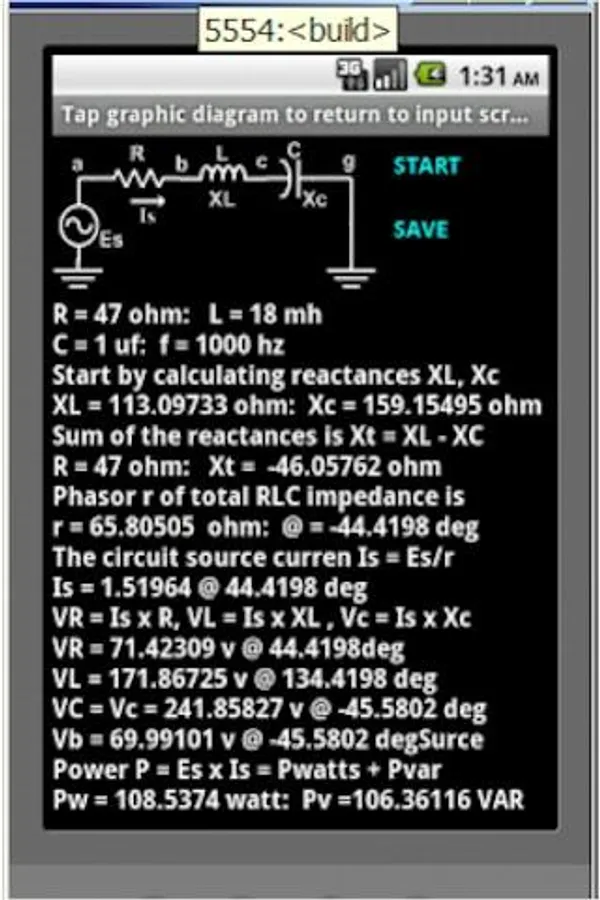

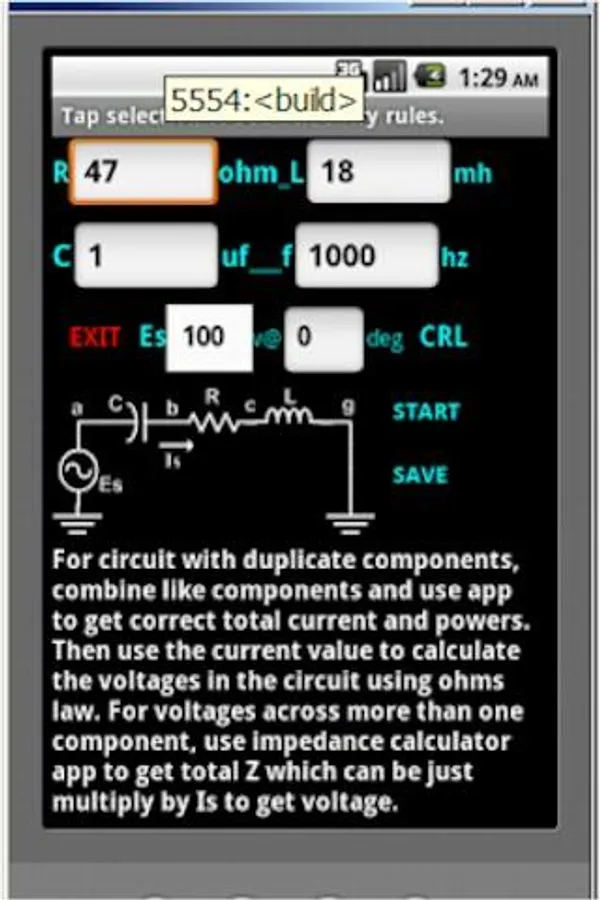

This app solves a series RLC circuit for all currents and voltages in 3 different configurations for flexible use. In addition to single component voltages, it solves for all branch voltage comhinations like VR+VC, VR+VL and VL+VC.

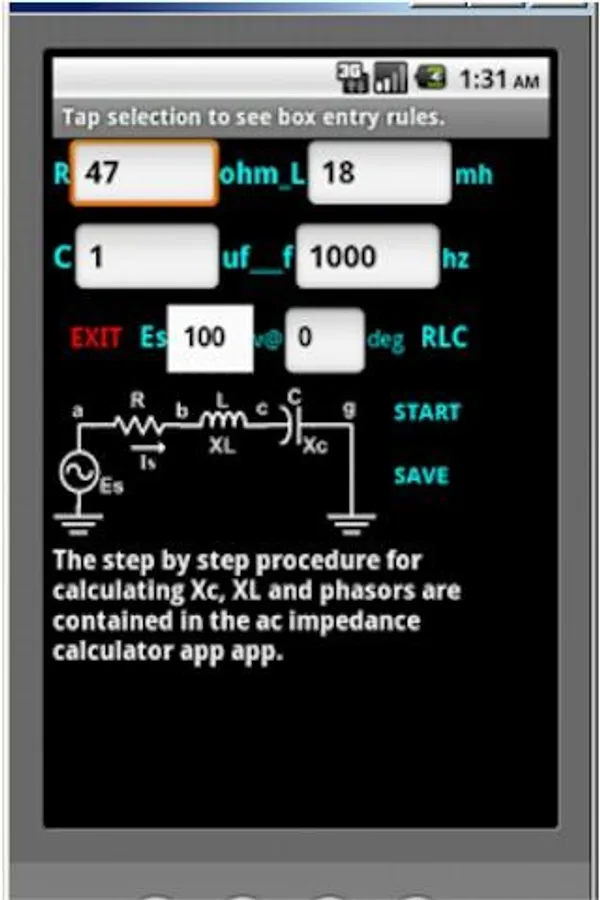

It is a good introduction to the solution of ac series ciruits since you can start with just 2 elements by setting the 3 element to 0. When a capacitor is set to 0, it will be replaced by a short.
It is a good introduction to the solution of ac series ciruits since you can start with just 2 elements by setting the 3 element to 0. When a capacitor is set to 0, it will be replaced by a short.
