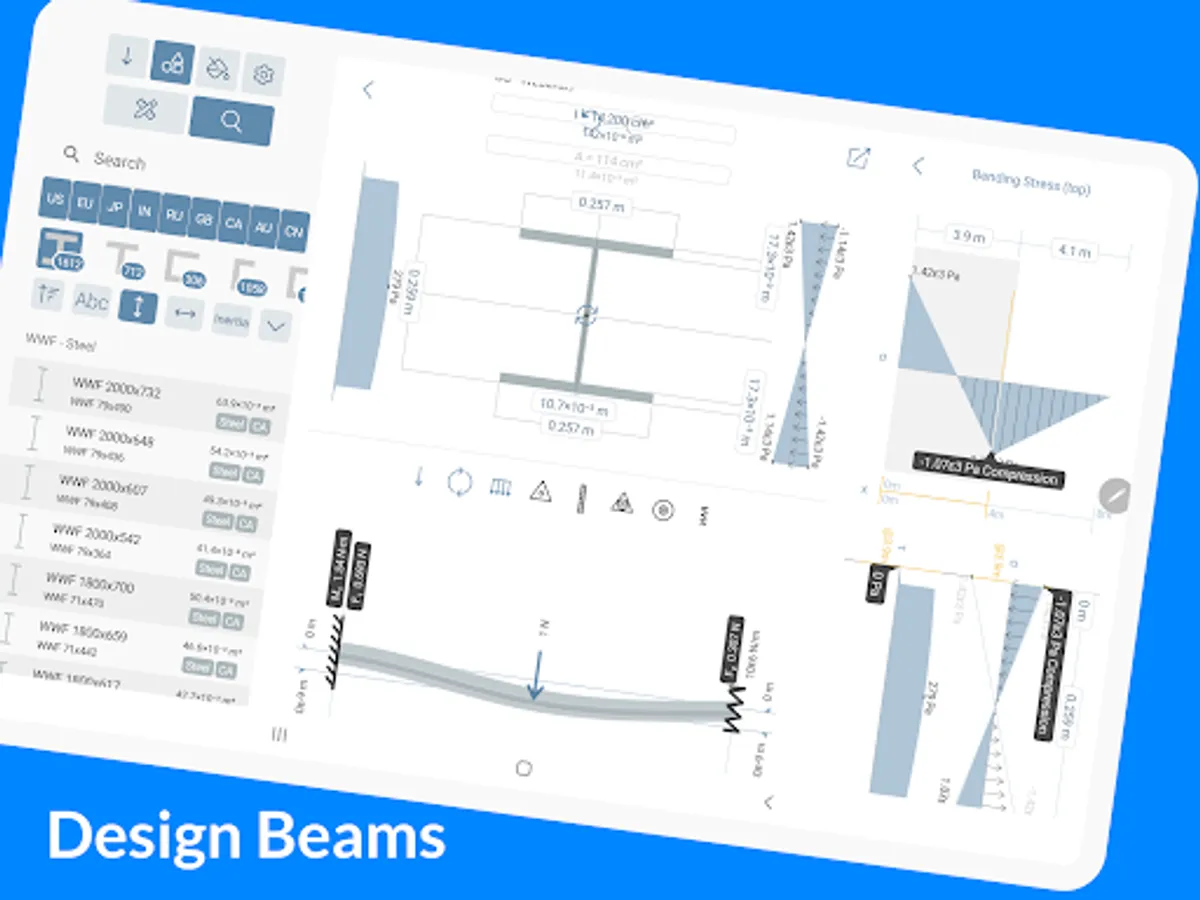

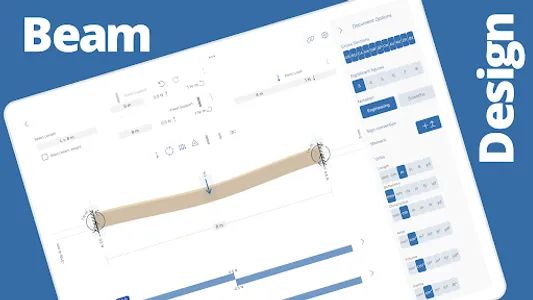

Deflection is the most interactive, fast, and precise app available for structural beam analysis.

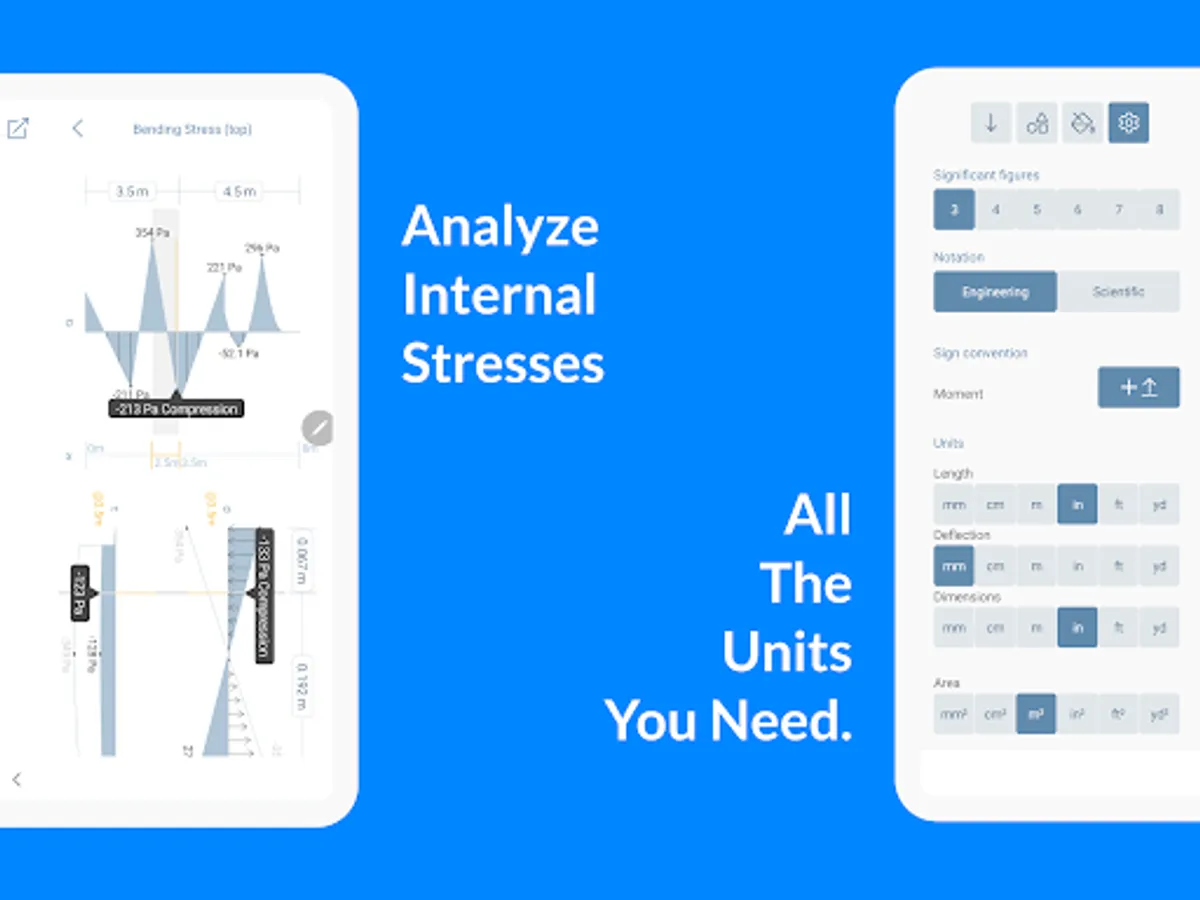

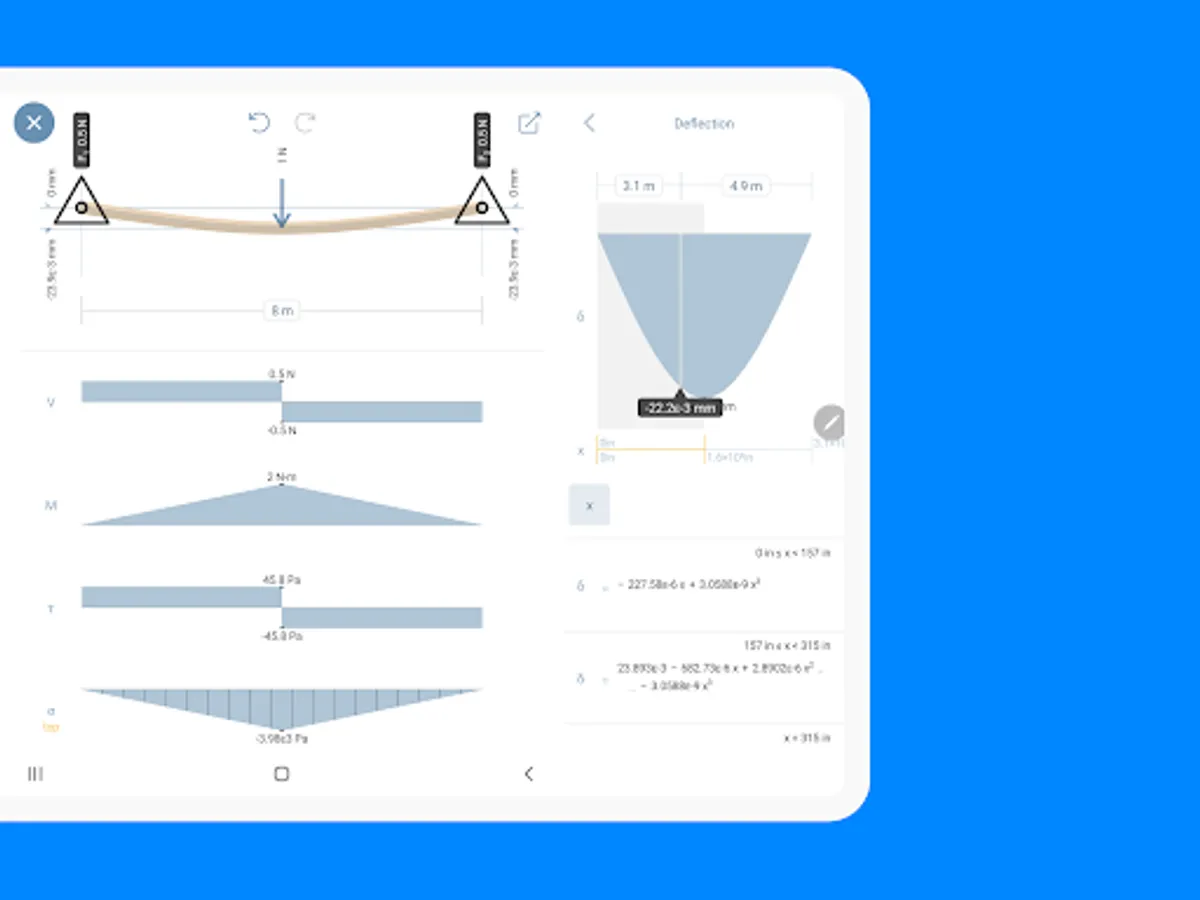

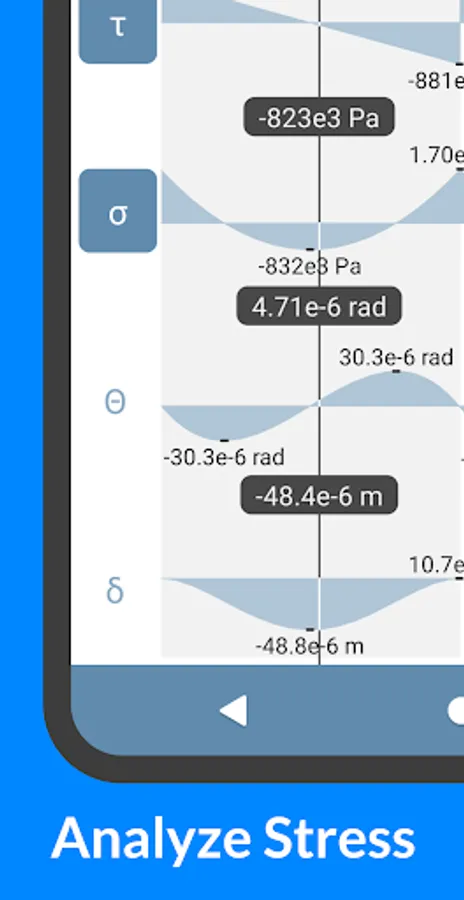

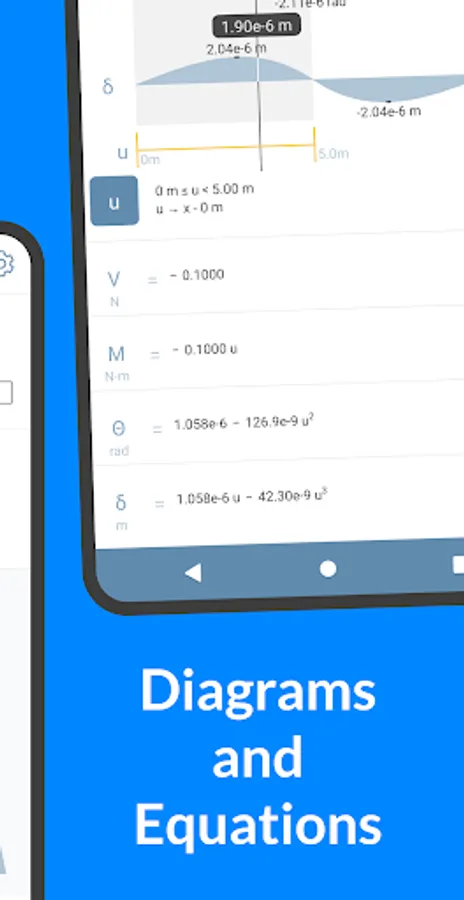

RESULTS
Obtain design results and diagrams in real-time.
• Shear force
• Bending moment
• Deflection distance

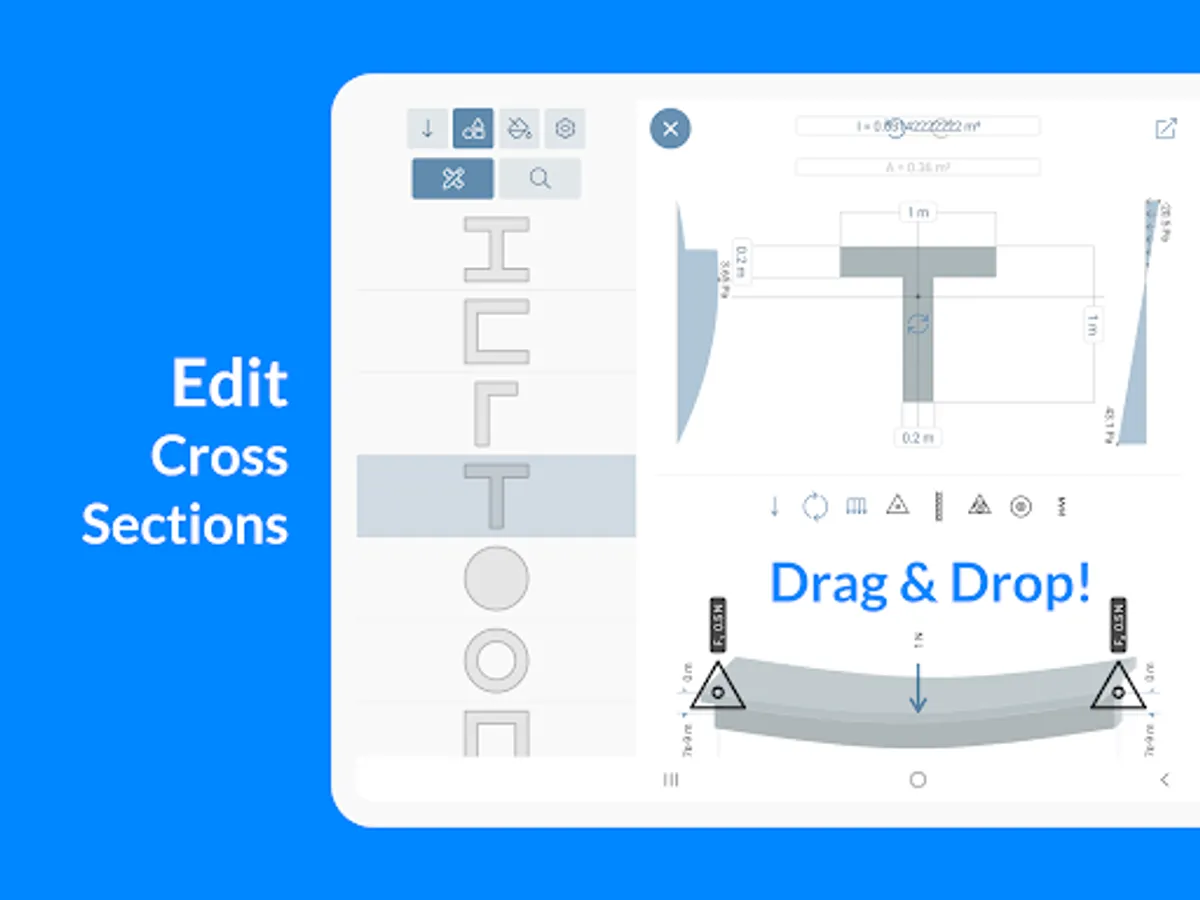

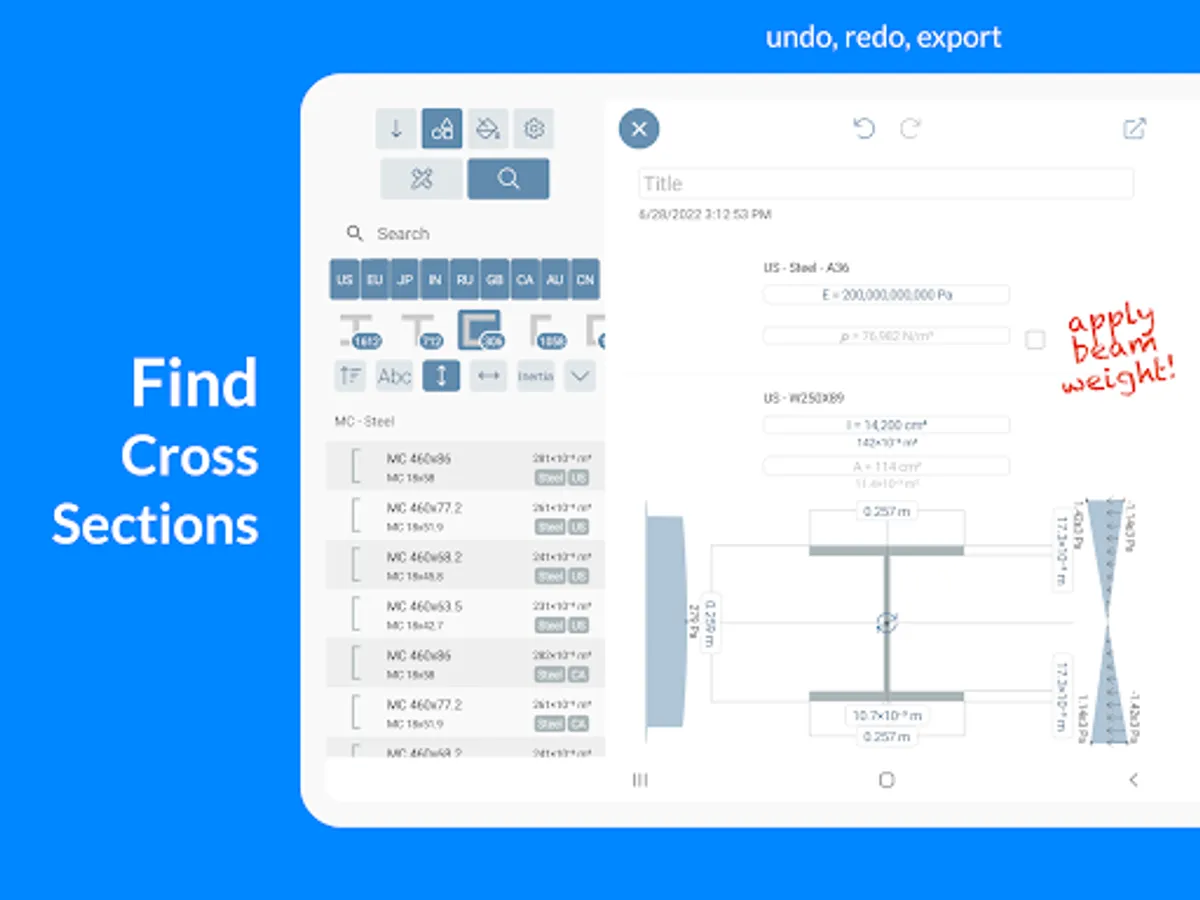

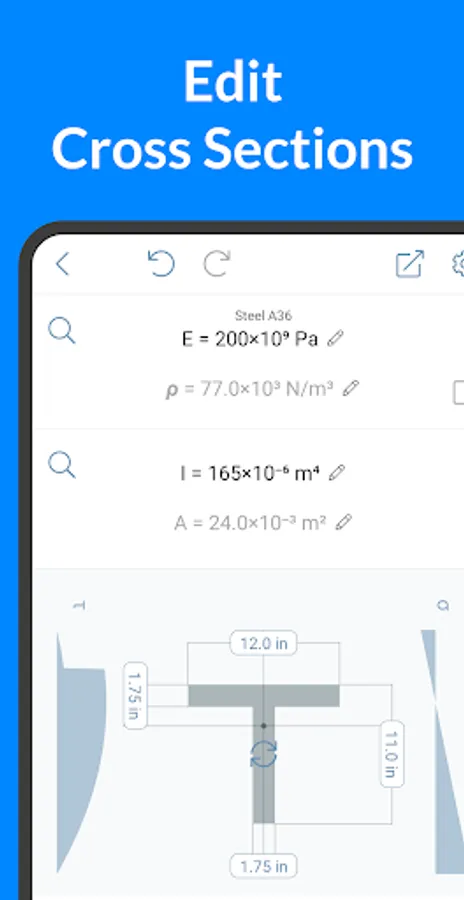

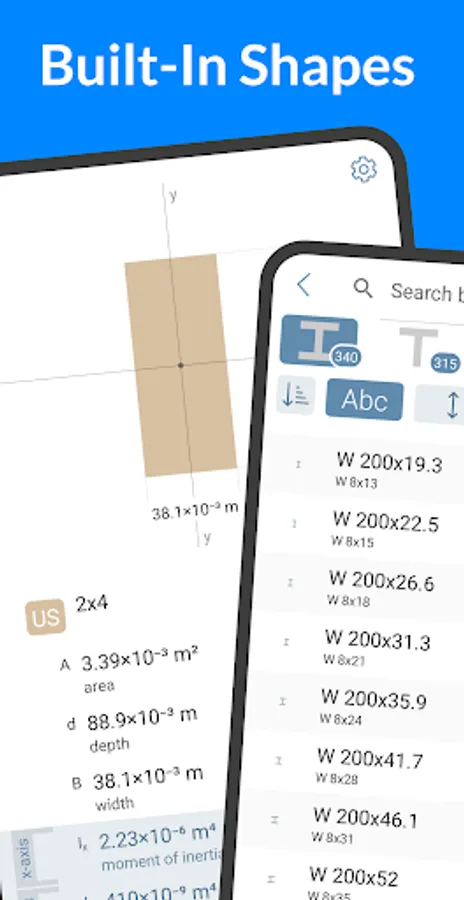

CROSS SECTION DATABASES

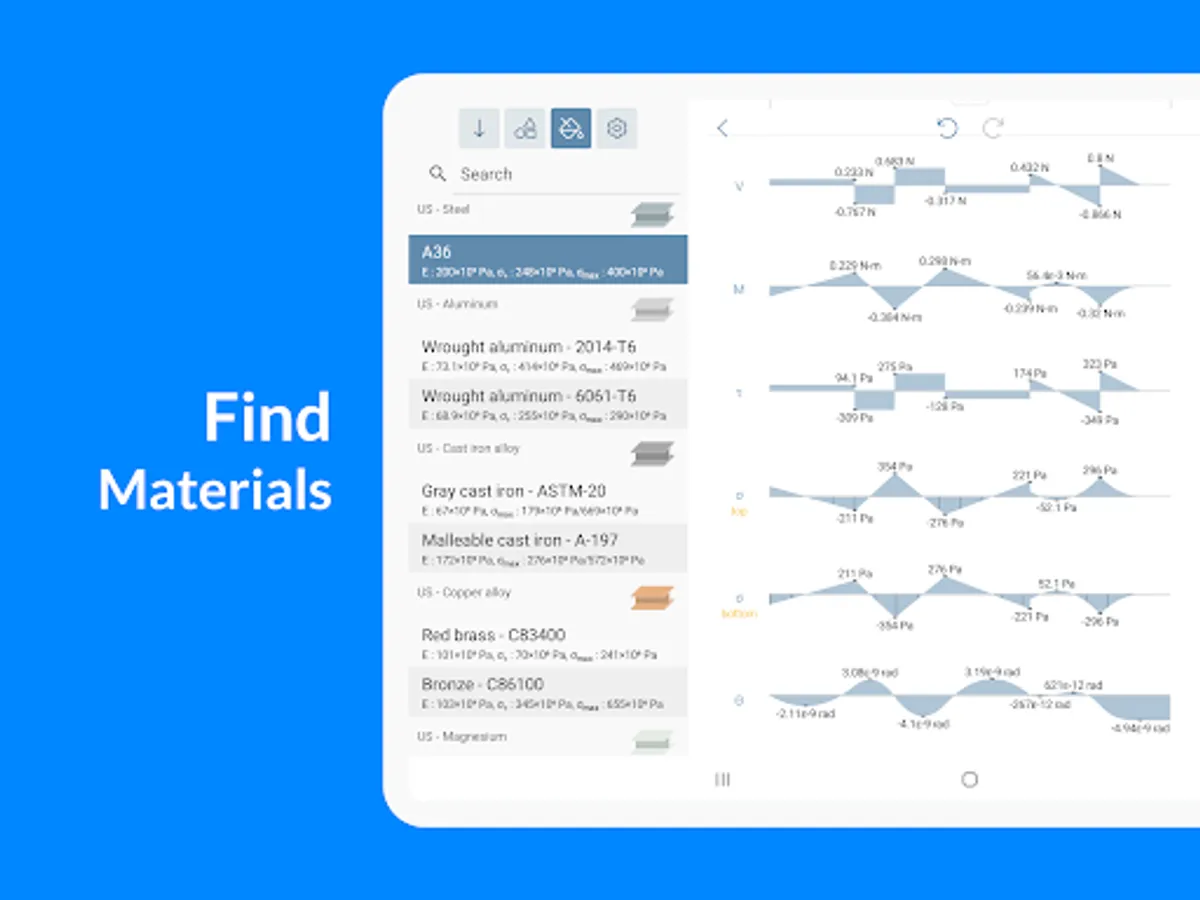

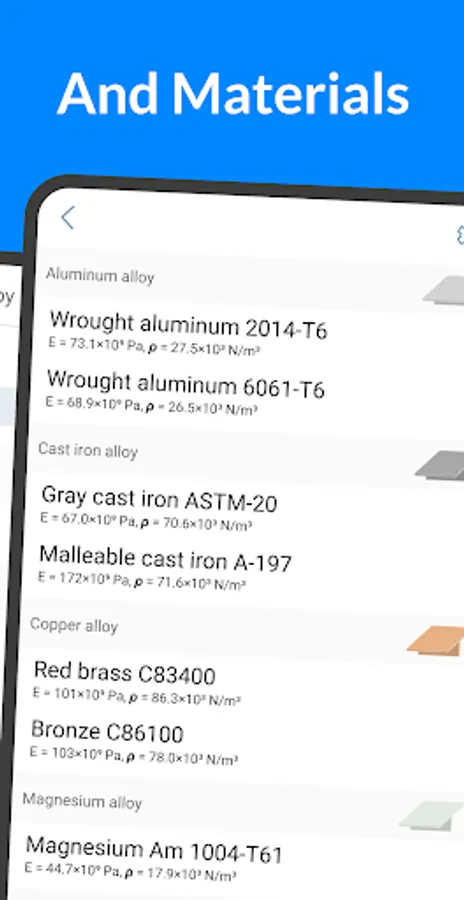

Specify values directly, or find common shapes and materials using the built-in databases.
• United States
• Europe
• Japan
• India
• Russia
• Great Britain
• Canada
• Australia

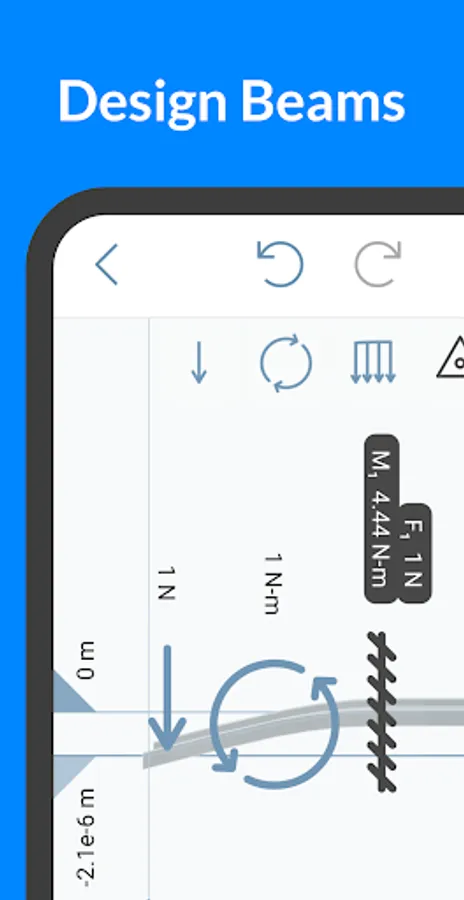

UNLIMITED LOADS AND SUPPORTS
Simply drag any load or support on the beam.
• Concentrated point loads
• Distributed loads
• Moment loads
• Simple supports
• Fixed supports
• Fixed hinges
• Floating Gerber hinges
OTHER FEATURES
• Automatic detection of local maxima and minima in diagrams

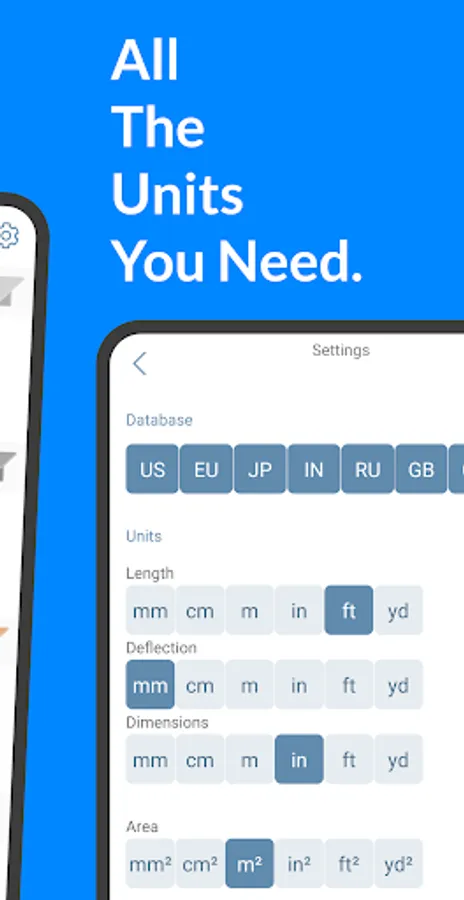

• Metric and standard measurement units
CONTACT
We want to hear from you! Issues, questions, or requests? Please submit a review or email contact@ketchep.com
