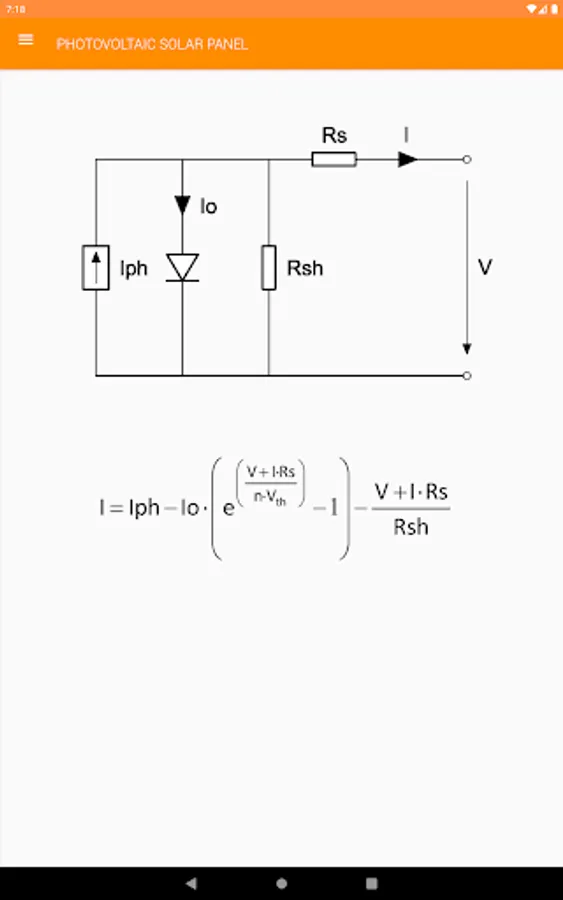

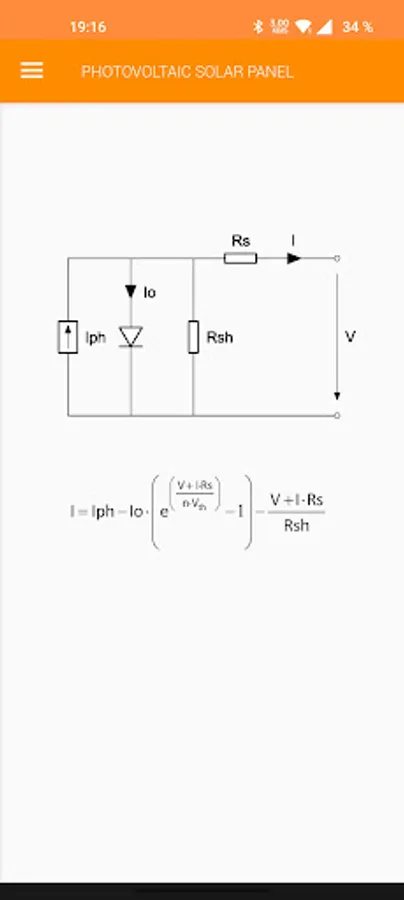

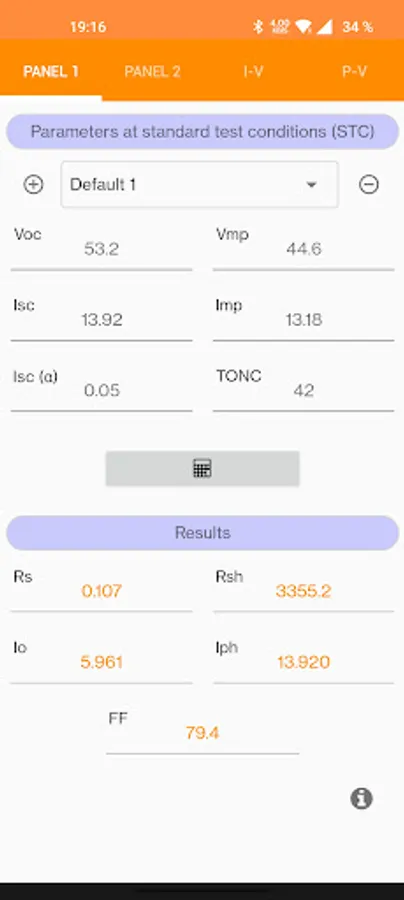

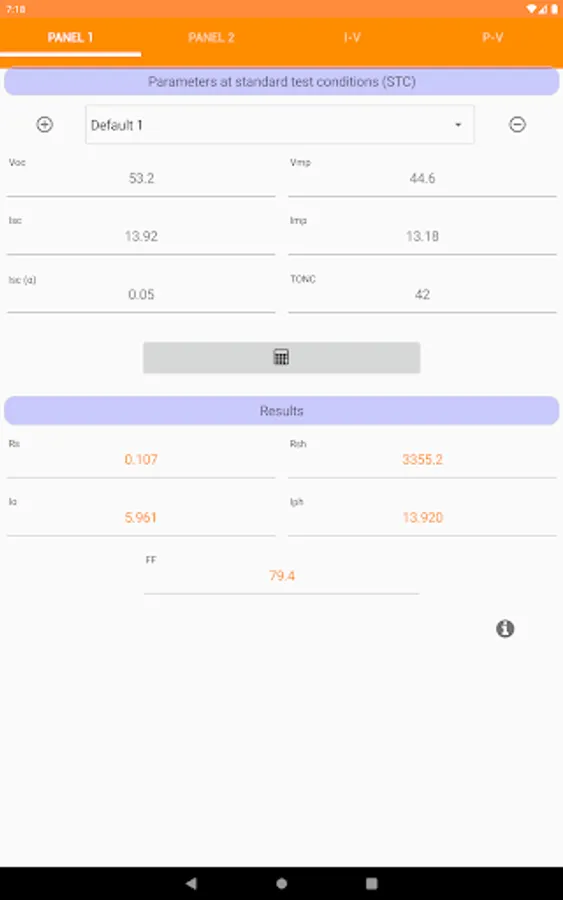

'PV module' solves the simplified equation of the photovoltaic module with a single exponential and five parameters, from the test data (Voc, Vmp, Isc, Imp) of the photovoltaic panel under standard test conditions (STC: 1000 W/m² of irradiation, 25ºC cell temperature, spectrum AM 1.5g) provided by the manufacturer.
The determination of the parameters of the module allows to simulate the behavior of the photovoltaic panel under different conditions.
· Series resistance (Rs)
· Shunt resistance (Rsh)
· Fill factor (FF)
· I-V Curve, STC
· P-V Curve, STC
· I-V Curve, Irradiance, Temperature

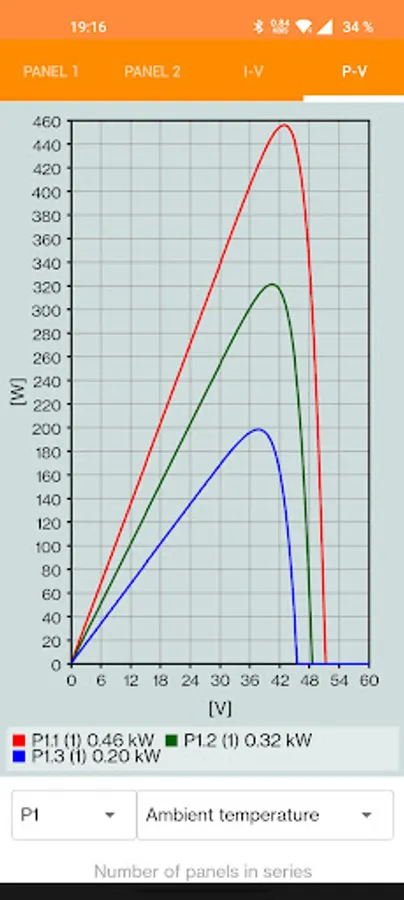

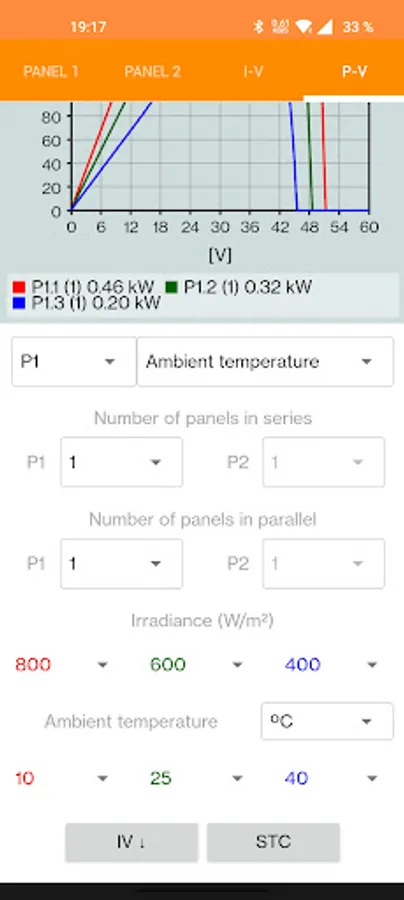

· P-V Curve, Irradiance, Temperature
· Comparative two modules
The determination of the parameters of the module allows to simulate the behavior of the photovoltaic panel under different conditions.
· Series resistance (Rs)
· Shunt resistance (Rsh)
· Fill factor (FF)
· I-V Curve, STC

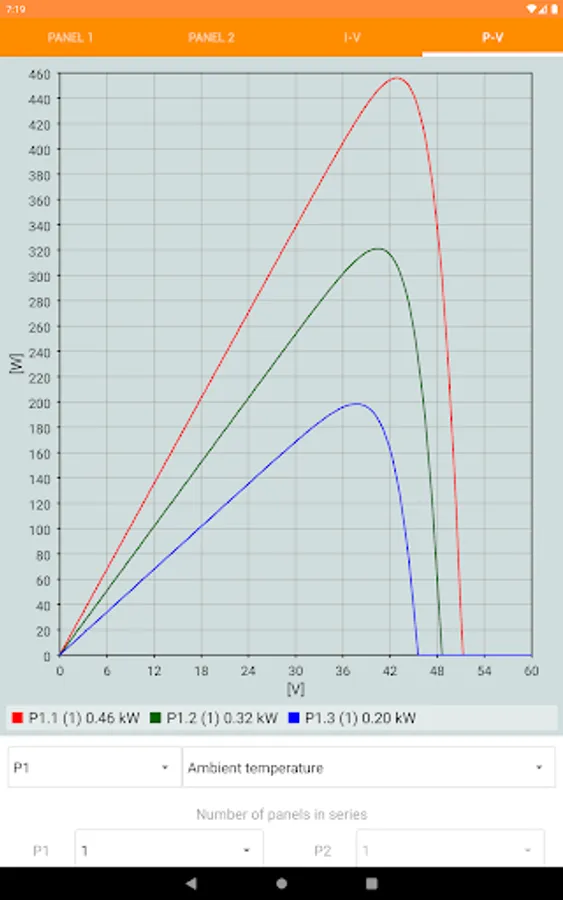

· P-V Curve, STC

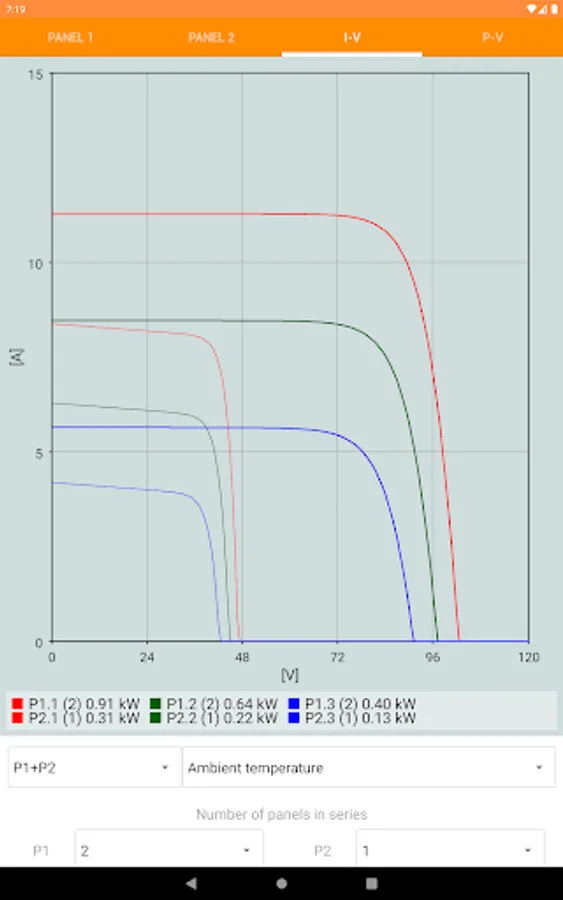

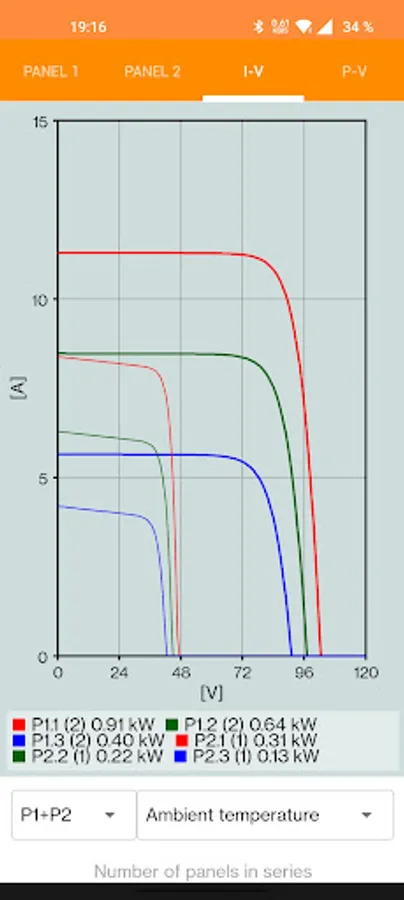

· I-V Curve, Irradiance, Temperature

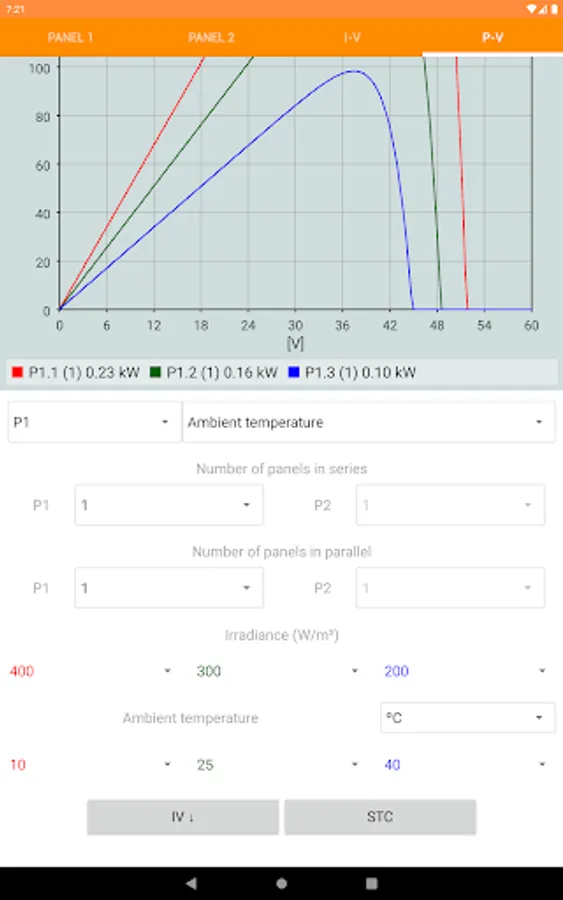

· P-V Curve, Irradiance, Temperature
· Comparative two modules
