CrossOver Filter icon

CrossOver Filter

Pasquale Puglisi
$1.99
3.0 out of 5

About CrossOver Filter

Designs and simulates the Crossover Filter of your car stereo system or home in a simple and professional way at the same time.

Features and Functions:

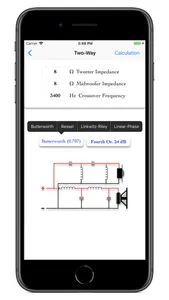

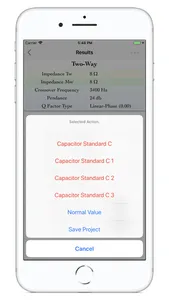

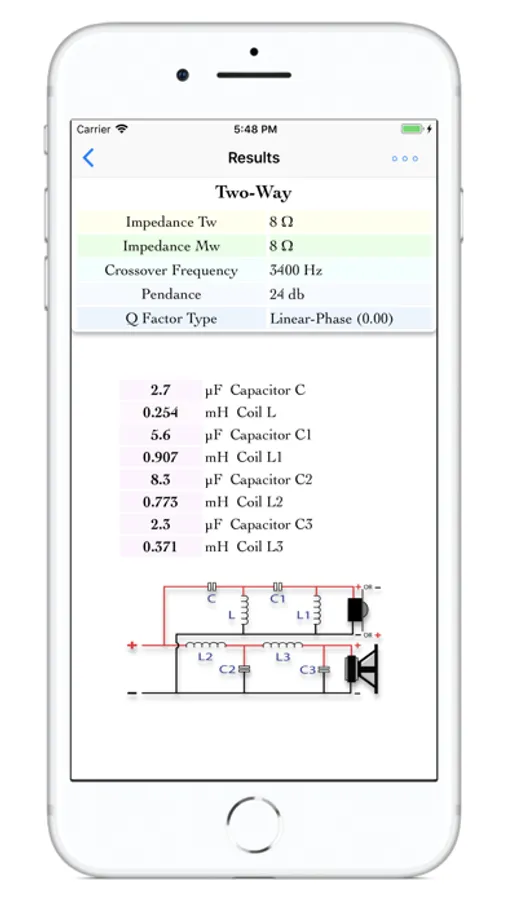

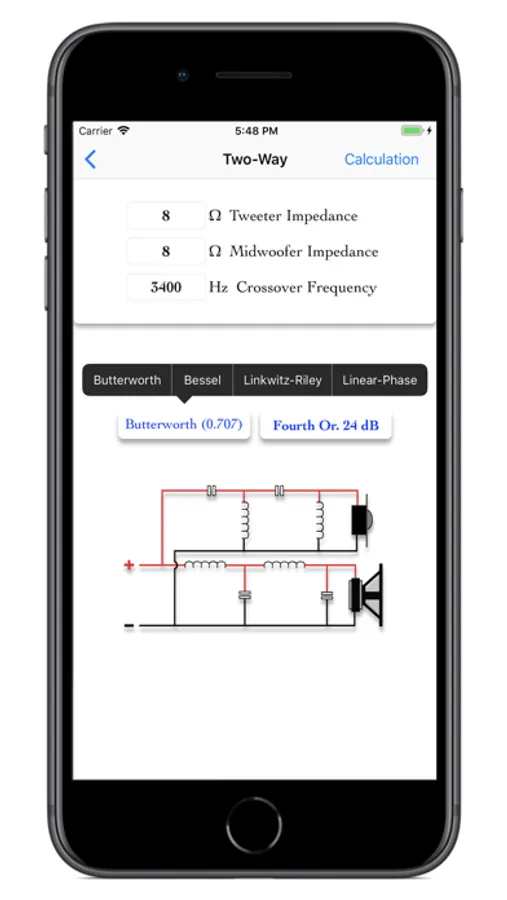

• Crossover Filter Calculation for Two-Way 6 / 12 / 18 and 24dB / octave.

• Crossover Filter Calculation for Tweeter to 6 / 12 / 18 and 24dB / octave.

• Crossover Filter Calculation for Mid-range to 6 / 12 and 18dB / octave.

• Crossover Filter Calculation for Subwoofer / Woofer to 6 / 12 / 18 and 24dB / octave.
Ability to select the "Q factor of Merit" in Two-Way, Tweeter and Subwoofer / Woofer (Butterworth, Bessel, Chebyshev, Linkwitz-Riley and Linear Phase).

• Zobel Circuit Calculation.

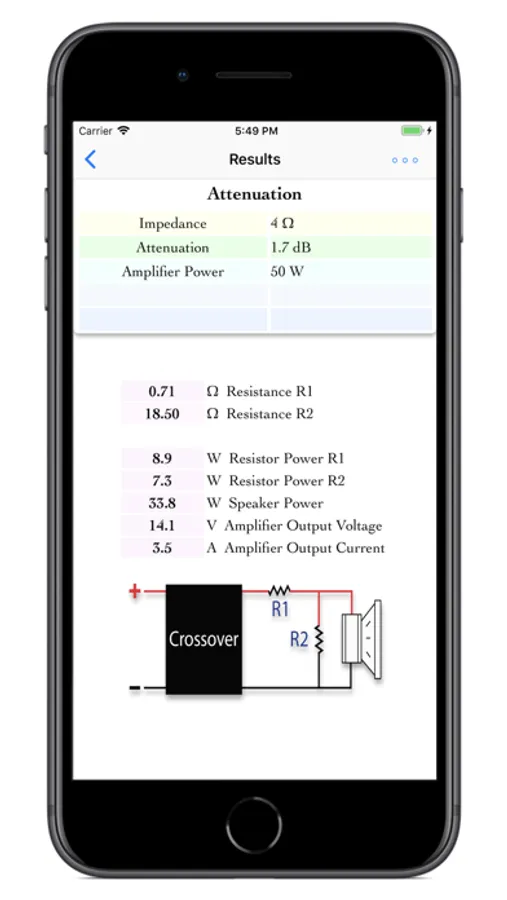

• Speaker Attenuation Calculation.

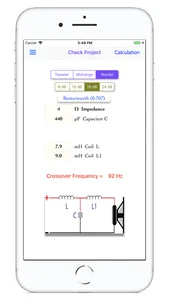

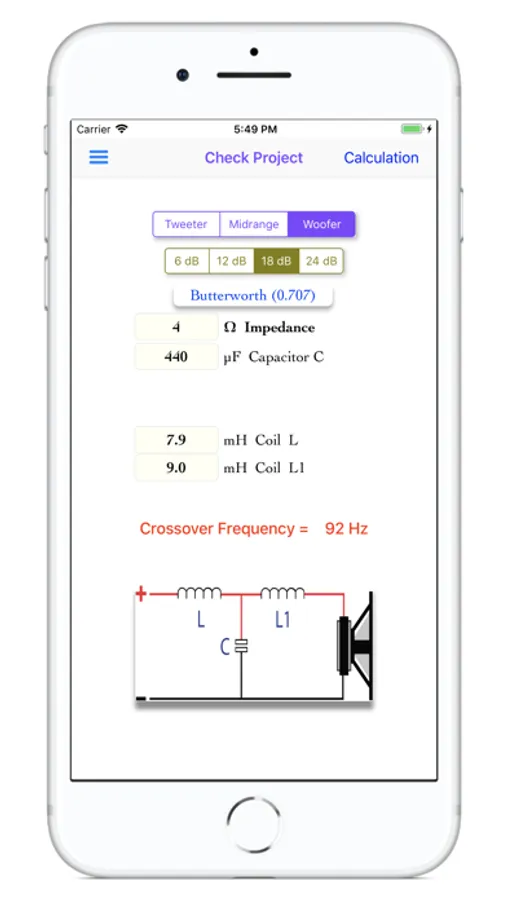

• "Check Projects" of filters already existing.

• Notch Circuit Parallel Calculation.

• Notch Circuit Series Calculation.

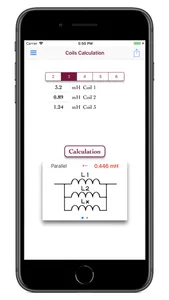

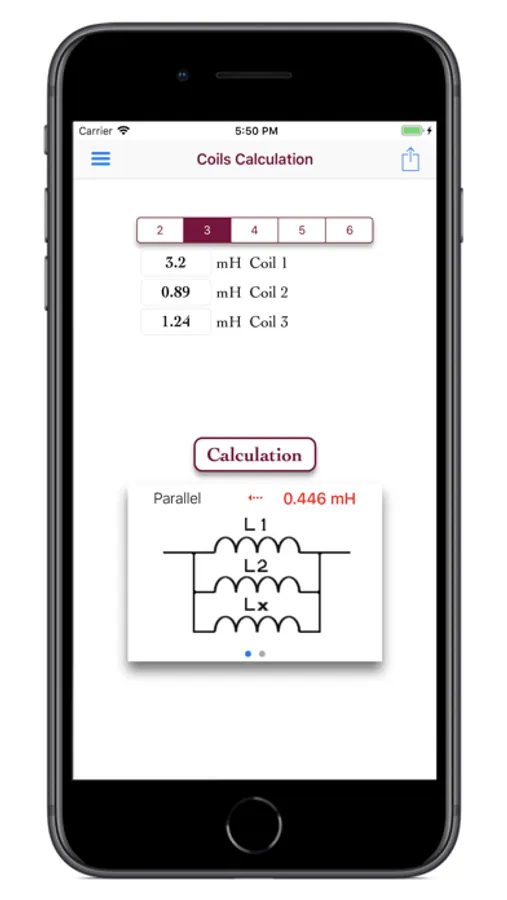

• Calculating Resistances, Coils and Capacitors in series or parallel connections.

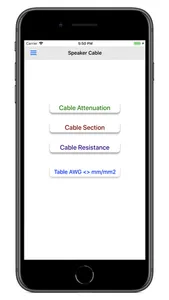

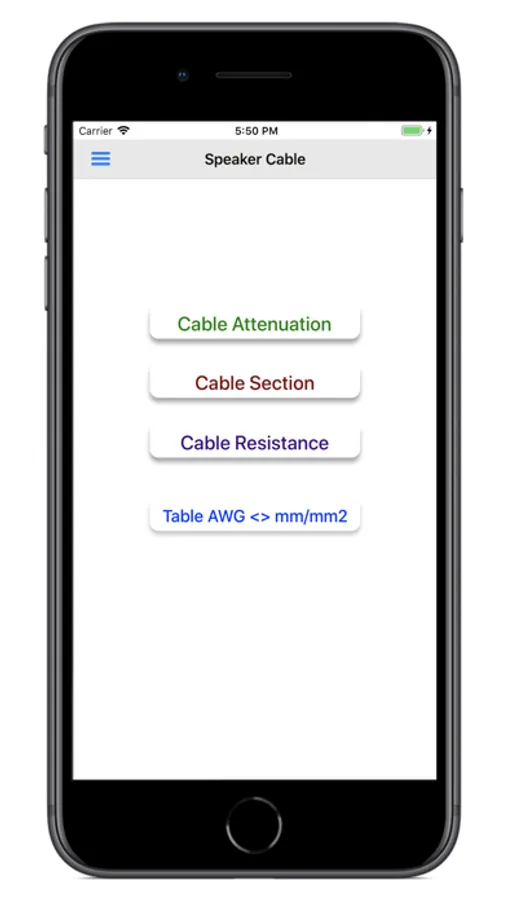

• Calculation Speaker Cable Attenuation and Cable Resistance with selection of metal cable (Copper, OFC Copper, LC-OFC Copper, Tin-Plated Copper, Nichel-Plated Copper, Silver and Aluminium).

• Conversion table for AWG / mm / mm2.

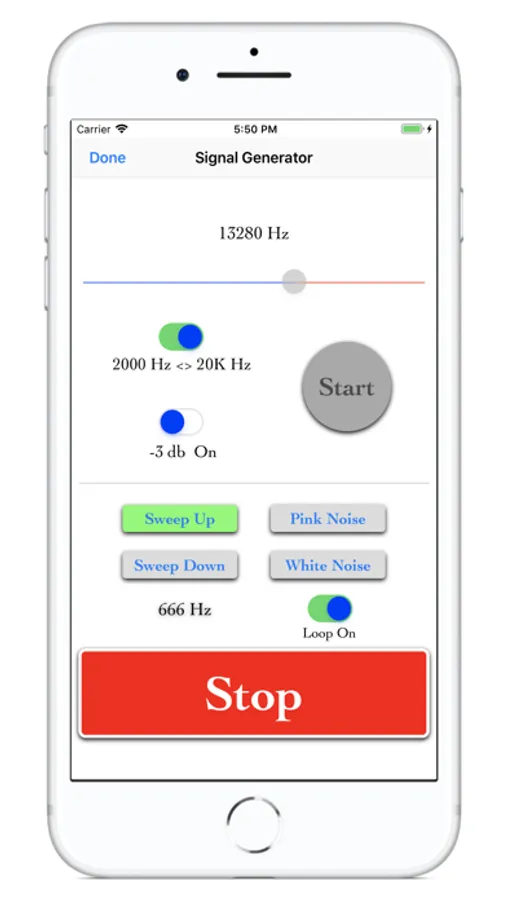

• Signal Generator, slide to select the Frequency from 20Hz to 20KHz, Sweep Up and Sweep Down to 20Hz/20KHz, Ascending tones, Descending tones, Pink Noise and White Noise.

• Assembly diagram of Crossover.

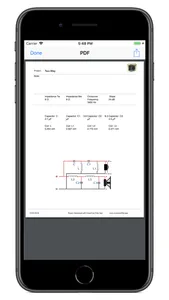

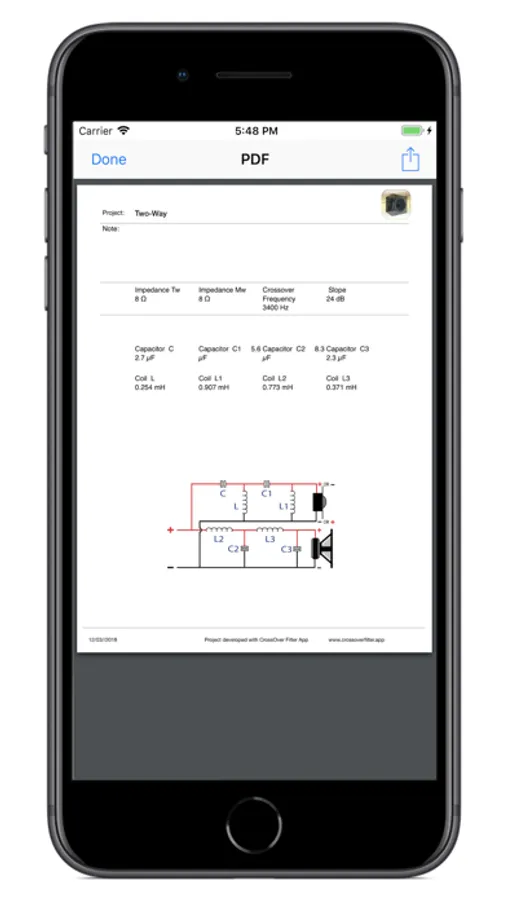

• Generates PDF files or image files to share or save your project.

• Sharing of projects through Mail, iMessage and Social networks.

• Saving of project in Photo, iBooks, Note, Dropbox, Google Drive, Evernote, etc.

• Printing of project.

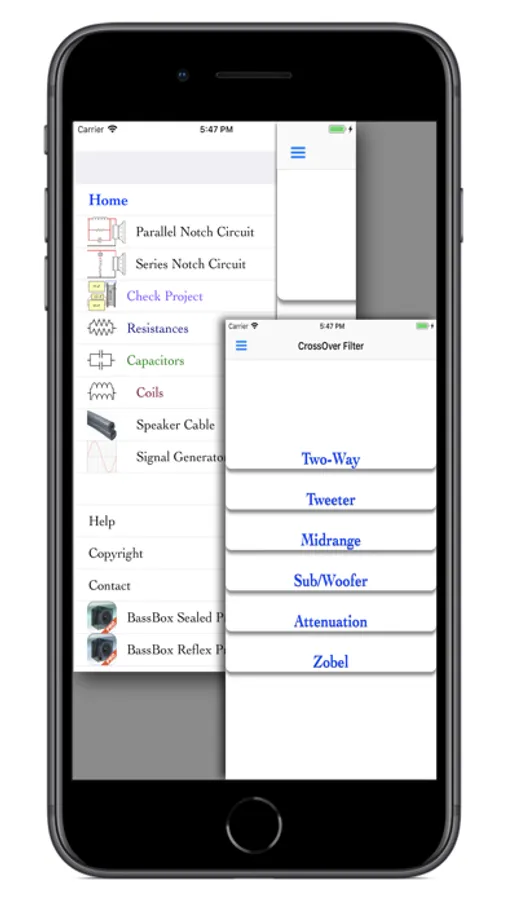

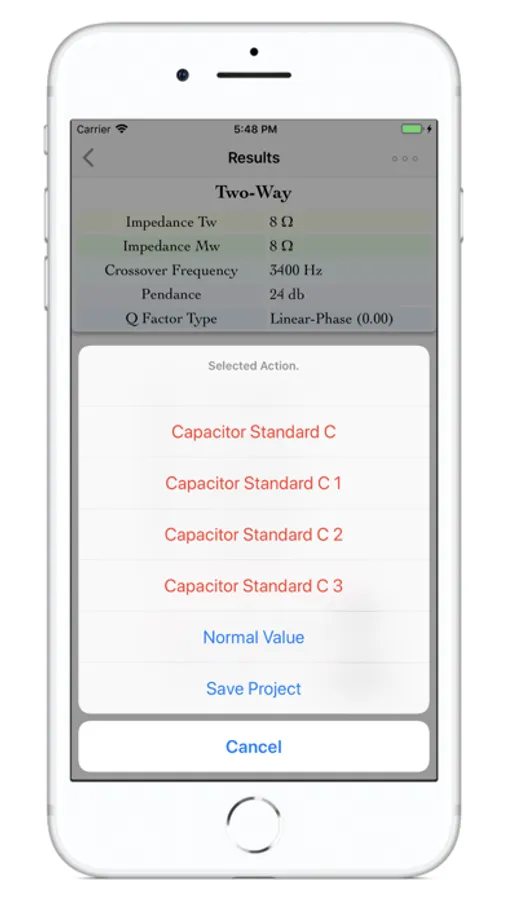

CrossOver Filter Screenshots
