About Kmap
A simple and easy to use Karnaugh map calculator for: 2,3, and 4 variable K-maps.
- Converts truth-tables to K-map and produces minimized output.
- Switch from ABCD to WXYZ variable
A Karnaugh Map is a method to simplify boolean algebra expression. Commonly used in logic design. The desired output of a solution is put into a truth table and the Kmap using grouping will provide the minimum number of operations on the input and thus provide the minimum number of physical logic gates needed to produce the desired output
- Converts truth-tables to K-map and produces minimized output.
- Switch from ABCD to WXYZ variable
A Karnaugh Map is a method to simplify boolean algebra expression. Commonly used in logic design. The desired output of a solution is put into a truth table and the Kmap using grouping will provide the minimum number of operations on the input and thus provide the minimum number of physical logic gates needed to produce the desired output

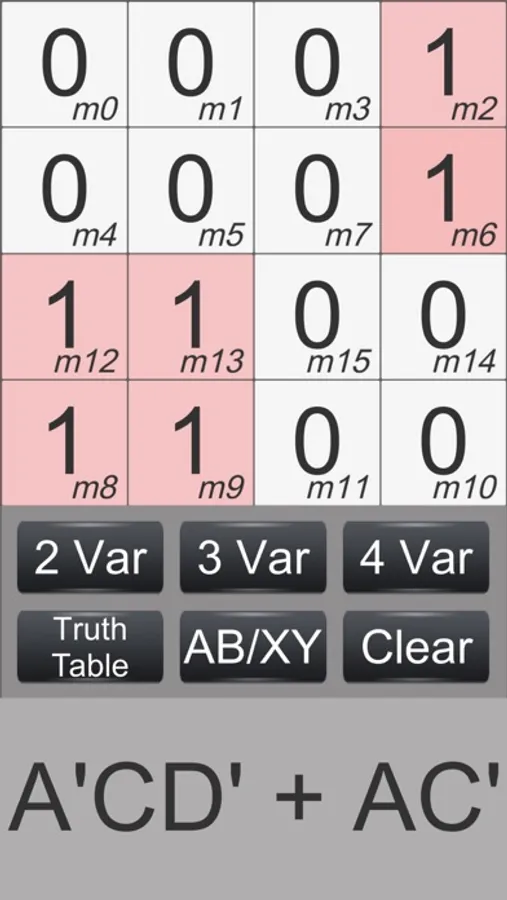

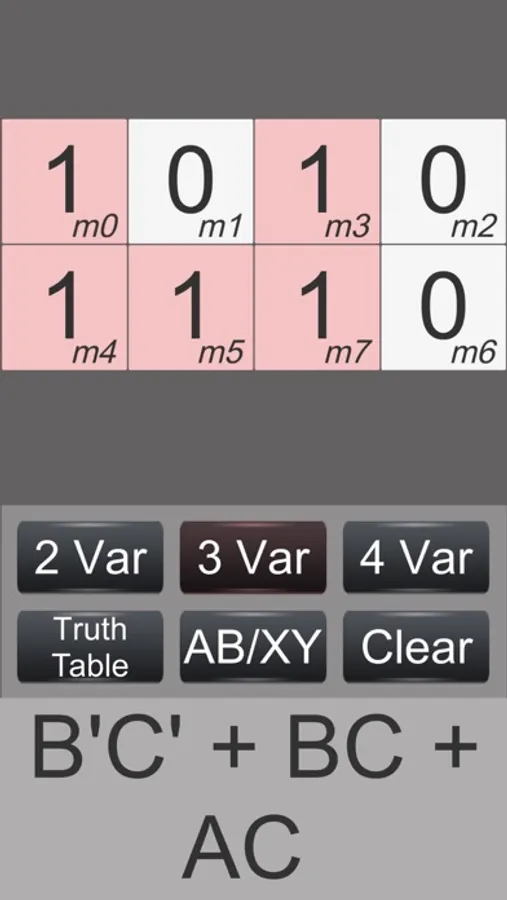

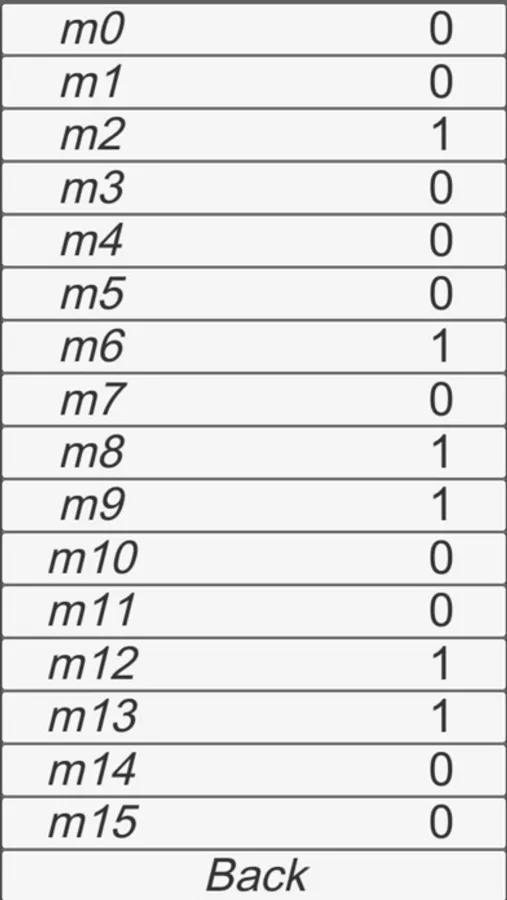

Kmap Screenshots
Reviews for Kmap
Cougerbait
Great App
It is quick and simple to use with a nice interface. Could be improved by having an option to switch between minterms and maxterms, but still a great app.
ModyMonster
Great tool to check my answers
⭐️⭐️⭐️⭐️⭐️
Glad727
Save me time
Every useful tool Love it Happy
Sabreil
Awesome!
Great app! Perfect for logic design class!
