GMORS O-Ring Master is the completed tool for standard rubber seal sizes.
When you use this APP, you don't need to have internet and catalog. Except O-Ring sizes, it also includes the search functions of X-Ring and Back-Up Ring.
Otherwise, you can also use O-Ring Housing to choose suitable O-Ring in your application.
Main functions are as follows:

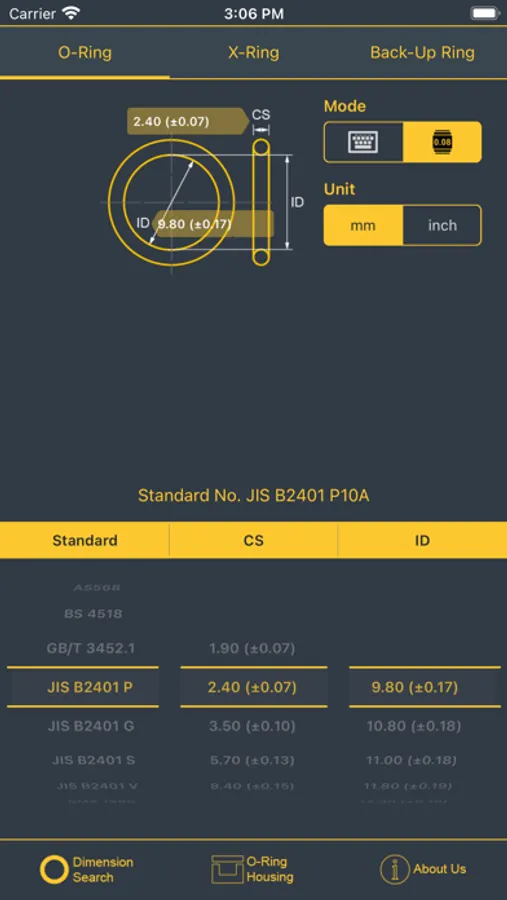

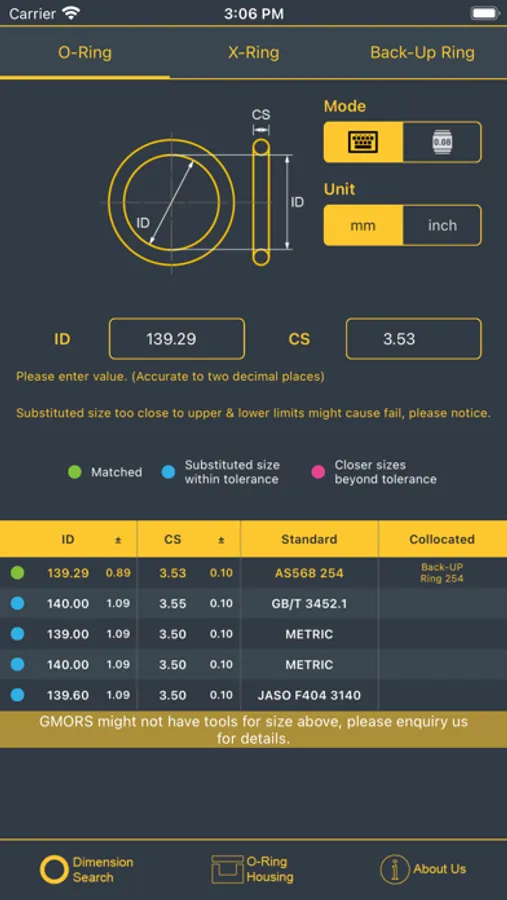

Dimension Search：O-Ring, X-Ring and Back-Up Ring.
- MM and Inch are both available.
- Full standard O-Ring series: AS568, BS 4518, GB/T 3452.1, JIS B2401 P, JIS B2401 G, JIS B2401 S, JIS B2401 V, SMS 1586 and METRIC.
- Collocated Back-Up for AS-568 O-Ring.
- Substitutable O-Ring sizes within tolerance are available.
O-Ring Housing： Piston Sealing、Rod Sealing and Face Sealing.
- MM and Inch are both available.
- Support calculation for both Static and Dynamic sealing applications (Face sealing is with static calculation only).
- Up to 7 O-Ring standards ( AS568, METRIC, JIS B2401 P/G/S/V, JASO F404, GB/T 3452.1, BS 4518 and SMS 1586) for most of size requirement of different groove design.
When you use this APP, you don't need to have internet and catalog. Except O-Ring sizes, it also includes the search functions of X-Ring and Back-Up Ring.
Otherwise, you can also use O-Ring Housing to choose suitable O-Ring in your application.
Main functions are as follows:

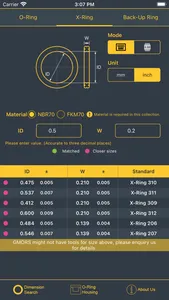

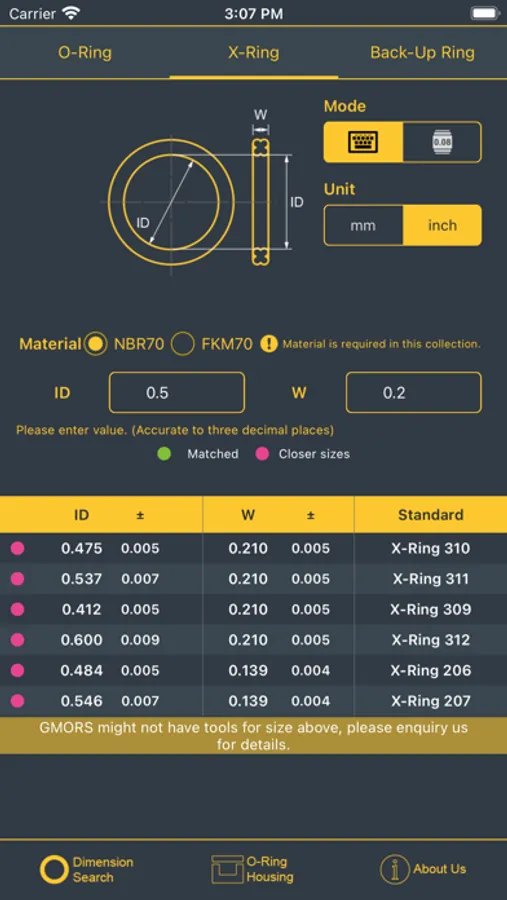

Dimension Search：O-Ring, X-Ring and Back-Up Ring.
- MM and Inch are both available.
- Full standard O-Ring series: AS568, BS 4518, GB/T 3452.1, JIS B2401 P, JIS B2401 G, JIS B2401 S, JIS B2401 V, SMS 1586 and METRIC.
- Collocated Back-Up for AS-568 O-Ring.
- Substitutable O-Ring sizes within tolerance are available.

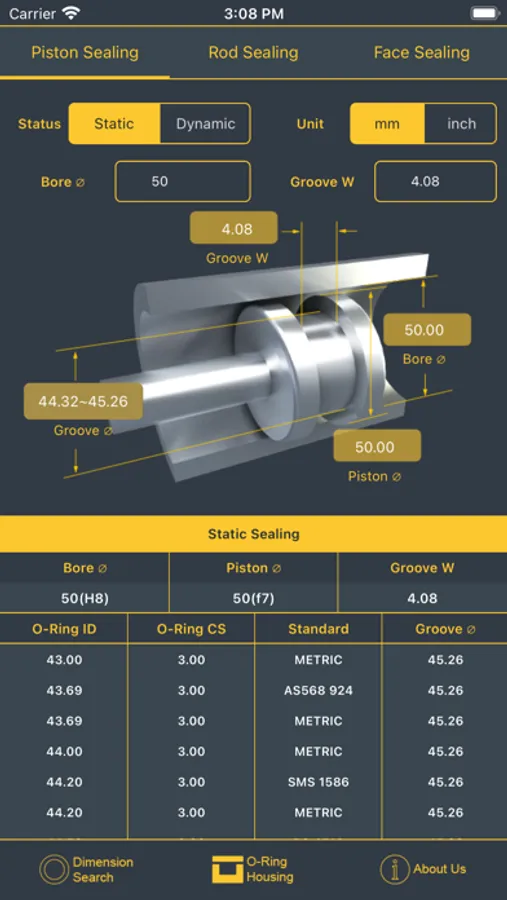

O-Ring Housing： Piston Sealing、Rod Sealing and Face Sealing.
- MM and Inch are both available.
- Support calculation for both Static and Dynamic sealing applications (Face sealing is with static calculation only).
- Up to 7 O-Ring standards ( AS568, METRIC, JIS B2401 P/G/S/V, JASO F404, GB/T 3452.1, BS 4518 and SMS 1586) for most of size requirement of different groove design.
