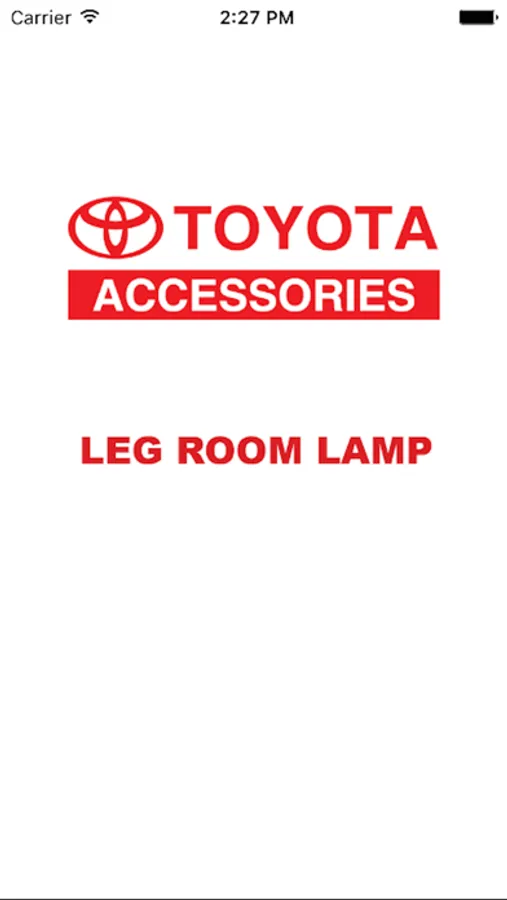

TOYOTA - Leg Room Lamp

Ambient Light turns ON at opening the doors. If doors left open for more than 5 min. lamps turn OFF.

Once all the doors closed (within 5 min) Ambient Light continue to be ON for 8 seconds and then turn OFF with dimming effect. If the interior lamp in the vehicle has delayed turn OFF function, then this time gets added .

Ambient Light remain ON while ignition is ON at user defined intensity.

This function can be turned OFF using a dedicated button on mobile phone app.

Light intensity can be changed using mobile phone app under these conditions –
Ignition must be ON
Doors must be closed ( wait till interior lamp turn OFF).

Lamp colour selection is through mobile phone app.

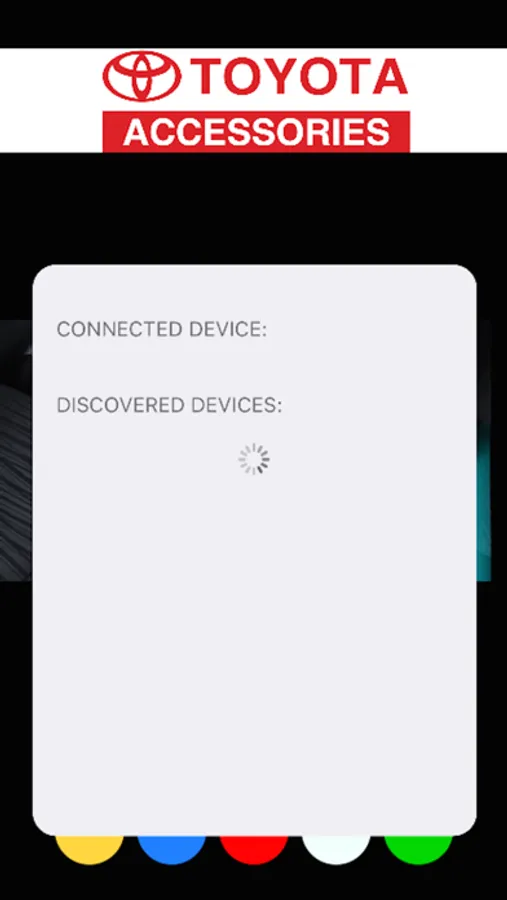

Blue-tooth module inside Mood Lighting ECU is ON only when the ignition is ON ,it also remains ON for next 5min after the ignition switched OFF.

Ignition input can be alternatively connected to Park lamp or Acc.
