RMU2 Config icon

RMU2 Config

Mobiltex Data
Free

About RMU2 Config

*** Requires a corTalk® RBT1 or RMU123PGM and RMU2 to use. ***
Contact us at 'sales.rmu2@mobiltex.com' to purchase.

This app is for configuring the corTalk® RMU2 (Remote Monitoring Unit 2) with a Bluetooth configuration interface. Both the RBT1 or RMU123PGM are compatible. They both function as a complete RMU2 programming interface but only requires the Bluetooth connection of your phone to use.

The RMU2 is used to monitor a cathodic protection rectifier with accurate measurement of a wide variety of signals. This app allows access to diagnostic information on the RMU2 and setting up the configuration to meet the customer's needs.

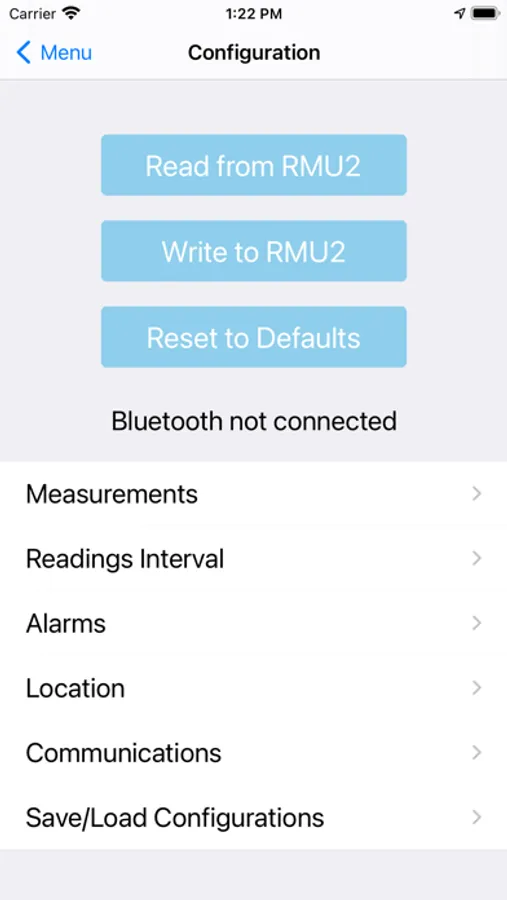

The app allows full configuration of the RMU2 including

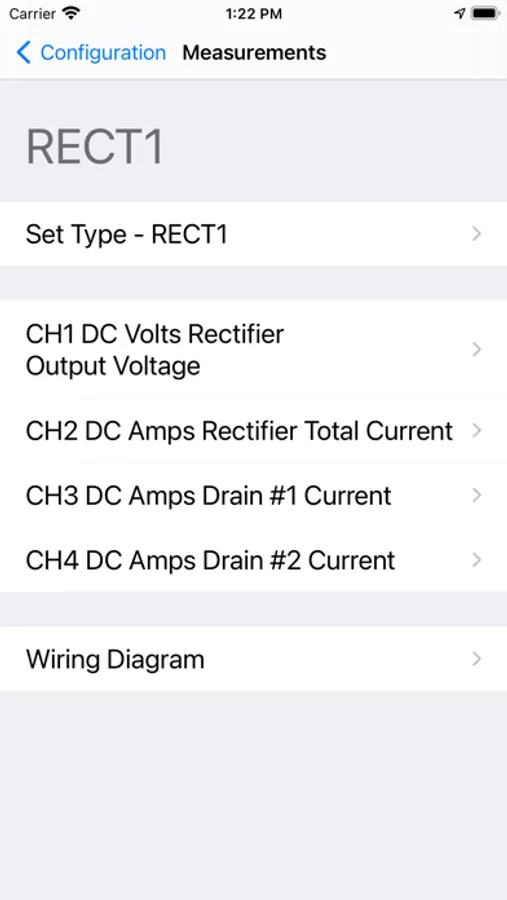

- slot measurement types
- limits
- slot scaling and offset
- location

Other features include the

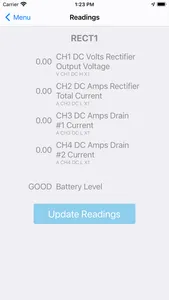

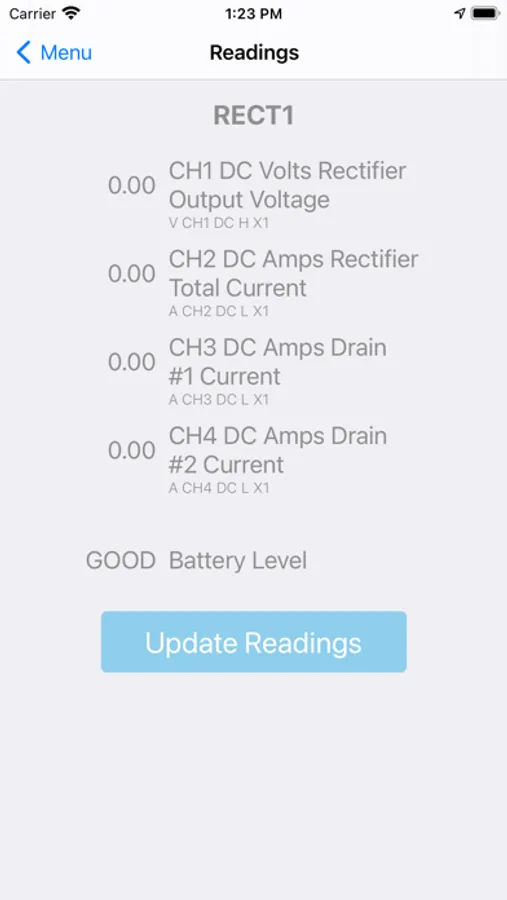

- viewing of readings and their limits
- detailed status screen for troubleshooting

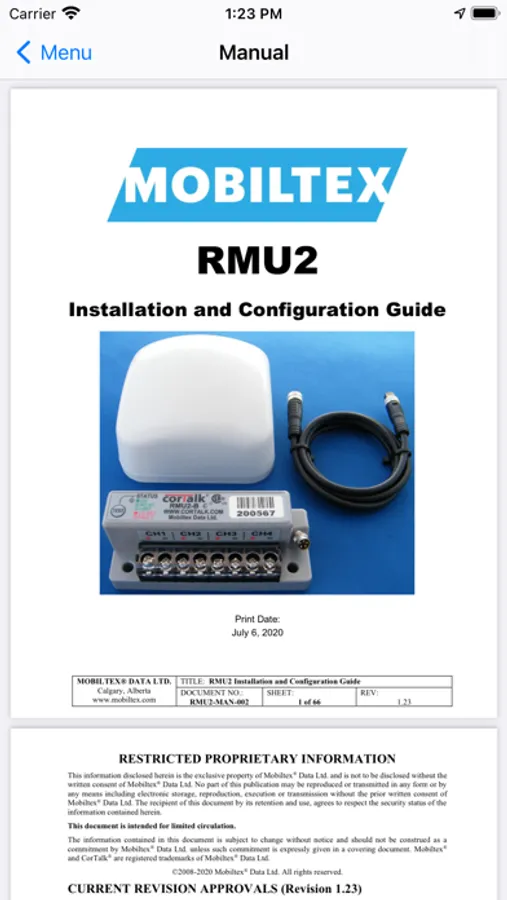

- integrated manual

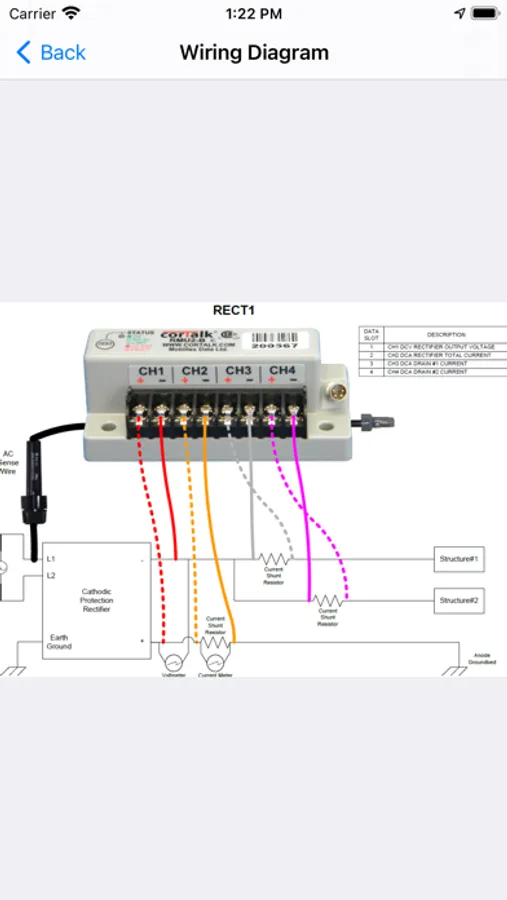

- wiring diagrams for each measurement type

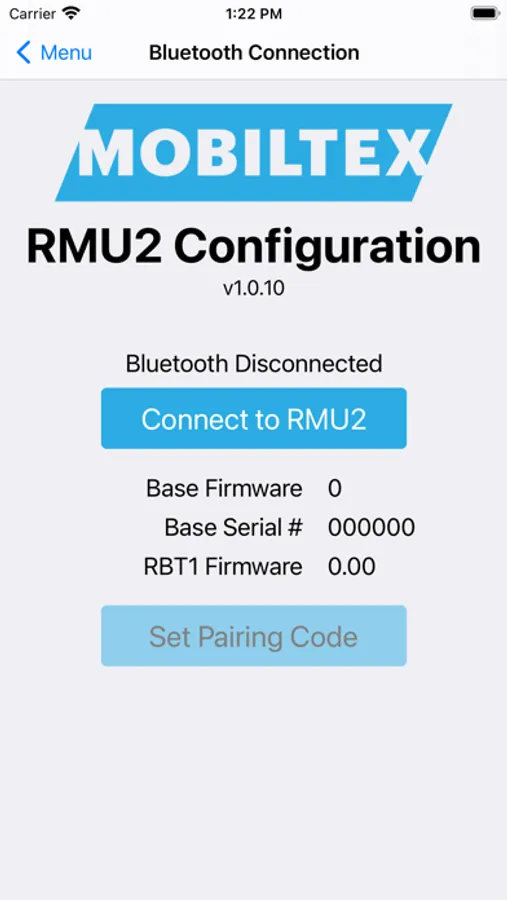

The RBT1 and RMU123PGM is always in a Bluetooth pairing mode and requires a pairing code entered on the app. The pairing code (default=123456) can be found and changed with the app. Once paired, the iOS device can reconnect without needing to re-enter the code. The RBT1 pairing code can be reset by tapping the RBT1 5 times in 10 seconds with a user-supplied magnet.

RMU2 Config Screenshots
