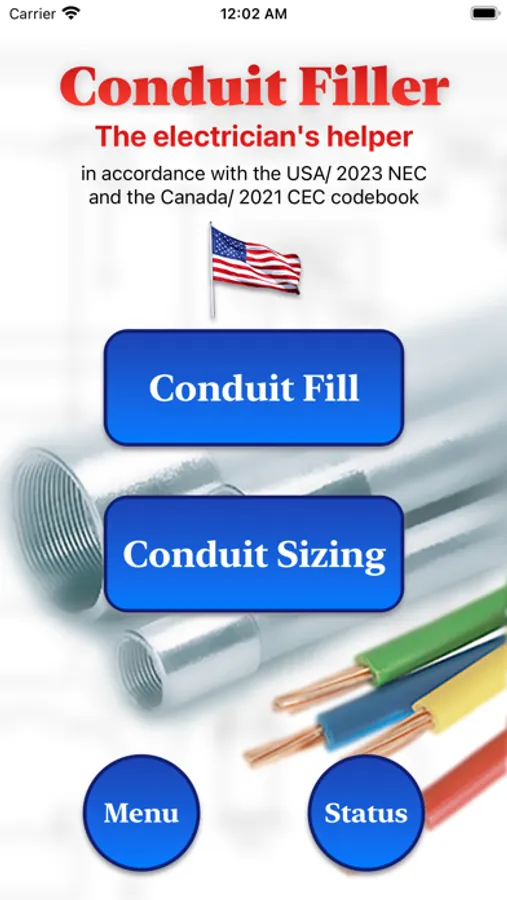

Conduit Filler

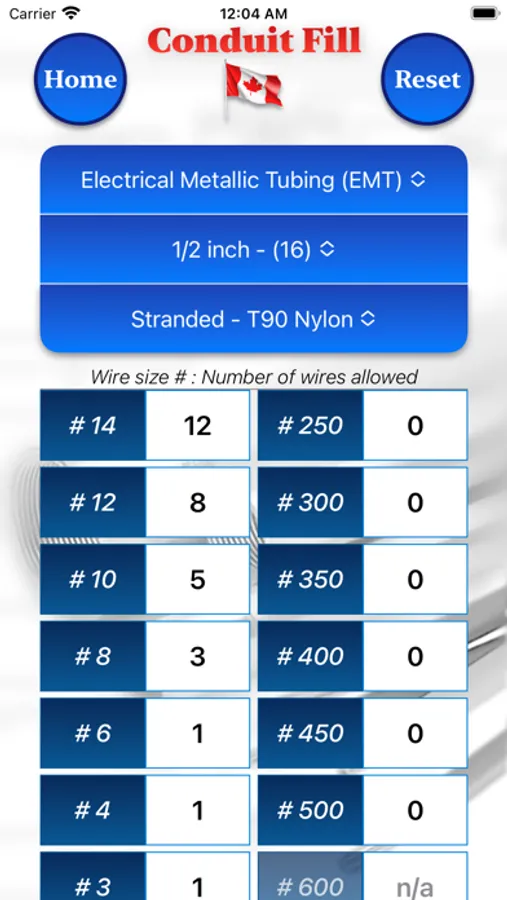

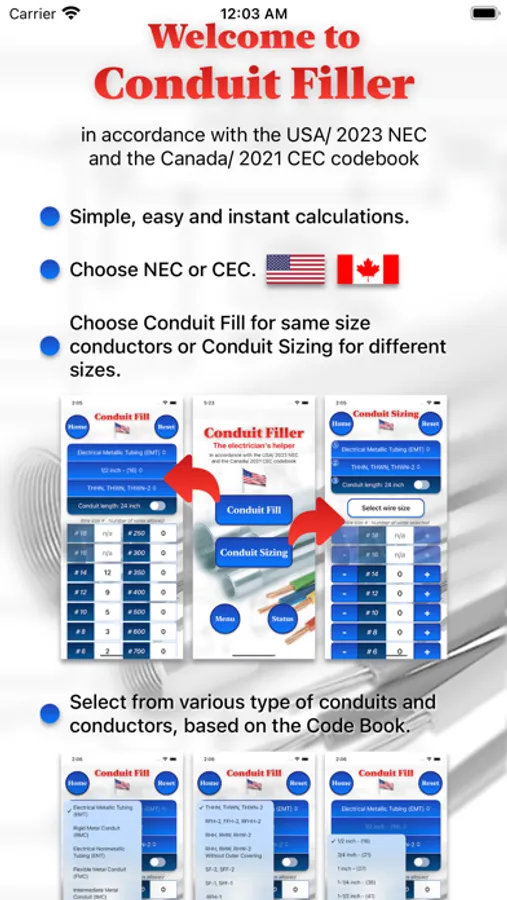

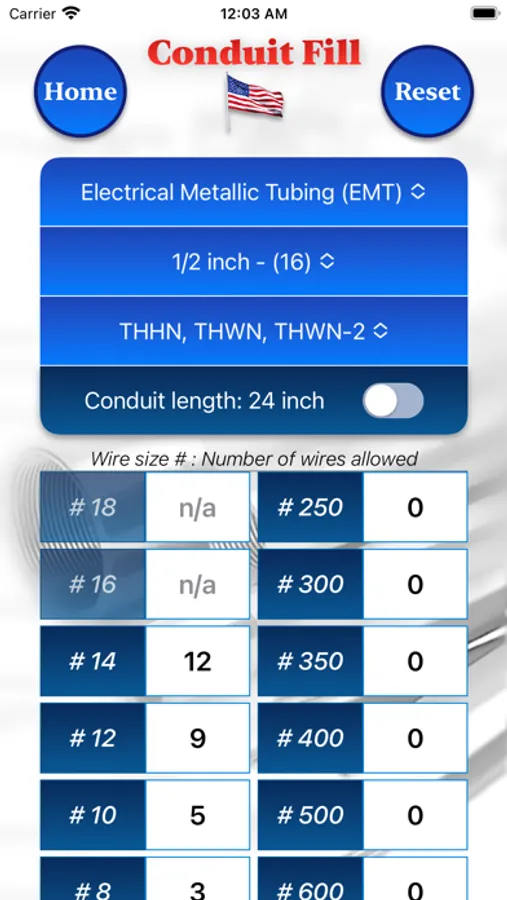

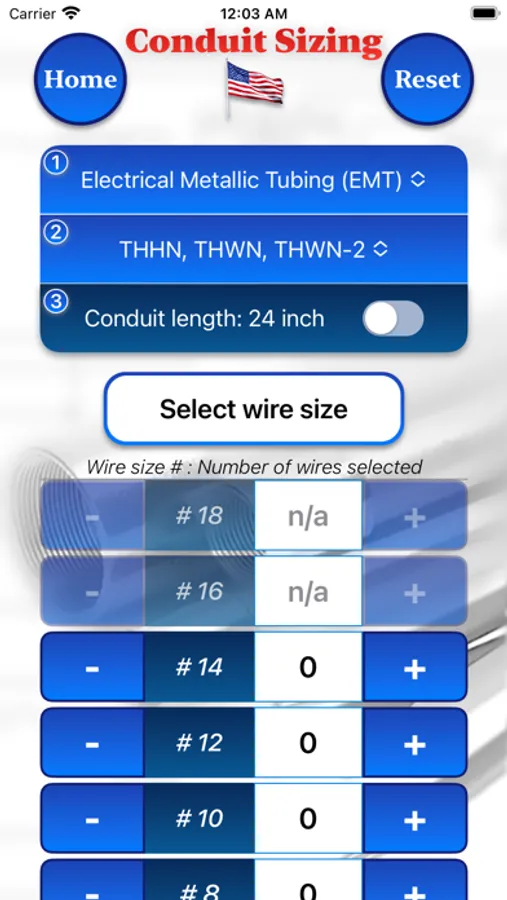

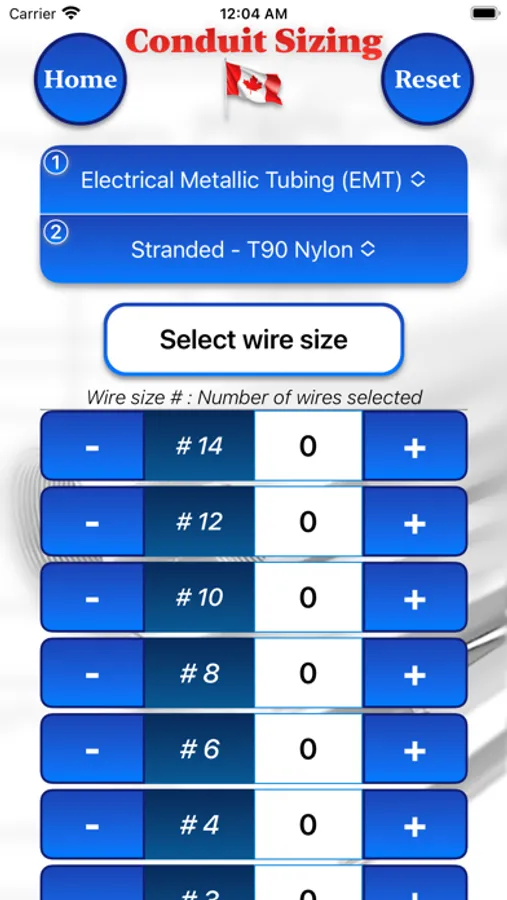

The Conduit Filler is designed to help electrical tradespeople with their conduit fill calculations and with conduit sizing for various gage of wires. Select the conduit type, conduit size and wire type you are using to find out the maximum number of allowable conductors. For conduit sizing simply select the conduit type, wire type and add the amount of wires for each gage.
New for 2026, we added a section for electricians in the United Kingdom with Conduit and Trunking calculations.
All calculations are done in accordance with the 2026 USA National Electrical Code, the 2024 Canadian Electrical Code and the British Standard BS 7671,

To get to know our app we are providing you with a 7 day fully functional trial period for your convenience. After that you have the option to subscribe to this app on a monthly or yearly basis.

During the subscription period this app will unlock and function without any restrictions.
Subscription can be enabled on more devices with the same Apple ID.
Your subscription will be charged to your App Store account at confirmation of purchase, and will automatically renew (at the duration selected) unless auto-renew is turned off at least 24 hours before the end of the current period.
Current subscription may not be cancelled during the active subscription period, however, you can manage your subscription and/or turn off auto-renewal by opening the Settings App, tapping your name and tapping Subscription.
No 3rd party advertisement presented.

About our Terms of Use and our Privacy Policy, you will find detailed information within our App or you can also visit our home page at:
http://archalog.com
