About Steel Connection

Are you looking for the easiest and the fastest way to calculate your connection?

We are here to help you!

With Steel Connection , your continuity connections and joint connections with the least and the most elementary information can be done in accordance with American Institute Of Steel Construction standards.
Sometimes you are out of time to calculate or your calculation would always have errors and you needed to change your parameters from the begininng.

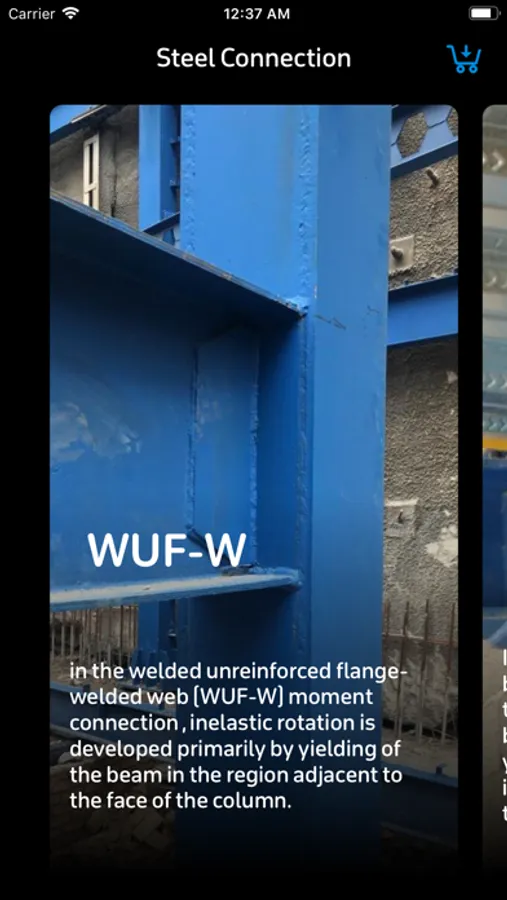

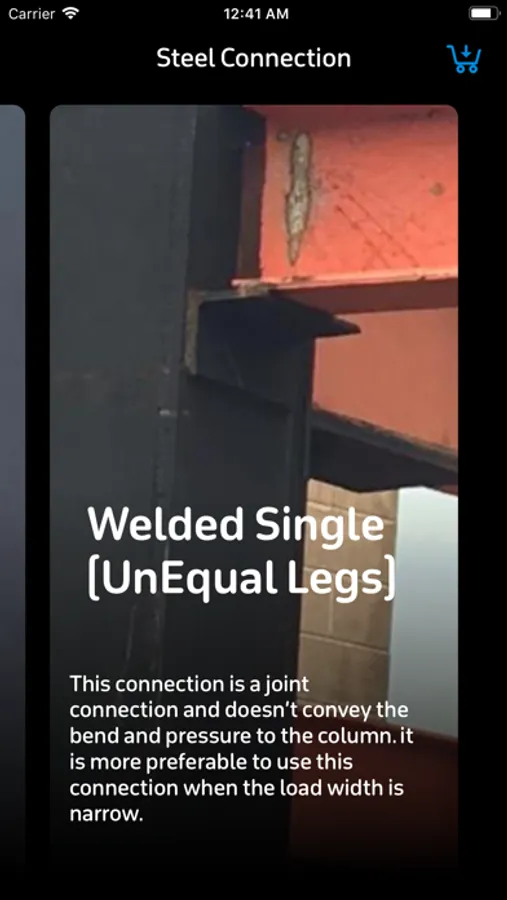

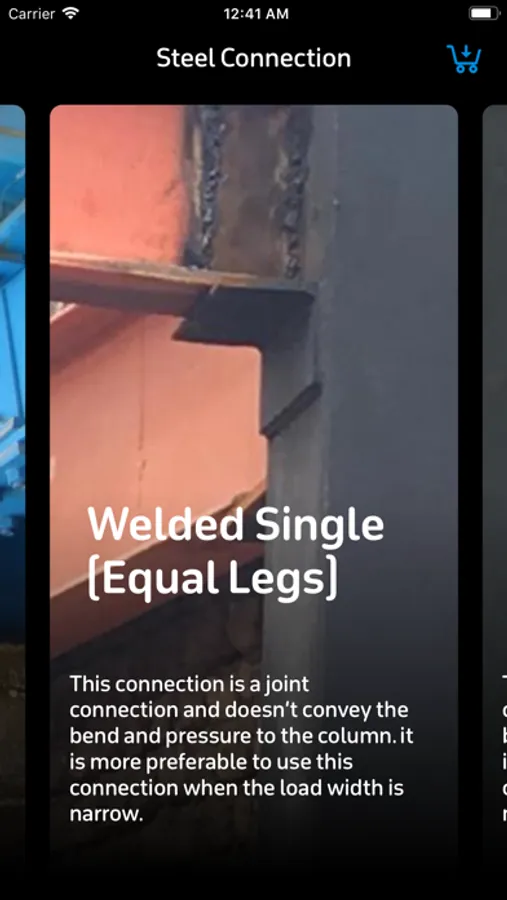

Whereas,continuity connections (RBS,WUF-W) for connecting beam to column and joint connectoins, in different joint templates with low dead width, to connect beam to column are available to use in this program. Even the connection between beam and beam are available as well.
● Convenient estimation in using dead and live loads.
● Sketching and connecting various calculation in using dead a live loads in accordance with AISC.
● Calculating the dead load by inputting consumables in buildings.
● Calculating the live load by inputting structural usages.
● Sketching and building difference beams out of AISC standards by inputting data and information manually and freewill connections.
● The final data of calculation is available in a picture with two angels in which all calculated parameters are shown and explained in the right place.

WUF-F: Sketching of beam to column connection, Web beam-column connection sheet and beam-column bolt.

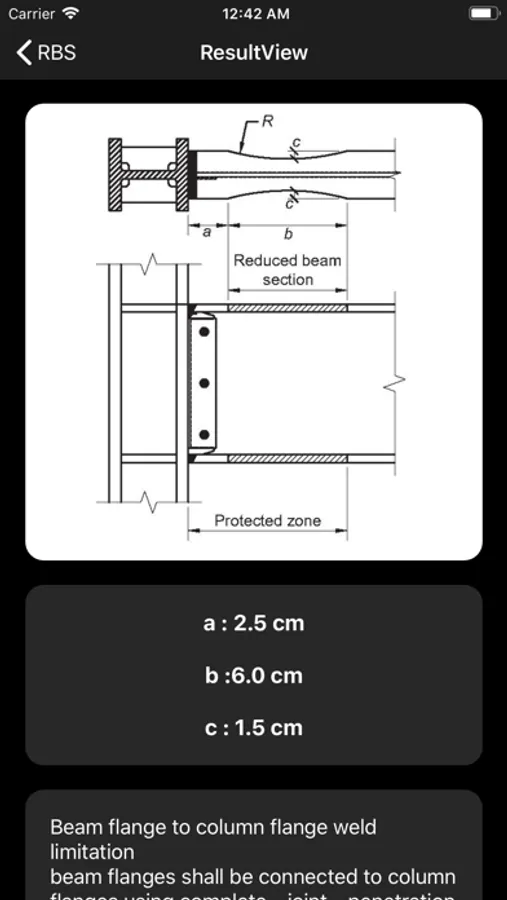

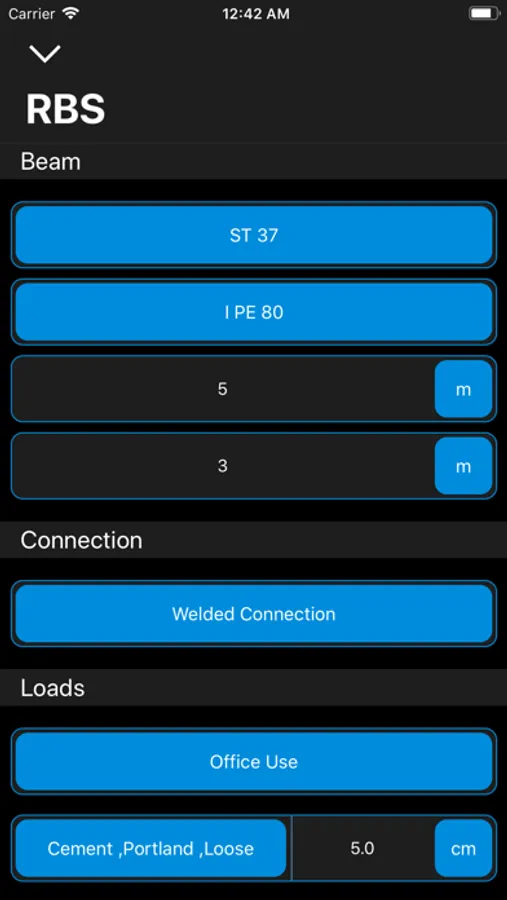

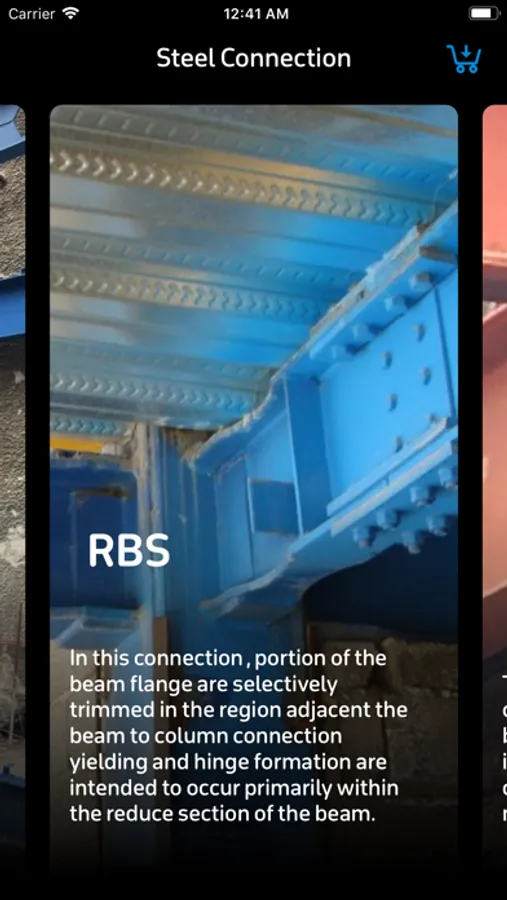

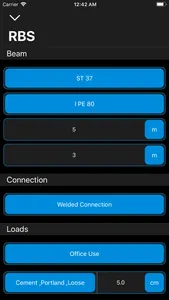

RBS : Sketching of welding , estimating the required rate of cutting to build plastic hinge outside the column.
Ultimatly, in this application you can do all of you calculation with the least errors in your computing and also the calculation procedure is visible and clear.
