Via the Belimo Duct Sensor Assistant App it is possible to extend the range of use and to adapt the configuration individually to application requirements. A Bluetooth® dongle is required for configuration via the Belimo Duct Sensor Assistant App (sold separately, A-22G-A05).
Features:

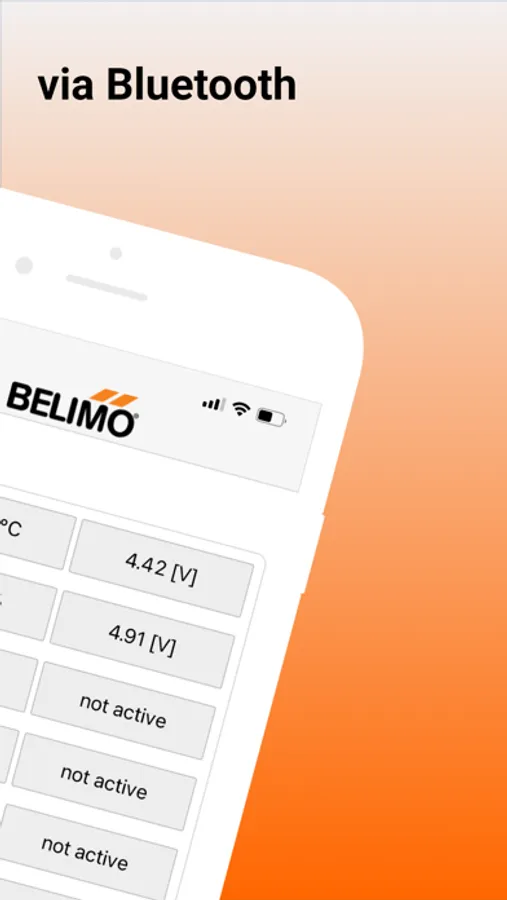

• Communication via Bluetooth BLE
• Bluetooth Dongle A-22G-A05 required, which will communicate with the sensor via a Micro-USB-connector
• Can be used for the following sensors: 22ADP-.., 22DTH-..5.., 22DTH-..6.., 22DC-..3, 22DTC-.., 22DTM-.., 22DCV-.., 22DCM-.., 22DCK-.., 22UTH-..50X, 22UTH-..60X
• Supported languages DE, EN, FR, IT, ES, PT
Configuration options:

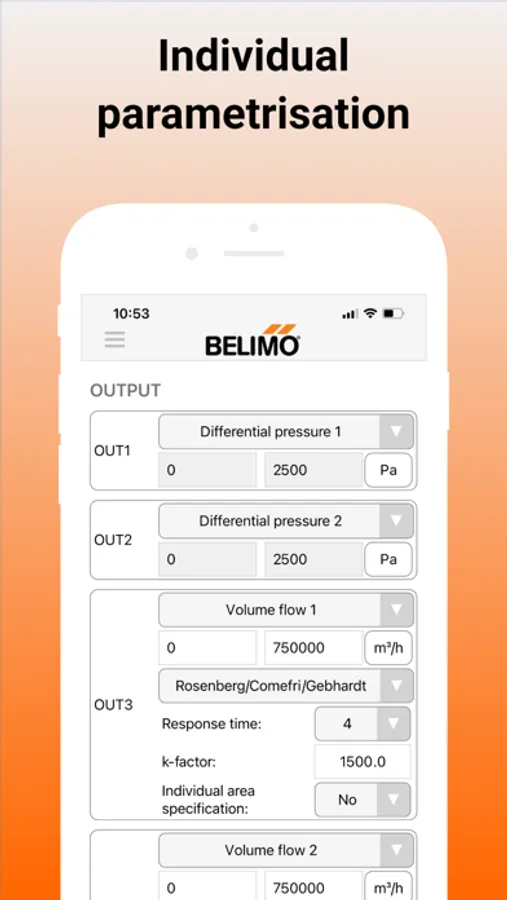

• Individual configuration of output signals
• Setting of different measuring ranges

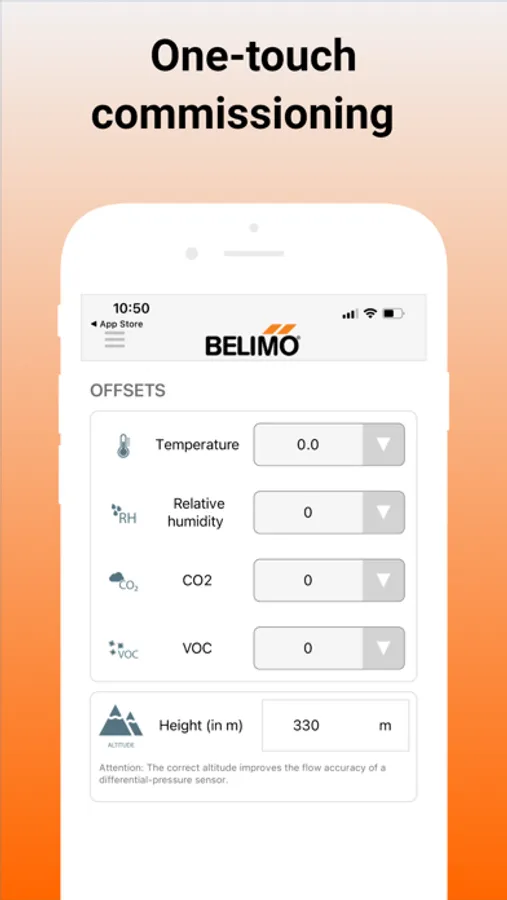

• Additional adjustment of offset values
• Parameterization of Live-Zero-Signal (2..10 V etc.) and the system of units

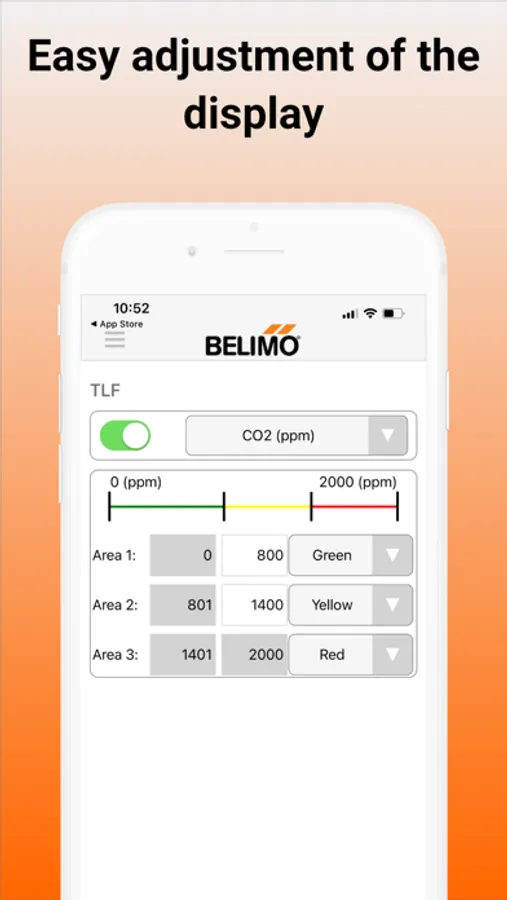

• Setting options for display indications
• Customized parameterization of traffic-light function (TLF)
• Extension of the physical bus address
• Store settings on the mobile device and load on other sensors
• Representation and output of the differential pressure as a volume flow value
Features:
• Communication via Bluetooth BLE
• Bluetooth Dongle A-22G-A05 required, which will communicate with the sensor via a Micro-USB-connector
• Can be used for the following sensors: 22ADP-.., 22DTH-..5.., 22DTH-..6.., 22DC-..3, 22DTC-.., 22DTM-.., 22DCV-.., 22DCM-.., 22DCK-.., 22UTH-..50X, 22UTH-..60X
• Supported languages DE, EN, FR, IT, ES, PT
Configuration options:
• Individual configuration of output signals
• Setting of different measuring ranges
• Additional adjustment of offset values
• Parameterization of Live-Zero-Signal (2..10 V etc.) and the system of units
• Setting options for display indications
• Customized parameterization of traffic-light function (TLF)
• Extension of the physical bus address
• Store settings on the mobile device and load on other sensors
• Representation and output of the differential pressure as a volume flow value
