mechanical design engine

gan dae choi
Free

About mechanical design engine

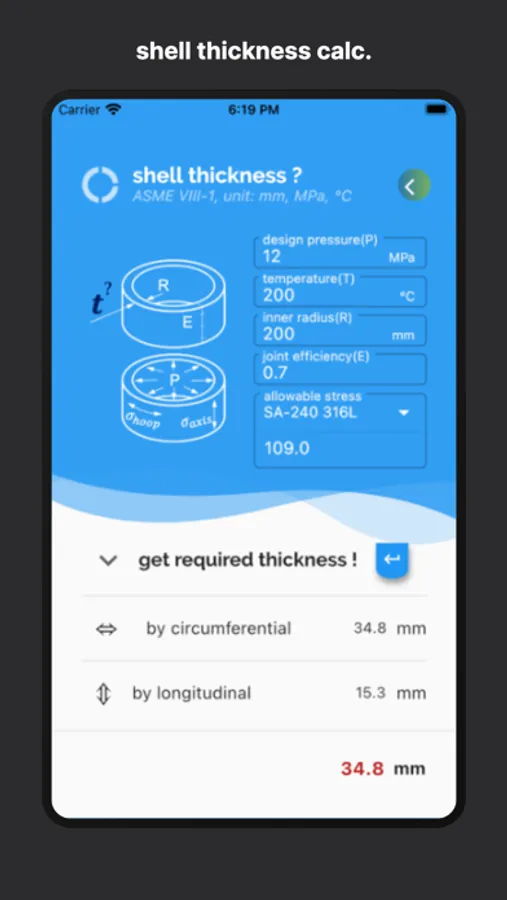

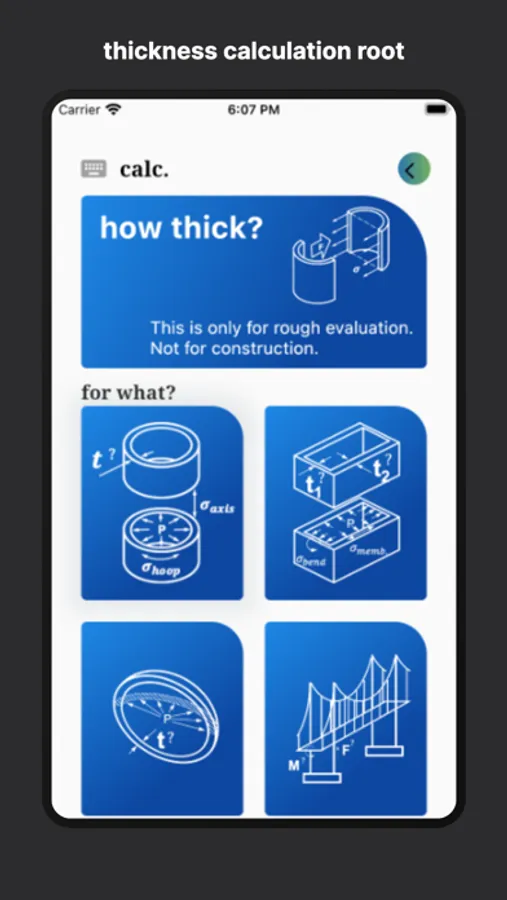

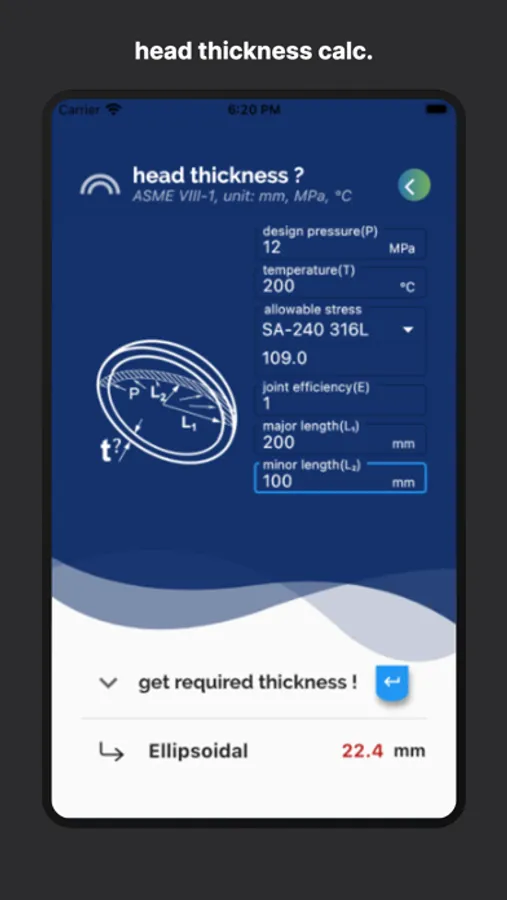

* To calculate basic thickness of cylindrical/rectangular pressure vessel including heads if input data such as pressure, temperature, inner diameter and material information.

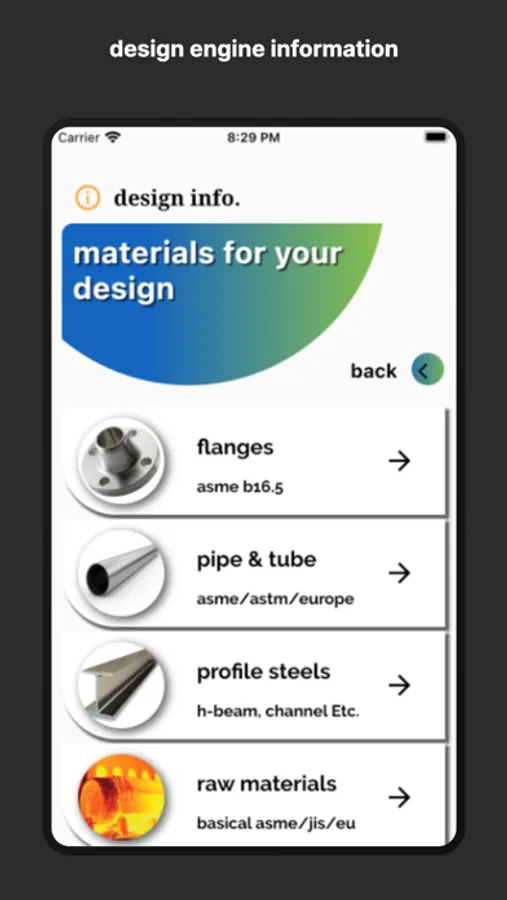

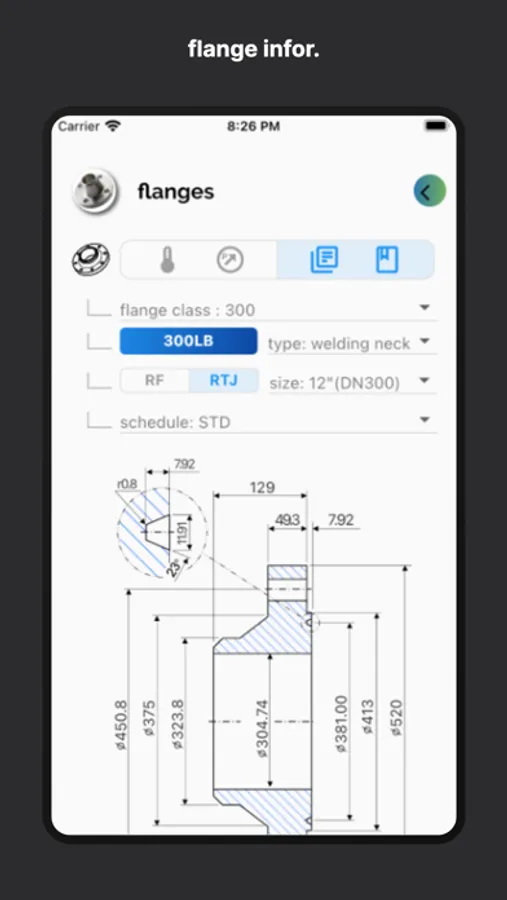

* flange data can be easily searched.

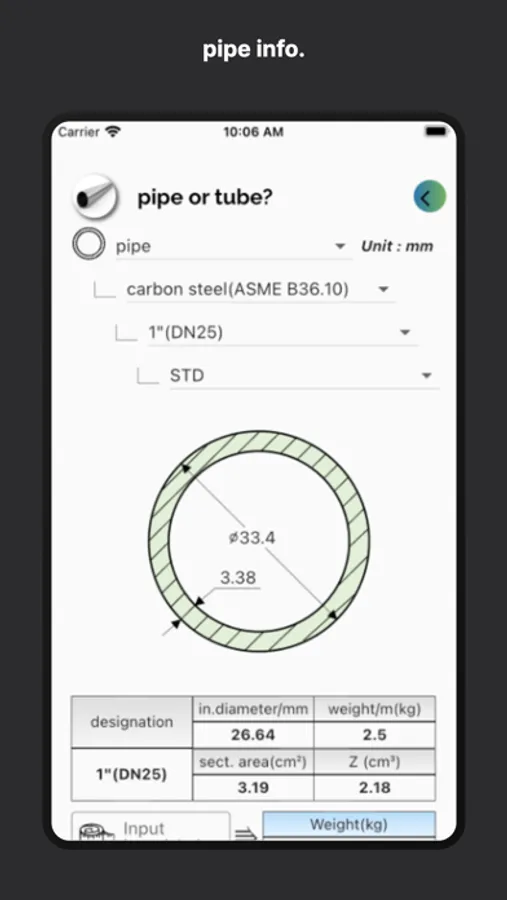

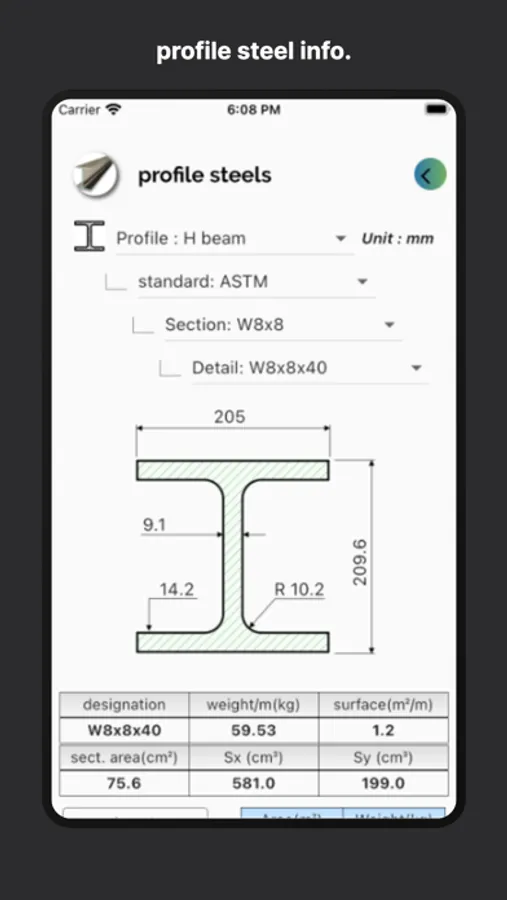

* Profile steel information such as pipe, H, W, I and U-Beam.

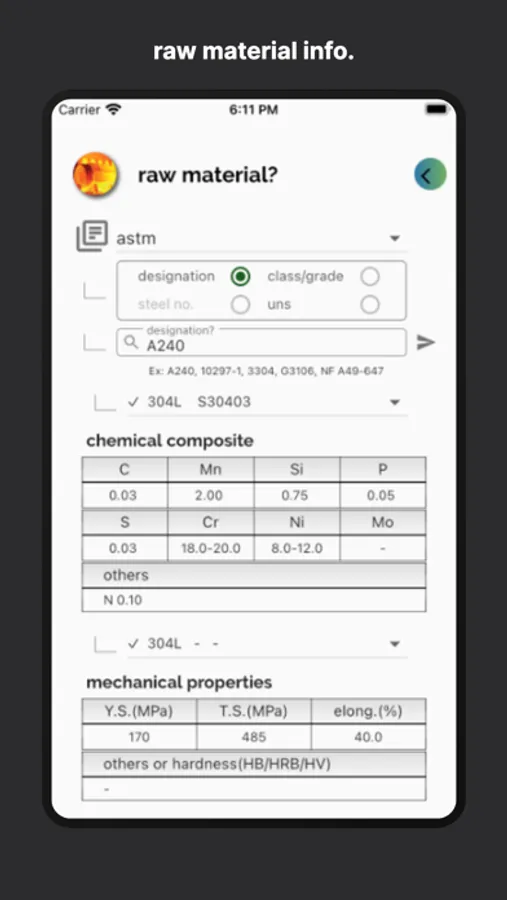

* Raw material information, that is chemical composition and mechanical properties, for example, ASTM A240 316L, EN10297-1, SUS316L and so on.

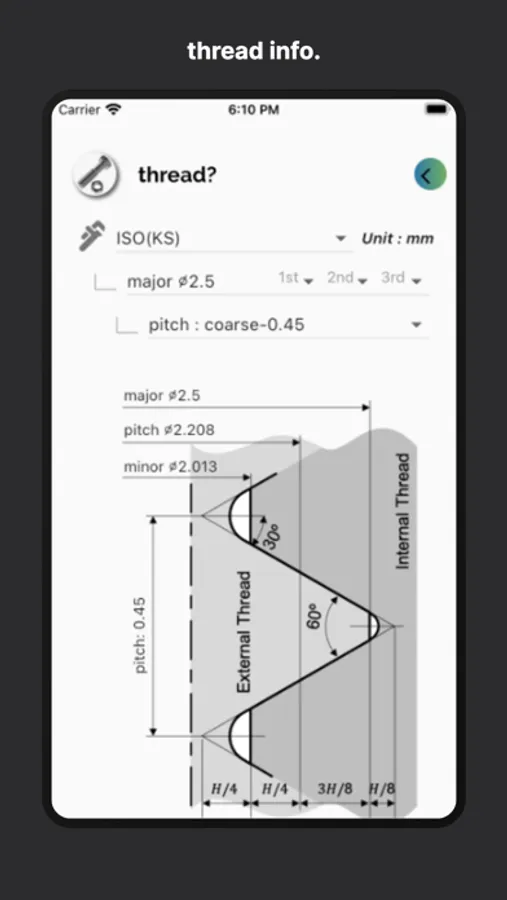

* Size and shape information of every thread(iso/unf/pf/pt) and shackles(bow/d-type)
* To calculate force and moment of solid mechanics according to support type.

mechanical design engine Screenshots

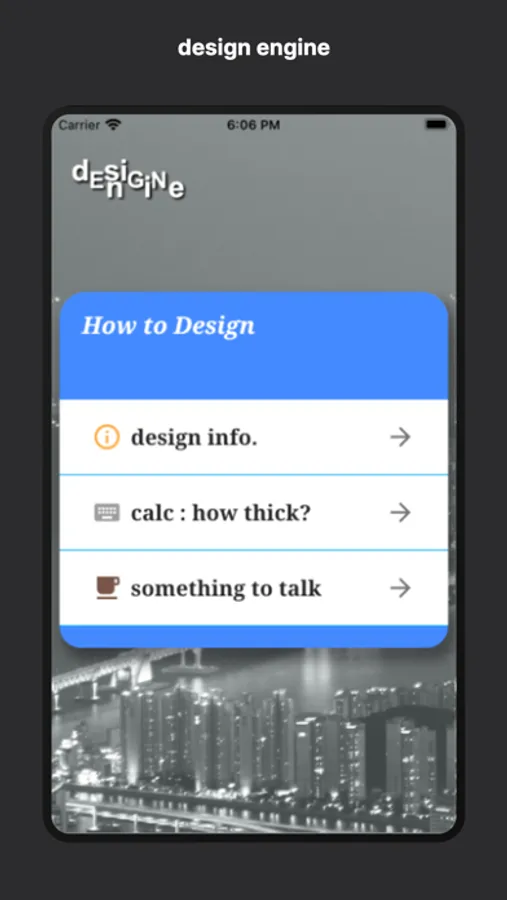

mechanical design engine screenshot 0 mechanical design engine screenshot 1 mechanical design engine screenshot 2 mechanical design engine screenshot 3 mechanical design engine screenshot 4 mechanical design engine screenshot 5 mechanical design engine screenshot 6 mechanical design engine screenshot 7 mechanical design engine screenshot 8 mechanical design engine screenshot 9
