About Bauelemente

Main functions components app:

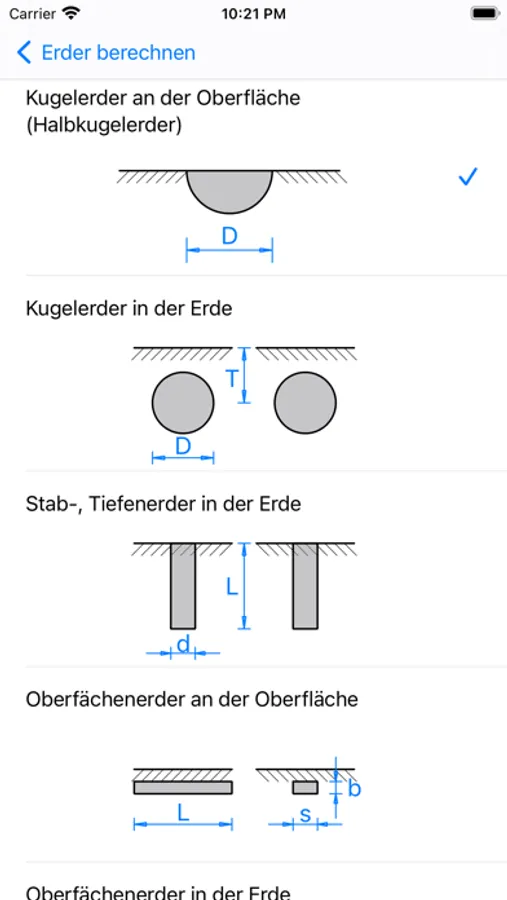

• earthing calculation

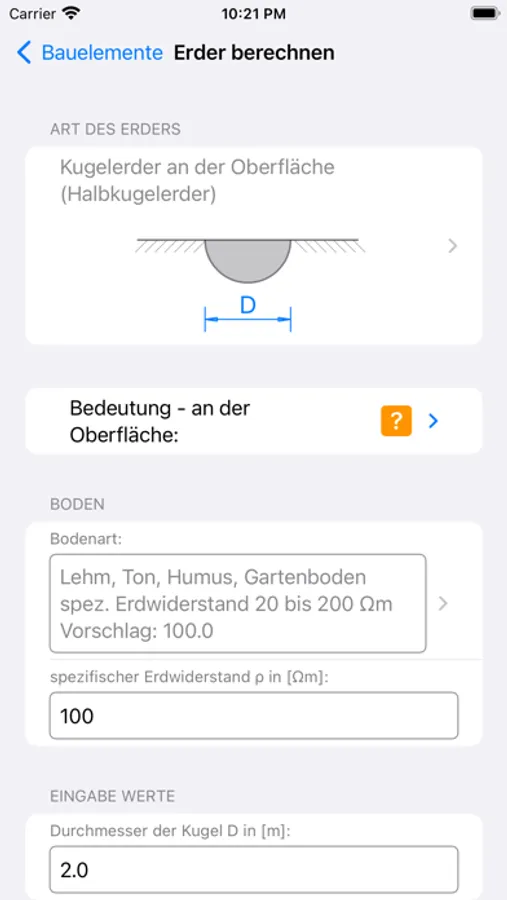

- Spherical earth electrode on the surface (Halfsphere earth electrode)
- Spherical earth electrode underground
- Earth rod
- Strip earth electrode on the surface
- Strip earth electrode under ground
- Ring earth electrode on the surface
- Ring earth electrode under ground
- Circular plate earth electrode buried vertically
- Circular plate earth electrode on the surface
- Two parallel earth electrodes on the surface
- Two parallel earth electrodes under ground
- Square plate on the surface
- Square plate under ground
- Foundation earth electrode in the foundation of the building

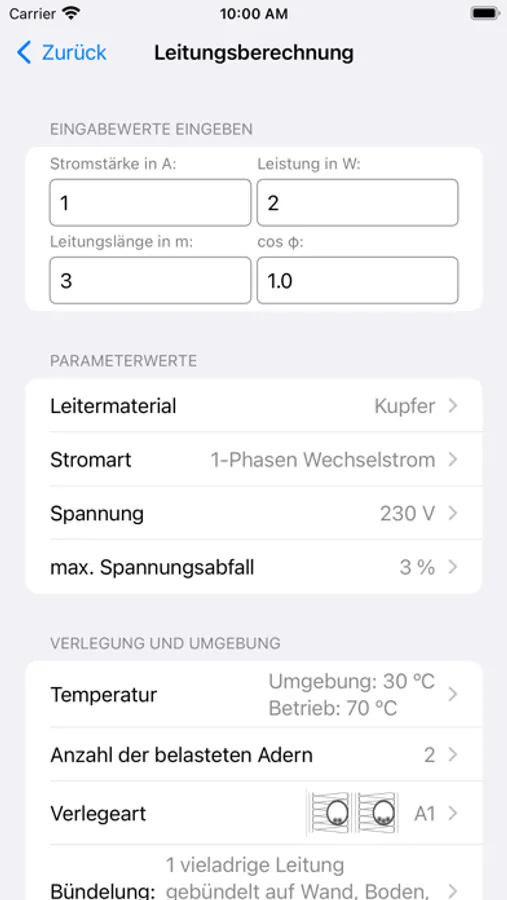

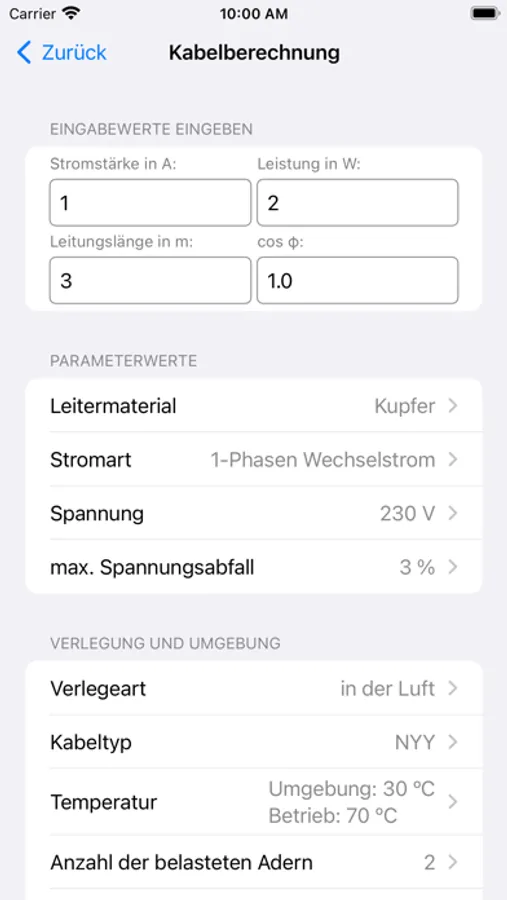

• cable calculation
• wire calculation

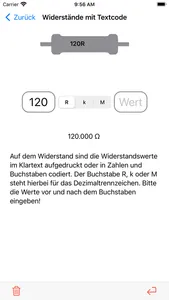

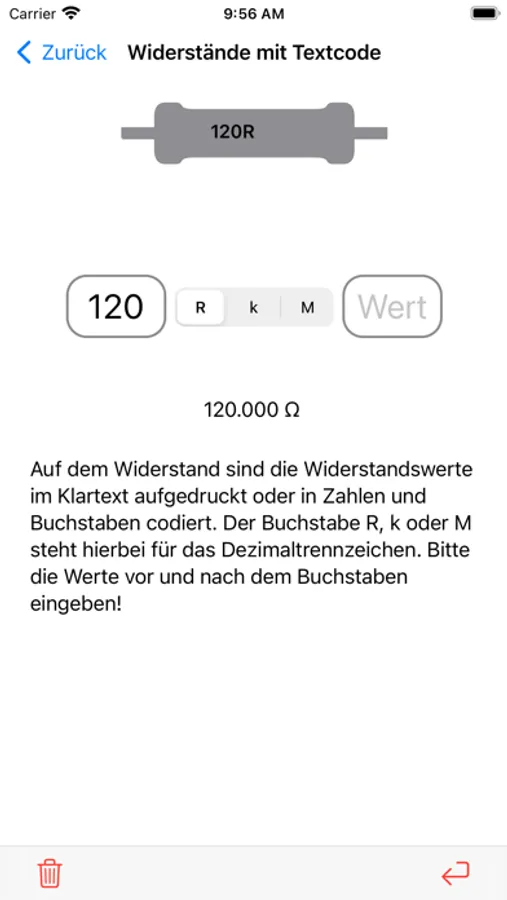

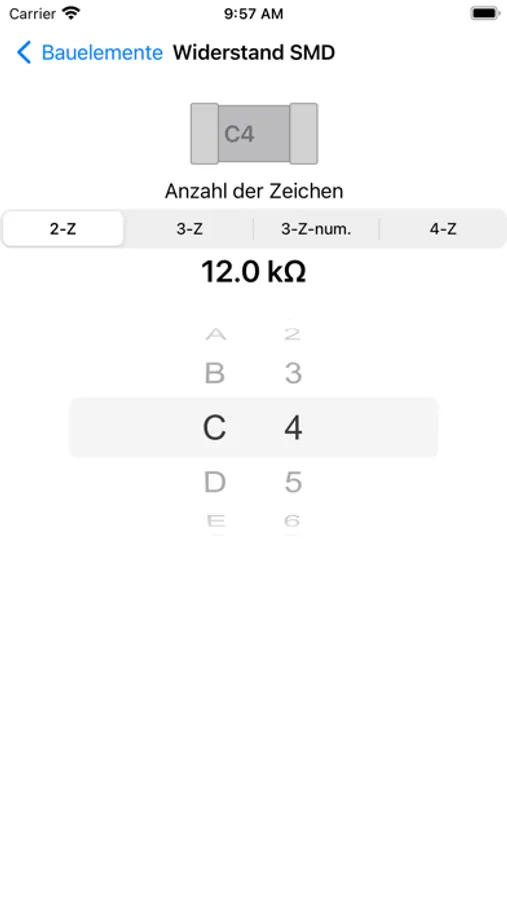

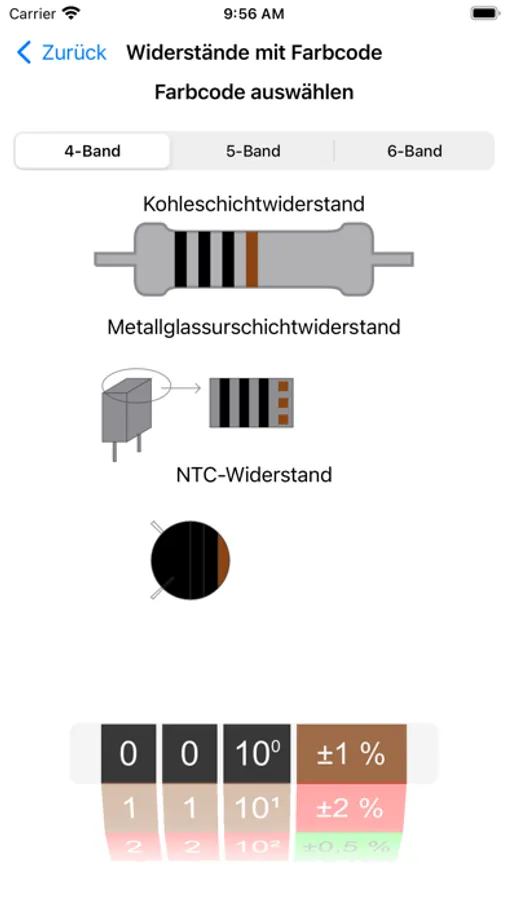

• color and text code for resistors (SMD included)

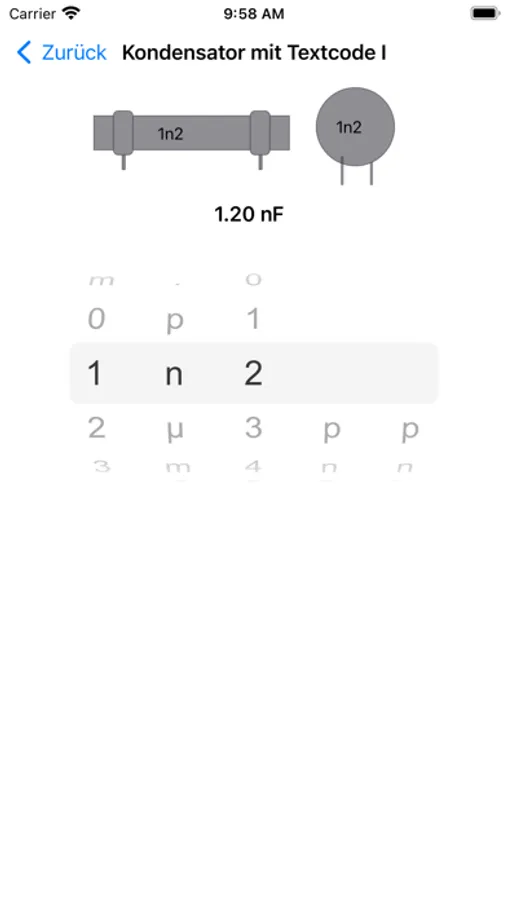

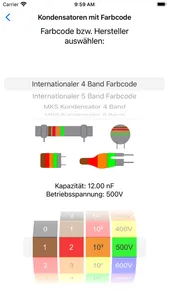

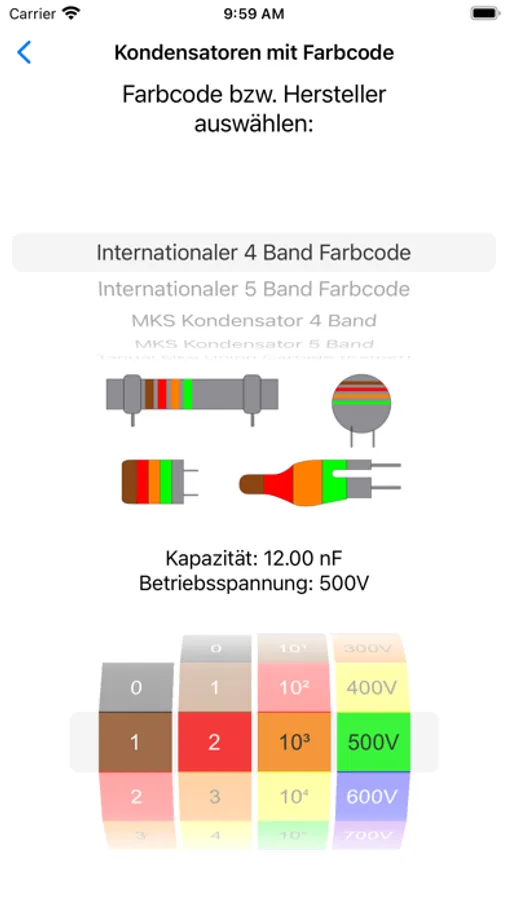

• color and text code for capacitor

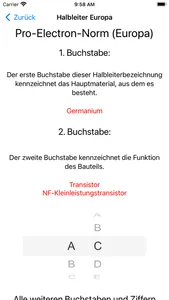

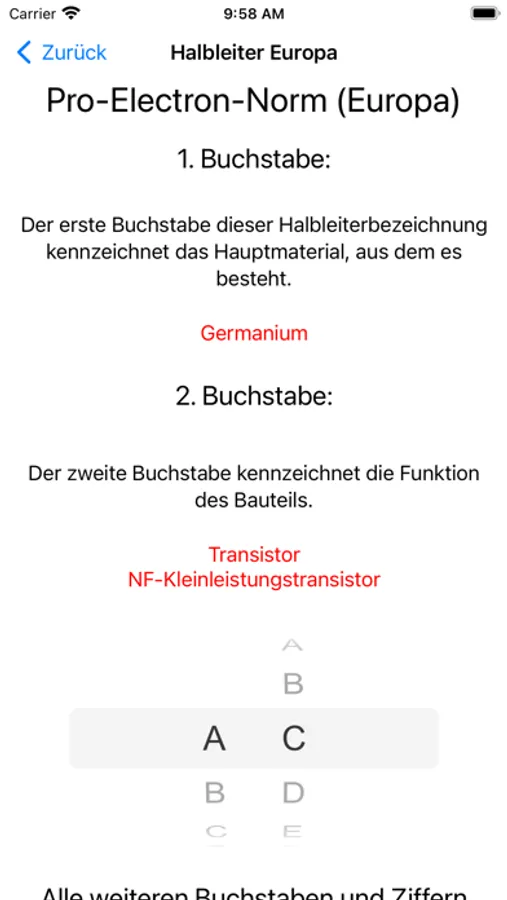

• color and text code for diodes
• resistor series E3 – E96
• Overview abbreviations cable and wire label
