This application is a calculator for determining stresses from strain gage rosette data. Once isotropic material information is set the user can input the data from the rosette and determine max and min principle stresses along with the direction of the max principle stress. Self consistent units have to be used. A helpful display is provided overlaid on the rosette to show the direction of the calculated stresses.

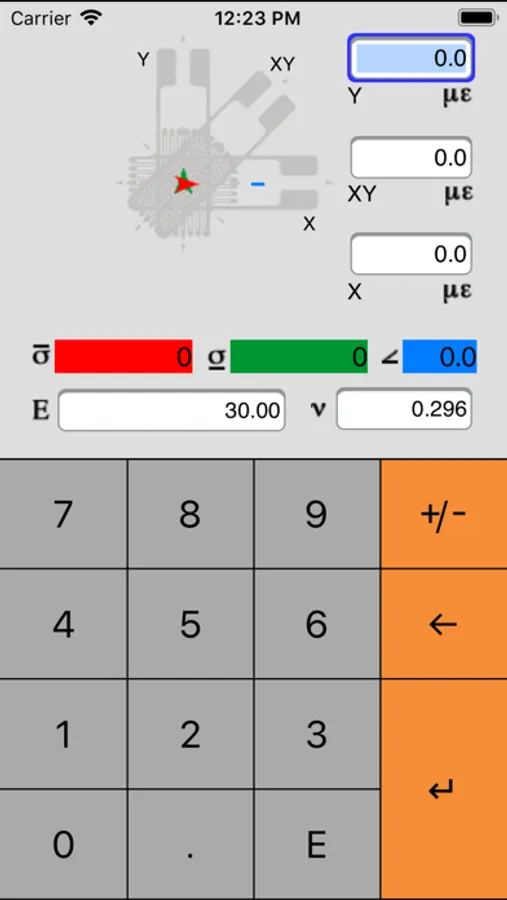

The text field labeled Y is used to input the 90 degree strains. The XY field is for the strain at 45 degrees. The X field allows for input of strain at 0 degrees. For the material properties the modulus of elasticity field is labeled E and Poisson’s ratio is labeled v. The keyboard at the bottom only allows real numbers to be input. Hitting Enter completes input and moves to the next input field in the group. There are only two groups: strain fields and material fields.
This calculator does not protect against invalid data that leads to invalid calculations (nan will be shown in stress fields for that case).
The text field labeled Y is used to input the 90 degree strains. The XY field is for the strain at 45 degrees. The X field allows for input of strain at 0 degrees. For the material properties the modulus of elasticity field is labeled E and Poisson’s ratio is labeled v. The keyboard at the bottom only allows real numbers to be input. Hitting Enter completes input and moves to the next input field in the group. There are only two groups: strain fields and material fields.
This calculator does not protect against invalid data that leads to invalid calculations (nan will be shown in stress fields for that case).
