Circuit Colors

Francisco Alcala
$0.99
3.9 out of 5

About Circuit Colors

Circuit Color is a simple application to find out the color code of the electrical conductors. It eliminates the use of cheat sheets or mental calculations or any other method you use now to determine the appropriate color of the circuit.

Systems Included:
120V / 240V - 42 circuits*
120V / 208V - 126 circuits*
277V / 480V - 126 circuits*

Add as many panels as you want.
+Single Phase or Three Phase

Choose the phase colors and combinations
+Black, Red, Blue
+Brown, Orange, Yellow
+Pink, Tan, Purple
+White, Green, Gray

Choose the numbering style.
+Single Sided panels numbered down one side.
+Double Sided panels with conventional "zig zag" numbering.

Choose the number of circuits.
+42 standard
+84 for two conventional panels
+whatever number you want

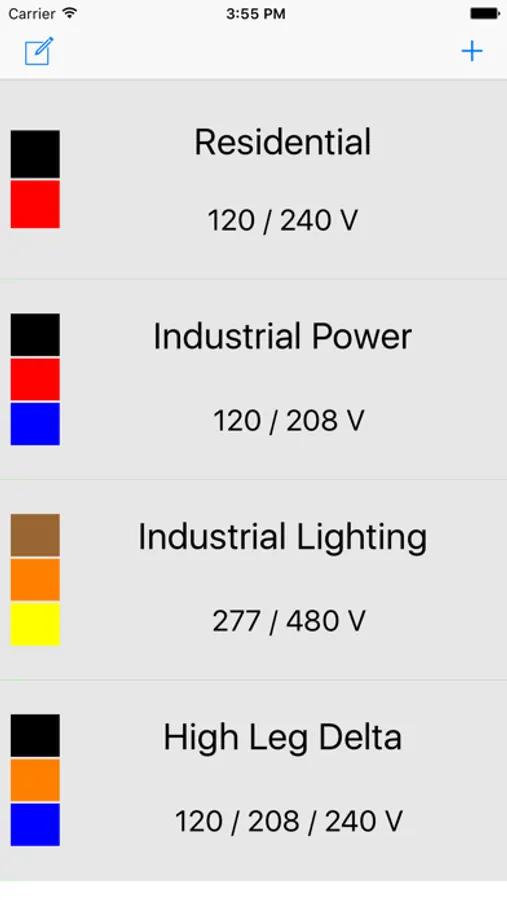

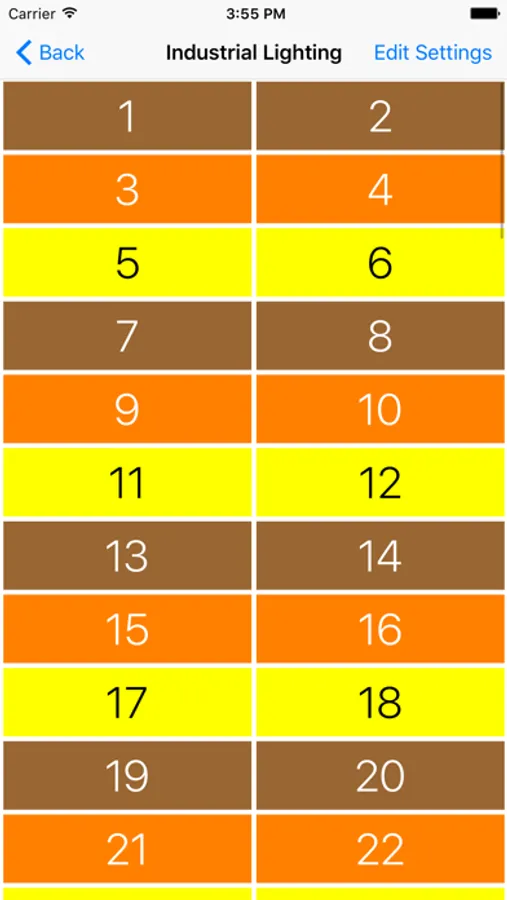

Circuit Colors Screenshots
