About Installation Instructions

The Trelleborg Sealing Solutions Installation Instructions app helps to ensure that seals are properly installed and functioning properly.

The Installation Instructions app demonstrates the correct installation techniques for a range of seals. It features a combination of film, animation and supporting documentation to give as close an experience to having the expert install the seals right in front of you.

Features at a glance
• Installing hydraulic seals for rod and piston with and without pre-tensioning elements
• Including single- and double-acting rod and piston seals (PTFE and Polyurethane)
• Installing Radial Oil Seals
• Installing Mechanical Face Seals
• Visual Inspection of seals, bore and shaft, including surface finishes
• Common mistakes and best practice during installation
• Use of assembly cones and installation tools

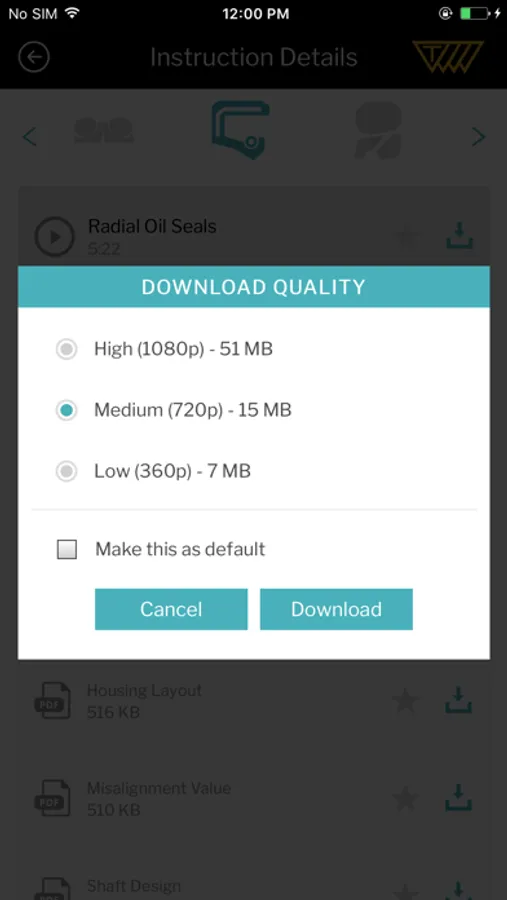

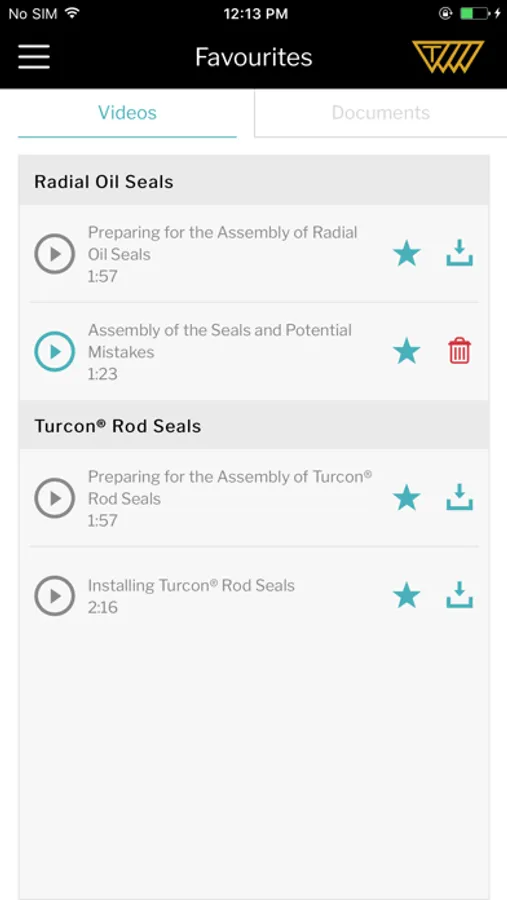

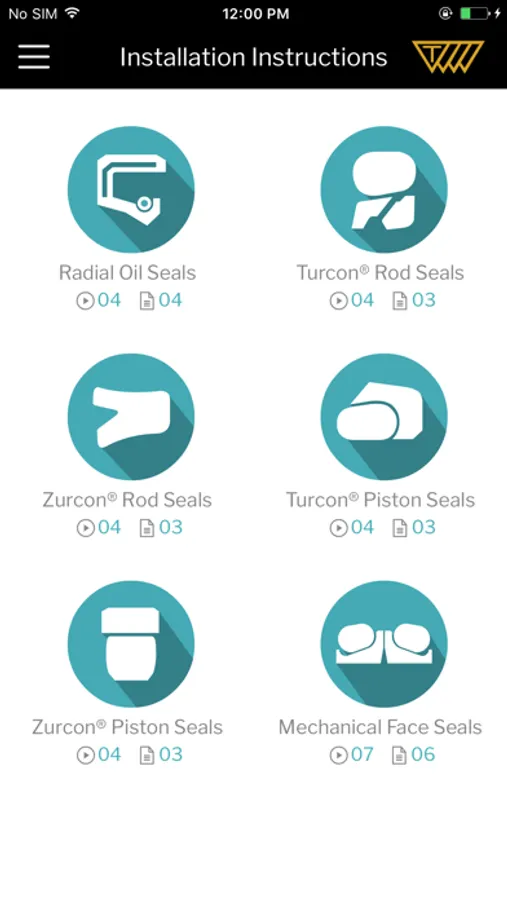

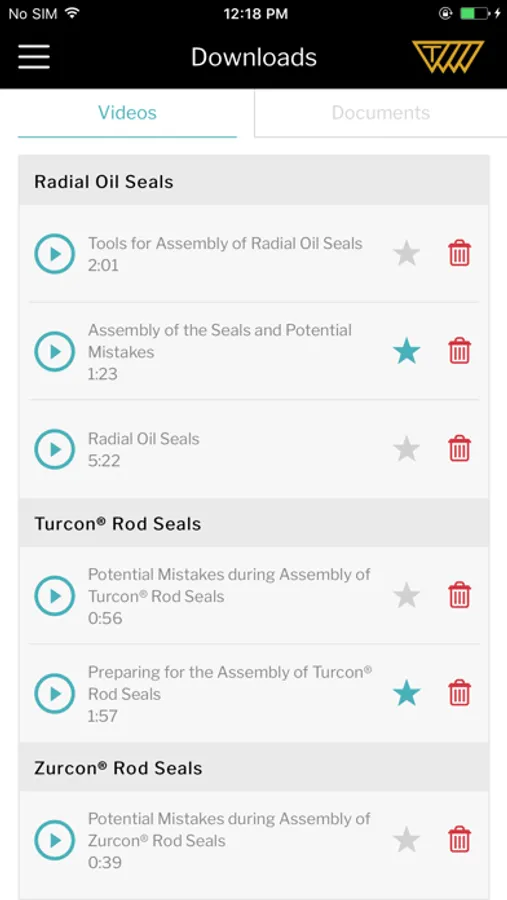

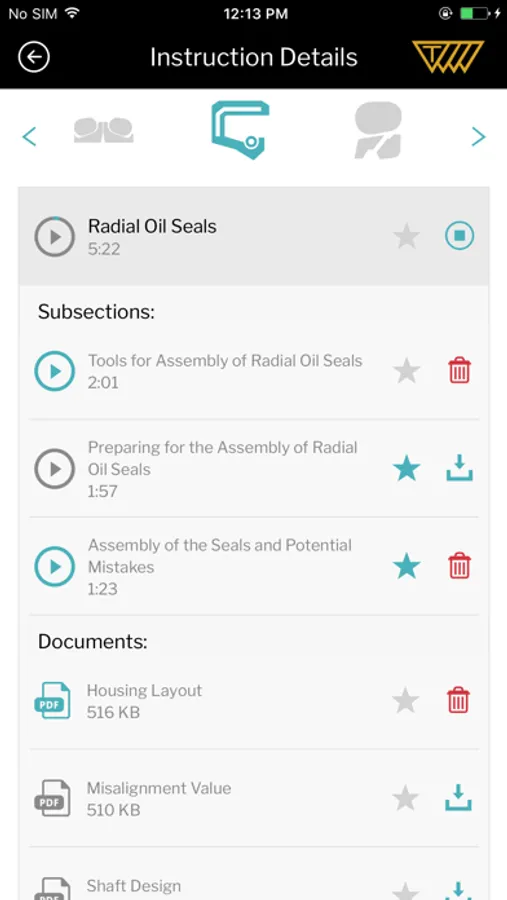

Installation Instructions Screenshots
