Engine Layout Definitions (Engine LD)
Understand how piston–crank geometry impacts engine performance.

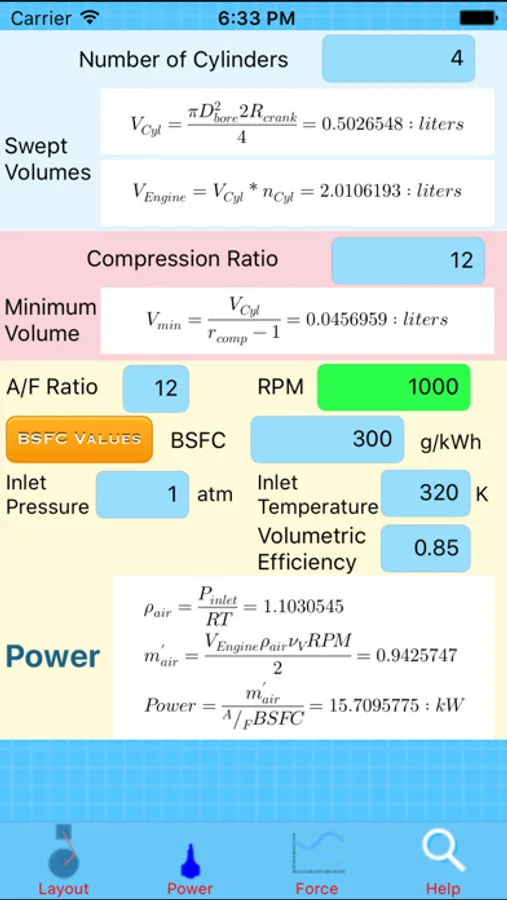

• Explore how layout changes affect engine displacement, rated power, and dynamic forces.
• View detailed graphs and data lists:

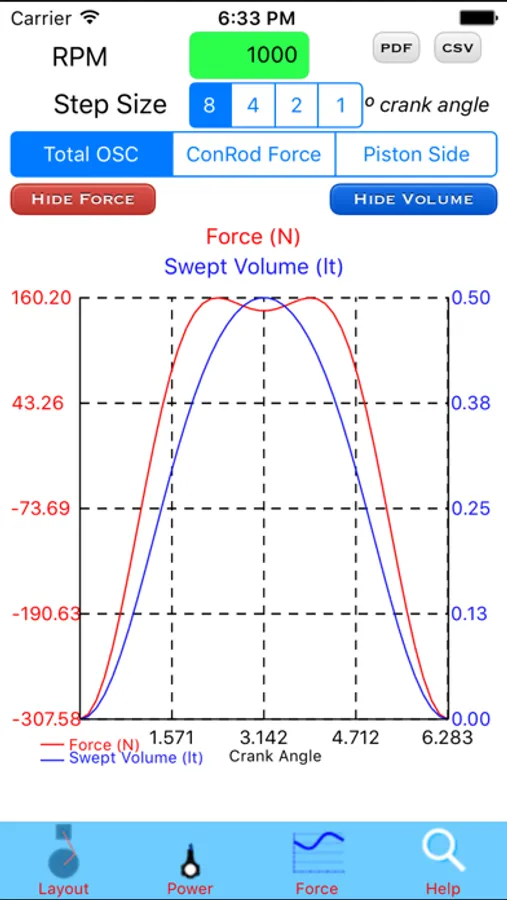

• Displacement volume vs. crank angle
• Dynamic forces vs. crank angle

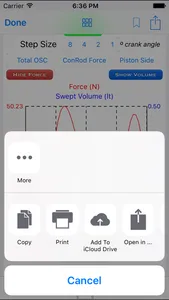

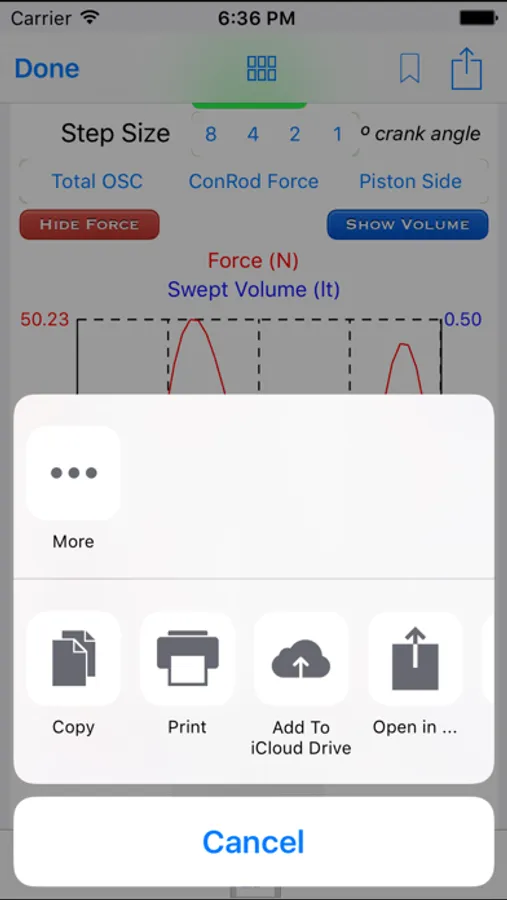

• Export values for spreadsheet analysis or basic FEA (finite element analysis).

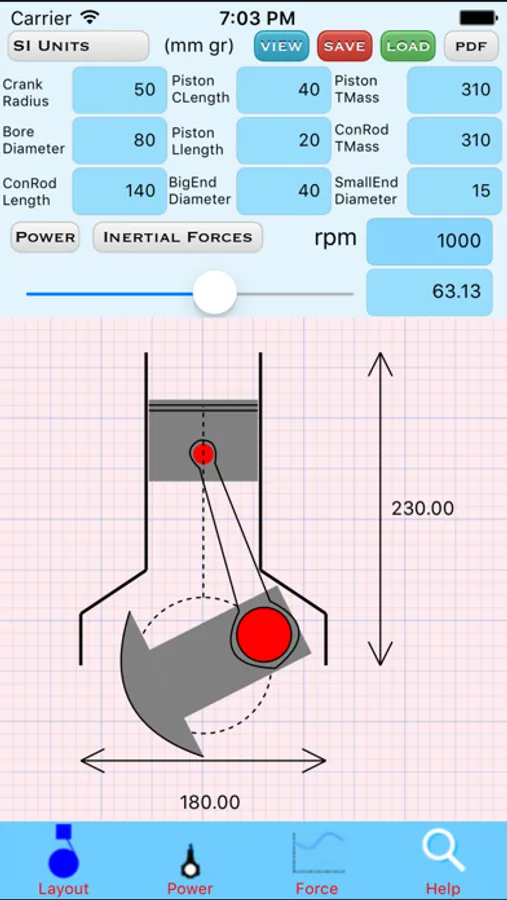

• Interactive simulation: adjust crank rotation with a slider to visualize dimension effects on engine packaging.
Understand how piston–crank geometry impacts engine performance.
• Explore how layout changes affect engine displacement, rated power, and dynamic forces.
• View detailed graphs and data lists:
• Displacement volume vs. crank angle
• Dynamic forces vs. crank angle
• Export values for spreadsheet analysis or basic FEA (finite element analysis).
• Interactive simulation: adjust crank rotation with a slider to visualize dimension effects on engine packaging.
