Beam Calculator

V PUGAZHENTHI
$2.99
3.4 out of 5

About Beam Calculator

Beam Calculator contains 34 calculators to calculate and convert different Beam and Civil Engineering parameters.

Compatible with Metric ( SI ) and Imperial ( USCS ) Units.

• Critical Bending Moment (Rectangular Cross Section)
• Critical Bending Moment (Open Cross Section)
• Critical Bending Moment (Nonuniform Bending Moment Gradient)
• Moment Gradient Factor

• Maximum Stress (Axial and Bending Loads)
• Maximum Stress (Deflection due to Bending is Large)
• Deflection (Axial Compression and Bending)

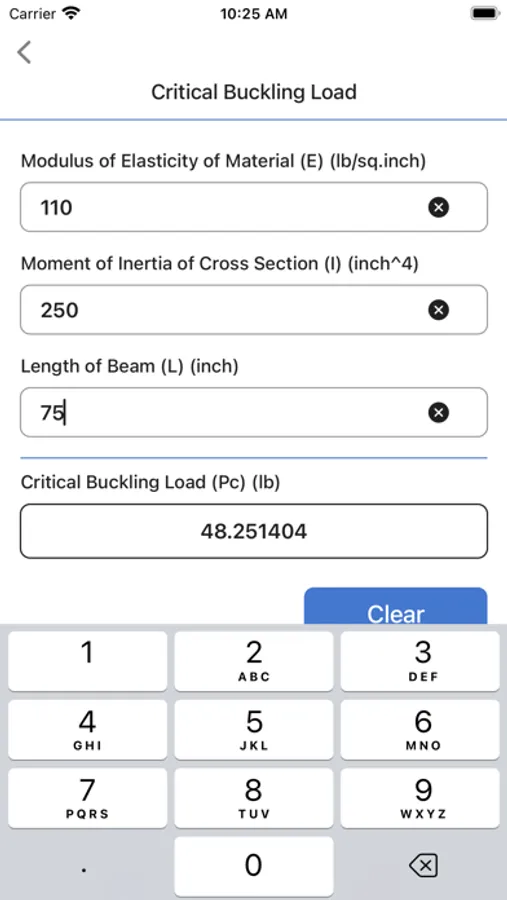

• Critical Buckling Load
• Stress (Unsymmetrical Bending)
• Total Unit Stress (Eccentric Loading)
• Deflection (Eccentric Loading)
• Stress (Eccentric Loading)

• Trial Design Area of Steel
• Area of Compression
• Depth of Compression Area
• Distance from Centroid to Extreme Compressive Fiber
• Nominal Moment Capacity
• Adjusted Steel Area

• Balanced Steel Reinforcement Ratio
• Minimum Steel Reinforcement Ratio
• Maximum Steel Reinforcement Ratio

• Required Beam Dimensions

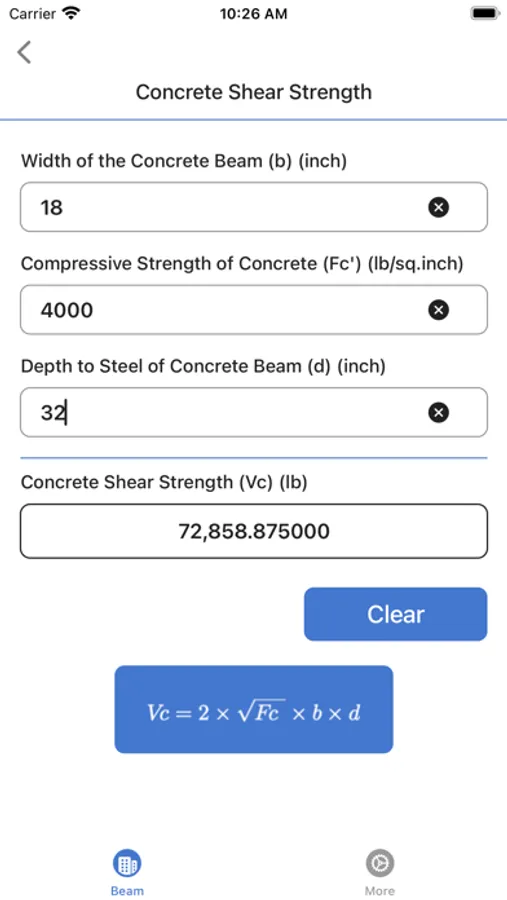

• Concrete Shear Strength
• Steel Shear Strength
• Maximum Allowable Steel Shear
• Maximum Allowable Total Shear

• Horizontal Shear Steel Area
• Angled Shear Steel Area
• Vertical Stirrup Spacing
• Angled Stirrup Spacing
• Vertical Stirrup Shear Strength

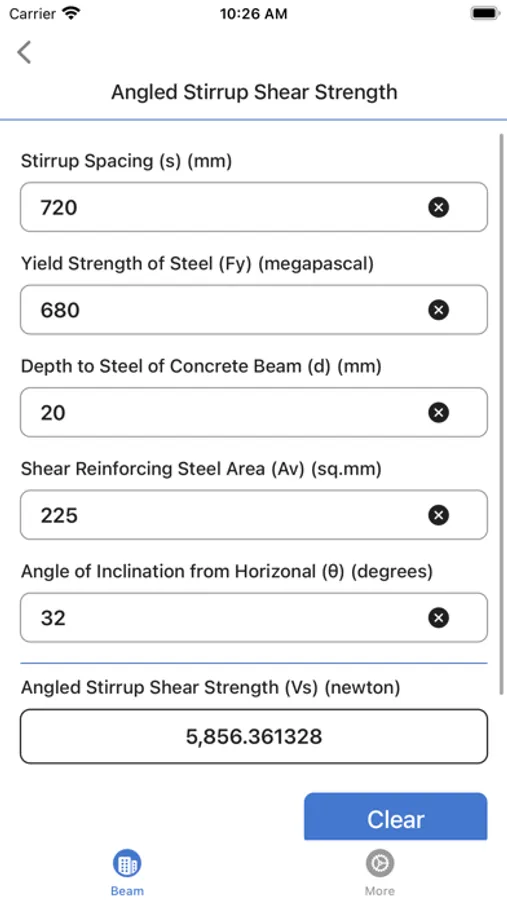

• Angled Stirrup Shear Strength
• Stirrup Embedment Length

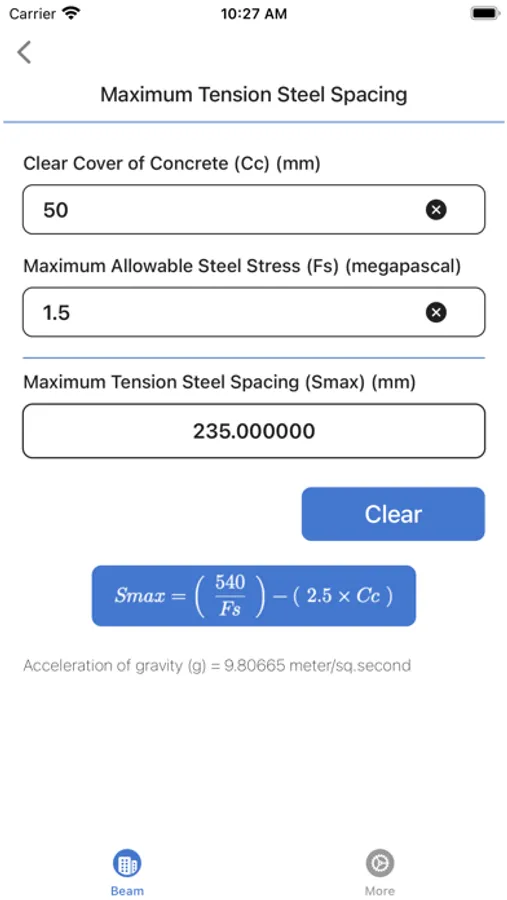

• Maximum Tension Steel Spacing

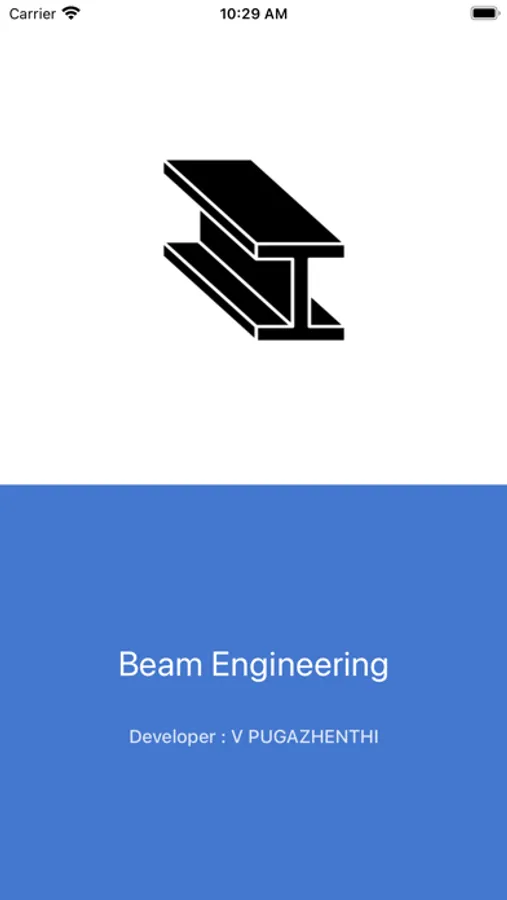

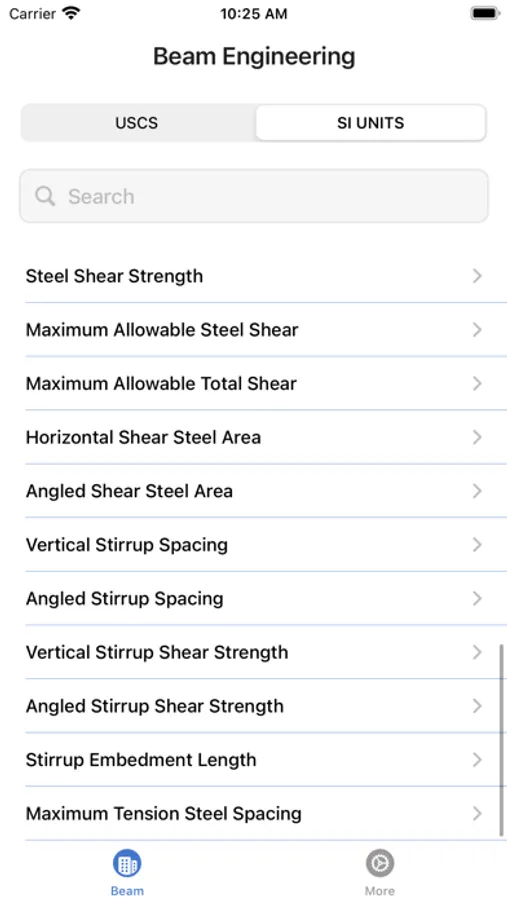

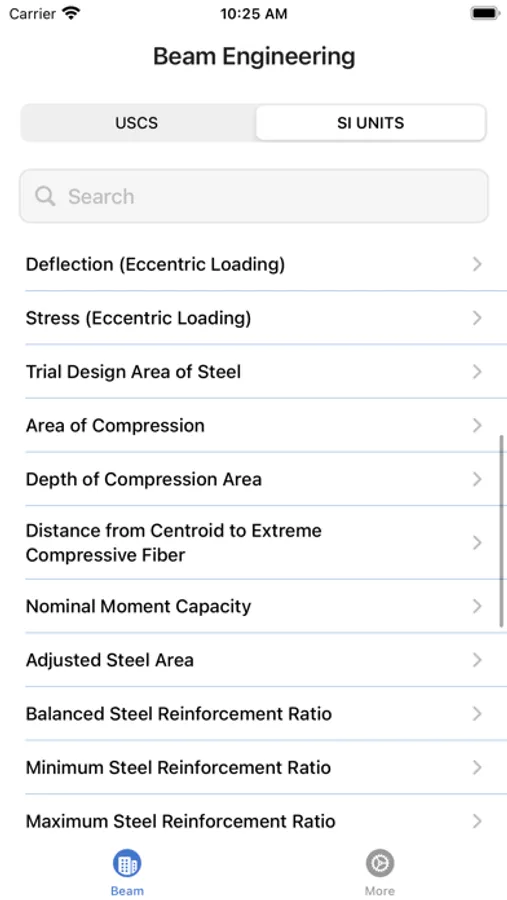

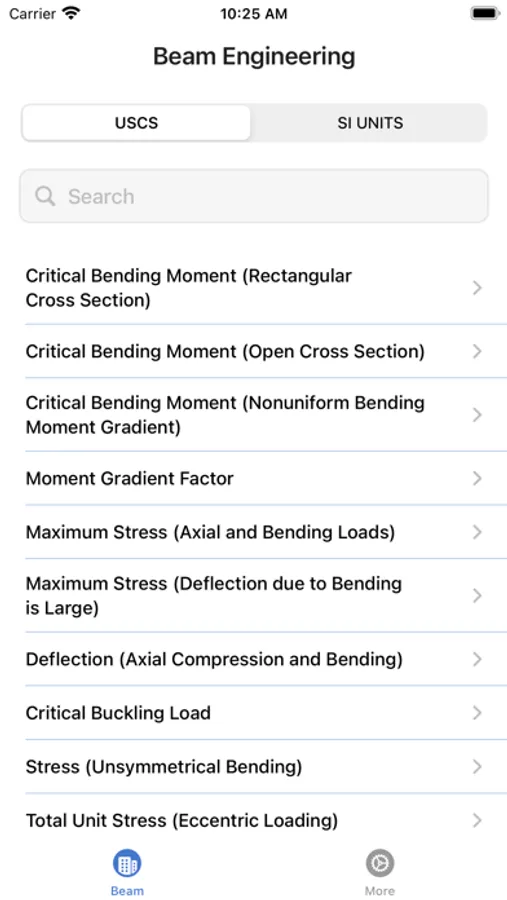

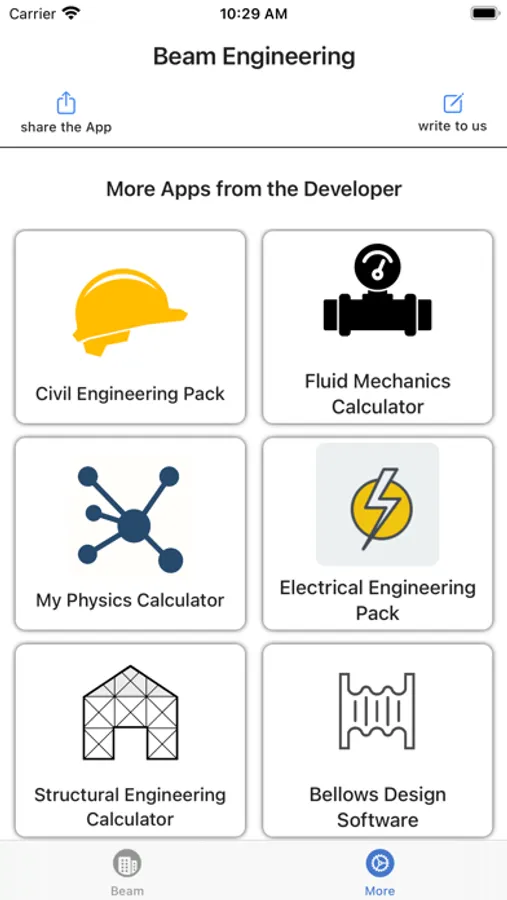

Beam Calculator Screenshots
