Blast Pressure

Rab Elias
$4.99

About Blast Pressure

The purpose of this application is to determine the Blast Pressure acting on a structure based on TNT equivalence value for further analysis and design.

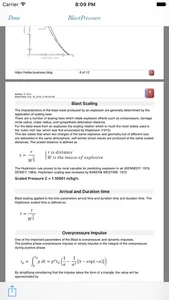

This application generates a full comprehensive report based on scaling laws, Hopkinson rule, Kinney and Graham values.

it will determine the following:
- Scaled Pressure
- Arrival and Duration time
- Overpressure Impulse

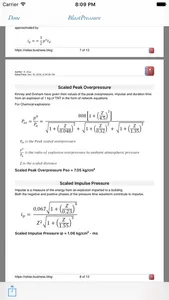

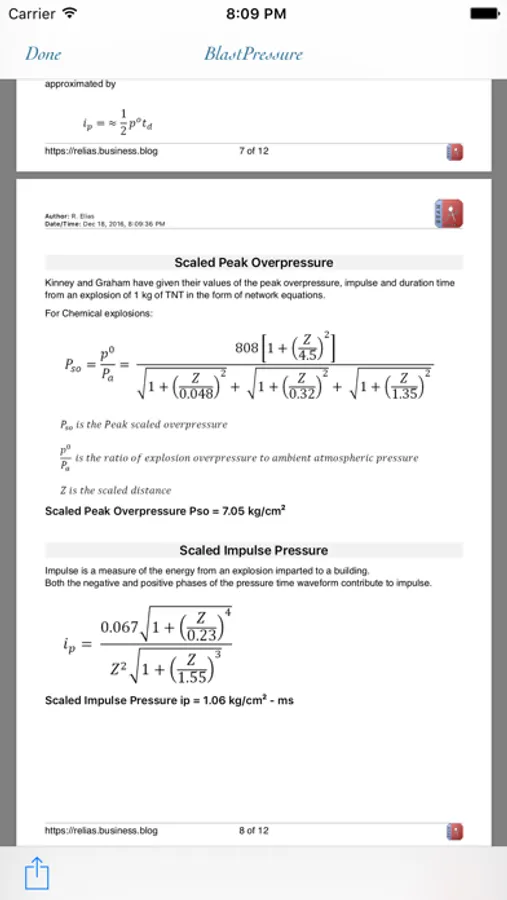

- Scales Peak Overpressure
- Scales Impulse Pressure
- Scaled duration time

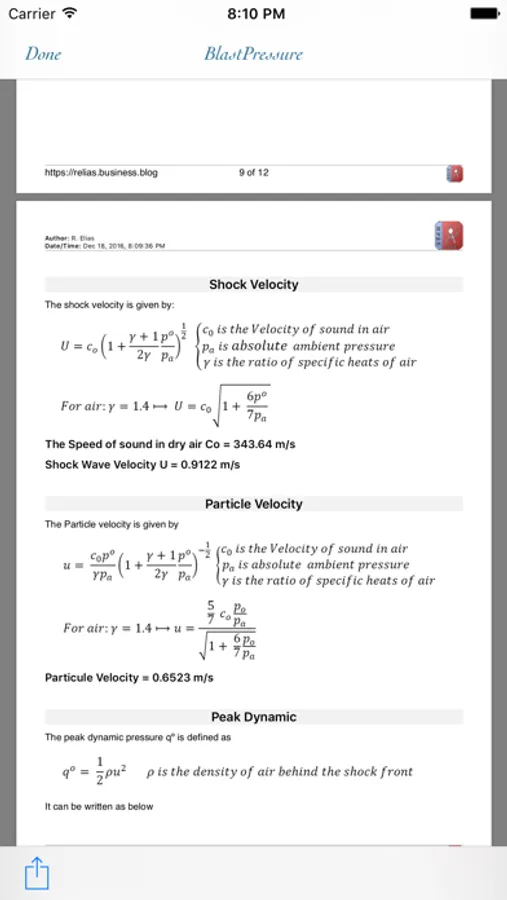

- Shock Velocity
- Particule Velocity
- Peak Dynamic

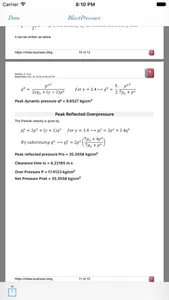

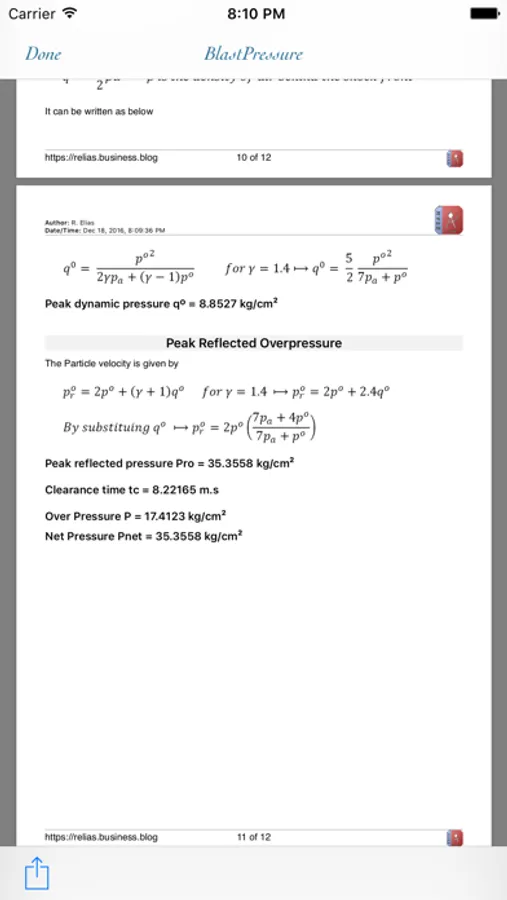

- Peak Reflected Overpressure
- Reflected Time
- Over Pressure
- Net Pressure

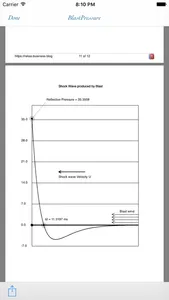

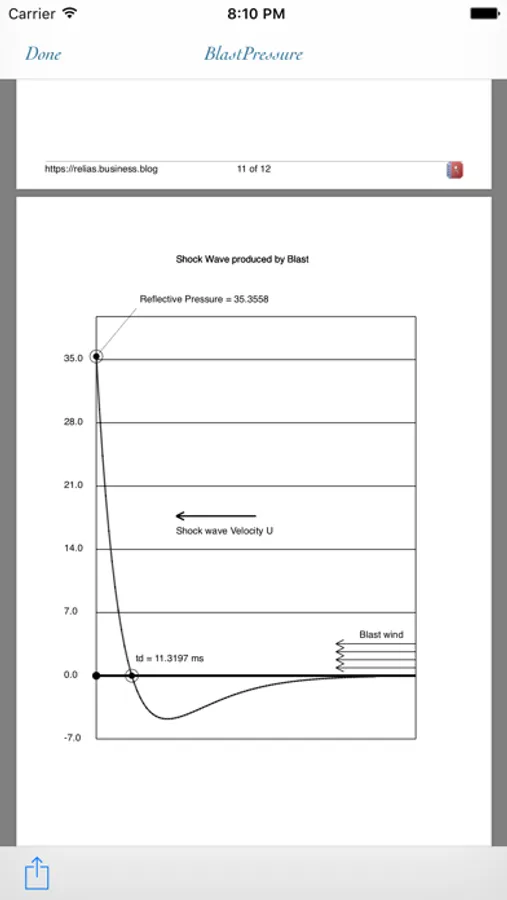

- Shock wave GRAPH produced by Blast acting on wall at any time t

Material can be used in this application: TNT, Dynamite, Amatol, Compound B, HMX, Lead Azide, Mercury Fulminate, Nitroglycerin, PBX, PE4, Pentolite, PETN, RDX, Semtex, Tetryl

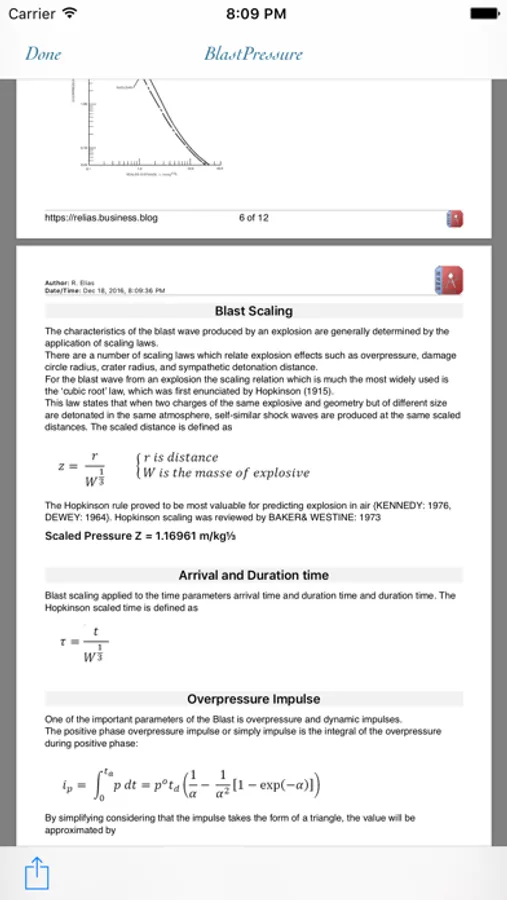

Blast Pressure Screenshots
