ElbowData

With version 10, the application allows you to quickly visualize relational values related to pipes and elbows (Carbon Steel / Stainless Steel) according to ISO / ASME standards, making it a practical tool for industrial piping.

An ultra-fast and intuitive way to retrieve:
Diameter → Angle → Radius → Extrados → Intrados,
regardless of the angle or diameter, in a single step.

This provides up to 810 possible entries with one click.

With this version, you can choose how to control diameter selection:

via a slider, or

via pre-filled input fields.

ElbowData is free forever.

Features

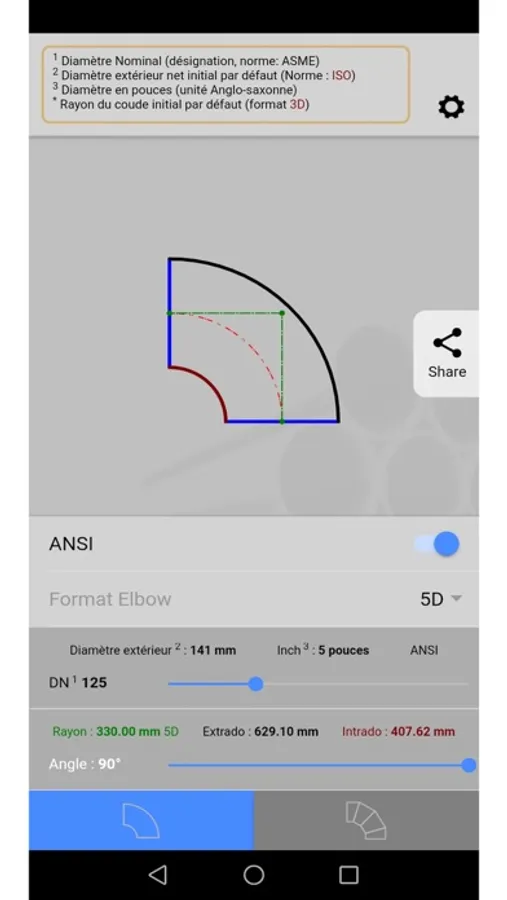

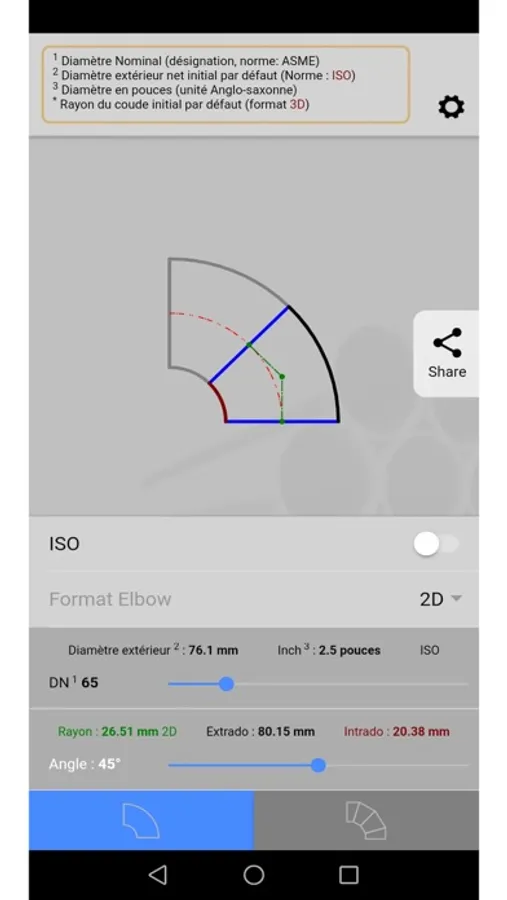

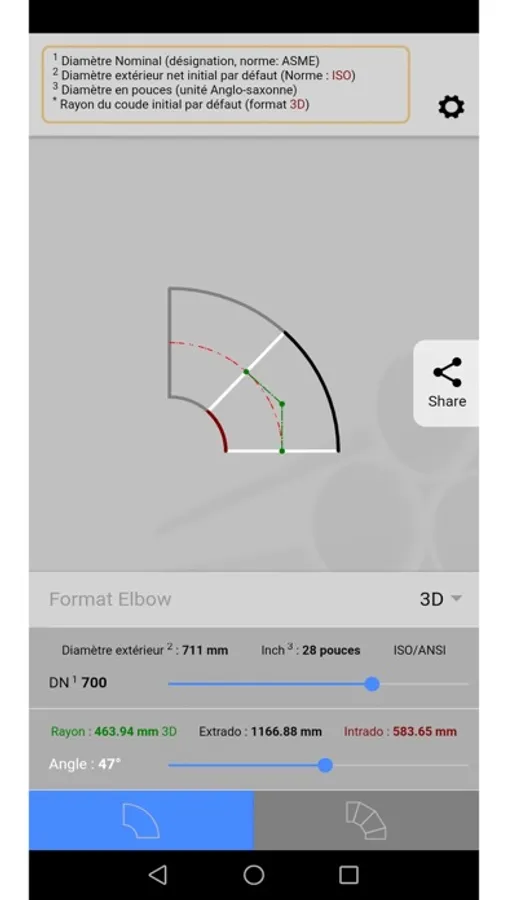

Elbow formats: 2D / 3D / 5D

Segmented elbows (lobster back):

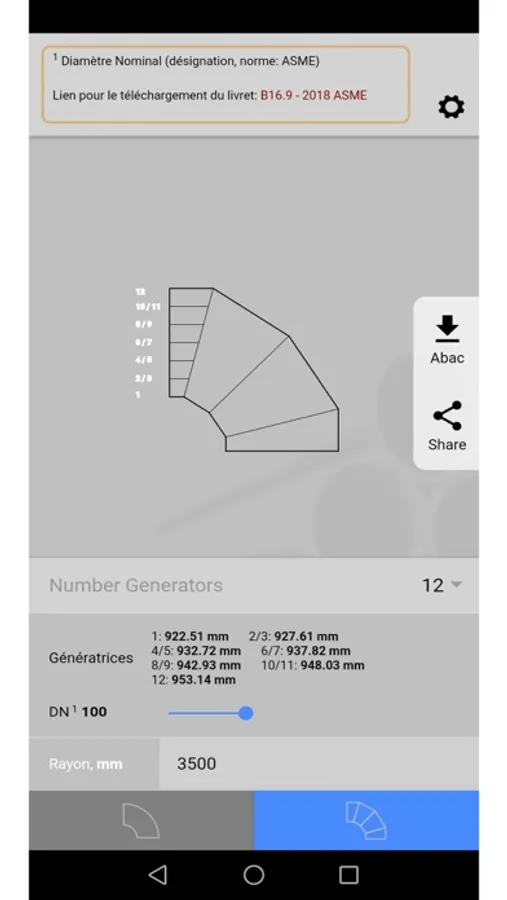

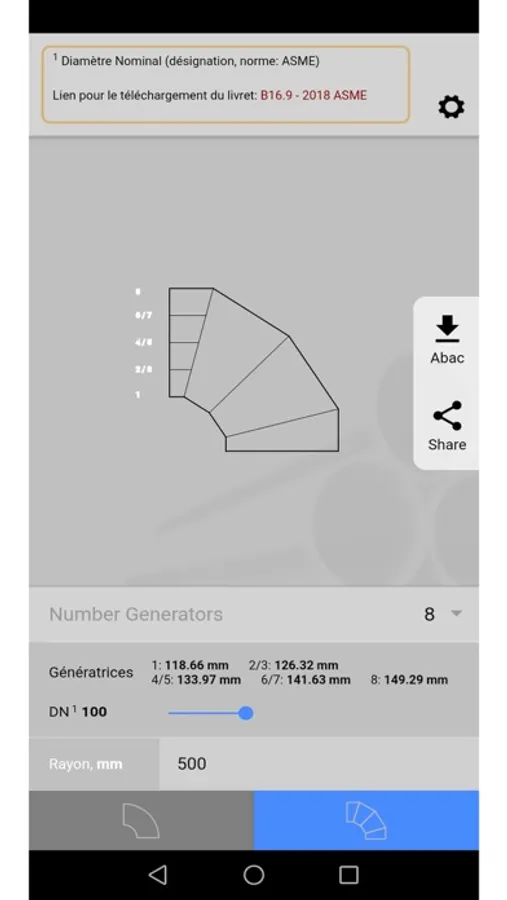

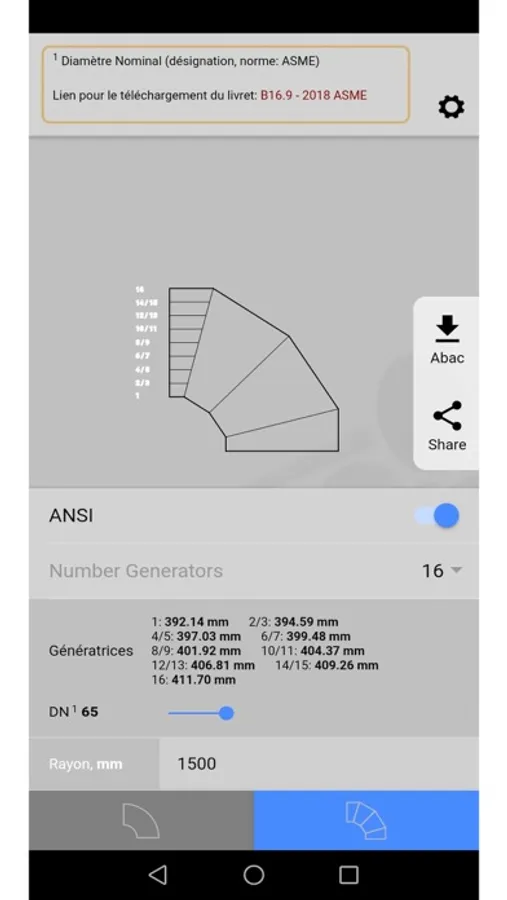

8 generators / 12 generators / 16 generators

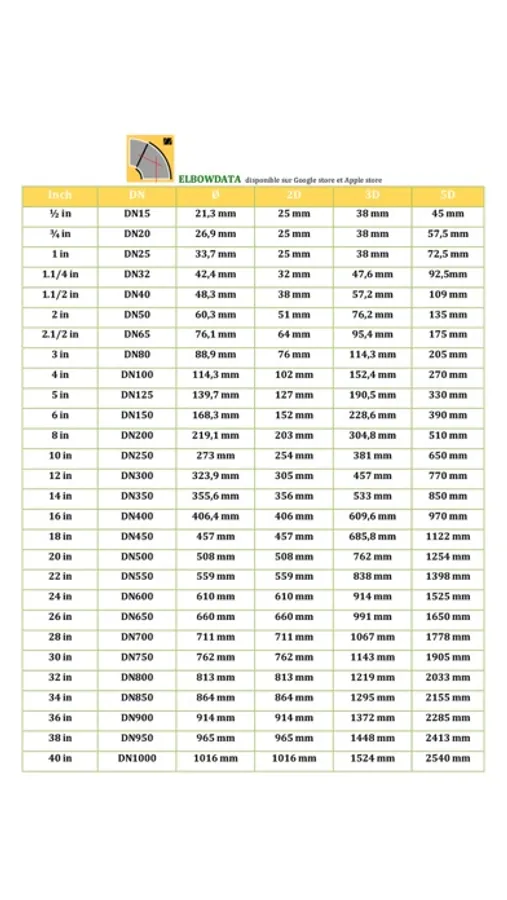

PDF abacuses and isometric sheets including:

bill of materials based on the selected language,

technical memo,

generator templates

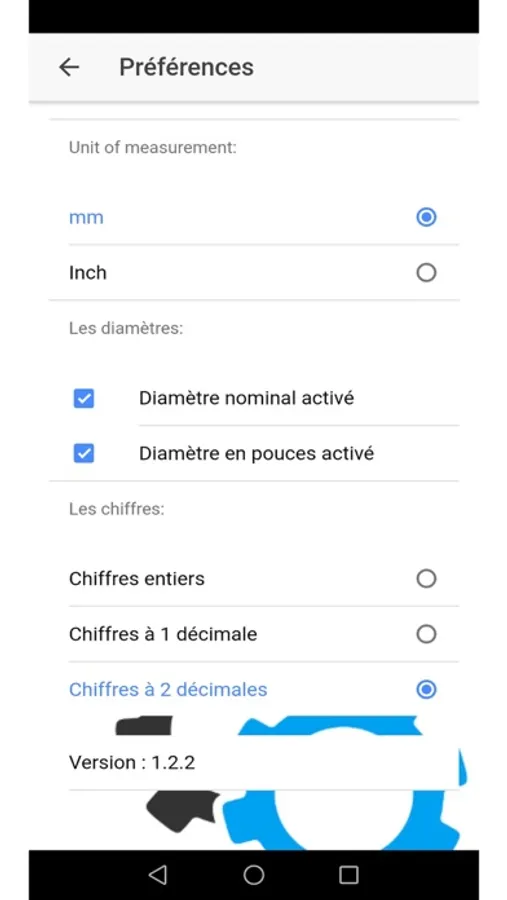

Inch / millimeter conversion

Scientific calculator optimized for industrial piping

Saved language selection

This version benefits from UI, design, and ergonomic optimizations.

Advertisements are now non-intrusive, ensuring a smooth and free user experience, with rewarded ads and technical articles related to industrial piping.

You can support the developer with your suggestions and/or access the premium version.

Thank you!
If you have any feedback about the application, feel free to contact me by email.
