iSection icon

iSection

ahmj
$2.99
2.5 out of 5

About iSection

For all structural engineers, steel designers, mechanical engineers: This engineering application for the iPhone or the iPod Touch calculates the mechanical and structural properties of three-plate built up section members. That includes moment of inertia, modulus of section, radius of gyration, area and weight. The calculations are done in both principal axes.

This program is particularly useful for analysis and design of indeterminate structures and for calculating actual and allowable (permissible) stresses

The input is top flange width, top flange thickness, bottom flange width, bottom flange thickness, web depth and web thickness. The top flange and bottom flange dimensions can vary.

you can select a section from a large library of hot rolled shapes: European IPE, HEA, HEB, HEM, American W shapes, Canadian W metric shapes and British universal beams and columns (UB and UC shapes). More shapes from other countries will be added in the next releases. All these will be free upgrades for those who purchase the current version.

The input can be in mm or inch units, the output of area, Ixx, Sxx, Sxt, Sxb, Iyy, Iyt, Iyb, Syy rx, ry, rt, rb, Syt, Syb, depth and neutral axis can be displayed in mm or inch units. The weight can be displayed in kg/m or Lb/ft.

See also iConcrete and EnCalculator in the App Store.

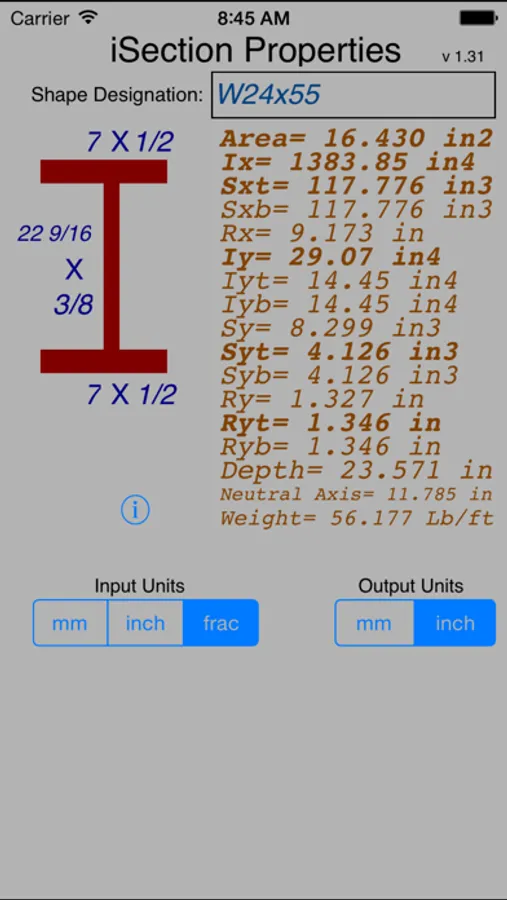

iSection Screenshots
