With this electronics reference app, you can access calculators and datasheets for resistor codes, schematics, pinouts, and electrical parameters. Includes resistor and capacitor markings, schematic symbols, voltage dividers, and PCB trace resistance tools.
AppRecs review analysis
AppRecs rating 4.5. Trustworthiness 61 out of 100. Review manipulation risk 29 out of 100. Based on a review sample analyzed.
★★★★☆
4.5
AppRecs Rating
Ratings breakdown
5 star
87%
4 star
10%
3 star
1%
2 star
1%
1 star
0%
What to know
✓
Low review manipulation risk
29% review manipulation risk
✓
High user satisfaction
87% of sampled ratings are 5 stars
✓
Authentic reviews
No red flags detected

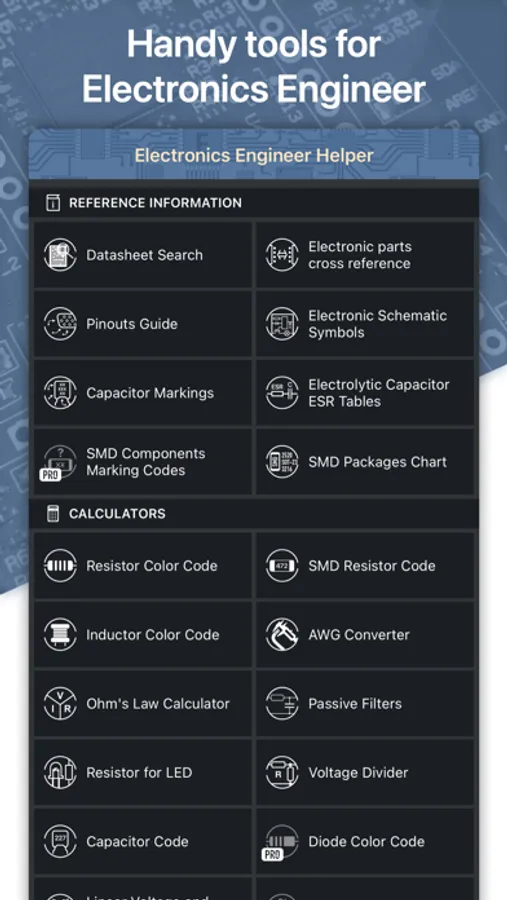

About Electronics Engineer Helper

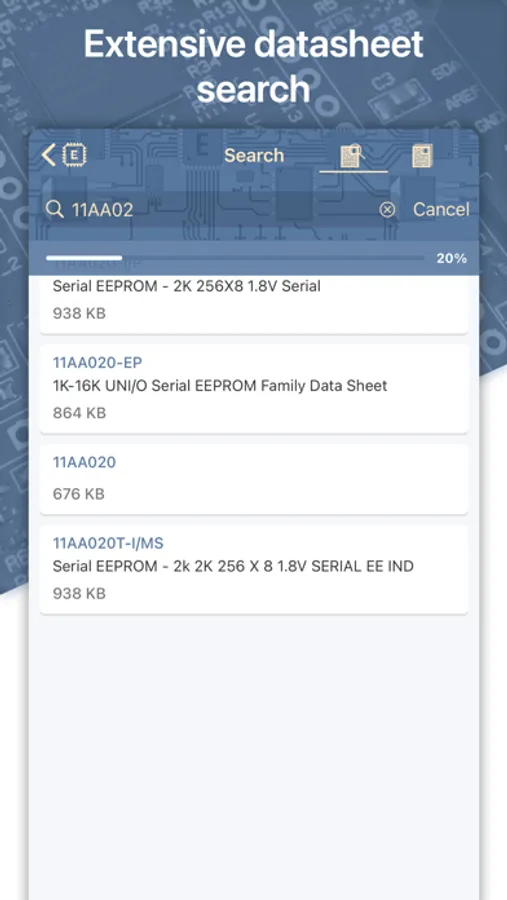

• Datasheet search

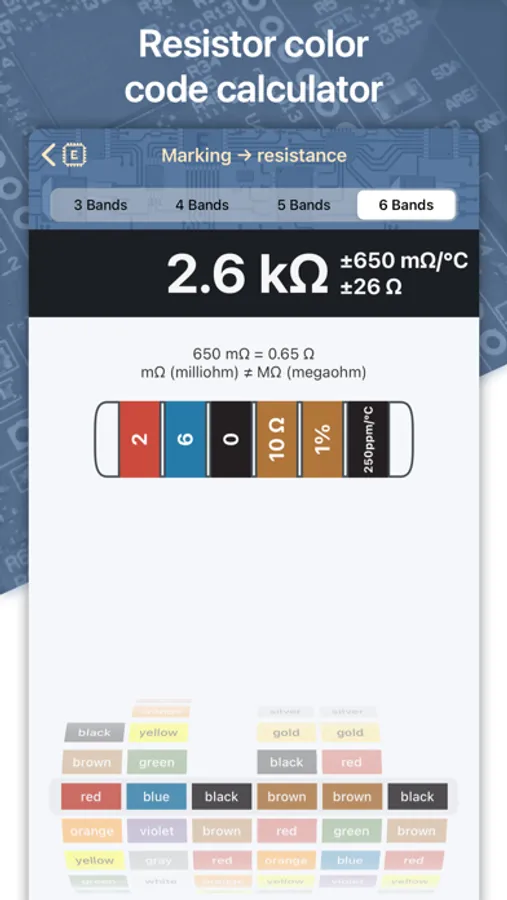

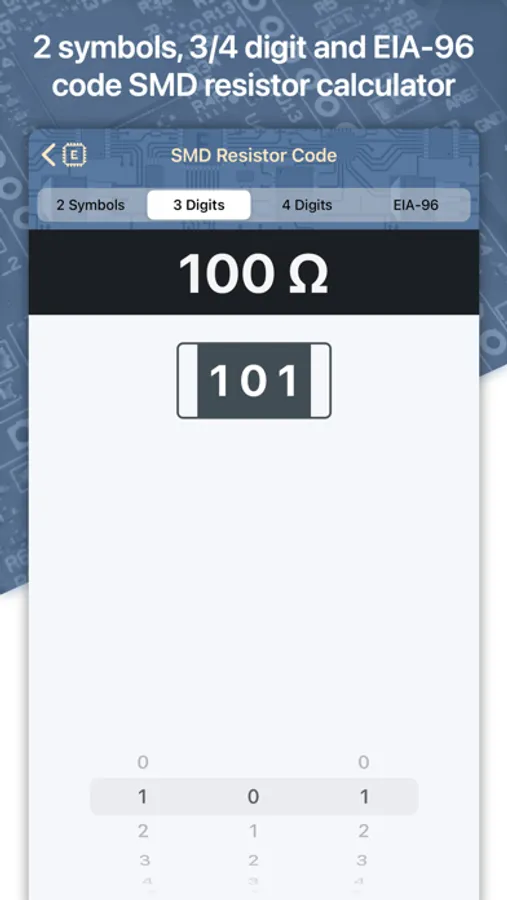

• Resistor color and digit marking (4, 5 and 6 band color code; 2 symbols, 3/4 digit and EIA-96 code SMD resistors code)

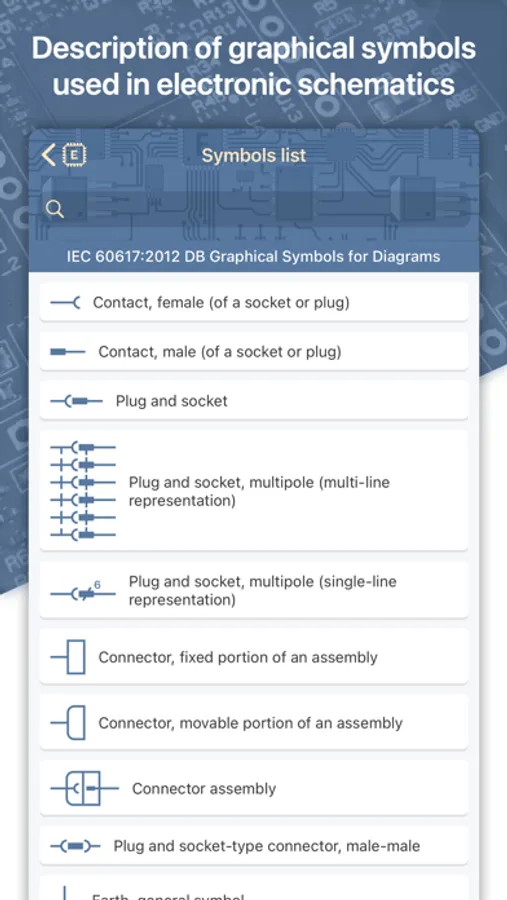

• Electronic schematic symbols (IEC 60617, IEEE 315 and GOST standards)

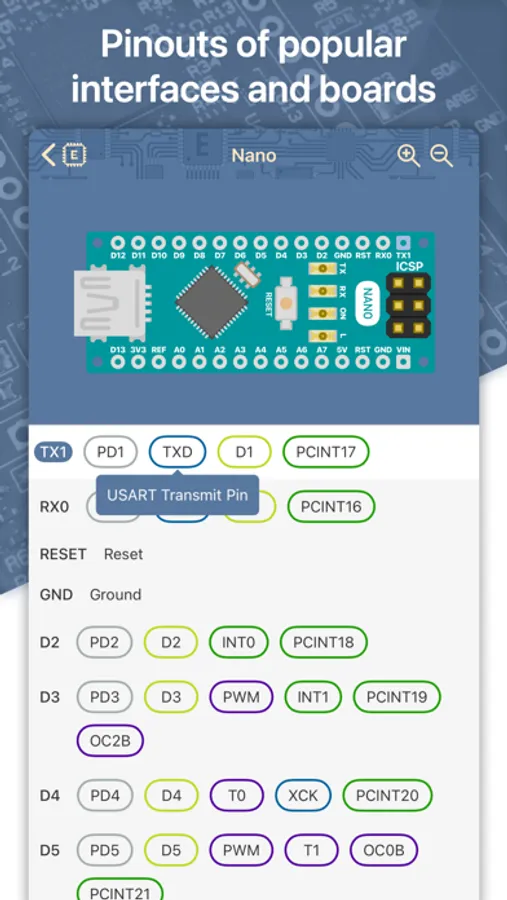

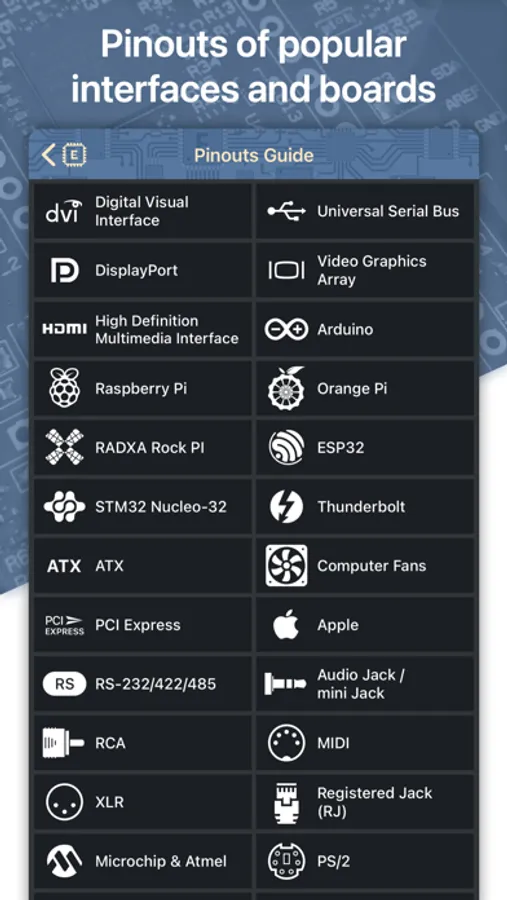

• Pinouts Guide (DVI, USB, Display Port, VGA, HDMI, Thunderbolt, Apple, RS-232/422/485, ATX, RCA, MIDI, XLR, Audio Jack, Arduino, Orange Pi, STM32, ESP32, and Raspberry Pi)

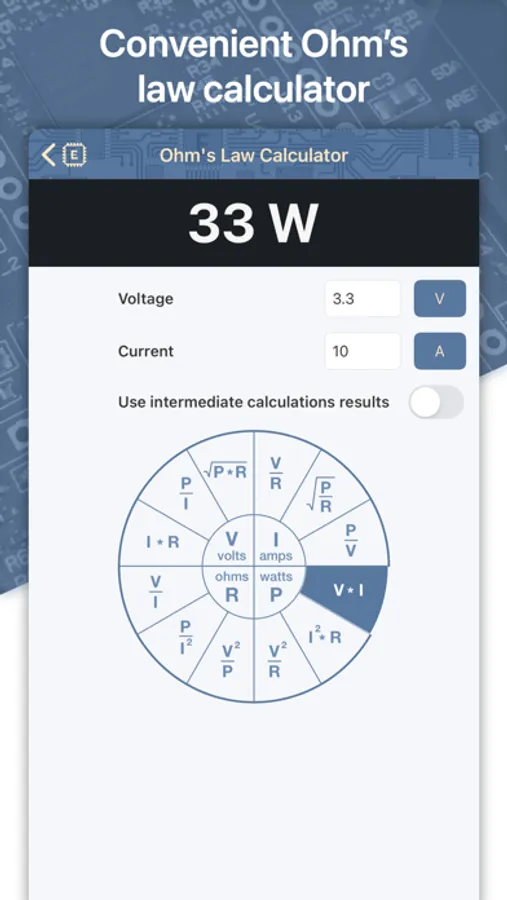

• Ohm's law calculator
• AWG converter (wire diameter, cross-section area, resistance and maximum current)

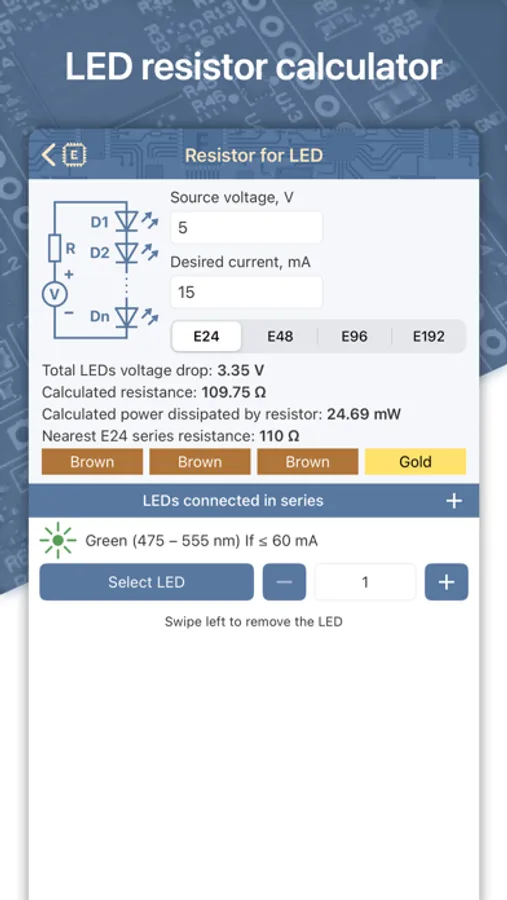

• Resistor for LED

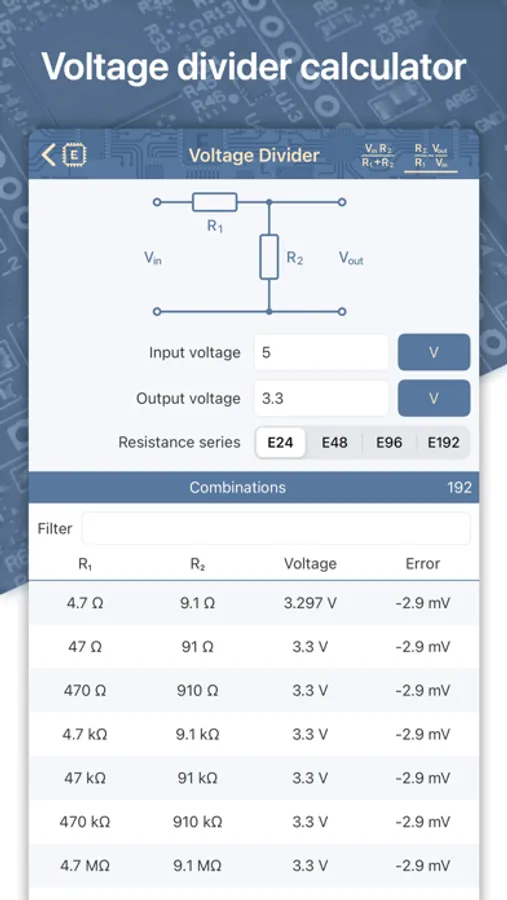

• Voltage divider
• Capacitor code
• Capacitor markings
• Capacitor ESR tables
• Frequency response curve calculation of passive filters (RC, RL, RLC, LC)
• Inductor color code
• Linear current regulator
• SMD packages list
• Reactance
• PCB trace resistance
Additionally, by purchasing the PRO version of the app, you will get access to additional tools:
• SMD components marking codes
• Diodes color code (Pro Electron, JEDEC and JIS-C-7012 standards)
• Linear voltage regulator
• Resistor value to color marking converter
• Voltage rectifier
• Series or parallel electrical components' connection calculator
• Diode voltage drop
• Minimum PCB trace width
• Analog to digital conversion
Privacy Policy: https://rengate.github.io/EE-Helper-ToU-and-PP/PP.html
Terms of Use: https://rengate.github.io/EE-Helper-ToU-and-PP/ToU.html
Electronics Engineer Helper Screenshots
Tap to Rate:
Reviews for Electronics Engineer Helper
Nickname nickname dirty Dave
Almost at a loss for words
Before I downloaded this app I already knew this was gonna be good by the obvious effort the developer puts into this by taking the time to respond to everything, this is almost priceless for anyone in this field, it’s dang sure selfless from the person that made it. Thanks.
Saiyaman45
Simply Marvelous!!!
Amazing collection of tools, pin outs, data sheets search and others source with exactly images how look like the components, great job!!! Fully recommend!!!
