The YELLOW JACKET® YJACK VIEW™ app provides seamless integration with YJACK™ and P51-870 TITAN® devices offering a complete HVAC/R system diagnostic solution (hardware purchase required).
Supported Hardware Includes:
P51-870 TITAN® Digital Manifold
YJACK PATH® Range Extender
YJACK™ Temperature Clamp
YJACK™ Temperature Strap
YJACK DEW™ Psychrometer
YJACK PRESS™ Pressure Gauge
YJACK VAC™ Vacuum Gauge
YJACK AMP™ Current Probe
YJACK MANO™ Manometer
68864 Wireless Refrigerant Scale
Receive and analyze live data including system pressure, temperature, vacuum level, psychrometric data, duct pressure drops, fuel pressure settings, weight readings, and electrical current. The app includes a variety of session types useful for diagnosing any HVAC/R system.

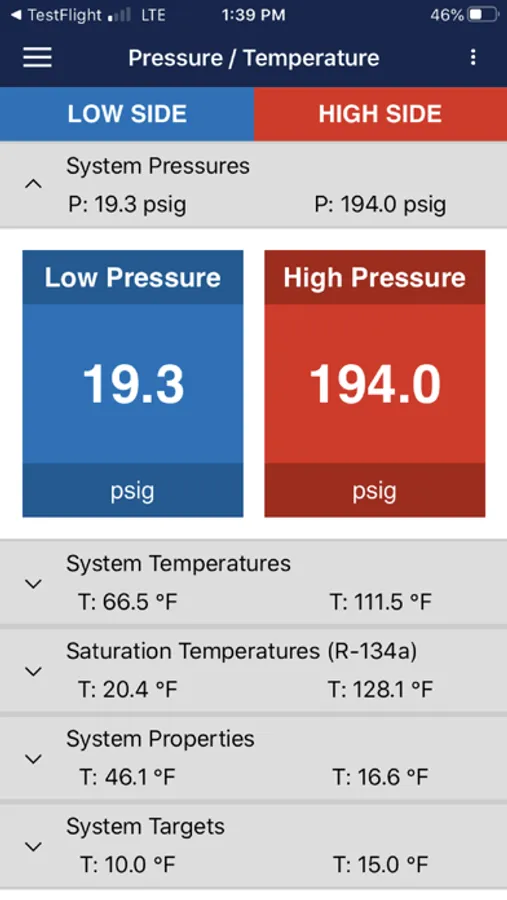

PRESSURE / TEMPERATURE

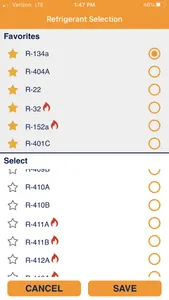

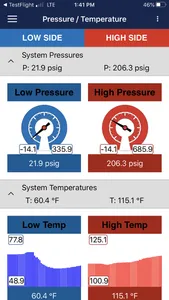

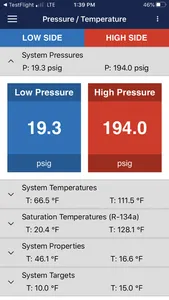

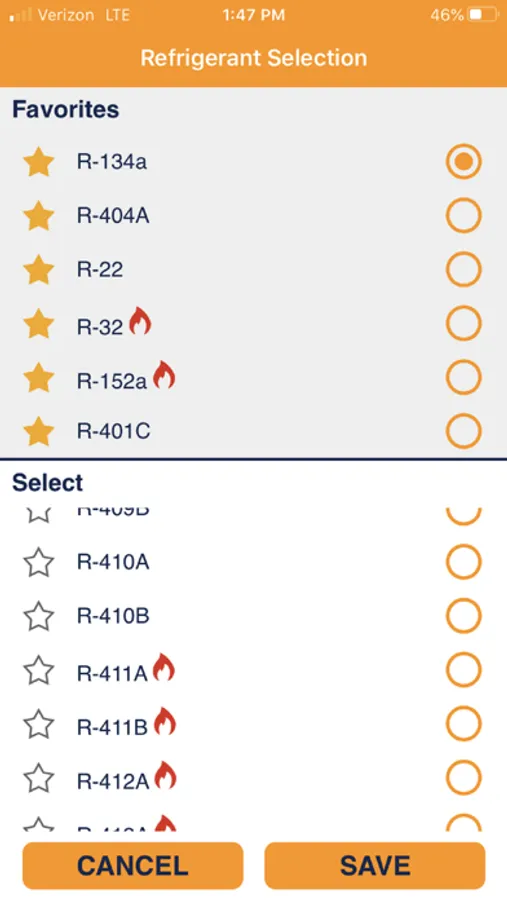

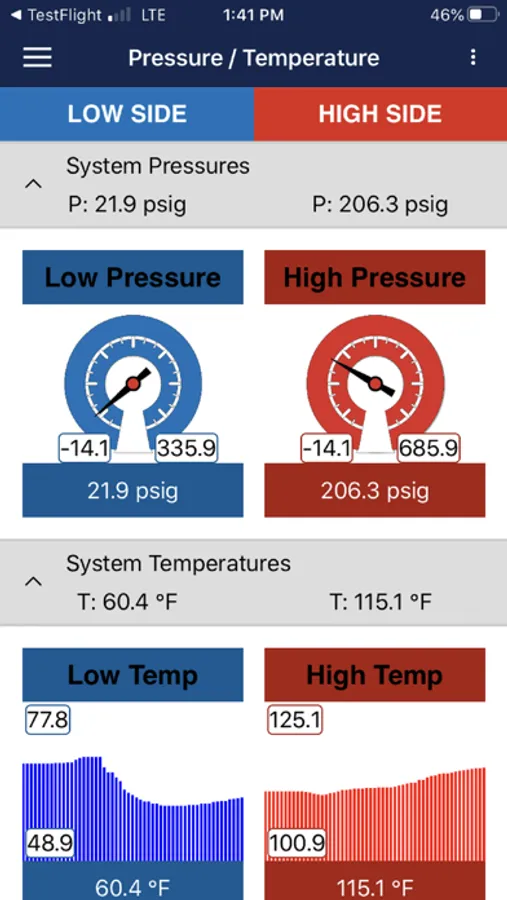

View System Pressure and Temperature data. Select and favorite commonly used refrigerants for calculating system properties including saturation temperatures and calculated system superheat/subcooling. Manipulate data view types, including traditional large number format, analog gauge (pressure only) or line graph format.
PSYCHROMETRIC SYSTEM EFFICIENCY

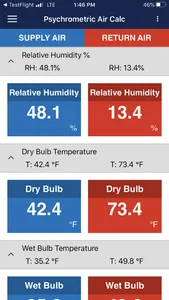

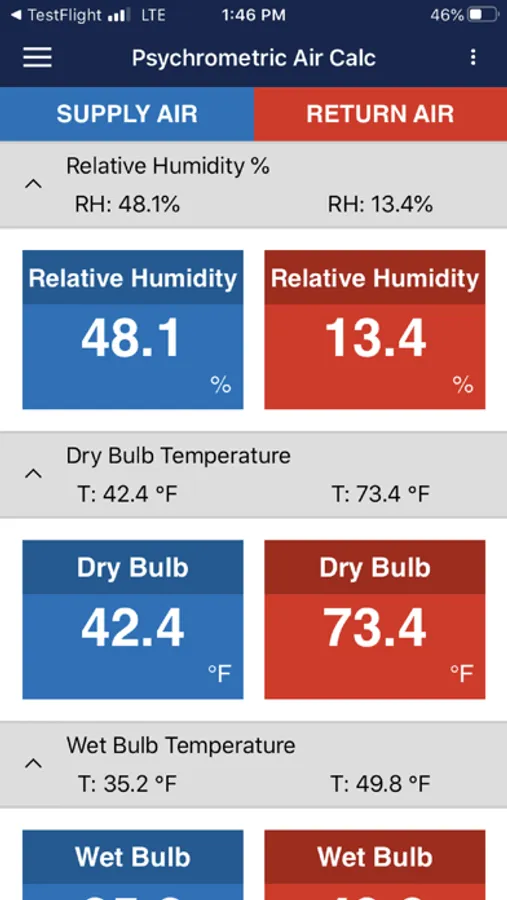

Analyze psychrometric data as reported by (2) YJACK DEW™ devices. Ensure maximum home comfort through wireless supply and return relative humidity, dry bulb, wet bulb, dew point temperatures and enthalpy calculations. Compare system-rated capacity to actual output for overall system efficiency. View available data as traditional large numeric format or graphically.

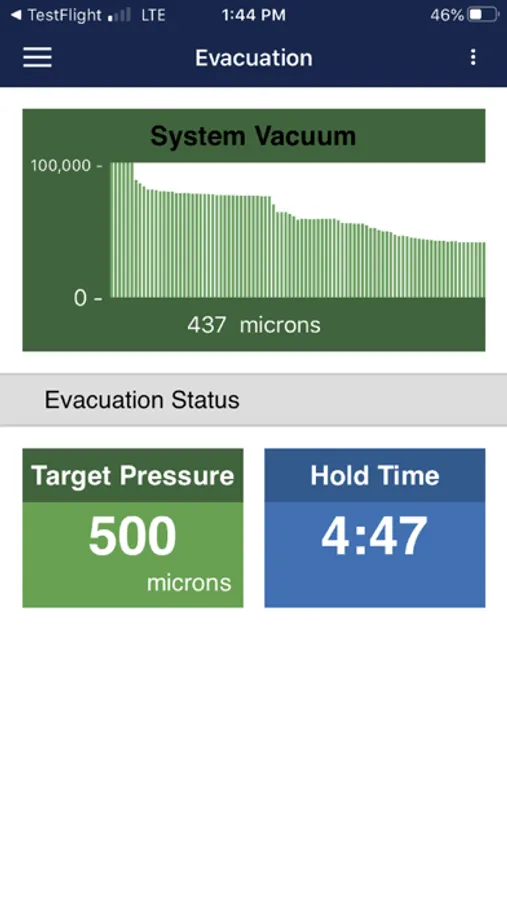

EVACUATION
Monitor system vacuum as reported by a P51-870 TITAN® external wired vacuum sensor or the YJACK VAC™ Wireless Vacuum Gauge. Data can be displayed as traditional large number format, analog gauge or graphically. Adjustable Vacuum Pressure Target and Hold timer ensures all refrigerant, moisture, and non-condensable gases are removed from the system during evacuation.
LEAK TEST
Monitor pressure changes during pressurized leak testing to verify that system is tight. View system pressure trends as traditional large numeric format or graphically.
CHARGING & RECOVERY
Display scale readings from the Wireless Charging Scale (P/N 68864) to accurately charge systems or to determine system charge amount through recovery. View readings from your Wireless Refrigerant Scale with simultaneous gross weight and weight change fields.
ELECTRICAL
Electrical session displays readings from YJACK AMP™ Wireless Current Probe wile monitoring AC current and inrush. These readings are used for calculating power draw and EER.
STATIC PRESSURE
Set regulator fuel settings and review system pressure drop data as reported by the YJACK MANO™ device. Select and record pressure drops across multiple different locations like the filter, the coil, external static pressures, and gas pressure readings to upload into a report for the customer all in one session.
AVAILABLE DEVICES

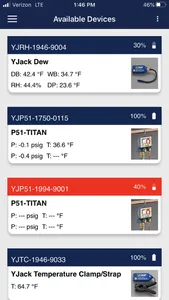

Monitor the data and battery life of your devices. Create a perimeter of devices by placing YJACK PATH® devices periodically throughout the work area, boosting the signal of all nearby devices.
CREATE/MANAGE/SHARE SERVICE REPORTS

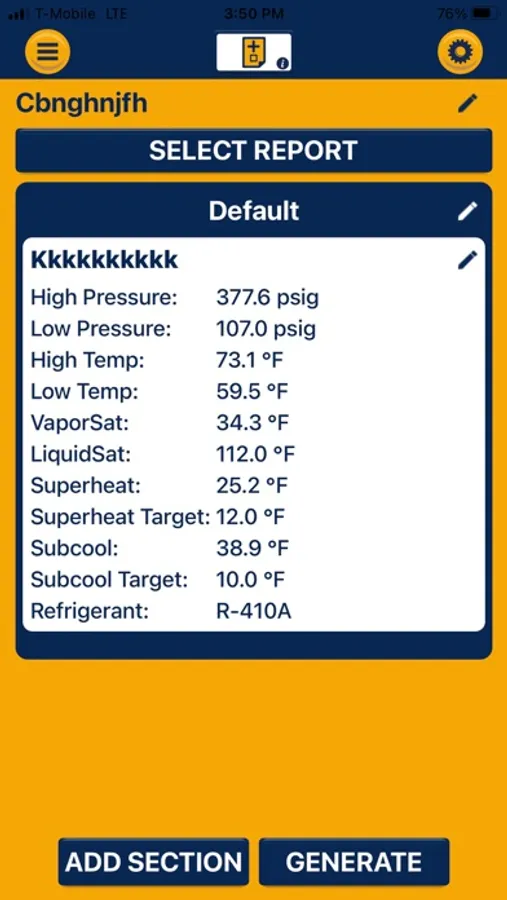

Create highly customizable PDF reports of system measurements and service information while storing past jobs and reports. The user profile feature stores user information that is automatically generated in the header of each report.
ENHANCED DATALOGGING

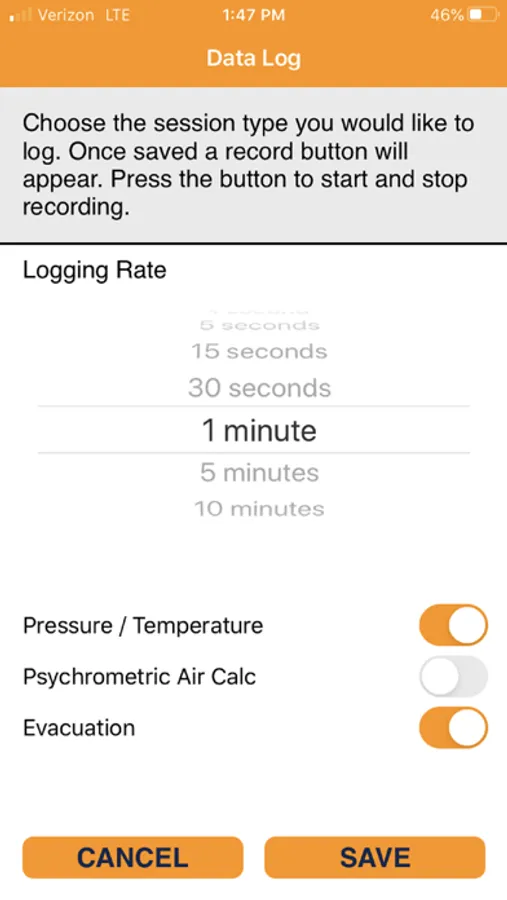

Record data from one or all current session types as desired. Choose from a variety of sampling rates depending on user need. Live updates to selected devices, units, elevation, refrigerant selection appended to existing data logs. Start and stop datalogging at will, save for later, or share via email for remote analysis.
STREAMLINED USER EXPERIENCE
Enhanced user interface focuses on streamlining the user experiencing by eliminating connection between YJACK™, P51-870 TITAN® and smart devices and providing a fluid environment allowing the user full control of system data types, data view, and datalogging.
